SL Rack Energy Wall Solar Panel Mounting System for Facades and Walls
- SL Rack Energy Wall is designed as a modular wall-mounted PV system rather than a conventional roof rail adapted to a façade. Its advantages are faster, simpler installation; flexibility for different modules and walls; and aesthetic, durable and safety-led design.
- The system uses three pre-assembled façade rail profiles - bottom, middle and top - with the required stainless-steel hardware. Installers place the modules into the profiles and secure them along the profile length, rather than assembling multiple separate clamps and rails on site.
- SL Rack Energy Wall accepts module-frame depths from 28 mm to 50 mm, so it can accommodate many standard framed PV modules without a bespoke rail design for each panel model. It also allows horizontal or vertical module installation, subject to the selected rail length and project design.
- The system is made from black anodised aluminium with stainless-steel hardware, giving it a corrosion-resistant, low-profile appearance. Modules are attached with an almost invisible fixing arrangement, which suits visible façades, offices, schools, warehouses and premium residential projects.
Key features
-
Pre-assembled installation components:
The system is designed around pre-assembled profiles and stainless-steel hardware, reducing loose parts and supporting faster on-site installation.. -
Portrait and landscape module layouts:
Solar modules can be installed in vertical or horizontal orientation, subject to the selected façade layout, rail length, mounting design and module manufacturer requirements. -
Integrated equipotential bonding:
The façade insertion profiles include integrated equipotential bonding, helping form part of the required electrical bonding arrangement for the PV mounting structure.. -
Fixing solutions for varied wall substrates:
The SL Rack range includes façade-fixing options for concrete, solid and hollow masonry, façade insulation systems, trapezoidal facades and other project-specific applications. Energian will provide a bespoke design for your application developed using SL-Rack's official design software. -
Thermally separated fixing option:
The Hilti HIK-T thermal anchor option is intended for façade systems with external thermal insulation, helping provide a secure fixing while reducing thermal bridging through the insulation layer. -
Maintenance-friendly module access:
The profile-based system is intended to make individual module removal and replacement more straightforward than systems requiring extensive rail or clamp disassembly. - Installer training and support is available from Energian - official distributor of SL-Rack in the UK. Contact us for details
Where to use

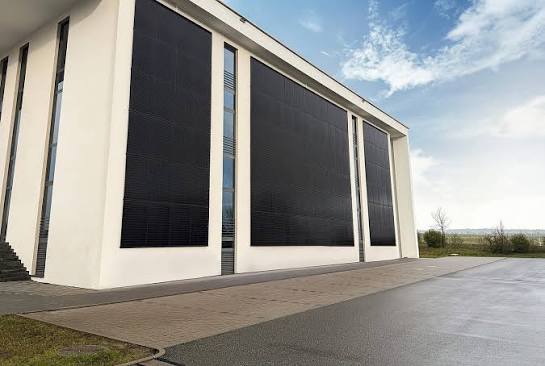

This kit is designed for facade-mounted solar installations on commercial, industrial or residential buildings where wall space is used instead of, or alongside, roof-mounted arrays. Typical applications include warehouse and logistics facades, office buildings and public-sector premises seeking an integrated, low-profile solar installation.
Facade mounting introduces structural, weather-proofing and wall-fixing considerations that vary by building type and wall material. This system should be installed by a qualified solar installer or one of Energian's trusted installation partners, who can assess wall suitability, fixings and local wind/snow load requirements before installation.
Technical specifications
| Product name | SL-Rack Wall Solar Panel Mounting Kit |
| System type | Facade or wall solar panel mounting system |
| Panel orientation | Portrait / Landscape |
| Panel capacity | Unlimited |
| Installation method | Streamlined, top-down insertion and clamping |
| Compatible wall materials | Concrete, masonry, wood/timber, metal or structural cross-rail Interlocking facades |
| Material | Specialised architectural-grade metals, alloys, and structural metals |
| Coating | Black anodised surface finish |
| Standard colour | Black |
| Testing/certification | European and International Engineering Standards |
| Warranty | 10 years |
| Origin | Made in Germany |
Video
Documents for download
Shipping
Available for shipping to the UK, Ireland and worldwide.
UK expert support
UK expert support is available for facade-mounting design, wall-fixing suitability and installer referrals. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation.
