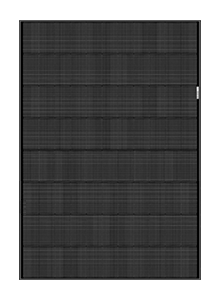

REC Alpha Pure-RX 470W All Black HJT Solar Panel
The REC Alpha Pure-RX 470W is a premium all-black residential solar panel, combining high-efficiency N-type heterojunction (HJT) cells with REC's gapless, lead-free construction. Its compact 1728 × 1205 mm format delivers 470W from 2.08m², making it well suited where roof space is limited.
Key Features
- 470W nominal output with 22.6% module efficiency
- N-type HJT, 88 half-cut bifacial cells with gapless technology
- Four-section layout with four bypass diodes for improved partial-shade performance
- All-black anodised aluminium frame and black backsheet
- Lead-free, RoHS-compliant construction
- Stäubli MC4 PV-KBT4/KST4 connectors and 1.7m 4mm² cables
- High load resistance: up to 7,000Pa front and 4,000Pa rear design load
Where to Use
Its four-section cell layout and four bypass diodes improve resilience to partial shading, while the approximately 9A operating current supports compatibility with modern optimisers and microinverters. The bifacial cell construction can also capture reflected light where the installation permits.
Technical Specifications
| Model / SKU | REC470AA-PURE-RX-AB |
| Rated power (Pmax) | 470W |
| Module efficiency | 22.6% |
| Vmp / Imp | 55.4V / 8.49A |
| Voc / Isc | 65.6V / 8.95A |
| Dimensions | 1728 × 1205 × 30mm |
| Weight | 23.4kg |
| Warranty | 20-year product warranty and 25-year linear performance warranty; enhanced cover may be available through REC ProTrust, subject to its terms and installation requirements. |
Important Installation Information
- Installation must be carried out by a competent installer in accordance with the REC installation manual, applicable electrical regulations and the mounting-system manufacturer's instructions.
- Check inverter, optimiser and mounting-system compatibility before purchase and installation.
