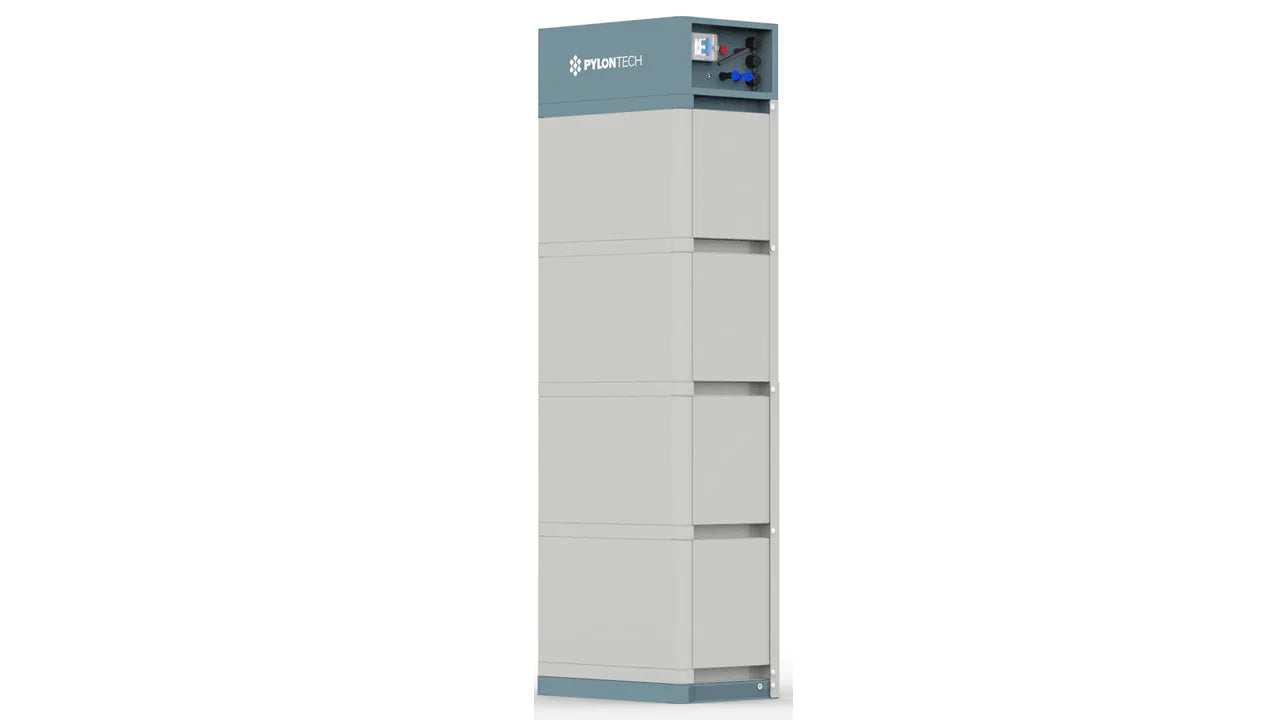

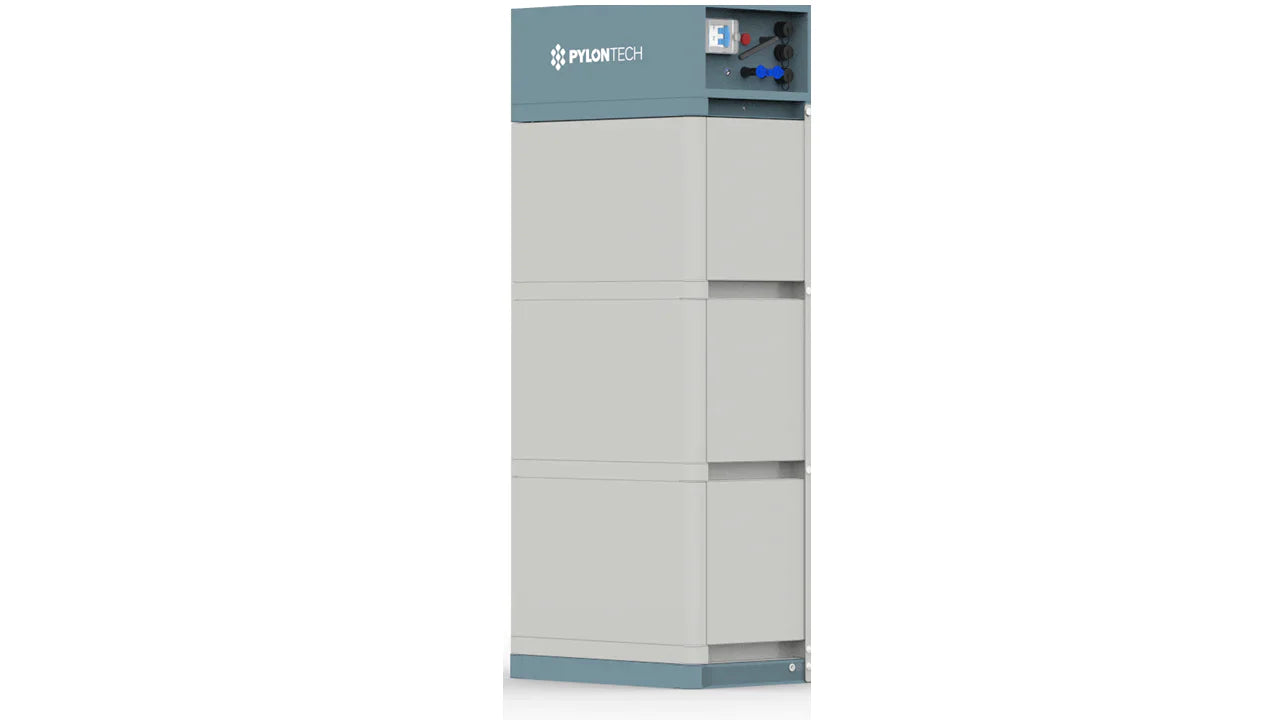

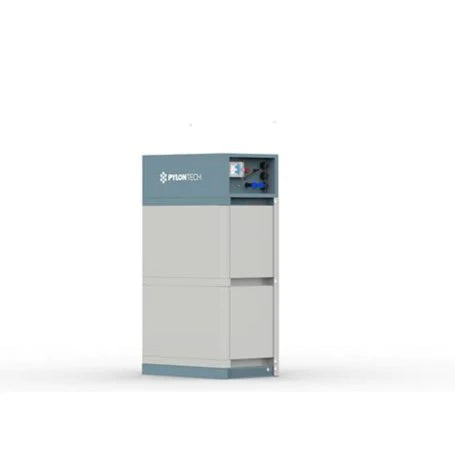

PYLONTECH Force-H2 High Voltage 7.1-14.2kWh Battery Stack with BMU and Battery Disconnector

£1,113.76 £1,281.66

Size

Delivery available

Empower Your Energy Storage with Pylontech Force H2 7.1-14.2kWh Battery System

The Force H2 stands as the latest advancement in high-voltage battery storage systems from Pylontech. This innovative system boasts a new design that facilitates easy connections, saving valuable time for installers. Tailored for large homes and small commercial applications, the stacking system offers flexible configurations ranging from 7.1kWh to 14.2kWh 96-192V capacity. In essence, each system can incorporate 2 to 4 modules, requiring the base control module PYL-F-H2-BMU-BASE. With an appealing furniture-type design and an IP55 rating, it seamlessly integrates into home energy storage systems.

Key Features:

  • Domestic High Voltage Energy Storage System: Pylontech introduces a cutting-edge battery storage solution centered around the Pylon Force-H2 3.55kWh FH9637 Lithium Iron Phosphate Battery Module, designed for the high-voltage residential sector. Ideal for applications requiring limited space, high power, and long life, the Force-H2 battery system streamlines installation without the need for interconnection battery cables, significantly reducing installation time.

  • HV Inverter Compatibility: The PYLONTECH Force-H2 High Voltage 7.1-14.2kWh  Battery is meticulously crafted for seamless integration with SolaX X1 3.0kWh HVSolaXX1 3.7kWh HVSolaX X1 5.0kWh HVSolaX X1 6.0kWh HVand SolaX X1 7.5kWh HV Single Phase Hybrid Inverters.
  • Modular Construction: Up to 6 stacks of Force-H2 + BMU can be mounted in parallel in the same system (85.2kWh). The simple modular design allows for an uncomplicated installation of cables, eliminating the need for battery channels. The versatile and space-saving Force H2 series suits a wide array of application scenarios.

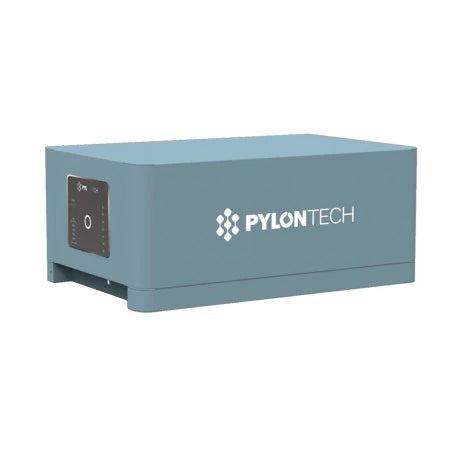

  • Advanced Battery Control System (BMU): The Pylon Force-H2 BMU with Base FC0500M-40S embraces a stack design concept for easy installation, simple connectors, and outdoor compatibility. An ideal storage solution for residential or small commercial settings, it offers flexible configurations from 7.1kWh to 14.21kWh capacity. The system can be built with 2 to 4 modules and a Pylontech H2 base.

  • Proven Safety: Pylontech prioritizes safety, employing technology with a proven track record. All products are fully certified to meet relevant global standards. Additional protection is provided by the KETO Battery Disconnector with 100A Fuses from Jean Müller, renowned for meticulous attention to detail in ensuring maximum user safety.

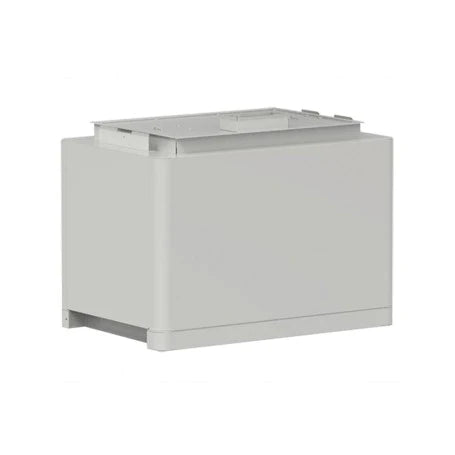

  • Compact Size & Easy Installation: The world-class compact and lightweight design of the Pylontech Force-H2 3.55kWh Battery Module allows for easy floor-standing installation. With a depth of only 296mm, the storage unit can be installed anywhere, offering simplified inverter connections for reduced installation time and costs.

  • Prompt Delivery: Benefit from the advanced features of Pylontech Force-H2 3.55kWh Battery Module with prompt 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).

Power up your energy storage capabilities with this reliable and efficient solution from Pylontech.

    Detailed specifications:

    No Battery Modules in Stack
    2
    3
    4
    Battery Stack Capacity:
    7.1kWh
    10.65kWh
    14.2kWh
    Battery System Voltage
    96V
    144V
    192V
    Charge/Discharge Current (Recommend):
    37A
    37A
    37A
    Charge/Discharge Current (Max):
    40A
    40A
    40A
    Charge/Discharge Current (Peak @ 15sec):
    42A
    42A
    42A
    Depth of Discharge:
    95%
    95%
    95%
    Cycle Life (25°C, @95% DOD):
    6000
    6000
    6000
    Design Life (25°C)
    15
    15
    15
    Working Temperature:
    0-50°C
    0-50°C
    0-50°C
    Storage Temperature:
    -20-50°C
    -20-50°C
    -20-50°C
    Ingress Protection
    IP55
    IP55
    IP55
    Communication::
    RS485/CAN
    RS485/CAN
    RS485/CAN
    Net Weight
    86kg
    122kg
    158kg
    Size ((W*D*H), mm:
    600*380*530
    600*380*700
    600*380*870
    In the Box:
    • 1 X PYLONTECH FORCE-H2 BMU with Base FC0500M-40S,
    • 2...4 X PYLONTECH FORCE-H2 3.55kWh Battery Module,
    • 1 X KETO Battery Disconnector with 2x 100A Fuses,
    • 1 X Force-H2 Operation Manual Version: 2.2 2020P2FH0301.
