PHOTONIC UNIVERSE P5000M | 5000W | 5120Wh Portable Power Station/Grid Backup
Your Ideal Companion for Off-grid Construction, Filming, Camping, Home Emergency Backup
The Photonic Universe P5000M 5000W 5120Wh Portable Power Station gives you access to a reliable and lightning-fast power supply anytime, anywhere. This portable power station has dual AC charging interfaces, approx. 80% full after one hour of charging. Fantastic solar panel connection with an input power of up to 7000 watts! With its high power output, flexible charging modes, and durable design, the P5000M is a versatile energy solution for:
- Off-grid loving and sustainability projects

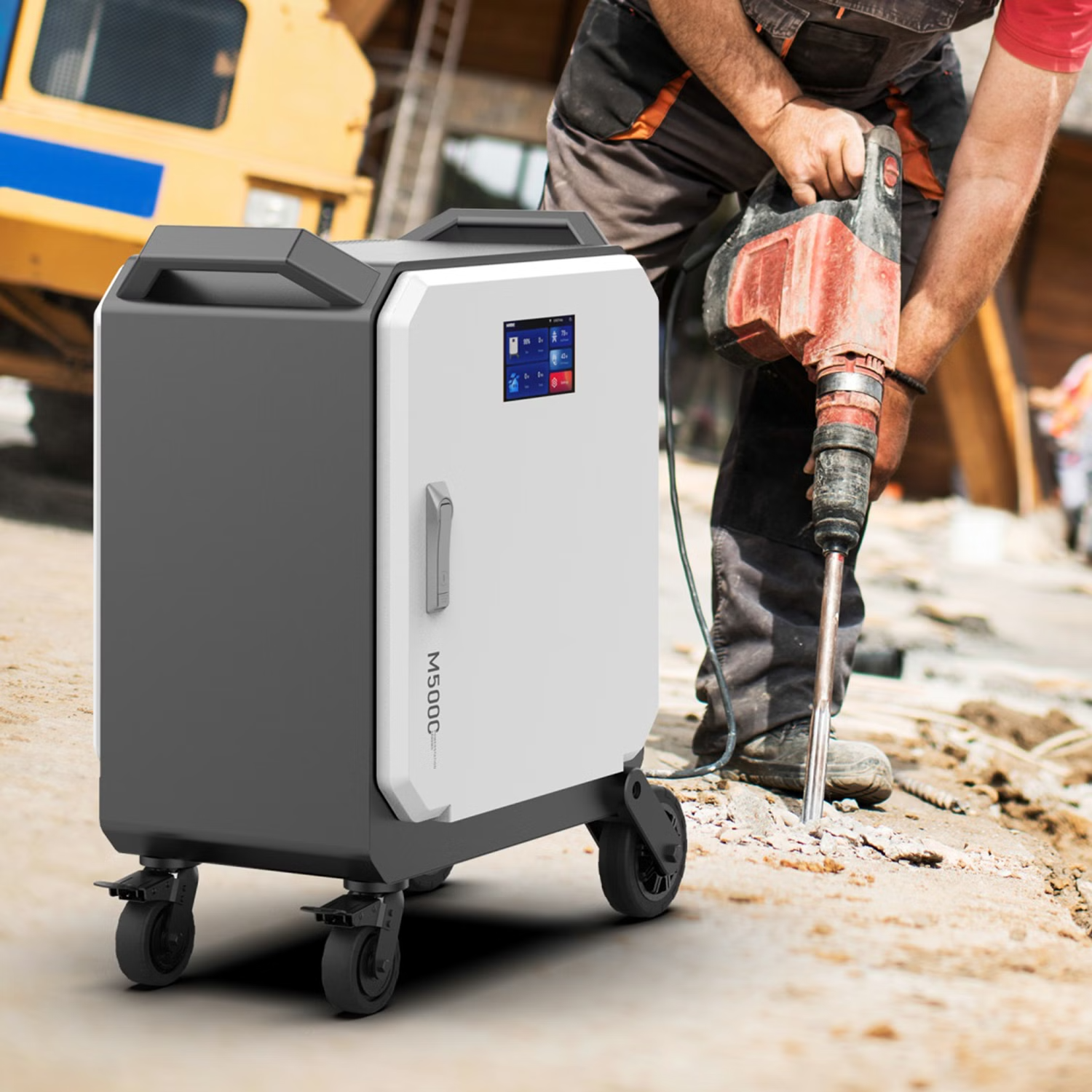

- Construction sites, filming and remote workstations
- Emergency backup power for homes and businesses
- Deployable household solar power systems
Features
-
Built with advanced LiFePO4 battery technology, the P5000M boasts an impressive lifespan of over 6,000 cycles at 80% depth of discharge. This ensures durability, high energy efficiency, and safe operation, making it a sustainable investment for both short-term and long-term use.
-
The P5000M provides multiple charging options, offering users flexibility and control over their power needs. It includes a charging switch that allows users to toggle between 2kW and 5kW charging modes, depending on the available power source and desired charging speed:
- Slow AC charging (2kW mode): Connect the mains AC cable to the 2kW AC input port and plug it into a standard mains socket. The unit will charge at a maximum of 2,000W.
- Fast AC charging (5kW mode): For rapid charging, connect the 5kW AC input port to a dedicated mains wiring outlet rated for up to 5,000W. This setup requires professional installation.

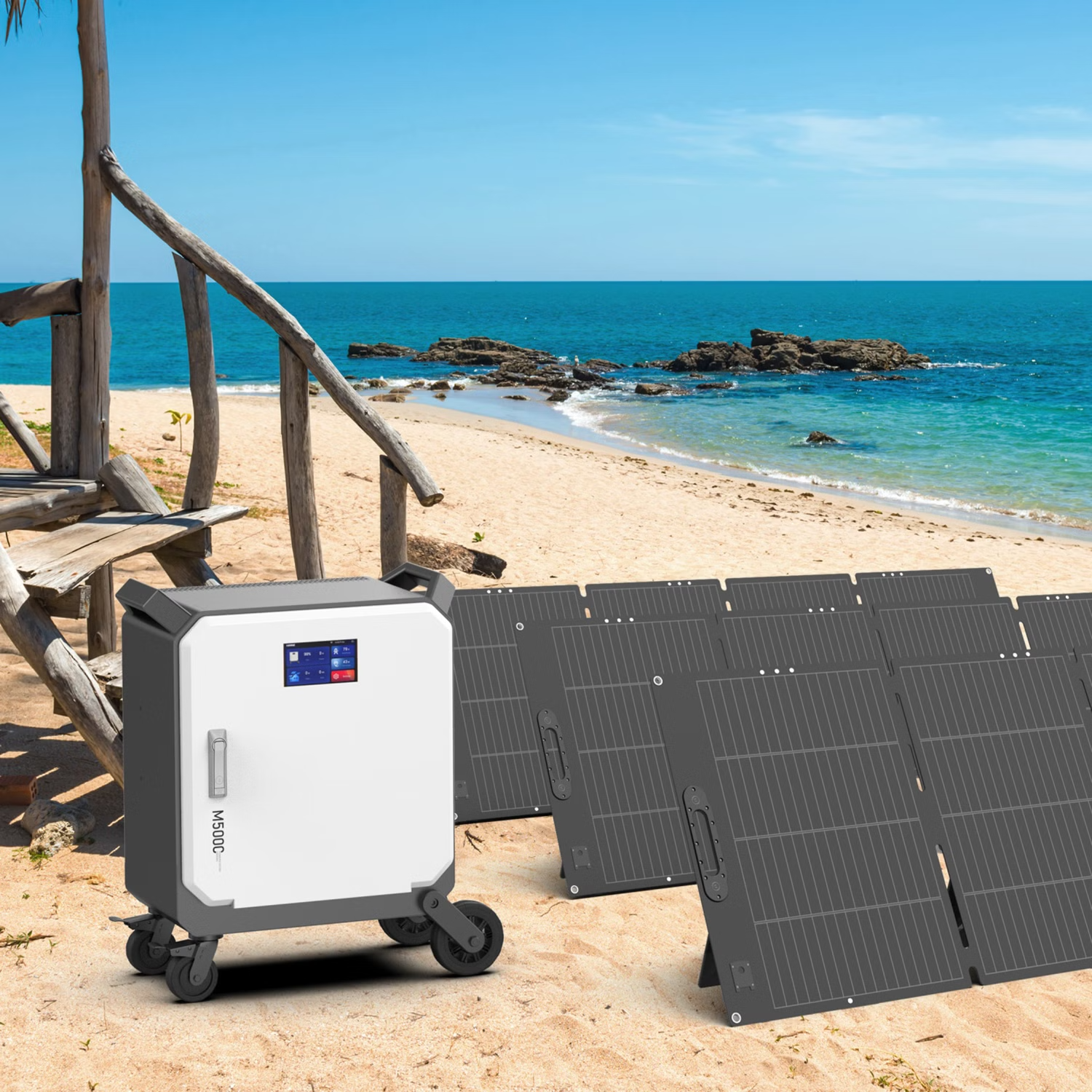

- Solar charging: The P5000M supports solar input from one or two PV arrays. A single array can provide up to 3,500W, while two arrays can deliver up to 7,000W (2 x 500V/14A), making it a powerful renewable energy solution.
-

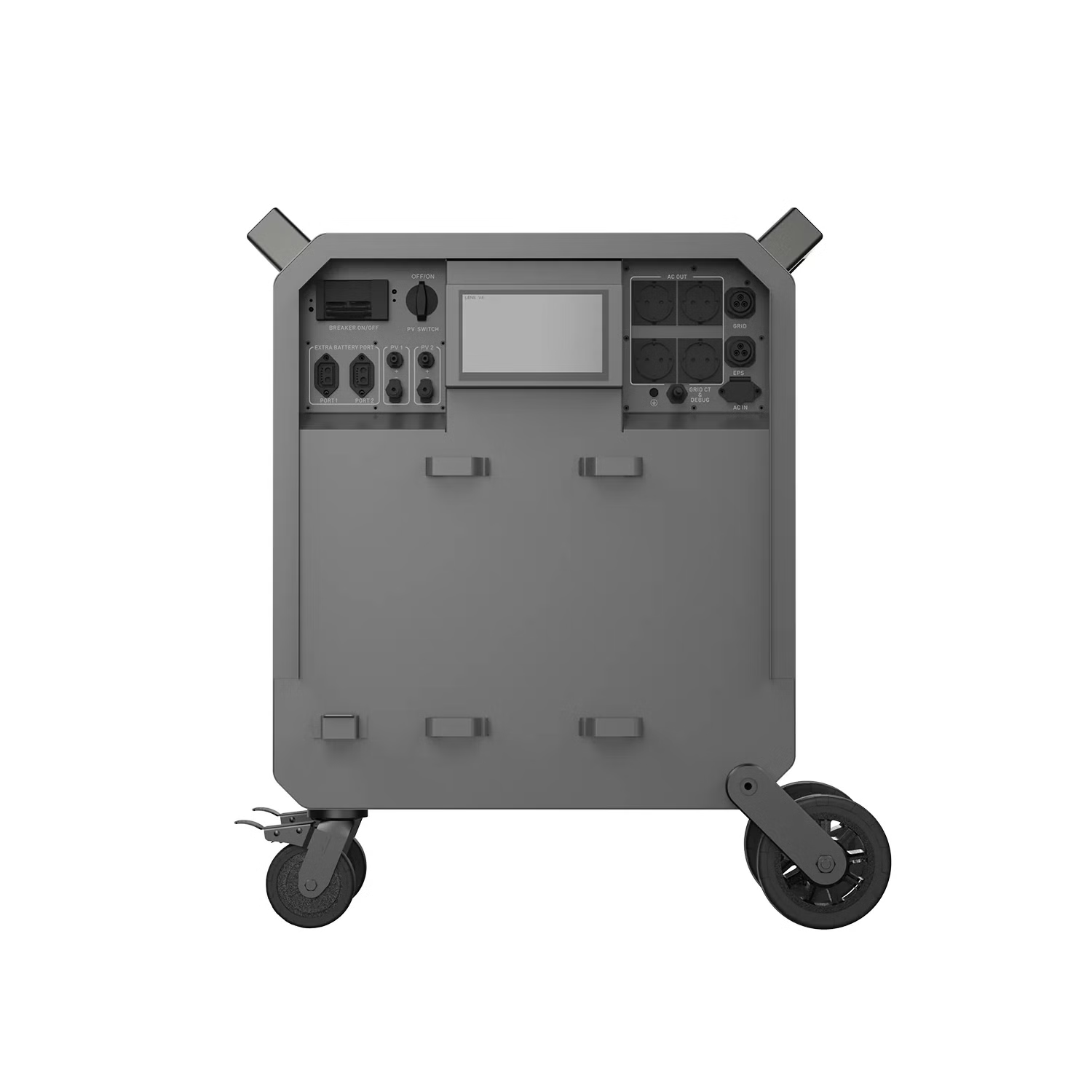

Equipped with multiple output ports, the P5000M ensures seam-less compatibility with various high-power devices and appliances:
- 4 x AC output sockets (supports up to 2,000W per socket, with a total of 5,000W)
- AC 5kW EPS output port (for powering a single high-power appliance). The 5kW AC EPS output port can supply a dedicated 5,000W to a single appliance via fixed wiring. Professional installation is required for this setup.
- 2 x External battery ports (for battery expansion)
- 1 x USB port (for firmware upgrades).
-

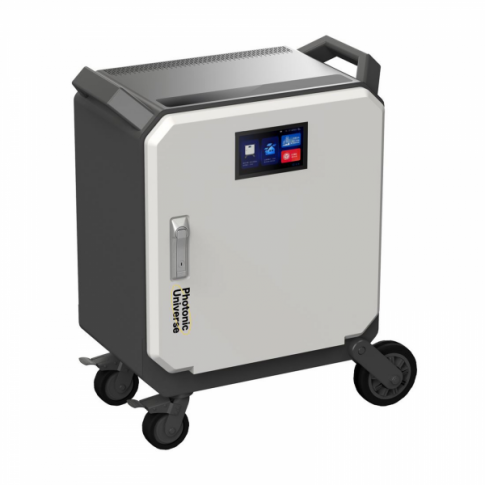

Designed for harsh conditions, the P5000M features an IP65-rated dust- and water-resistant casing, making it ideal for outdoor and industrial applications. Despite its robust 93kg build, integrated wheels allow for easy transport, ensuring mobility even in rugged environments.
-
-
5-Year Warranty.
Specifications
BATTERY
|
Capacity: 5120Wh
|
Type: LiFePO4 (Lithium Iron Phosphate)
|
Life Cycles: 6,000+ Cycles to 80% of the Original Capacity
|
OUTPUT
|
AC Outlet: 4x 220V Outlets, 2000W per socket; 5000W Max. in total
|
EPS Output: 5000W
|
Inverter Type: Pure Sine Wave
|
AC Input: 2000W Max. (Slow) / 5000W (Fast)
|
Solar Input: 3500W Max, 125-500V 14A per string; 2 Strings
|
UPS Switch Time: 20ms
|
Weight: 93kg
|
Dimensions with base: 722W x 809H x 399D mm
|
Dimensions without base: 651W x 670H x 399D mm
|
Operating Temperature: 0°C to +40°C
|
Warranty: 5 years
|
