Perlight 300W Delta Mono PERC All Black MC4-EVO2 Solar Panels
- Compact 300 W solar panel for rooftops and mounting layouts where space limits the choice of module.
- All-black appearance with a black anodised aluminium frame for a consistent finish across the array.
- 19.91% module efficiency, with a 30-year performance warranty stated in the manufacturer’s datasheet.

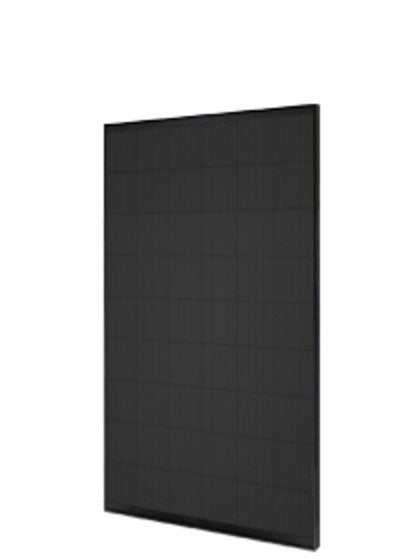

Perlight 300W Delta Mono PERC all-black solar panel
The Perlight 300W Delta solar panel provides a compact option for commercial, residential and off-grid solar PV projects. The PLM-300MB-54 measures 1504 x 1002 x 35 mm and weighs 17 kg, making it worth considering where larger modules do not suit the available roof area or mounting layout.
Key features
- Compact module format: helps designers work around restricted roof sections and fit suitable arrays into smaller spaces.
- 300 W rated output: 54 monocrystalline silicon cells with a module efficiency of 19.91% at standard test conditions.
- All-black finish: black anodised aluminium frame and a consistent module appearance for visible roof installations.
- Specified connection hardware: Stäubli MC4 EVO 2A connectors, 4 mm² cables and an IP68 junction box.
- Long-term performance warranty: the datasheet states output above 90% of original output at 12 years and above 80% at 30 years, subject to the manufacturer’s warranty terms.
Where to use
Consider the Perlight 300W Delta for smaller commercial roofs, offices, workshops, agricultural buildings and residential rooftops. It can also form part of a designed off-grid system for remote buildings or site facilities, using a suitable charge controller, inverter and battery system.
Select mounting equipment for the exact module dimensions, 35 mm frame and stated clamping zones. Electrical design must account for module voltage, current, temperature effects and the limits of the connected equipment.
This is a solar module, not a complete plug-and-play power system. Energian can help with panel quantities, mounting compatibility and system component selection. Where professional installation is required, installation can be arranged through trusted partners.
Technical specifications
| Product identification | |
| Manufacturer | Perlight Solar |
| Product range | Perlight Delta |
| Module model | PLM-300MB-54 |
| Datasheet version | UK version: 2024v1 |
| Electrical characteristics at STC | |
| Maximum power (Pm) | 300 W |
| Module efficiency | 19.91% |
| Open-circuit voltage (Voc) | 37.65 V |
| Short-circuit current (Isc) | 10.66 A |
| Maximum power voltage (Vm / Vmp) | 29.82 V |
| Maximum power current (Im / Imp) | 10.06 A |
| Power tolerance (Pm) | ±5% |
| Power measurement uncertainty | ±3% |
| Performance deviation of Voc, Isc, Vm and Im | ±3% |
| STC reference stated in the datasheet | Irradiance 1000 W/m²; AM 1.5; ambient temperature 25°C according to EN 60904-3 |
| Mechanical parameters | |
| Module dimensions | 1504 x 1002 x 35 mm |
| Module weight | 17 kg |
| Front glass | 3.2 mm low-iron tempered glass |
| Frame | Black anodised aluminium |
| Appearance | All black |
| Cell material | Monocrystalline silicon |
| Cell dimensions | 158.75 x 158.75 mm |
| Number of cells | 54 |
| Junction box protection rating | IP68 |
| Cable cross-section | 4 mm² |
| Cable length | 900 mm |
| Connector designation in datasheet | Stäubli MC4 EVO 2A |
| Temperature coefficients and maximum ratings | |
| Temperature coefficient of Voc | −0.30%/°C |
| Temperature coefficient of Isc | +0.06%/°C |
| Temperature coefficient of Pm | −0.40%/°C |
| Maximum system voltage | 1000 V DC |
| Limiting reverse current | 15 A |
| Maximum surface load capacity — front | 5400 Pa |
| Maximum surface load capacity — back | 2400 Pa |
| Temperature range | −40°C to +85°C |
| Hail resistance stated in datasheet | Maximum hail diameter 25 mm at an impact speed of 23 m/s |
| Mounting and clamping zones | |
| Long-side clamping zone | 300–400 mm from the edge, as shown in the datasheet |
| Short-side clamping zone | 60–200 mm from the edge, as shown in the datasheet |
| Standards and manufacturer management systems | |
| Module standards listed | IEC 61215; IEC 61730 |
| Additional test standards listed | IEC 62804 (PID); IEC 61701 (salt); IEC 62716 (ammonia); IEC 60068-2-68 (sand) |
| Quality management system | ISO 9001:2015 |
| Environmental management system | ISO 14001:2015 |
| Occupational health and safety management system | ISO 45001:2018 |
| Energy management system | ISO 50001:2011 |
| PV industry quality management system | IEC TS 62941:2016 |
| Performance warranty | |
| Performance warranty period | 30 years, subject to manufacturer’s terms |
| Output at 12 years | Over 90% of original output |
| Output at 30 years | Over 80% of original output |
