Off-grid Hybrid Energy Storage System with SUNSYNK ECCO 3.6kW 48V Inverter, Fogstar 5.04kWh LFP Battery, and (optionally) 7.0kW Solar Panels and Warrior 5kW Diesel Generator
Sunsynk Off‑grid Hybrid 3.6kW 5kWh Energy Storage System
The Off‑grid Hybrid Energy Storage System (Off‑grid Hybrid ESS) is a straightforward way to boost your energy independence. It includes a Sunsynk ECCO 3.6kW Off‑grid Hybrid Inverter, 4× Fogstar Drift 12V 105Ah Lithium Battery Modules, and 16× PHONO Meteor 450W Mono MC4 Panels (other solar panels and batteries are available on request), plus an optional Warrior 5kW Diesel Generator. A basic set of cables is included to make installation easier.
Solar panels, mounted on the roof or on the ground, capture sunlight and generate direct current to charge the battery. The hybrid inverter then converts that stored energy into alternating current for use in homes or small businesses. The Off‑grid Hybrid ESS manages any surplus energy by storing it in the battery or, where allowed, feeding it into the grid.
Home energy storage lets you use the electricity you generate when you need it most. The battery bank stores renewable energy from solar photovoltaic (PV) panels or a wind turbine. For example, power generated during the day can be stored and used in the evening for tasks such as boiling the kettle or running electronic devices.
You can tailor the Off‑grid Hybrid ESS to your situation, taking into account your current energy use, the size of any existing generation equipment, and future plans such as getting an electric vehicle (EV) or installing a heat pump for heating.
The system must be installed by a licensed electrician or technician in compliance with all applicable regulations and guidance. For residential properties, guidance here must be followed.
Do you need installation service for your off‑grid kit? We can arrange it. Just contact us on info@energian.co.uk or 020 8064 0335 for a tailored quote.
- SUNSYNK ECCO 3.6kW Off‑grid/Hybrid Inverter (SUN‑3.6K‑SG04LP1) combines a solar inverter and a battery inverter in one unit, so it can manage power from your solar panels, battery, and the grid at the same time. It suits both on‑grid and off‑grid storage setups.
- SUNSYNK ECCO 3.6kW Off‑grid/Hybrid Inverter delivers 3.6kW in on‑grid mode and 3.6kW back‑up power in off‑grid mode, with 24‑hour energy management and real‑time monitoring of your PV system.
- SUNSYNK ECCO 3.6kW Off‑grid/Hybrid Inverter – Uninterruptible power supply switches to the battery in less than 10ms if the grid fails. The inverter’s EMS function improves battery reliability, and remote control and software updates let you manage the system digitally.
- FOGSTAR DRIFT 12V 105Ah 5.04kWh LV LFP Battery is rated for more than 3000 cycles at 80% depth of discharge. The batteries in series give 5.04kWh of usable storage, with around 98% charge/discharge efficiency and plug‑and‑play installation.
- PHONO Meteor 450W Black Frame MC4 Solar Panel captures up to 7.2kW DC and converts it to AC for immediate use in the home or business, with surplus energy stored in the battery or, where allowed, fed into the grid.
- Durable, dust‑ and water‑resistant solar panels – The PHONO 450W panel is dust‑ and water‑resistant so it can cope with most weather. An anti‑reflective and anti‑soiling surface helps reduce power loss from dirt and dust. It comes with a 15‑year product warranty and a 30‑year linear power‑output warranty.
- Delivery – 4–5 working days within the UK (longer to the Highlands, islands and Northern Ireland).

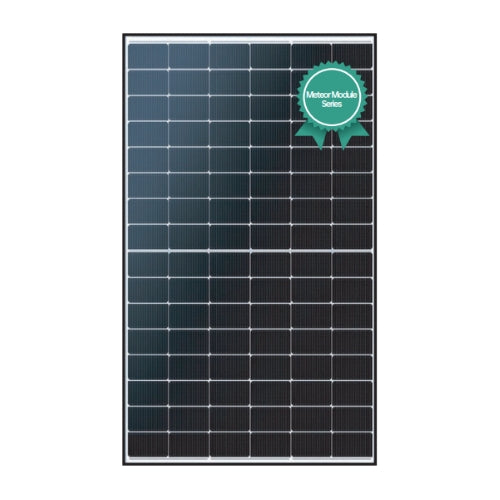

PHONO Meteor 450W Mono Black Frame MC4 Solar Panel
| Rated (peak) power (Wp): 450W at 1000 W/m² |
| Open‑circuit voltage (Voc): 35.74 V |
| Voltage at maximum power (Vmp): 30.1 V |
| Short‑circuit current (Isc): 15.64 A |
| Current at maximum power (Imp): 14.95 A |
| Efficiency: 22.5% |
| Cell type: Monocrystalline silicon |
| Connector type: MC4 |
| Certification: IEC 61215 / IEC 61730 / IEC TS 63209 / IEC TS 63342 / TÜV Rheinland |
| Net weight: 13.7 kg |
| Size: 1762 × 1134 × 26 mm |
FOGSTAR DRIFT 12V 105Ah Lithium Battery
| Battery type: LiFePO₄ |
| Nominal capacity: 5.04 kWh |
| Nominal voltage: 12.8 V |
| Max. charge/discharge current: 150 A / 150 A |
| Depth of discharge: 80% |
| Cycle life: >3000 cycles at 25°C, 80% DOD |
| Installation location: Indoor or outdoor |
| Operating temperature range: Charge −20°C to +55°C (with heating); discharge −20°C to +55°C |
| Ingress protection: IP67 |
| Net weight: 310 kg |
| Size (L × W × H): 260mm x 168mm x 209mm |

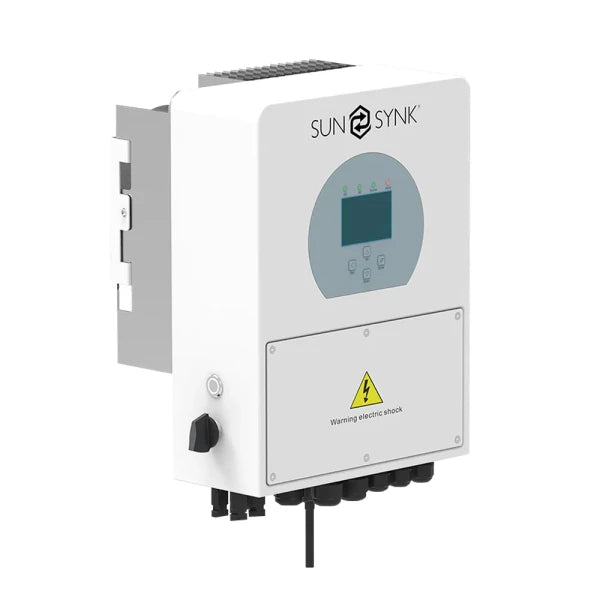

SUNSYNK SUN‑3.6K‑SG04LP1 Off‑grid/Hybrid Inverter
| Solar input |
| Max. solar power (Wp): 7.0 kW |
| Max. Voc: 500 V |
| Start‑up voltage: 125 V |
| MPPT voltage range: 150–425 V |
| Max. input current: 13 A / 13 A |
| MPPT number / Max. input string number: 2 / 2 |
| AC output |
| Rated output power: 3.6 kW |
| Back‑up switch time: 10 ms |
| Operation phase: 1/N/PE |
| Rated output voltage: 220–230 V AC |
| Rated frequency: 50 Hz |
| Rated output current: 16.4 A / 15.7 A |
| Max. AC output: 18/17.2A |
| THDv (linear load): <3% |
| Efficiency |
| Max. efficiency: >97.6% |
| MPPT efficiency: >96.5% |
| General data |
| Dimensions (W × H × D): 330W x 433H x 238D mm |
| Weight: 14 kg |
| Operating temperature range: −25°C to +60°C |
| Ingress protection: IP65 |
| Cooling: Natural convection |
| Communication: RS485, CAN |

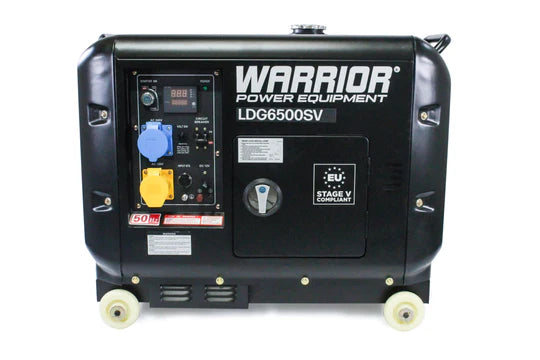

| WARRIOR 5000W DIESEL GENERATOR |
| Max. power: 5500W |
| Continuous power: 5000 W |
| Fuel consumption @ 50% load: 1.3-1.4 L/h |
| Phase: Single |
| Voltage and current: 240 V AC, 13 A, 50 Hz |
| Engine type: 4‑stroke, forced air‑cooled |
| Engine size: 474 cm³ |
| Fuel: Diesel |
| Fuel capacity: 16 L |
| Engine oil: 10W‑30 |
| Noise level @ 7 m: 68 dB(A) on low idle |
| Net weight: 168 kg |
| Dimensions (H x L x W)): 730 x 880 x 590 mm |
- 1× Sunsynk 3.6kW SUN‑3.6K‑SG04LP1 Off‑grid/Hybrid Inverter;
- 4× Fogstar Drift LiFePO₄ Battery 105Ah rated for >3000 cycles;
- 1× Complete set of cables, MC4 connectors, fuses, fuse holders, circuit breakers and terminal lugs;
- (Optional) 16× PHONO 450W Mono MC4 Solar Panels (efficiency 22.5%);
- (Optional) Warrior 5.5kWDiesel Generator.
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, contact us on +44 20 8064 0335 or info@energian.co.uk for a quote.
Any questions? Please call us on 020 8064 0335, WhatsApp 07418 607250, or email info@energian.co.uk.
