Off-Grid Hybrid Energy Storage System with RIIO SUN II 5kW 48V Inverter, 9.6/14.4kWh LiFePO4 Batteries, and Optional 5.4kW Solar Panels and 6.6kW Generator

• The Pylontech US5000 4.8kWh LiFePO4 (LFP) solar battery
  The battery is engineered with Pylontech's proprietary lithium iron phosphate cells and vertical industry integration, ensuring the highest safety standards and an impressive lifespan of 6,000 cycles at an exceptional Depth of Discharge (DoD) of 95%. A custom-designed Battery Management System (BMS) safeguards the cells against abnormal temperature, current, voltage, State of Charge (SoC), and State of Health (SoH). The battery comes with a standard 7-year warranty, extendable to 10 years upon registration. The warranty covers all manufacturing or material defects.

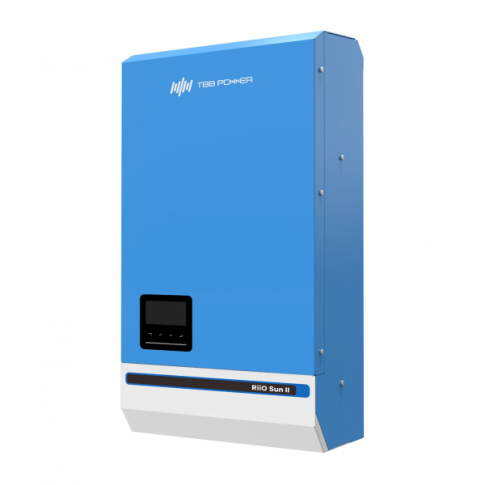

• RIIO SUN II Off-Grid 5000W 48V Pure Sine Wave Inverter Charger This innovative unit combines the functions of a 5000W pure sine wave inverter, two 50A MPPT solar charge controllers, and a 60A mains/generator battery charger in a single device. The inverter is compatible with input from 2x 4,400W solar panel strings, mains power, a generator, or a battery, with the flexibility to use one or multiple input sources simultaneously.

  The AGS (Automatic Generator Start) function is explicitly available on the RiiO Sun II series allowing the inverter to automatically start and stop a generator based on system conditions such as low battery voltage.

With hybrid capabilities, advanced communication functions, and highly customisable settings, the inverter delivers 5,000W of continuous AC power and up to 6,000W during peak demand to power appliances like pumps, vacuum cleaners, or power tools. The built-in 100A MPPT solar charge controllers maximises solar panel efficiency (up to 98%) and offers comprehensive safety features, including overcharge, overheating, and reverse current protection. Its LCD screen displays real-time performance data for the solar array.

The integrated 60A smart battery charger ensures safe, efficient, and unattended charging from mains power or a generator, with multiple charging stages and overcharge protection.

• Optional JA Solar 450W N-type Double Glass Bifacial LB Traceable Black Frame MC4 Solar Panels. These high-performance solar panels offer high 22.5% efficiency, excellent durability, and cost-effectiveness with an appealing payback period. With a heavy snow load capacity of 5,400Pa and a wind load of up to 2,400Pa, they are ideal for domestic, agricultural, or garden office installations. The panels feature a sleek black frame and come with a 30-year product warranty.

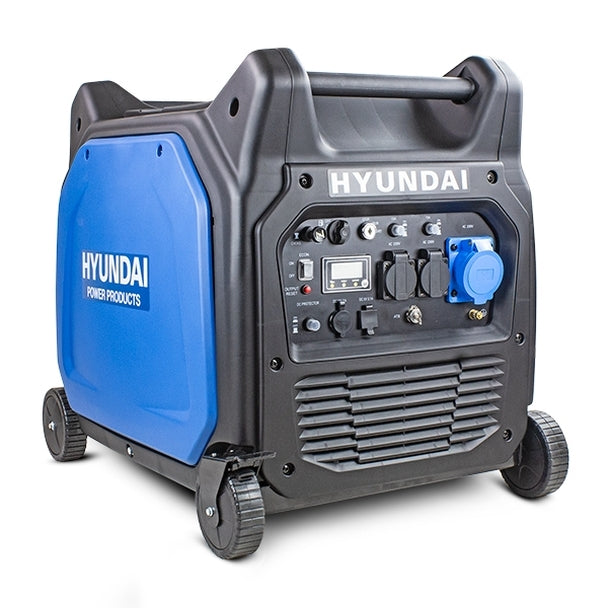

• Optional Hyundai HY6500SEi 6600W Petrol Inverter Generator
  The Hyundai HY6500SEi is a premium portable generator, providing a reliable and economical power source. With a maximum output of 6,600W (6.6kW) and a continuous output of 6,000W (6kW), it combines convenience with exceptional performance. Designed to operate quietly, this generator is well-suited for a wide range of applications.

FREE 2-3 WORKING DAYS' DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).

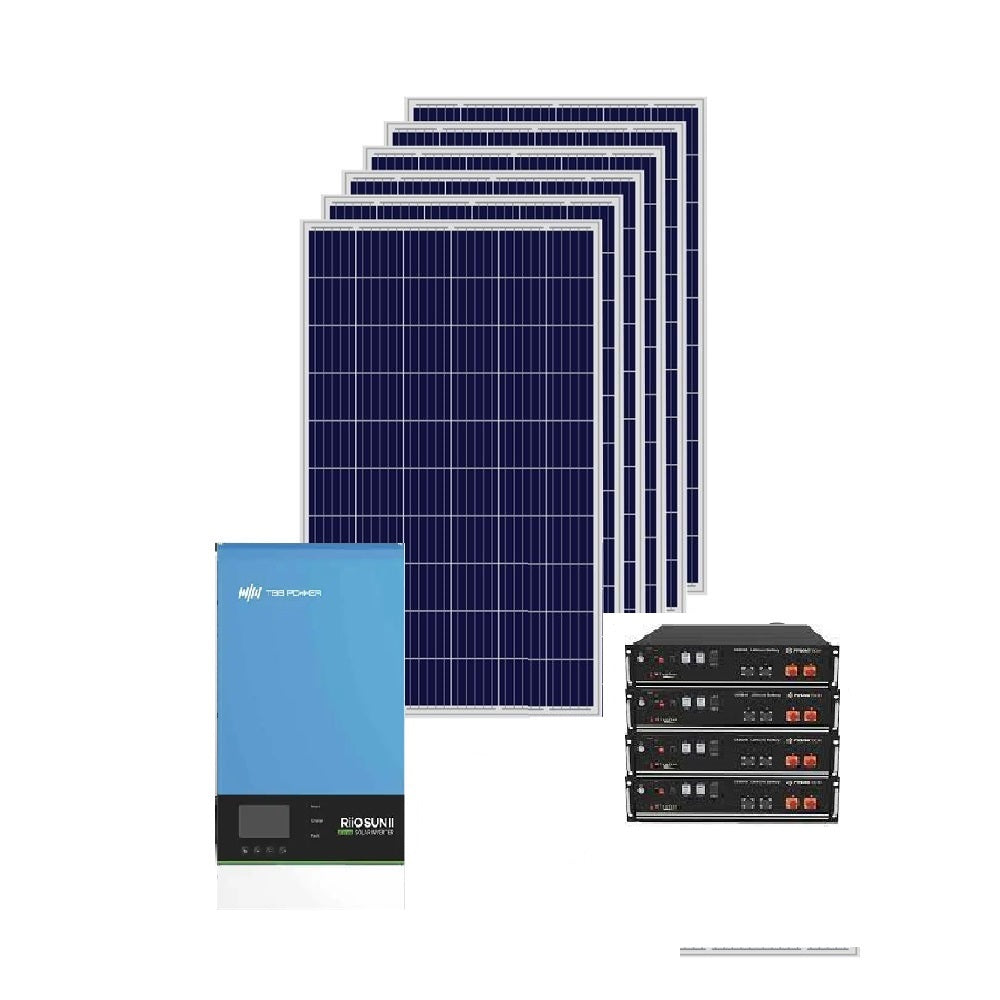

• 2x or 3x Pylontech US5000-C 4.8kWh LiFePO4 Battery Bank (incl. brackets) - 1 X pallet,
• 1x RIIO SUN II Off-Grid Hybrid 5000W 48V Pure Sine Wave Inverter/Charger - 1 X carton,
• 1x set of cables, disconnectors, and accessories,
• Optional: 12x JA Solar 450W N-type Double Glass Bifacial LB Traceable Black Frame MC4 Solar Panels - 1 X double pallet, and
• Optional: Hyundai HY6500SEi 6600W Inverter Generator - 1 X carton.


BATTERY BANK

Warning:

Never mix batteries within the battery bank. All batteries must be of the same type, size, and general age. Using an old, mismatched, or faulty battery can cause significant issues.

Note: New batteries behave like older ones initially and require a few cycles to function optimally.

1. What is the battery bank capacity of the 9.6/14.4KWH LFP ESS?

The 9.6/14.4KWH LFP ESS uses 2x or 3x well-known PYLONTECH US5000 Lithium-Ferro-Phosphate (LFP) batteries with a total capacity of 9,600/14,400Wh in parallel. It is designed to optimise energy usage, providing a stable electricity supply while reducing costs. By harnessing free solar energy to charge the battery, this system revolutionises your energy consumption. When integrated with a private power station, such as a solar energy generation system, it enables a reliable 24/7 home power network.

2. What is the cycle life of the battery?

PYLONTECH US5000 batteries are rated for 6,000+ cycles at 95% depth of discharge (DoD).

3. How can I maximise the lifespan of the battery?

• Regular charging: The battery must be charged at least once every six months. During this maintenance charge, ensure the State of Charge (SoC) exceeds 90%.
• Annual checks: After installation, inspect the power connector, grounding points, power cables, and screws annually. Ensure there are no loose connections, broken components, or signs of corrosion. Verify the installation environment is free from dust, water, and insects, and remains suitable for an IP20-rated battery system.
• Storage maintenance: If the battery is stored for extended periods, recharge it every six months to maintain an SoC above 90%.


4. What are the battery care and storage instructions?

• Storage charging: Recharge the battery every six months when stored, ensuring the SoC is at least 90%.
• Post-discharge recharging: Recharge the battery within 12 hours after a full discharge.
• Environment restrictions: Avoid installing the battery in outdoor environments or locations outside the operational temperature or humidity range specified in the manual.


5. When should I charge my PYLONTECH LIFePO4 battery?

LiFePO4 batteries do not require charging after every use unless fully discharged. They are not damaged by remaining in a partial state of charge (PSOC). Charge the battery after use or when it has been discharged to 80% Depth of Discharge (DoD), leaving a 20% SoC.

6. What should I do if the battery bank loses power too quickly?
Check Appliance Power: Verify whether high-power electrical appliances are connected. For example, with a 9.6kWh or 14.4kWh Off-Grid Energy Storage System, if a connected appliance consumes approximately 2,000W, the battery will last about 4.3 hours (9.6kWh) or 6.5 hours (14.4kWh) when discharged from 100% to 10%.

DC TO AC INVERTER

1. What does a power inverter do?

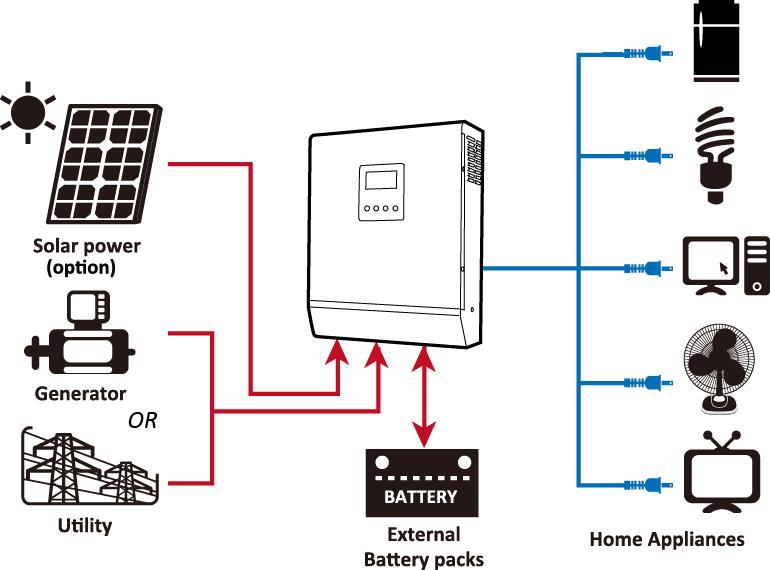

A power inverter converts battery power into mains electricity. Specifically, it transforms 48V direct current (DC) into 230V alternating current (AC). This 230V AC matches the electricity supplied by utility companies and is suitable for household appliances like lights, televisions, and refrigerators.

In the 9.6/14.4KWH LFP ESS RIIO SUN II Off-Grid Hybrid 5000W 48V Pure Sine Wave Inverter/Charger is used to create a home 230V "grid".

2. What type of inverter is used in the 9.6/14.4kWh LFP ESS?

The system uses a pure sine wave inverter rated at 5000W. This inverter outputs a smooth, harmonic sine wave resembling utility-supplied power. It seamlessly switches polarity ("+" and "-") between power cables and adjusts voltage gradually to meet demand. This inverter design ensures compatibility with a wide range of appliances.

3. What are the key functions of the RIIO SUN II 5000W 48V off-grid hybrid inverter?

1. 5000W 48V Pure Sine Wave Inverter: Converts DC to 230V AC to power household appliances, including TVs, laptops, refrigerators, and lights. It delivers 5000VA continuous power with a peak capacity of 10,000VA for high-starting power appliances.

2. Built-in MPPT solar charge controller: Equipped with two independent 4,400W inputs, it charges batteries at up to 50A with safety features like overcharge and overheating protection. Advanced MPPT technology ensures 98% efficiency.

3. Enhanced 60A smart battery charger: Supports fast, efficient charging from a mains power source or generator, with overcharge protection and multi-stage charging.

4. Scalability: Supports parallel connection of up to three additional inverters for expanded capacity (up to 15kW) and optional three-phase operation for industrial-grade equipment.


4. What are the additional intelligent functions of the RIIO SUN II 5000W 48V hybrid inverter?

• Automatic generator start (AGS): Activates a generator only when necessary for optimal energy use.
• Power assist and control: Allows a small generator to handle heavy loads by supplementing power as needed.
• User-friendly monitoring: Features the Nova Web and mobile app via the TBB-KIN2 Kinergy-II Wi-Fi module  for remote monitoring and control.
• Reliable operation: A fast 4ms switch ensures uninterrupted power during outages. ECO mode maximises battery backup time with low energy consumption.
• High efficiency: Achieves 94% inverter efficiency and 98% MPPT efficiency, maximising energy output.
• Ease of use: The all-in-one design simplifies installation and maintenance. It auto-restarts when PV or AC power is restored, ensuring seamless operation.

5. What can I use the RIIO SUN II 5000W 48V hybrid inverter for?

The inverter is designed to support standard household appliances. See the table below for typical power consumption and corresponding battery usage times.

Appliances marked with an asterisk (*) are likely to have a starting power consumption several times higher than their normal operating power. This is typically due to the presence of electric motors. For example, an electric lawnmower with a normal operating power of 1,000W may have a starting power of over 4,000W. An inverter with a continuous power of 3,000W is suitable in such cases because it can handle a peak power of up to 6,000W.*

**Appliances without electric motors may also have variable power consumption with occasional spikes. These spikes necessitate a larger inverter than would typically be required for devices with similar nominal power ratings.

Please note: This table is for general guidance only. The actual power consumption and starting power requirements of your appliances may vary significantly. Always check the specifications of your devices to confirm their continuous and starting power requirements.

If multiple devices are connected to the inverter, the total power consumption should be the sum of all connected appliances. This total will determine the inverter capacity required.

6. Why are a 48V battery bank and a 48V DC to 230V AC inverter used in this system?

This configuration offers several key advantages:

• The inverter’s input current is two to four times smaller at 24V compared to 12V, improving system safety and reliability.
• The cables connecting the battery to the inverter can be thinner than those required for a 12V system, reducing material and installation costs.

7. What AC inputs/outputs does the 5000W inverter have?

1 x 230VAC input and 1 X 230VAC output.

8. Does the 5000W inverter support wireless control?

This inverter can be set up to send data to an online user portal via a NOVA WEB & APP.

9. What to do if the 5000W inverter cannot power electrical appliances?

• Check whether the inverter’s 5000W output power is sufficient for your appliance’s requirements.
• If a warning indicator appears, refer to the User Manual for specific troubleshooting steps.

10. What to do if appliance usage time is too short?

Due to variations in appliance power consumption, the inverter’s discharge efficiency is slightly below 100% (typically around 98%). This means actual usage times may be shorter than theoretical calculations. To determine usage times:

• Base calculations on the continuous power rating of your appliances.
• For further assistance, contact Energian Customer Service with your appliance specifications for detailed analysis.

SOLAR AND AC BATTERY CHARGING

1. What are the specifications of the RIIO SUN II 5000W inverter's  built-in solar charger?

• Maximum solar input power: 2x 4400W
• Maximum open circuit solar input voltage: 250V
• Solar MPPT operating voltage per tracker: 65-245V DC
• Maximum solar output current: 100A (50A per tracker)

2. What are the specifications of the RIIO SUN II 5000W inverter's  built-in AC charger?

• Maximum mains AC charging current: 60A

• Solar / AC charger max efficiency: 98%
