LONGi Solar S10 490W Ecolife Mono All Black SDM1 Solar Panels
- Generate 490W per panel at standard test conditions, with 24.0% module efficiency for projects where available installation space matters.
- All-black double-glass construction with back-contact cells and a black anodised aluminium frame.
- 30-year linear power-output warranty, with 88.85% guaranteed output at year 30, subject to LONGi’s terms.

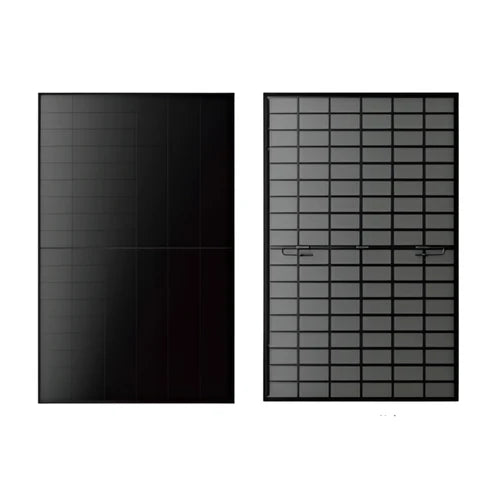

LONGi S10 490W all-black SDM1 solar panel
The LONGi S10 490W Mono All Black SDM1 solar panel, model LR7-54HJBB-490M, combines back-contact cell technology with double-glass construction for residential and suitable commercial PV installations. It delivers 24.0% module efficiency in a 1,800 × 1,134 × 30mm format and weighs 23.5kg.
Key features
- Space-efficient generation: 490W rated front-side output and 24.0% module efficiency help make effective use of the available array area.
- All-black appearance: back-contact cells and a black anodised aluminium frame suit visible rooftop installations.
- Double-glass construction: 2.0mm front glass and 1.6mm rear glass, with the potential for additional generation where reflected light reaches the rear.
- Temperature performance: a maximum-power temperature coefficient of −0.240%/°C supports accurate assessment of output changes as cell temperature rises.
- Long-term performance cover: less than 1% first-year degradation and 0.35% annual degradation in years 2–30, under the manufacturer’s linear power-output warranty terms.
Where to use
Consider the LONGi S10 490W all-black panel for residential roofs, commercial offices, warehouse administration buildings and other suitable rooftops where module appearance and installed capacity matter. It can also be used in professionally designed carport or ground-mounted arrays.
Rear-side generation depends on reflected light, mounting clearance, shading and the final array layout. Do not assume an additional energy gain for a close-mounted roof installation without a site-specific assessment.
Use mounting hardware approved for the exact module dimensions, frame profile and fixing positions. Energian can help with module quantities, inverter string design, mounting compatibility and DC protection. The panel requires professional system integration; installation can be arranged through trusted partners.
Technical specifications
Electrical values below apply to LR7-54HJBB-490M at standard test conditions. Product figures follow the supplied LR7-54HJBB 490–505M datasheet, revision BGV02 20250905.
| Specification | Value |
|---|---|
| Product identification | |
| Manufacturer | LONGi Solar |
| Product designation | S10 490W Mono All Black SDM1 |
| Datasheet series | LR7-54HJBB 490–505M |
| Exact module model | LR7-54HJBB-490M |
| Datasheet power range | 490–505W |
| Cell design | Back-contact cells |
| Module construction | Double glass, with rear-side generation capability |
| Appearance | All black |
| Datasheet revision | BGV02 20250905 |
| Electrical characteristics at STC | |
| Maximum power output, Pmax | 490W |
| Module efficiency | 24.0% |
| Open-circuit voltage, Voc | 41.25V |
| Short-circuit current, Isc | 15.04A |
| Voltage at maximum power, Vmp | 34.07V |
| Current at maximum power, Imp | 14.38A |
| Power-output tolerance | 0 to +3% |
| Maximum-power test uncertainty | ±3%; distinct from the stated power-output tolerance |
| Standard test conditions | AM1.5; irradiance 1,000W/m²; cell temperature 25°C |
| Mechanical construction | |
| Cell arrangement | 108, arranged 6 × 18 |
| Junction box | IP68 |
| Front glass | 2.0mm semi-tempered glass |
| Rear glass | 1.6mm semi-tempered glass |
| Frame | Black anodised aluminium alloy |
| Dimensions, L × W × H | 1,800 × 1,134 × 30mm |
| Length tolerance | ±2mm |
| Width tolerance | ±2mm |
| Module weight | 23.5kg |
| Output-cable cross-section | 4mm² |
| Output-cable length options listed | +400mm / −200mm, or ±1,200mm; customised lengths are available. Confirm the supplied configuration before specifying extension leads. |
| Longitudinal mounting-hole spacings shown in drawing | 1,150mm and 1,400mm |
| Transverse mounting-hole spacing shown in drawing | 1,093mm |
| Mounting-slot dimensions shown in drawing | 9 × 14mm |
| Frame cross-sections shown in drawing | A–A: 30 × 30mm; B–B: 15 × 30mm |
| Operating limits and temperature characteristics | |
| Operating temperature | −40°C to +85°C |
| Maximum system voltage | 1,500V DC (IEC) |
| Maximum series fuse rating | 30A |
| Protection class | Class II |
| Fire rating stated in the supplied datasheet | IEC Class A. This is a module rating, not confirmation of the fire classification of a complete roof assembly. |
| Temperature coefficient of short-circuit current, Isc | +0.050%/°C |
| Temperature coefficient of open-circuit voltage, Voc | −0.210%/°C |
| Temperature coefficient of maximum power, Pmax | −0.240%/°C |
| Mechanical loading and testing | |
| Front-side maximum static loading | 6,000Pa |
| Rear-side maximum static loading | 3,600Pa |
| Hailstone test | 25mm hailstones at 23m/s |
| Warranty and degradation | |
| Linear power-output warranty | 30 years, subject to manufacturer terms |
| First-year power degradation | <1%, as stated in the supplied datasheet |
| Annual power degradation, years 2–30 | 0.35% |
| Warranty curve value after year 1 | 99% of original rated output |
| Guaranteed output at year 30 | 88.85% of original rated output |
