LONGi EcoLife 485W Hi-MO X10 HPBC + N-Type Mono Full Black Solar Panels
- 485 W full-black N-type HPBC 2.0 solar panel for high-output residential and commercial rooftop solar PV systems.
- 23.8% module efficiency in a practical 1,800 × 1,134 mm dual-glass format.
- 15-year materials and processing warranty, plus 30-year extra linear power-output warranty.

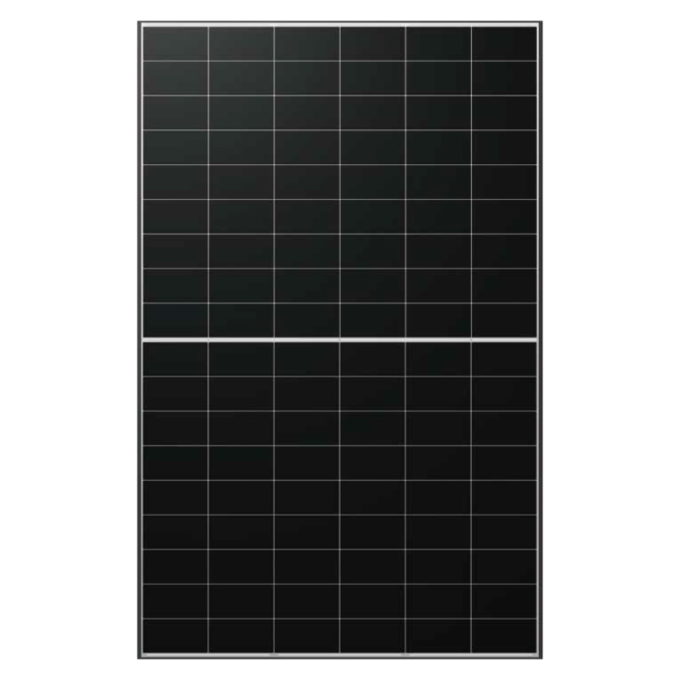

LONGi 485W Hi-MO X10 HPBC full black solar panel
The LONGi LR7-54HVD-485M is a 485 W Hi-MO X10 N-type HPBC 2.0 solar panel with a full-black appearance, black anodised aluminium frame and dual-glass construction. It is designed for higher-end residential and commercial rooftop solar systems where available roof area, module appearance and output per panel all matter.
With a 23.8% module efficiency, this panel provides high output in an 1,800 × 1,134 mm format. The dual-glass construction and 70 ± 5% stated bifaciality can support rear-side generation where installation conditions allow reflected light to reach the back of the module.
Key features
- 485 W rated output: Helps maximise installed PV capacity where roof space is limited.
- 23.8% module efficiency: High power density using LONGi HPBC 2.0 BC-cell technology.
- Full-black dual-glass design: Black anodised aluminium frame with 2.0 mm and 1.6 mm semi-tempered glass layers.
- High mechanical loading: Rated for 5,400 Pa front-side and 2,400 Pa rear-side maximum static loading.
- Long-term warranty cover: 15-year materials and processing warranty with a 30-year extra linear power-output warranty.
Where to use
The LONGi 485W Hi-MO X10 full black solar panel is suitable for homes, premium residential developments, offices, retail units, workshops and commercial rooftop solar PV installations. Its black finish is particularly suited to visible roof areas where the appearance of the completed array is important.
The dual-glass, 23.5 kg module should be installed using a mounting system approved for its frame, dimensions and clamping zones. Check roof structure, wind and snow loading, inverter input limits, string voltage and electrical protection requirements before installation.
Energian can help with panel quantities, mounting selection, inverter and optimiser compatibility, battery integration and complete solar PV system design. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | LONGi Solar |
| Series | Hi-MO X10 |
| Module model | LR7-54HVD-485M |
| Module power range | 475–495 W |
| Module type | N-type HPBC 2.0 BC-cell dual-glass module |
| Module appearance | Full black |
| Rated maximum power (Pmax) | 485 W |
| Module efficiency | 23.8% |
| Power output tolerance | 0 to +3% |
| Open-circuit voltage (Voc) | 40.64 V |
| Short-circuit current (Isc) | 15.08 A |
| Voltage at maximum power (Vmp) | 33.62 V |
| Current at maximum power (Imp) | 14.43 A |
| STC test conditions | AM1.5, 1,000 W/m², 25°C |
| Pmax test uncertainty | ±3% |
| Cell orientation | 108 cells (6 × 18) |
| Module dimensions | 1,800 × 1,134 × 30 mm |
| Dimensional tolerance | Length ±2 mm; width ±2 mm |
| Weight | 23.5 kg |
| Glass | 2.0 mm semi-tempered glass + 1.6 mm semi-tempered glass |
| Frame | Black anodised aluminium alloy frame |
| Junction box | IP68 |
| Output cable | 4 mm²; +400 mm / -200 mm; ±1,200 mm length can be customised |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Maximum series fuse rating | 30 A |
| Protection class | Class II |
| Bifaciality | 70 ± 5% |
| Fire rating | IEC Class C |
| Temperature coefficient of Isc | +0.050%/°C |
| Temperature coefficient of Voc | -0.200%/°C |
| Temperature coefficient of Pmax | -0.260%/°C |
| Front-side maximum static load | 5,400 Pa |
| Rear-side maximum static load | 2,400 Pa |
| Hailstone test | 25 mm hailstone at 23 m/s |
| First-year power degradation | Less than 1% |
| Annual power degradation, years 2–30 | 0.35% |
| Guaranteed power at year 30 | 88.85% |
| Materials and processing warranty | 15 years |
| Extra linear power-output warranty | 30 years |
| Certifications | IEC 61215, IEC 61730 and IEC 62941; ISO 9001, ISO 14001 and ISO 45001 |
