LONGi Solar 475W Mono All Black SDM Solar Panels
- Generate 475W per panel at standard test conditions, with 23.3% module efficiency for projects where available roof space matters.
- All-black appearance with HPBC 2.0 back-contact technology, no front gridlines and a black anodised aluminium frame.
- 30-year materials and processing warranty and 30-year linear power-output warranty, subject to LONGi’s terms.

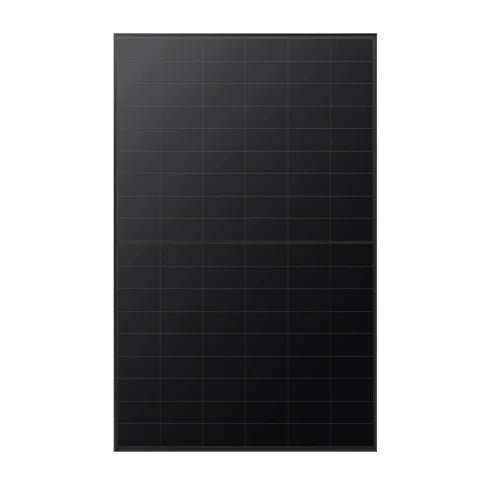

LONGi Solar 475W all-black single-glass solar panel
The LONGi Solar 475W LR7-54HVB-475M is part of the EcoLife X10 Single Glass Black range. It combines HPBC 2.0 back-contact technology with a low-glare, all-black front appearance for residential and suitable commercial rooftop installations. The module measures 1,800 × 1,134 × 30mm and weighs 21.6kg.
Key features
- Space-efficient generation: 475W rated output and 23.3% module efficiency help make effective use of the available installation area.
- HPBC 2.0 technology: back-contact cells provide a front surface without visible gridlines, supporting the panel’s uniform black appearance.
- Shading-related safety features: LONGi lists anti-shading functionality and prevention of localised overheating. Shading must still be assessed during system design.
- Single-glass construction: 3.2mm coated tempered glass with a black anodised aluminium alloy frame.
- Long-term warranty cover: 30-year materials and processing and power-output warranties, with 88.85% guaranteed output at year 30, subject to manufacturer terms.
Where to use
Consider the LONGi Solar 475W all-black panel for residential roofs, commercial offices, warehouse administration buildings and other suitable rooftops where module appearance and installation space matter. It can also form part of a professionally designed off-grid or hybrid system with a compatible inverter or charge controller.
Use mounting hardware approved for the exact module dimensions, frame profile and fixing positions. Check structural loading, shading, cold-weather string voltage and inverter input-current limits before installation. This is a single-glass panel; do not assume the rear-side generation characteristics of a bifacial module.
Energian can help with module quantities, inverter selection, mounting compatibility and complete system planning. The panel is not a stand-alone power supply and requires professional electrical integration. Installation can be arranged through trusted partners.
Technical specifications
Electrical figures apply to LR7-54HVB-475M at standard test conditions. Specifications follow the supplied LONGi EcoLife X10 Single Glass Black 475–495M datasheet, revision BGV03 20250625. NOCT/NMOT and BNPI characteristics and pallet dimensions are omitted.
| Specification | Value |
|---|---|
| Product identification | |
| Manufacturer | LONGi Solar |
| Product family | EcoLife X10 Single Glass Black |
| Datasheet series | LR7-54HVB 475–495M |
| Exact module model | LR7-54HVB-475M |
| Datasheet power range | 475–495W |
| Cell technology | HPBC 2.0 back-contact technology |
| Module construction | Single glass |
| Appearance | All black; no front gridlines; low-glare appearance as described by LONGi |
| Datasheet revision | BGV03 20250625 |
| Electrical characteristics at STC | |
| Maximum power output, Pmax | 475W |
| Module efficiency | 23.3% |
| Open-circuit voltage, Voc | 40.18V |
| Short-circuit current, Isc | 15.03A |
| Voltage at maximum power, Vmp | 33.16V |
| Current at maximum power, Imp | 14.33A |
| Power-output tolerance | 0 to +3% |
| Maximum-power test uncertainty | ±3%; distinct from the stated power-output tolerance |
| Standard test conditions | AM1.5; irradiance 1,000W/m²; cell temperature 25°C |
| Mechanical construction | |
| Cell arrangement | 108, arranged 6 × 18 |
| Junction box | IP68 |
| Front glass | 3.2mm coated tempered glass |
| Frame | Black anodised aluminium alloy |
| Dimensions, L × W × H | 1,800 × 1,134 × 30mm |
| Length tolerance | ±2mm |
| Width tolerance | ±2mm |
| Module weight | 21.6kg |
| Output-cable cross-section | 4mm² |
| Output-cable length options listed | +400mm / −200mm, or ±1,200mm; length can be customised. Confirm the supplied configuration before specifying extension leads. |
| Longitudinal mounting-hole spacings shown in drawing | 1,150mm and 1,400mm |
| Transverse mounting-hole spacing shown in drawing | 1,093mm |
| Mounting-slot dimensions shown in drawing | 9 × 14mm |
| Frame cross-sections shown in drawing | A–A: 30 × 30mm; B–B: 15 × 30mm. Check the profile when selecting mounting hardware. |
| Operating limits and temperature characteristics | |
| Operating temperature | −40°C to +85°C |
| Maximum system voltage | 1,500V DC (IEC) |
| Maximum series fuse rating | 25A |
| Protection class | Class II |
| Fire rating | IEC Class C |
| Temperature coefficient of short-circuit current, Isc | +0.050%/°C |
| Temperature coefficient of open-circuit voltage, Voc | −0.200%/°C |
| Temperature coefficient of maximum power, Pmax | −0.260%/°C |
| Mechanical loading and testing | |
| Front-side maximum static loading | 5,400Pa |
| Rear-side maximum static loading | 2,400Pa |
| Mechanical-load qualification | Confirm the approved mounting arrangement and applicable design-load limits in LONGi’s installation instructions. Published module load ratings do not replace a site-specific structural assessment. |
| Hailstone test | 25mm hailstones at 23m/s |
| Standards and systems listed on the datasheet | |
| Module qualification and safety standards | IEC 61215; IEC 61730 |
| Quality system for PV module manufacturing | IEC 62941 |
| Quality management system | ISO 9001 |
| Environmental management system | ISO 14001 |
| Occupational health and safety management system | ISO 45001 |
| Conformity marking shown | CE |
| Warranty and degradation | |
| Materials and processing warranty | 30 years, subject to manufacturer terms |
| Linear power-output warranty | 30 years, subject to manufacturer terms |
| First-year power degradation | <1%, as stated in the datasheet |
| Annual power degradation, years 2–30 | 0.35% |
| Guaranteed output at year 30 | 88.85% of original rated output |
