Jinko 470W Tiger Neo 3.0 N-Type TOPCon Dual Glass All Black MC4 Solar Panels
- 470 W all-black N-type TOPCon solar panel for high-output residential and commercial rooftop solar PV systems.
- 23.52% module efficiency with dual 2 mm glass and a practical 1,762 × 1,134 mm format.
- 25-year product warranty and 30-year linear power warranty, with MC4-EVO2 available on request.

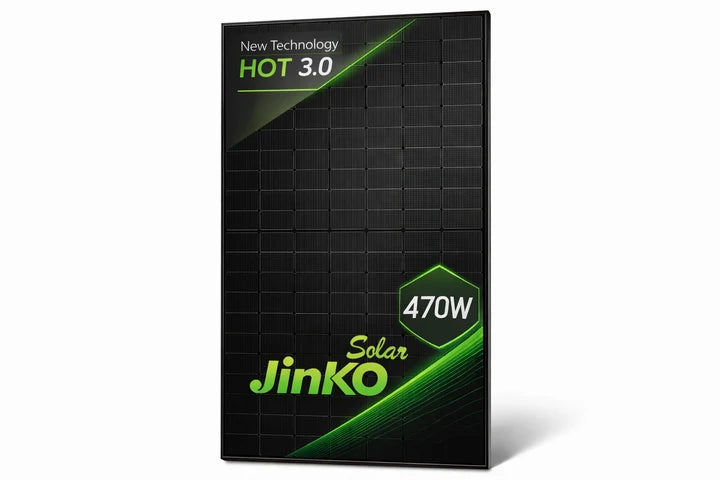

Jinko Tiger Neo 3.0 470W all black solar panel
The Jinko JKM470N-48QL6-DB-F3-EU is a 470 W N-type TOPCon monocrystalline solar panel with an all-black monofacial dual-glass design. It is suited to residential and commercial rooftop solar systems where high output per panel, a neat black appearance and robust double-glass construction are important.
With 23.52% module efficiency, this Jinko 470W Tiger Neo 3.0 panel helps maximise installed capacity where usable roof area is limited. Its 1,762 × 1,134 mm format provides a practical option for compatible pitched-roof and commercial mounting systems.
Key features
- 470 W rated output: Helps reduce module count, roof fixings and DC connections for a given system size.
- 23.52% module efficiency: N-type monocrystalline TOPCon technology with 192 cells in a 48 × 4 configuration.
- All-black dual-glass construction: 2 mm anti-reflective coated front glass and 2 mm heat-strengthened rear glass.
- Enhanced mechanical load rating: Manufacturer states 6,000 Pa front-side and 4,000 Pa rear-side maximum static test loads.
- Long-term warranty cover: 25-year product warranty and 30-year linear power warranty, with 1% first-year degradation and 0.35% annual degradation over 30 years.
Where to use
The Jinko 470W Tiger Neo 3.0 all-black solar panel is suitable for homes, residential developments, offices, retail units, workshops and commercial rooftop solar PV systems. The all-black appearance is particularly suitable for visible roof areas where the finish of the completed array is important.
At 24.4 kg per module, use a mounting system approved for the module dimensions, frame profile and clamping zones. Confirm roof structure, local wind and snow loads, inverter input limits, string voltage and DC protection requirements before installation.
Energian can help with module quantities, roof mounting, inverter and optimiser compatibility, battery integration and complete solar PV system design. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | Jinko Solar |
| Series | Tiger Neo 3.0 |
| Module model | JKM470N-48QL6-DB-F3-EU |
| Module power range | 460–485 W |
| Module type | All-black monofacial dual-glass N-type monocrystalline module |
| Cell technology | N-type monocrystalline TOPCon |
| Rated maximum power (Pmax) | 470 W |
| Module efficiency at STC | 23.52% |
| Power sorting | 0 to +3% |
| Maximum power voltage (Vmp) | 30.97 V |
| Maximum power current (Imp) | 15.18 A |
| Open-circuit voltage (Voc) | 36.19 V |
| Short-circuit current (Isc) | 15.80 A |
| STC test conditions | Irradiance 1,000 W/m², cell temperature 25°C, AM 1.5 |
| Pmax measurement tolerance | ±3% |
| Cell configuration | 192 cells (48 × 4) |
| Module dimensions | 1,762 × 1,134 × 30 mm |
| Module dimensional tolerance | Length ±2 mm; width ±2 mm |
| Weight | 24.4 kg |
| Front glass | 2.0 mm glass with anti-reflection coating |
| Back glass | 2.0 mm heat-strengthened glass |
| Frame | Anodised aluminium alloy; all-black module appearance |
| Junction box | IP68 rated |
| Output cable | ≥4.0 mm²; positive 600 mm / negative 400 mm; customised length available |
| Connector type | JK03M / JK03M2 / other options; MC4-EVO2 available upon request and subject to availability |
| Operating temperature | -40°C to +70°C; short-term operation up to 85°C, with higher operation requiring IEC TS 63126 testing |
| Maximum system voltage | 1,500 V DC (IEC) |
| Maximum series fuse rating | 30 A |
| Protection class | Class II |
| IEC fire type | Class C |
| Temperature coefficient of Pmax | -0.26%/°C |
| Temperature coefficient of Voc | -0.24%/°C |
| Temperature coefficient of Isc | +0.046%/°C |
| Front-side maximum static test load | 6,000 Pa |
| Rear-side maximum static test load | 4,000 Pa |
| First-year degradation | 1% |
| Annual degradation over 30 years | 0.35% |
| Guaranteed power at year 30 | 88.85% |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| Certifications and standards | IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068, IEC 62804, ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 |
