JA Solar 505W N-Type TOPCon Double Glass Bifacial All Black MC4 Solar Panels
- 505 W rated output per panel for commercial, industrial and larger rooftop solar PV systems.
- All-black appearance for visible installations, with N-type TOPCon multi-busbar half-cell technology.
- Bifacial double-glass construction can generate additional electricity from reflected light reaching the rear surface.

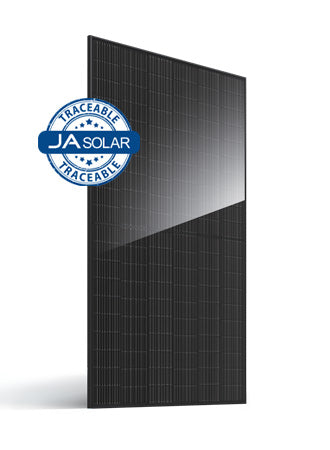

JA Solar 505W N-Type TOPCon all-black bifacial solar panel
The JA Solar JAM60D41-505/LB is a 505 W N-type TOPCon double-glass bifacial solar panel with 22.8% module efficiency. It combines an all-black appearance with a 1953 × 1134 mm footprint, making it an option for commercial rooftops, industrial premises and professionally designed off-grid solar arrays.
Key features
- 505 W rated output: supports higher installed capacity where available mounting space limits panel quantities.
- N-type TOPCon MBB half-cell technology: uses 120 cells arranged in a 6 × 20 configuration.
- Bifacial generation: the rear surface can contribute to output where the mounting arrangement allows reflected light to reach it.
- Double-glass construction: 2.0 mm front glass and 2.0 mm rear glass, with a 30 mm frame.
- All-black finish: provides a consistent appearance for visible rooftops and solar carports.
Where to use
Suitable applications include warehouses, logistics facilities, commercial and industrial rooftops, agricultural buildings, solar carports and ground-mounted arrays. The panel can also form part of an off-grid solar and battery system when paired with correctly specified power-conversion equipment.
Rear-side generation depends on mounting height, row spacing, shading and the reflectivity of the surface below the panels. The 505 W rating is the front-side output under standard test conditions, not a guaranteed operating output or an allowance for rear-side generation.
This is a system component, not a stand-alone power supply. Check inverter or charge-controller voltage and current limits, cold-weather string voltage, mounting compatibility and DC protection. Installation can be arranged through trusted partners where the complete system cannot be used out of the box.
Technical specifications
| Product identification | |
|---|---|
| Manufacturer | JA Solar |
| Exact module model | JAM60D41-505/LB |
| Datasheet series | JAM60D41 LB Black Module |
| Datasheet power range | 485–510 W |
| Cell technology | N-type TOPCon, MBB half-cell |
| Cell type | Monocrystalline |
| Module construction | Double glass, bifacial |
| Appearance | All black |
| Frame colour | Black |
| Electrical characteristics at standard test conditions — 505 W model | |
| Rated maximum power (Pmax) | 505 W |
| Module efficiency | 22.8% |
| Power output tolerance | 0 to +3% |
| Maximum power voltage (Vmp) | 37.11 V |
| Maximum power current (Imp) | 13.61 A |
| Open-circuit voltage (Voc) | 44.05 V |
| Short-circuit current (Isc) | 14.48 A |
| Standard test conditions (STC) | Irradiance 1000 W/m²; cell temperature 25°C; air mass AM1.5G |
| Mechanical specifications | |
| Number of cells | 120 (6 × 20) |
| Module dimensions, including tolerances | 1953 ±2 × 1134 ±2 × 30 ±1 mm |
| Module weight | 27.3 kg |
| Front glass thickness | 2.0 mm |
| Rear glass thickness | 2.0 mm |
| Frame depth | 30 mm |
| Junction box | IP68, 3 bypass diodes |
| Module cable cross-section | 4 mm² (IEC); 12 AWG (UL) |
| Connector options listed for the series | QC 4.10-351 / MC4-EVO2A; confirm the connector fitted to the supplied batch |
| Cable length, including connector — portrait option | 300 mm positive / 400 mm negative |
| Cable length, including connector — landscape option | 1200 mm positive / 1200 mm negative |
| Packing quantity | 36 modules per pallet; 864 modules per 40HQ container |
| Operating limits and temperature characteristics | |
| Maximum system voltage | 1500 V DC |
| Operating temperature | −40°C to +85°C |
| Maximum series fuse rating | 30 A |
| Maximum static test load — front | 5400 Pa, subject to the approved mounting arrangement |
| Maximum static test load — rear | 2400 Pa, subject to the approved mounting arrangement |
| Mechanical test-load relationship | Test load = design load × 1.5; use the installation manual for mounting-specific limits |
| Bifaciality | 80 ±10% |
| Temperature coefficient of Isc | +0.045%/°C |
| Temperature coefficient of Voc | −0.250%/°C |
| Temperature coefficient of Pmax | −0.290%/°C |
| Safety class | Class II |
| Fire performance classification | UL Type 29 / Class C |
| Installation requirements from the JA Solar manual | |
| Permitted orientation | Portrait or landscape, using an approved mounting arrangement |
| Recommended minimum tilt angle | 10° to assist rainwater cleaning |
| Recommended minimum module spacing | 10 mm |
| Recommended clearance for mounting parallel to a roof or wall | At least 100 mm between the module frame and mounting surface |
| Recommended clearance to support rear-side energy yield | At least 1 m between the bottom of the modules and the roof or ground |
| Recommended clamp width | At least 50 mm for end and middle clamps |
| Recommended clamp thickness | At least 3 mm |
| Recommended clamp material | Aluminium alloy 6063-T5 |
| Recommended clamp fasteners | M8 bolt, nut and washer |
| Recommended clamp-bolt torque | 18–24 N·m |
| Clamp overlap onto module frame | 8–12 mm |
| Recommended mounting-hole fastener torque | M8: 15–20 N·m; M6: 8–12 N·m |
| Recommended fastener length for a 30 mm frame | 20 mm or less |
| Minimum field-wiring specification | EN 50618:2014; 4 mm²; temperature rating −40°C to +90°C |
| Minimum cable bending radius | 38.4 mm |
| Module standards referenced in the installation manual | IEC 61215 and IEC 61730 |
| Connector mating requirement | Use matching connector types; interconnecting different connector types is not recommended |
Mounting loads depend on rail positions, clamping zones and the installation method. The figures above are not a substitute for a site-specific structural assessment. Use the installation manual and the datasheet supplied with the modules for final system design.
Documents available for download
- JA Solar JAM60D41 LB All-Black 485–510 W Datasheet
- JA Solar PV Bifacial Double-Glass Modules Installation Manual
Shipping
Available for delivery to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for module selection, mounting compatibility, bifacial-array layout, inverter string design and complete solar PV system planning. Contact Energian with any questions or support requests by phone, email or live chat, or visit our office for an in-person consultation.
Where your system requires professional installation, Energian can arrange installation through trusted partners.
