JA Solar 470W N-Type Double Glass LR Low Carbon Black Frame TSLC MC4 Solar Panels
- 470 W N-type dual-glass solar panel for high-output residential and commercial rooftop solar PV systems.
- Black-frame module with traceable low-carbon product positioning for projects where component provenance and appearance matter.
- Specified for professional solar PV installations using compatible mounting systems, inverters and DC protection equipment.

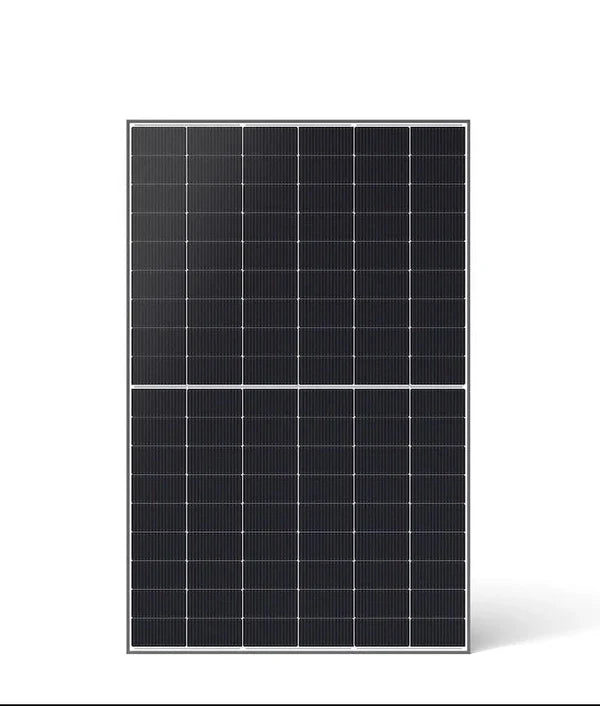

JA Solar 470W N-type double glass black frame solar panel
The JA Solar 470W N-type double glass solar panel is intended for residential and commercial rooftop PV systems that require high module output, a black-frame finish and dual-glass construction. Its 470 W rating can help maximise installed capacity where available roof area is limited.
Key features
- 470 W rated output: A high-output module option for residential, commercial and light-industrial rooftop solar arrays.
- N-type module technology: Designed for professionally specified rooftop solar PV systems.
- Double-glass construction: Dual-glass module design for projects requiring a glass-glass panel construction.
- Black-frame finish: Suitable for visible installations where the appearance of the completed solar array matters.
Where to use
The JA Solar 470W N-type double glass black frame solar panel is suitable for homes, offices, retail premises, workshops, warehouses and commercial roof-mounted solar PV systems. It is suited to projects where high output per panel and a black-framed appearance are important.
Use a mounting system approved for the exact module frame, dimensions and clamping zones. String lengths must be designed using the 470 W panel open-circuit voltage, current values, temperature coefficients and the selected inverter’s DC input limits.
Energian can help with module quantities, inverter and optimiser compatibility, roof-mounting selection, DC protection and complete solar PV system planning. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | JA Solar |
| Datasheet series | JAM54D40 LR, black frame |
| Datasheet power range | 445–470 W |
| Product power rating | 470 W |
| Module technology | N-type |
| Module construction | Double glass |
| Frame finish | Black frame |
| Low-carbon traceability designation | LR traceable low carbon / TSLC stated in product title |
| Exact module model | JAM54D40-470/LR |
| Module efficiency | 23.5% |
| Power tolerance | 0+-3% |
| Maximum power voltage (Vmp) | 33.84V |
| Maximum power current (Imp) | 13.89A |
| Open-circuit voltage (Voc) | 40.40V |
| Short-circuit current (Isc) | 14.66A |
| Module dimensions | 1762 x 1134 x 30 mm |
| Module weight | 22 kg |
| Front glass/Back glass | 1.6 mm / 1.6 mm |
| Frame specification | Black frame |
| Junction box | IP68 3 diodes |
| Connector | MC4-EVO2A |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1500 V |
| Maximum series fuse rating | 25A |
| Mechanical loading | 5400 Pa |
| Temperature coefficient of Isc | +0.045%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Pmax | -0.29%/°C |
| Certifications | IEC 61215, IEC 61730, IEC 61701 and IEC 62716 |
| Product warranty | 25 years |
| Performance warranty | 30 years |
