JA Solar 465W N-Type Double-Glass Monofacial LR All Black MC4 Solar Panels
- Generate 465W per panel at standard test conditions, with 23.3% module efficiency for projects where available installation space matters.
- All-black appearance with N-type TOPCon half-cells, double-glass construction and a black frame.
- 25-year product and 30-year performance warranties, with MC4-EVO2A connectors on the specified configuration.

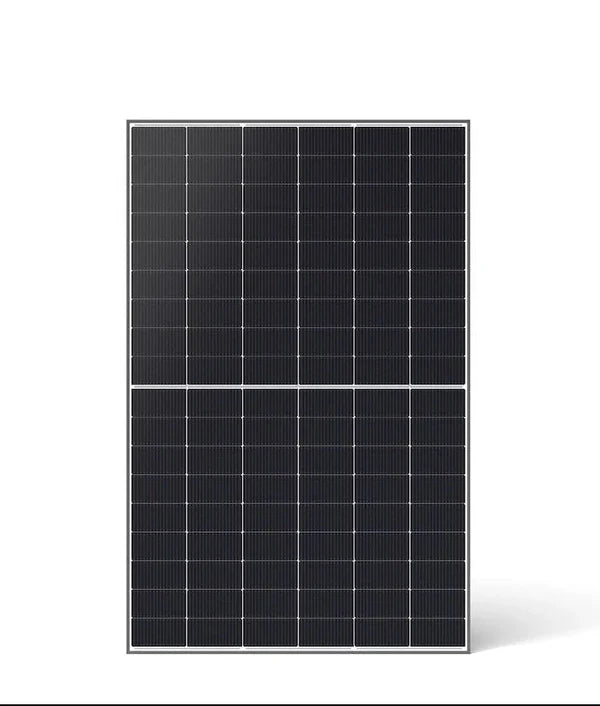

JA Solar 465W all-black double-glass monofacial solar panel
The JA Solar JAM54D41-465/LR is a 465W N-type double-glass monofacial solar panel for commercial, industrial and residential PV installations. Its all-black finish suits visible rooftops, while the 1,762 × 1,134 × 30mm format helps installers plan arrays around the available space. For projects requiring traceable supply, ask Energian to confirm the documentation available for the quoted stock.
Key features
- Space-efficient generation: 465W rated output and 23.3% module efficiency support high installed capacity within the available roof area.
- N-type TOPCon technology: 108 half-cells with 16-busbar construction.
- All-black double-glass design: a consistent appearance for visible installations, with a black frame and glass-glass module construction.
- Front-side generation: monofacial construction means the array design does not rely on additional rear-side generation.
- Long-term performance cover: 25-year product and 30-year performance warranties, with 99% initial linear warranty value and 0.4% annual degradation thereafter, subject to manufacturer terms.
Where to use
Consider the JA Solar 465W all-black monofacial panel for warehouse offices, logistics facilities, commercial premises, agricultural buildings and residential rooftops. It can also be used in professionally designed ground-mounted arrays where its dimensions and electrical characteristics suit the project.
Double-glass construction does not make this module bifacial. Size the system around front-side generation, local shading and the inverter’s voltage and current limits. Confirm the mounting system’s compatibility with the 30mm frame, approved clamping positions and site-specific structural loads.
Energian can assist with module quantities, inverter string design, mounting compatibility and DC protection. This panel requires professional system integration; installation can be arranged through trusted partners.
Technical specifications
Electrical values below apply to JAM54D41-465/LR at standard test conditions.
| Specification | Value |
|---|---|
| Product identification | |
| Manufacturer | JA Solar |
| Product family | DeepBlue 4.0 Pro |
| Datasheet series | JAM54D41 LR |
| Exact module model | JAM54D41-465/LR |
| Series power range | 440–465W |
| Cell technology | N-type monocrystalline TOPCon |
| Cell format | Half-cut |
| Busbar count | 16 |
| Module construction | Double glass, monofacial |
| Appearance | All black |
| Frame colour | Black |
| Electrical characteristics at STC | |
| Rated maximum power, Pmax | 465W |
| Module efficiency | 23.3% |
| Maximum power voltage, Vmp | 34.02V |
| Maximum power current, Imp | 13.67A |
| Open-circuit voltage, Voc | 40.70V |
| Short-circuit current, Isc | 14.44A |
| Power tolerance | 0 to +3% |
| Standard test conditions | Irradiance 1,000W/m²; cell temperature 25°C; air mass 1.5 |
| Maximum system voltage | 1,500V DC |
| Maximum series fuse rating | 25A |
| Mechanical construction and connections | |
| Number of cells | 108 |
| Dimensions, L × W × H | 1,762 × 1,134 × 30mm |
| Module weight | 22kg |
| Front glass thickness | 1.6mm |
| Junction-box protection | IP68 |
| Bypass diodes | 3 |
| Connector designation | MC4-EVO2A |
| Positive cable length | 1,200mm |
| Negative cable length | 1,200mm |
| Module cable cross-section | 4mm² |
| Temperature characteristics | |
| Temperature coefficient of maximum power, Pmax | −0.29%/°C |
| Temperature coefficient of open-circuit voltage, Voc | −0.25%/°C |
| Temperature coefficient of short-circuit current, Isc | +0.045%/°C |
| Mechanical loading and safety | |
| Maximum front static test load | 5,400Pa |
| Maximum rear static test load | 2,400Pa |
| Module qualification and safety standards | IEC 61215; IEC 61730 |
| Electrical safety class | Class II |
| Warranty and degradation | |
| Warranty provider | JA Solar |
| Product warranty | 25 years |
| Performance warranty | 30 years |
| Initial linear warranty value | 99% of original rated output |
| Annual linear degradation thereafter | 0.4% |
