JA Solar 460W N-Type Double Glass LR Traceable All Black MC4 Solar Panels
- 460 W N-type all-black solar panel for high-output residential and commercial rooftop solar PV systems.
- 23.0% module efficiency in a practical 1,762 × 1,134 mm double-glass module format.
- LR traceable module with MC4-EVO2 connectors and clamping permitted on both long and short sides.

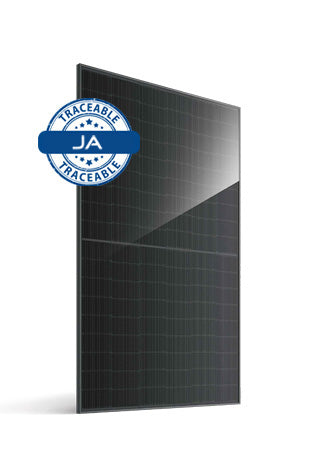

JA Solar 460W N-type all black double glass solar panel
The JA Solar JAM54D-41-460-LR-TS-AB-MC4 is a 460 W N-type double-glass solar panel with an all-black appearance. It is suited to residential and commercial rooftop solar PV systems where high output per panel, a neat visual finish and traceable module supply are important.
With 23.0% module efficiency, this JA Solar 460W all-black solar panel helps maximise installed capacity where roof area is limited. Its 1,762 × 1,134 mm format and 22 kg weight make it suitable for professionally designed pitched-roof and commercial rooftop systems.
Key features
- 460 W rated output: Helps deliver more installed PV capacity with fewer panels, roof fixings and DC connections than lower-wattage alternatives.
- 23.0% module efficiency: A high-output N-type module for space-conscious roof installations.
- All-black double-glass construction: Suitable for visible residential and commercial arrays where appearance matters.
- Flexible mounting options: The panel may be clamped on the long side or short side, subject to the mounting-system and manufacturer installation requirements.
- MC4-EVO2 connector: Supplied with an MC4-EVO2 connector for compatible PV-string connections.
Where to use
The JA Solar 460W N-type all black solar panel is suitable for homes, residential developments, offices, retail units, workshops and commercial roof-mounted solar PV systems. It is particularly suitable where a black-finished panel is required for a visible roof installation.
Use a mounting system approved for the module frame, dimensions and selected clamping orientation. Confirm roof structure, wind and snow loads, inverter DC input limits, string voltage and electrical protection requirements before installation.
Energian can help with panel quantities, inverter and optimiser compatibility, roof mounting, DC protection and complete solar PV system planning. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | JA Solar |
| Supplier part number | JAM54D-41-460-LR-TS-AB-MC4 |
| Module technology | N-type |
| Module construction | Double glass |
| Module appearance | All black |
| Traceability designation | LR traceable |
| Rated power | 460 W |
| Module efficiency | 23.0% |
| Voltage at maximum power (Vmp) | 33.68 V |
| Current at maximum power (Imp) | 13.66 A |
| Open-circuit voltage (Voc) | 40.6 V |
| Short-circuit current (Isc) | 14.43 A |
| Temperature coefficient of MPP | -0.29%/°C |
| Module dimensions | 1,762 × 1,134 × 30 mm |
| Weight | 22 kg |
| Permitted clamp position | Long side and short side |
| Connector type | MC4-EVO2 |
Documents available for download
