Iconica 6000W 48V hybrid pure sine wave inverter with 120A MPPT solar controller and 120A mains battery charger, with parallel capability and Wi-Fi (No Battery Required)

6000W 48V Hybrid Inverter with MPPT Solar Controller and Smart Battery Charger – Operates Without a Battery

The Iconica 6000W 48V hybrid inverter combines a 6000W pure sine wave inverter, a 120A MPPT solar charge controller, and a 120A mains battery charger in a single compact unit. It can accept power from solar panels, a generator or mains supply, and a battery — either individually or in combination. Designed for flexibility and reliability, this inverter offers a wide range of customisable settings and advanced communication options.

This model is capable of powering AC loads directly from solar input without a battery, making it ideal for off-grid installations or areas with unreliable grid access.

With its built-in Uninterrupted Power Supply (UPS) functionality, this hybrid inverter is well suited for remote locations, mobile setups such as cabins and boats, and any application where constant access to grid power is limited or costly.

Key Functions

1. 6000W 48V Pure Sine Wave Inverter
Converts DC battery power to 230V AC mains electricity. Delivers 6000VA continuous output and 12000VA peak to handle start-up surges from demanding appliances like pumps, power tools, and refrigerators. Pure sine wave output ensures compatibility with a wide range of sensitive electronics.

2. 6000W MPPT Solar Charge Controller
Regulates charging from solar panels up to 6000W with a maximum input voltage of 500V and 27A current. MPPT tracking delivers up to 98% efficiency. Safety features include overcharge, reverse current, and thermal protection. Solar performance data is displayed on the integrated LCD.

3. 120A Mains Battery Charger
Charges the battery efficiently from a generator or grid input with adjustable charging parameters and full overcharge protection. Multiple charging stages ensure battery longevity and safety.

4. Parallel and Three-Phase Capability
Up to 8 additional inverters can be connected in parallel for a total output of 54kW. Parallel systems can be configured for three-phase power where required.

5. Dual AC Outputs
Provides one continuous AC output and a second output programmable by battery state-of-charge or timer functions, allowing control of essential vs non-essential loads.

6. Built-in Wi-Fi Monitoring
Built-in Wi-Fi enables remote monitoring and control via the free Watchpower mobile app for Android and iOS devices.

Additional Features

• AC Output Without Battery:
  Runs directly from solar input, with or without a battery connected. Ideal for applications where battery use is optional or where efficiency is maximised by avoiding unnecessary battery cycling.

• Output Source Priority:
  Configure which input source (solar, battery, mains) takes priority for AC output under various conditions.

• Battery Charging Priority:
  Set charging preferences using solar, mains, or both. Allows optimisation based on energy source availability and cost.

• Extensive Custom Settings:
  Adjust AC input range, battery type, charging current, voltage thresholds, stage durations, timers, and more. Includes settings for alarms, backlight, equalisation, power-saving modes, and overload bypass.

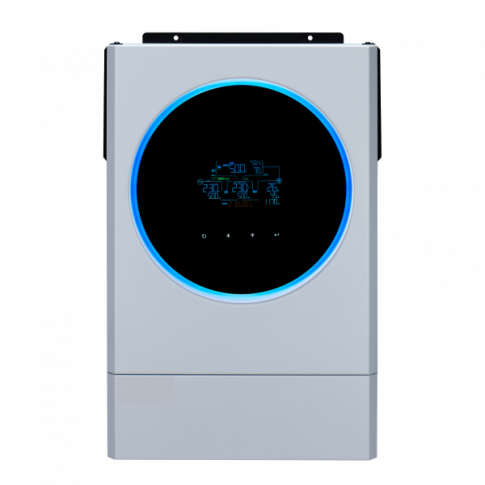

• 4.3-Inch Touch LCD Screen:
  Clear, colour display with touch keys provides real-time information such as voltages, loads, charging status, and power generation history (daily/monthly/yearly).

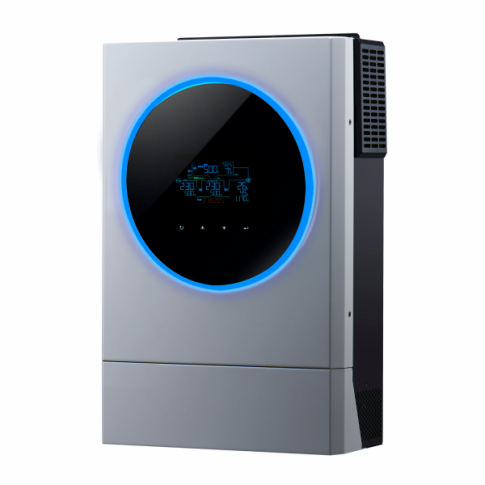

• Programmable RGB Light Ring:
  Custom LED indicator ring displays system data at a glance — such as battery charge level, input source, or solar generation — in user-defined colours.

• Advanced Communication Options:
  Includes PC connection cable and software. Detailed data logs can be exported to Excel or PDF. Optional Wi-Fi portal connection kit allows remote web-based monitoring and email alerts (sold separately).

• Auto Restart:
  Automatically resumes operation after overload or over-temperature shutdown once safe conditions are restored.

• Generator Auto-Start (via relay driver):
  Can trigger generator start when battery voltage drops below a user-defined threshold (relay driver required).

• Efficient Cooling System:
  Variable-speed fans respond to load and internal temperature to maintain safe operating conditions with minimal noise and power use.

Battery Compatibility

Supports 48V sealed, flooded, and GEL/AGM lead-acid batteries (e.g., Rolls) and lithium batteries (e.g., Pylontech) with pre-defined charging profiles. A user-defined battery option allows manual configuration for other types. Please consult us for lithium-specific settings if using brands not listed.

Warranty: 1 year

Technical Specifications

• Nominal battery voltage: 48V

• Continuous power output: 6000W / 6000VA (220–240V AC)

• Surge power capacity: 12000VA

• Output frequency: 50/60Hz

• Output waveform: Pure sine wave

• Maximum solar input power: 6000W

• Open circuit solar input voltage: 500V

• MPPT voltage range: 120–430V DC

• Maximum solar input current: 27A

• Maximum solar charging current: 120A

• Maximum mains charging current: 120A

• Maximum combined charging current: 120A

• Peak efficiency: 90%

• Operating temperature range: -10°C to +50°C

• Parallel operation: Up to 9 units total

• Dimensions (H × W × D): 140 × 295 × 468 mm

• Weight: 12 kg

• Included: PC connection cable and monitoring software CD

Download the user manual for the ICONICA 6000W off-grid inverter here.
