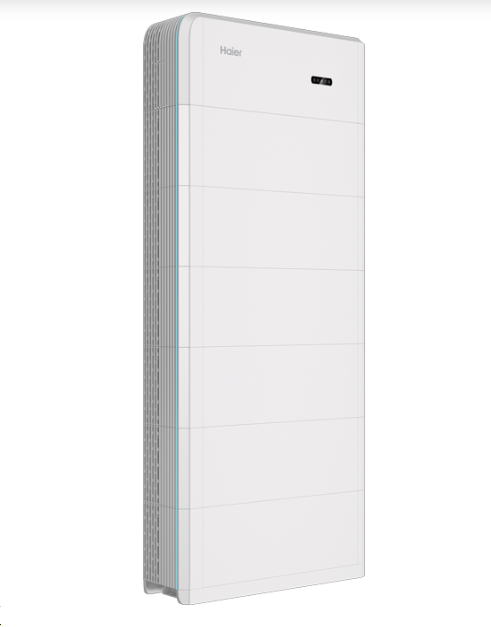

Haier Smart Cube All in One 6.0kW and 8-48kWh Off-grid Hybrid Energy Storage System

• SMART CUBE 6.0kW 1PH HYBRID INVERTER is the combination of a solar charge controller and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, battery, and the grid or generator at the same time. The Smart Cube Hybrid Inverter is a good choice for On-Grid / Off-Grid integrated storage solutions.

• SMART CUBE HYBRID INVERTER provides 6.0kW in on-grid and back-up modes to support essentials, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.

• SMART CUBE HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Switches to the battery in less than 10ms if the grid is down; Intelligent EMS function, improving battery's reliability; Remote control & upgrade function, providing digital power plant maintenance at your fingertips.

• SMART CUBE HYBRID INVERTER WORKING MODES There are five operating modes of the Hybrid ESS: AI Mode and Self-Consumption Mode.
  • AI Mode: Uses AI to analyse consumption patterns and local electricity prices to customize smart electricity solutions for maximizing savings.
  • Self-Consumtion Mode: When solar power is sufficient, the photovoltaic (PV) system supplies the load first, surplus energy is stored in the battery, and excess electricity is fed into the grid. When solar power is insufficient, the battery supplies electricity to the load.
  • Fully Fed to Grid Mode: Maximizes PV power generation for sale to the grid. During the day, surplus electricity is stored in batteries; at night or when PV power is low, the battery discharges to maximize output.
  • Time-based Control Mode: Charging and discharging times can be manually set via the Haier Smart Cube app. Surplus electricity during the day can be sold or stored, and the battery can be charged from the grid at night during low electricity price periods to save costs

  • Backup Reserve (configurable via app if a Gateway is present): Allows setting a backup state of charge (SOC) which reserves battery power for use when the grid is down.

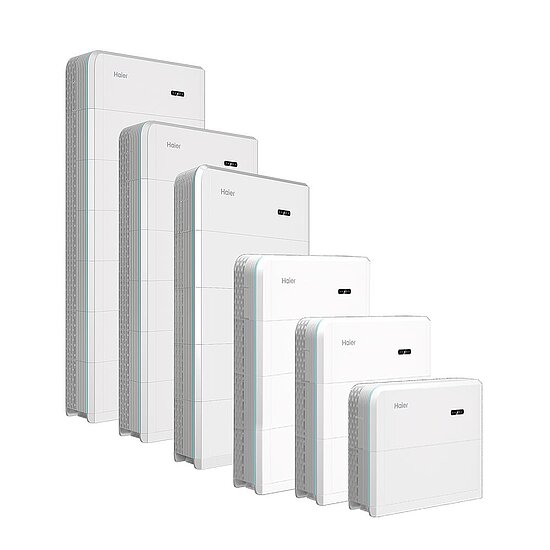

• (1-6) SMART CUBE 5.0KWH BATTERY: The Smart Cube 8kWh is a battery module for home energy storage. It uses LiFePO4  technology, ensuring high safety and long life, and is designed for integration into energy storage systems.

• ACCESSORIES include all the necessary parts to configure a fully operational system including (a) Power Sensor Single Phase External, (b) Installation Kit Ground Mount (alternatively Wall Mount on request), (c) Gateway Single Phase (3-6kW), and (d) Communication Module.

• (Optional) DMEGC 590W N-TYPE BIFACIAL DOUBLE GLASS  SILVER FRAME MC4-EVO2 SOLAR PANEL is a solar power source which captures up to 11.8kW DC electricity (2 strings each of 10 panels in serial) to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. The panel features DMEGC's innovative design with the high panel efficiency and power output of monocrystalline cells, enabling you to get more out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.

• SMART CUBE AND GENERATOR: The Smart Cube is designed to work seamlessly with a generator not less than 3kW of continuous power, e.g. Champion CPG9000E2 8000W Petrol Generator, as a backup energy source, especially for long-term off-grid applications. The generator can operate in tandem with the Smart Cube's Gateway to provide smooth transitions between photovoltaic (PV) solar panels, battery storage, and generator power generation.  This integrated system maximizes efficiency, savings, and energy independence by balancing power generation from solar, battery storage, and generator backup as needed.


• SMART CUBE AND HEAT PUMP: The Haier Smart Cube system controls a heat pump by treating it as a controllable load, which can be managed through specific interfaces on the inverter and energy controller.  The system uses dry contacts (DO1, DO2) and digital inputs (DI1-DI5) on the inverter to send control signals to the heat pump. These contacts allow the Smart Cube to switch the heat pump on or off according to the energy management strategy.

4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).

• 1x Smart Cube HH1P-6K Hybrid Inverter Single Phase 220/230/240VAC, 6.0kW (Grid side/Back-Up);
• 1x - 6x Smart Cube 8.06kWh Battery with LED, Max. Charge/Discharge Rate 4kW, Peak Discharge Rate (10 sec) 6kW;
• 1x Smart Cube Power Sensor Single Phase External CT DH;
• 1x Smart Cube Communication Module;
• 1x Smart Cube Gateway Single Phase (3-6kW);
• 1x Smart Cube Installation Kit Ground Mount; and
• (Optional) 20x DMEGC 590W N-TYPE BIFACIAL DOUBLE GLASS  SILVER FRAME MC4-EVO2 Solar Panels, Efficiency = 22.8%.
