Combine secure mounting with a low-profile design with the GSE IN-ROOF SYSTEM mounting kit for 2 x 8 1990–2180mm Solar Panels

The GSE IN-ROOF SYSTEM is a swift and efficient solution for integrating photovoltaic solar panels directly into your roof. Its patented design ensures safe installation while preserving the warranty of your existing roof covering.

Key Features:

  • Universal mounting system for roof-integrated photovoltaic solar panels, developed by installers for installers.
  • Compatible with 95% of framed solar modules available on the market.
  • Certified for water tightness, optimised ventilation, and fire resistance.
  • Quick and easy installation process.
  • 100% French manufacturing.

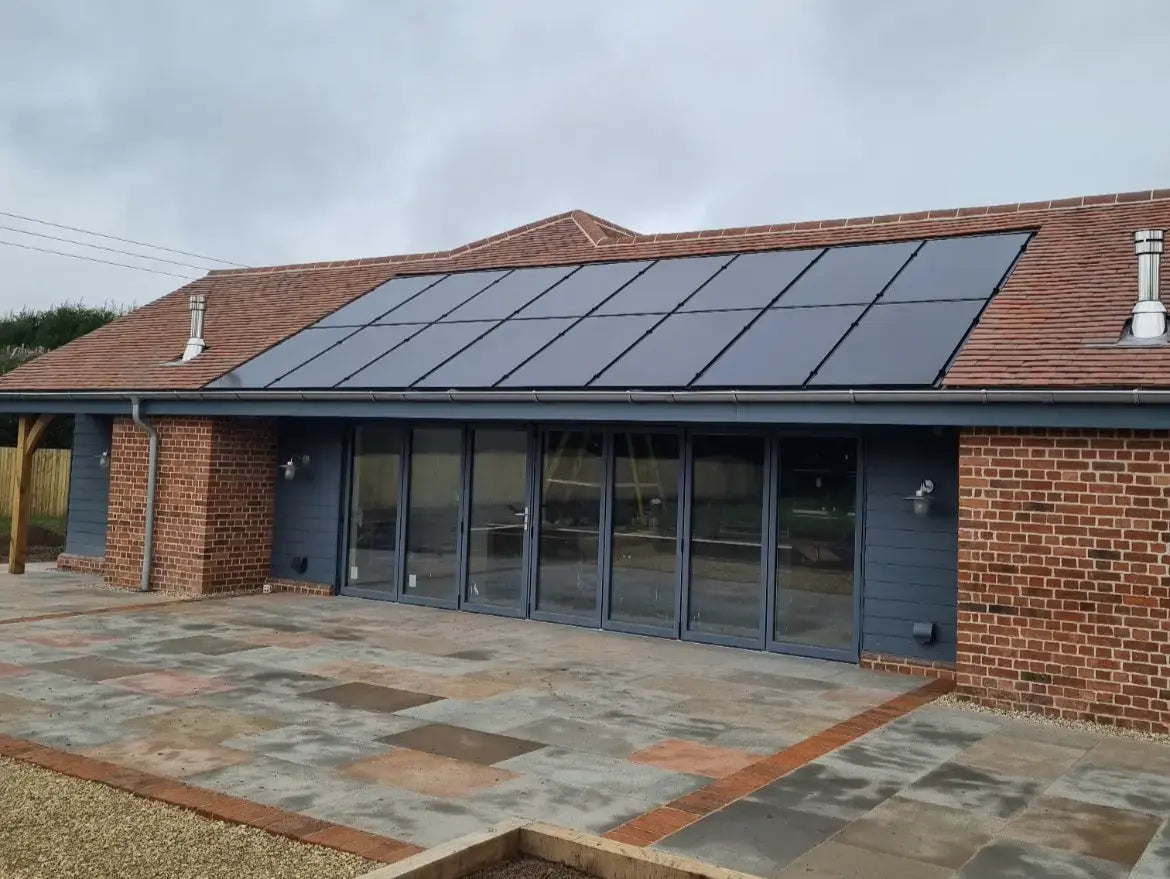

GSE In-Roof Solar Panel Mounting Kit: The following items are included: all necessary components to mount 16 solar panels, each measuring between 1990 mm and 2180 mm in length and 1130–1135 mm in width. For example, it accommodates solar panels sized 2063 × 1134 mm, arranged neatly in two rows on your roof.

Matching solar panels can be added to this kit based on your requirements. Contact us for advice.

Warranty: The GSE In-Roof System™ is backed by a 10-year manufacturer’s guarantee. It requires minimal maintenance—just regular cleaning of the solar panels to ensure optimal energy generation. The following items are included:

No

Description

  Qty
1 GSE XXL Frame Portrait DPO 2030/1135. The module mounting plate for one portrait PV module with a length of 1990-2180mm and a width of 1131-1135mm.These frames are ordered in halves. 2 frames are required per module - this product is simply showing the upper or lower half of a single frame. 32
2 GSE Top Centre Flashing. Size 1500 x 330 x1mm. Weight 1.4kg. 6
3 GSE Top Right Corner Flashing. Size 503 x 330 x 1mm. Weight 0.4kg.  1
4 GSE Top Left Corner Flashing. Size 503 x 330 x 1mm. Weight 0.4kg.  1
5 GSE Top Junction Flashing. Size 503 x 330 x 1mm. Weight 0.4kg.  5
6 GSE Lateral Flashing. Size 1290 x 185 x 1mm. Weight 0.48kg. 8
7 GSE Top Corner Piece Flashing. Size 1400 x 30 x 20mm. Weight 0.15kg. 6
8 GSE Flashing Hook. Size 38 x 20 x 1mm. Weight 0.006kg. 37
9 GSE Mid Clamp H16. Size 60 x 27 x 25mm. Weight 0.03kg. 56
10 GSE End Clamp H16. Size 48 x 27 x 25mm. Weight 0.02kg.

16
11 GSE EPDM Clamp Wedges Twin Pack (2x Left/2x Right).  Size 50 x 25 x 23mm. Weight 0.021kg. 4
12 GSE Rooflex Grey 330 Waterproof Strip (5m Roll). Size 5000 x 330mm. Weight 2kg. 2
13 GSE Pop Rivet. Size 40 x 7mm. Weight 0.001kg. 24
14 GSE Self-Tapping Screw + GSE Washer Black (Single). Size 65 x 6.5mm. Weight 0.01kg. 168
15 GSE Expanding Foam Sealing Strip – 5m 4
