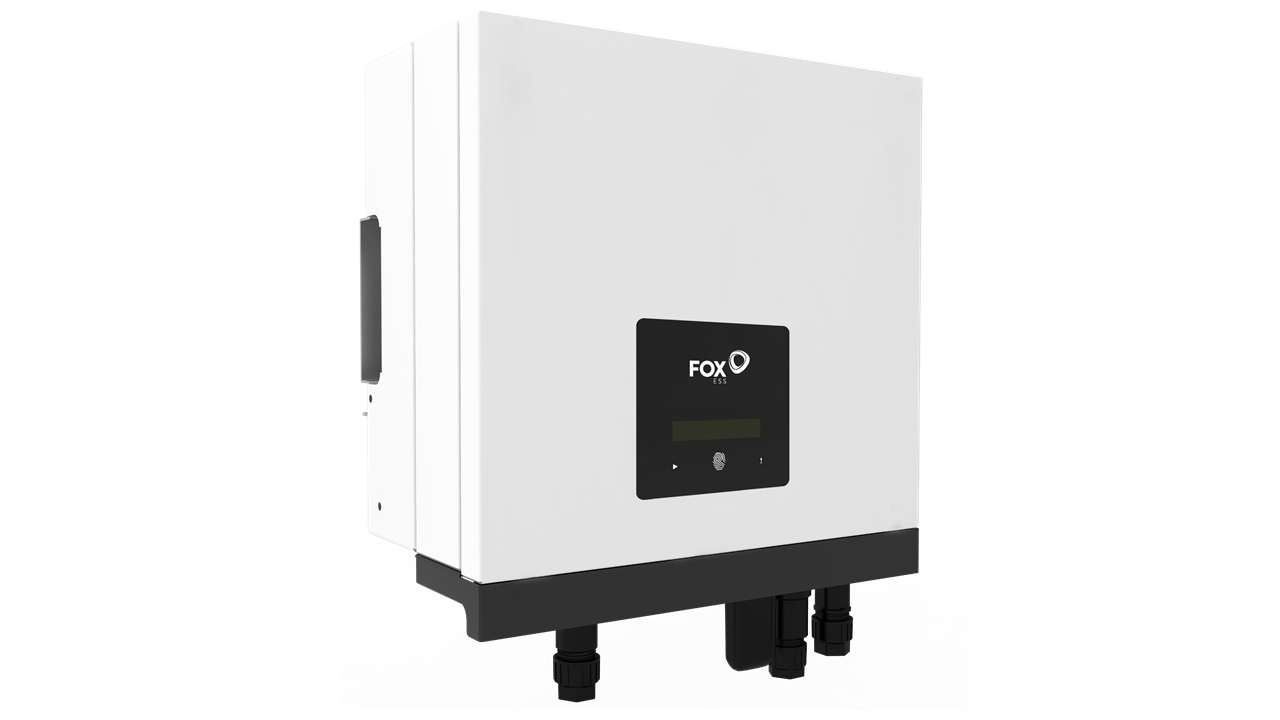

Fox ESS AC Coupled AC1 5.0kW Single Phase Charger Inverter


By Fox ESS

Delivery available

Unleash Efficiency with the Fox ESS AC Coupled 5.0kW AC1 Charger Inverter

The Fox system is designed for easy installation, saving you valuable time during setup. Take advantage of remote monitoring capabilities through your smartphone or web portal.

  • Utilizes High Voltage Batteries: Benefit from the advanced technology of high voltage batteries Fox ESS HV2600-V2, Fox ESS ECS2900, Fox ESS ECS4100, and Fox ESS ECS4800.
  • IP65 rated for outdoor installations
  • Remote monitoring via web portal or smartphone
  • Easy to expand battery capacity
  • Dual MPPT ensures optimal solar production
  • High round-trip efficiency of 97%; BMS unit required for a minimum of 2 x HV2600 batteries

CT Clamps and meter are included in the box

Key Features:

The Fox ESS AC Coupled 5.0kW AC1 Charger Inverter is a high-quality solution converting solar energy to AC energy stored in a battery. Use it to optimize energy consumption, store energy for future use, or feed excess energy into the grid. The system offers several advantages:

  • Advanced DSP control technology
  • Utilizes the latest high-efficiency power components
  • Advanced anti-islanding protection
  • Max efficiency up to 97.8%, THD <3%
  • Export limitation (CT/Meter/DRM0/ENSTOP)
  • WiFi remote control (with WiFi dongle installed)

Operating Modes

The Fox ESS 5.0kW AC1 Charger Inverter features four work modes to adapt to various needs:

  1. Self-use: Prioritizes battery discharge for local loads first, with the grid supplying power when the battery capacity is insufficient.
  2. Feed in priority: In the presence of an external generator, generated power is used for local loads first, then exported to the grid. Redundant power charges the battery.
  3. Force time use: Ideal for areas with peak and off-peak pricing. Allows flexible setting of charging and discharging times, with the option to charge from the grid.
  4. Back-up (EPS) mode: Supplies emergency power from PV or a battery during grid outages.

The Fox ESS 5.0kW AC1 Charger Inverter seamlessly integrates with smart Agile tariffs, with compatibility confirmed with Octopus Energy and other Economy 7 providers. It also supports an external backup generator for extended grid outages.

Fast Delivery Across the UK

Experience the benefits of the Fox ESS 5.0kW AC1 Charger Inverter with prompt 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).

      Detailed specifications

      BATTERY CONNECTION
      Battery Type: Lithium Iron Phosphate (LiFePO4)
      Battery Voltage: 85-450V
      Max. Charge/Discharge Current: 40A
      Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS)
      AC INPUT AND OUTPUT (GRID)
      Max. AC Input Power: 10000VA
      Max. Input Current (per phase): 45.5A
      Rated Output Power: 5000W
      Max. Output Apparent Power: 5500VA
      Rated Output Current (per phase): 21.7A
      Max. Output Current: 23.9A
      Rated Grid Voltage: 220-240VAC
      Rated Grid Frequency: 50/60Hz
      Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
      THDi: <3% @rated power
      EPS OUTPUT (WITH BATTERY)
      Max. Output Apparent Power: 6000VA
      Peak Output Apparent Power (60sec): 7200VA
      Max. Current (per phase): 26.1A
      Rated Output Voltage: 220-240VAC
      Rated Output Frequency: 50/60Hz
      Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
      THDi (linear load): <2% @rated power
      Switch Time: 20ms
      EFFICIENCY
      Max. Efficiency: 97.80%
      Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00%
      Operating Temperature: -25 ~ +60°C
      Protection Degree: IP65
      Size:  430 x 410 x 178mm
      Net Weight: 23kg

      In the Box:
      • 1 X Fox ESS 5.0kW AC1 Charger Inverter,
      • 1 X Fox ESS 5.0kW AC1 Charger Inverter User's Manual.
