Fogstar Energy IP65‑Rated 48V 48.3kWh Modular Battery Stack
Trade product for commercial and industrial projects. System design, compatibility checks and UK installation support available through Energian and trusted partners.
Need help with system design, inverter matching or backup architecture? Call +44 2080640335, email info@energian.co.uk or use live chat.
Key benefits
- High‑capacity 48 V LiFePO₄ modular battery stack delivering up to 48.3 kWh of storage in a single, IP65‑rated enclosure, suitable for indoor or outdoor installation in UK commercial and industrial sites.
- Scalable design built from multiple 16.1 kWh modules with a top‑mounted control unit, allowing you to expand from smaller stacks up to around 1.23–1.28 MWh across parallel stacks.
- Engineered for demanding environments with integrated heating, IP65 enclosure and built‑in fire suppression, providing robust safety and long service life (up to 8 000 cycles, 15‑year design life).
C&I projects

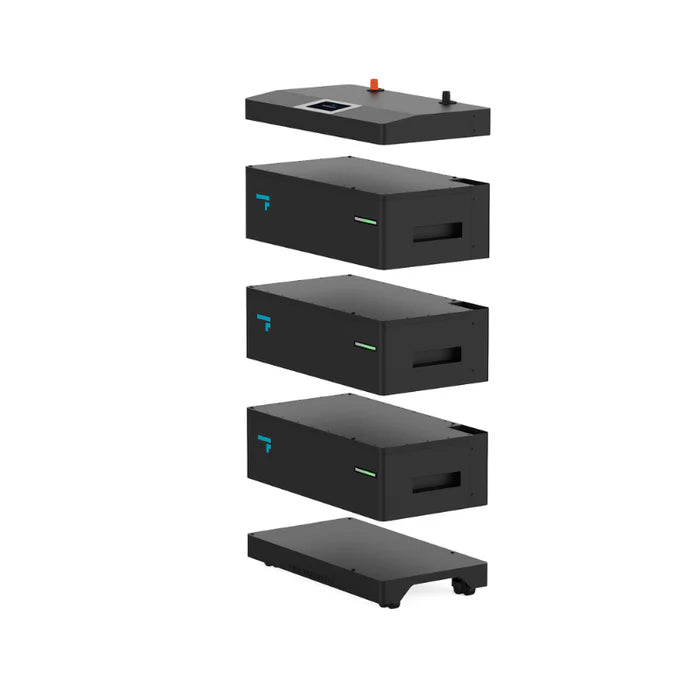

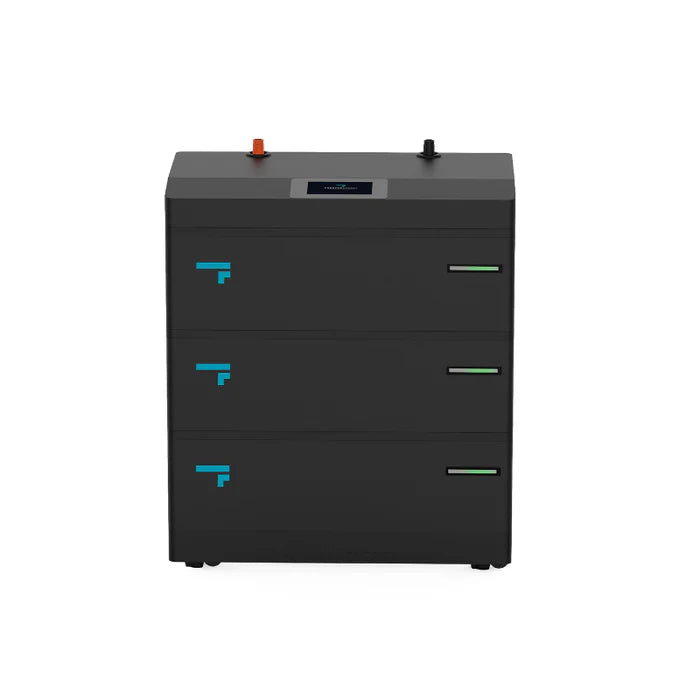

The Fogstar Energy IP65‑Rated 48 V 48.3 kWh Modular Battery Stack is a LiFePO₄ energy storage system designed for commercial, industrial and large residential applications requiring high‑capacity, low‑voltage storage. Each stack is assembled from three 16.1 kWh 51.2 V modules, managed by a single top‑mounted control unit and housed in an IP65‑rated enclosure with integrated safety features. Multiple stacks can be paralleled to support large hybrid inverter systems, EV charging, process loads or off‑grid power solutions where reliability and scalability are essential.
Key features
- 48.3 kWh per stack: modular 48 V system built from three 16.1 kWh LiFePO₄ battery modules, managed as a unified battery by the top‑mounted control unit.
- IP65‑rated enclosure: weather‑resistant housing with integrated heating, suitable for indoor plant rooms and sheltered outdoor locations in UK climates.
- High performance: up to 8 000 cycles at ~91 % DOD, 300 A maximum discharge and 150 A maximum charge current, supporting high‑demand LV inverter systems.
- Built‑in fire suppression: integrated fire suppression unit within the stack for enhanced safety in commercial and industrial environments.
- Scalable architecture: multiple stacks can be paralleled to reach total storage up to around 1.23–1.28 MWh, ideal for phased deployments and future expansion.
- Compatibility: the battery stack is compatible with most leading low-voltage 48 V hybrid and off-grif inverters - LuxpowerTek, Solis, Sunsynk, Victron (Requires a VE.Can to CAN cable) and others.
Technical specifications
Electrical parameters
- Rated energy options: 48.3 kWh and 64.4 kWh stacks; this listing refers to the 48.3 kWh variant.
- Rated voltage: 51.2 V.
- Operating voltage: 43.2–57.6 V.
- Total energy (Wh): 48.3 kWh model.
- Nominal capacity: 314 Ah.
- Maximum charge current: 150 A.
- Maximum discharge current: 300 A.
- Discharge cut‑off voltage: 43.2 V.
- Charging parameters: bulk 57.6 V; float 55.2 V; low DC cut‑off 43.2 V.
Battery and cell configuration
- Chemistry: LiFePO₄.
- Cell configuration (48.3 kWh stack): 3 × 16S1P.
- BMS rating: 150 A.
- Design life: 15 years.
- Cycle life: 8 000 cycles (test conditions in manufacturer sheet).
Environmental and mechanical
- Discharge temperature range: −20 °C to 45 °C.
- Charging temperature range: −15 °C to 45 °C.
- Relative humidity: 5–65 %.
- Ingress protection rating: IP65.
- Battery dimensions (L × W × H, mm): 48.3 kWh: 830 × 450 × 949 mm; 64.4 kWh: 830 × 450 × 1199 mm.
- Modular height notes: each battery stack height 250 mm, with base and control module contributing a total 199 mm height; overall stack height increases with the number of modules while footprint stays constant.
- Weight: 394 kg (48.3 kWh).
Safety and protection
- Built‑in fire suppression: integrated fire suppression unit within the modular stack.
- IP65 enclosure: dust‑tight and water‑resistant housing suitable for challenging installation environments.
Communications and compatibility
- Communication ports: CAN / RS485.
- System management: a top‑mounted control unit manages all modules in a stack as a single unified battery system.
- Inverter compatibility: compatible with multiple LV inverter platforms including (but not limited to) LuxPower, Sunsynk, Solis, Victron, Voltacon and others, as per Fogstar technical documentation.
Scalability and stacking limits
- Modules per stack: maximum of four (4) battery modules per stack (64.4 kWh configuration).
- Maximum system capacity: multiple stacks can be combined to scale total storage up to approximately 1.28 MWh according to manufacturer notes.
Warranty and support
- Battery warranty: 6‑year warranty with 10‑year customer support coverage, including BMS failure, cell failure, temperature sensors, charging/discharging faults and internal corrosion, subject to manufacturer terms.
Shipping and UK support
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080 640335 or info@energian.co.uk for a quote.
UK expert support is available – contact Energian with any questions or support requests via phone, email or live chat, or visit our office for an in‑person consultation to review your Fogstar Energy battery stack design, inverter compatibility, protection scheme and installation method.
