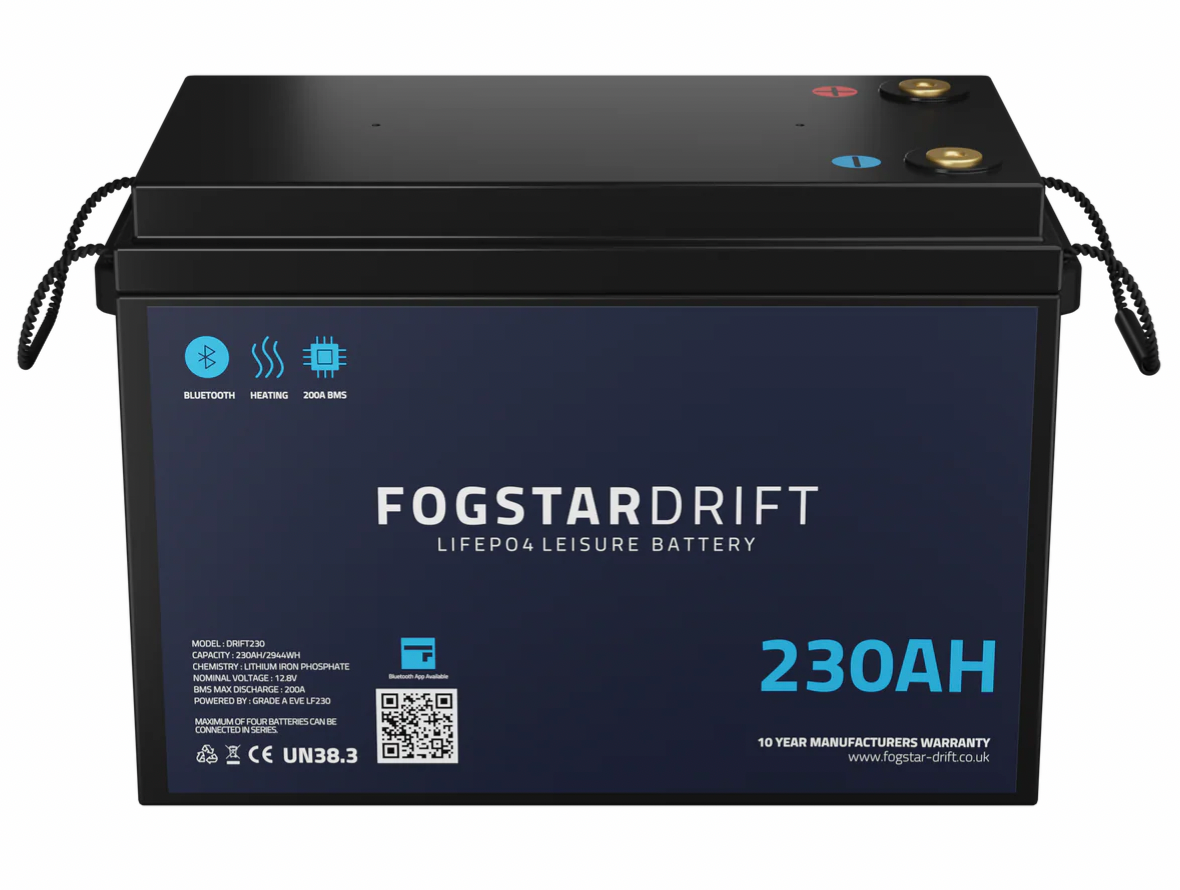

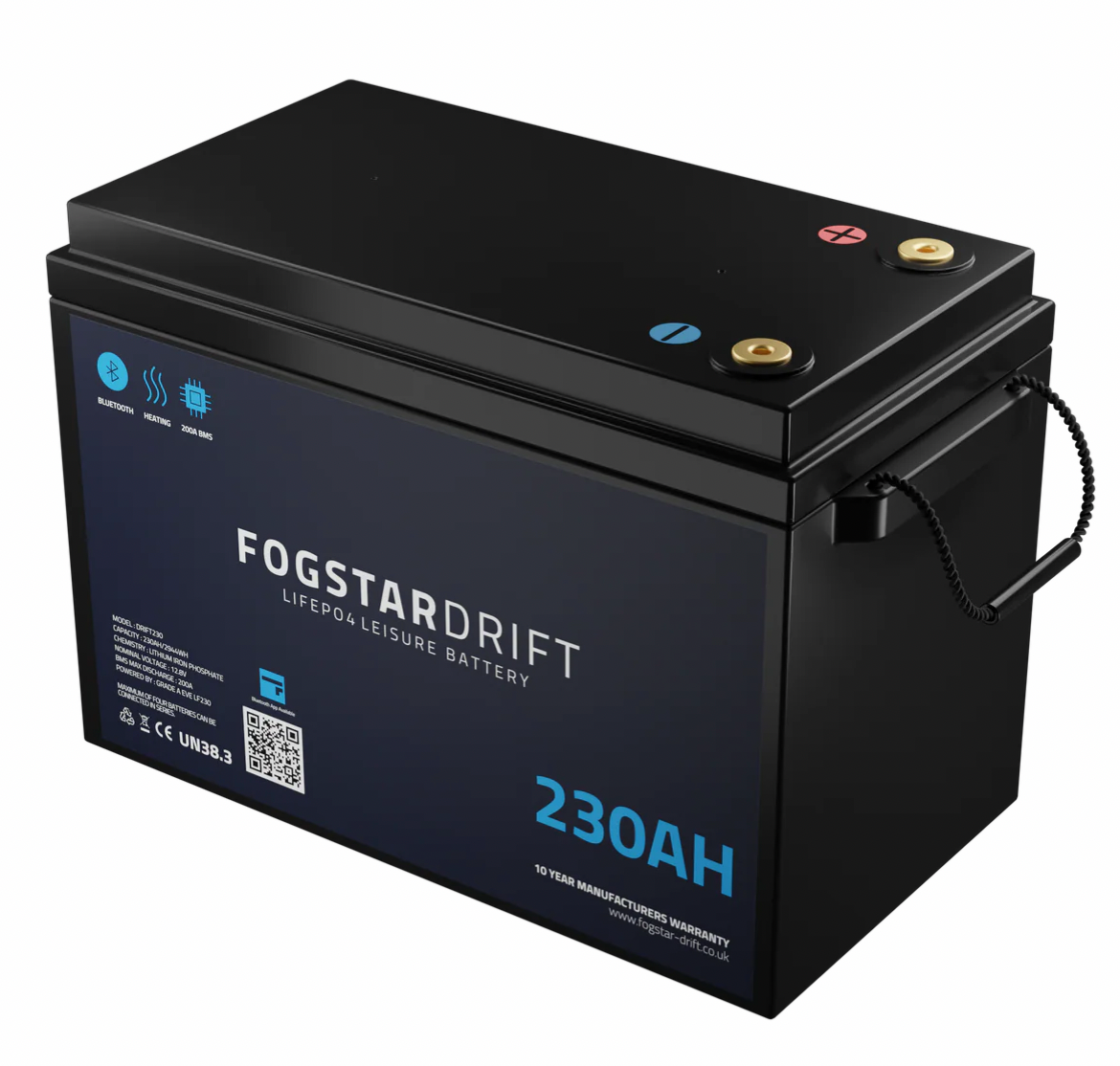

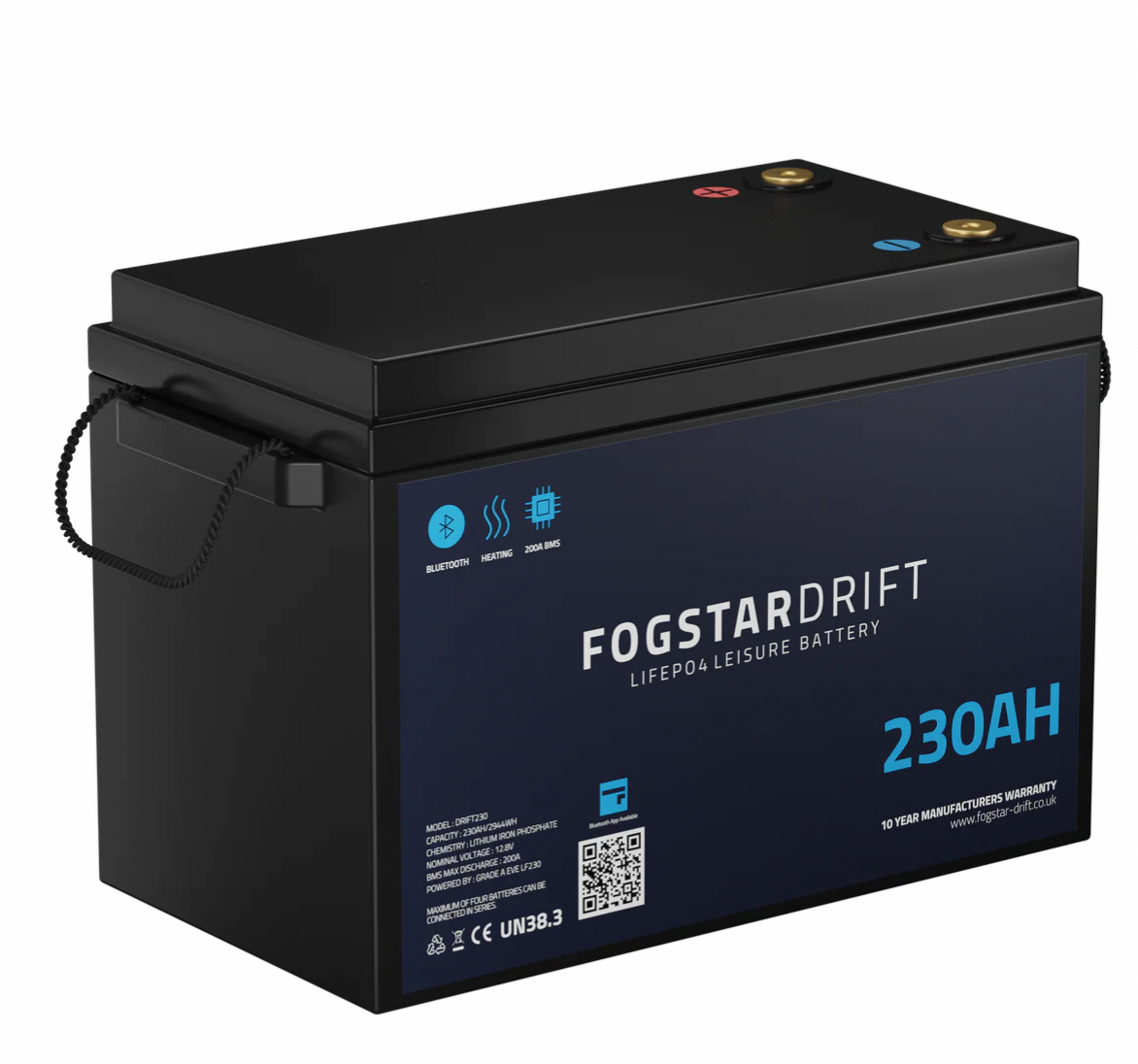

Fogstar Drift ECO 230Ah LiFePO4 Battery
The multi award-winning Fogstar Drift ECO 230Ah 12V LiFePO4 battery delivers exceptional capacity, durability, and functionality — ideal for caravans, marine use, home energy storage and solar systems.
Key Features
- Grade A EVE LF230 LiFePO4 prismatic cells
- Built-in JBD Battery Management System (BMS)
- Bluetooth connectivity via the Fogstar Drift App (iOS and Android)
- Integrated heater for cold weather charging
- Powerful 230Ah capacity — 2944Wh of energy
- IP67-rated durable ABS housing
- 10-year warranty as standard
- Portable design with fitted carry handles (25kg)
- Certified to UN38.3, CE, ROHS
Where to Use
Perfect for caravans, campervans, marine environments, motor movers, 12V solar banks and residential energy storage. This rugged battery is built for demanding off-grid or mobile power applications.
Technical Specifications
| Cell Type | EVE LF230 Grade A |
| Cell Configuration | 4S1P |
| Nominal Capacity | 230Ah / 2944Wh |
| Nominal Voltage | 12V |
| Recommended Charge Voltage | 14.4V |
| Max Continuous Discharge | 250A |
| Cycle Life | 3500+ @ 80% DOD |
| Discharge Cut-Off Voltage | 10V |
| Temperature Range (Discharge) | -20°C to 60°C |
| Temperature Range (Charge) | 0°C to 60°C (heater assisted) |
| Storage Temperature | 10°C to 35°C @ 50% SOC |
| Dimensions (mm) | 380 x 190 x 245 |
| Weight | 25kg |
| Housing | ABS Plastic (IP67) |
| Conformity | UN38.3, ROHS, CE |
BMS and Smart Features
- JBD Smart BMS with integrated Bluetooth
- Real-time battery monitoring via Fogstar Drift App
- Max Continuous Discharge: 250A
- Overcharge, Overdischarge, Overcurrent, and Temperature Protection
- Built-in heating system for low-temperature charging
Documents available to download: Fogstar DRIFT 230Ah battery specifications
