EnviroGuard PVC Coated Solar Mesh Bird Deterrent – 30m Roll with 100 Black Clips
- Creates a physical barrier to help prevent pigeons and other birds accessing the space beneath rooftop solar panels.

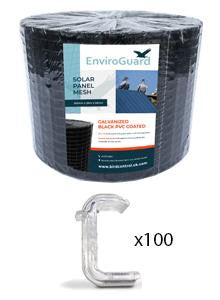

- Includes a 30 m roll of black PVC-coated galvanised mesh and 100 black 30 mm fixing clips.
- Non-drilling fixing method for compatible solar panel frames, with mesh that can be cut and shaped around the array.
PVC-coated solar mesh bird deterrent for rooftop arrays
This PVC Coated Solar Mesh Bird Deterrent pack screens the gap between solar panels and the roof to restrict bird access and nesting. The 200 mm wide mesh roll can be cut and shaped around the array perimeter, while the supplied black 30 mm clips secure it to compatible panel frames without drilling through the frame or roof covering.
Key features
- Physical bird exclusion: closes access routes beneath panels rather than relying on noise or visual deterrents.
- Black PVC-coated mesh: galvanised welded steel wire with a black PVC coating for additional protection and a discreet finish.
- Practical mesh dimensions: 30 m roll length, 200 mm width and 25 x 12.5 mm openings.
- 100 black fixing clips: supplied 30 mm clips must match the panel frame depth; check compatibility before ordering.
- Maintenance access: the Speed Clip fixing method can be reversed to remove mesh sections for cleaning or servicing.
Where to use
Suitable for compatible solar PV arrays on pitched domestic and commercial roofs, including homes, offices, workshops and agricultural buildings. Check the frame depth, roof profile and panel-to-roof gap before selecting the mesh and fixing arrangement.
Measure the complete array perimeter and allow an additional 1–2 m of mesh for joints and corners. The installation guide specifies Speed Clips every 200 mm and recommends 5–6 clips per metre for planning. Additional clips may therefore be required: do not spread the supplied 100 clips across a full 30 m run.
This pack uses 30 mm frame-depth clips, not the adjustable return-lip clips described in the general specification sheet. Follow the Solar Speed Clip instructions and confirm that the supplied clips suit your panels.
Arrange safe rooftop access and assess existing bird activity before fitting. Any nest clearance must comply with applicable wildlife legislation. Energian can help check component suitability and arrange installation through trusted partners where professional fitting is required.
Technical specifications
| Product and pack contents | |
| Brand | EnviroGuard |
| Product type | Solar panel bird exclusion mesh with fixing clips |
| Mesh supplied | 1 x BIRD-MESH-BLK PVC-coated solar mesh roll |
| Clips supplied | 100 x EG-FASTEN-CLIP-B SolarGuard Spike Fixing Clips, 30 mm, black |
| Intended function | Restricts bird access to the space beneath rooftop solar panels |
| Application | Compatible solar arrays on pitched domestic and commercial roofs |
| Mesh specifications | |
| Construction | Hot-dipped galvanised welded steel wire with black PVC coating |
| Roll length | 30 m |
| Roll width | 200 mm |
| Mesh aperture dimensions | 25 x 12.5 mm |
| Wire size stated for the PVC-coated product | 16 gauge / 1.5 mm diameter |
| Colour | Black |
| Supplied fixing arrangement and compatibility | |
| Clip size | 30 mm; verify against panel frame depth |
| Fixing method | Clip attachment through mesh apertures to the front of a compatible panel frame |
| Drilling requirement | No drilling through the solar panel frame or roof covering |
| Return-lip requirement | The Speed Clip method does not require the underside return lip used by Premium or Pushfit mesh clips |
| Removal for maintenance | Reverse the Speed Clip installation process |
| Installation guidance for Speed Clip fixing | |
| Perimeter measurement | Add the lengths of all external array sides requiring mesh protection |
| Additional mesh allowance | 1–2 m beyond the measured perimeter for joints and corners |
| Clip planning allowance | 5–6 Speed Clips per metre, as recommended in the installation guide |
| Specified clip spacing | Every 200 mm |
| Clip quantity limitation | 100 clips supplied; additional clips may be needed to meet the installation guidance |
| Recommended mesh section lengths | 1–1.5 m for manageable installation sections |
| Width adjustment | Fold or cut mesh as required to suit the roof profile and panel-to-roof distance |
| Joint overlap | 3 mesh apertures; insert a fixing clip through the middle aperture |
| Joint reinforcement | Stainless steel ties recommended; not listed among this pack’s supplied contents |
| Corners | Fit mesh to internal and external corners without leaving gaps |
| Preparation, inspection and maintenance | |
| Site preparation | Assess the installation area, correct unsuitable conditions and arrange lawful nest clearance and appropriate cleaning where required |
| Completion checks | Check mesh, clips, corners and joints for secure fitting and potential bird entry points |
| Cable protection | Check that solar panel cables have not been crushed, strained or damaged during fitting |
| Recommended inspection interval | Annual visual inspection for damage or deterioration |
| Damaged components | Replace promptly using suitable EnviroGuard replacement parts |
Documents available for download
- EnviroGuard Solar Panel Bird Exclusion System – General Specification Sheet
- EnviroGuard Solar Mesh Installation Instructions
The general specification sheet also describes galvanised mesh and adjustable return-lip clips. Its 450 mm clip spacing and return-lip requirements do not apply to the Speed Clip fixing method supplied with this pack; follow the relevant installation instructions.
Shipping
Available for delivery to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for mesh quantities, clip selection and panel frame compatibility. Contact Energian with any questions or support requests by phone, email or live chat, or visit our office for an in-person consultation.
