EnviroGuard PVC Coated Solar Mesh Bird Deterrent 30m - only
- Creates a physical barrier to help prevent birds accessing and nesting beneath rooftop solar panels.
- Includes one roll of black PVC coated hot dipped galvanised steel wire mesh 30 m in length.

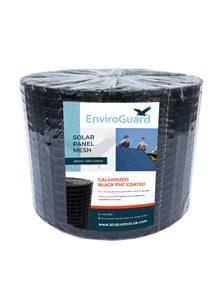

EnviroGuard PVC-coated solar mesh bird deterrent
The EnviroGuard PVC Coated Solar Mesh Bird Deterrent Kit 30m screens the gap between rooftop solar panels and the roof. Its black mesh can be cut and shaped around the array perimeter to restrict bird access, helping reduce nesting-related nuisance around domestic and commercial solar installations.
Key features
- Physical bird exclusion: screens the underside of the array rather than relying on visual or noise deterrents.
- Black PVC-coated mesh: hot-dipped galvanised steel with an additional PVC coating for protection and a darker finish.
- Practical roll size: 200 mm wide and 30 m long, with 25 x 12.5 mm mesh openings.
- Non-drilling fixing method: retaining clips secure the mesh to a compatible panel frame without penetrating the frame or roof covering.
- Adaptable installation: mesh can be cut, folded and overlapped to suit the roof profile, joints and corners.
Where to use
Use around suitable rooftop solar arrays on homes, offices, workshops, agricultural buildings and commercial premises where birds can access the space beneath the panels. Check the panel frame profile and the panel-to-roof gap before choosing the fixing arrangement.
Measure the complete array perimeter and allow an additional 1–2 m of mesh for joints and corners. A 30 m roll does not necessarily cover a finished 30 m perimeter once these allowances are included.
Check for active nests before installation and do not disturb them. Rooftop fitting requires safe access and suitable working-at-height arrangements; Energian can arrange installation through trusted partners where professional fitting is required.
Technical specifications
| Product and mesh specifications | |
| Brand | EnviroGuard |
| Product type | Solar panel mesh bird deterrent |
| Purpose | Physical exclusion of birds from beneath solar panel arrays |
| Mesh construction | Hot-dipped galvanised welded steel wire mesh with PVC coating |
| Mesh finish | Black PVC coating |
| Mesh roll quantity | 1 roll |
| Roll length | 30 m |
| Roll width | 200 mm |
| Mesh aperture dimensions | 25 x 12.5 mm |
| Installation requirements — mesh clip fixing | |
| Fixing method | Clip-mounted; no drilling required |
| Panel frame requirement for Premium or Pushfit clips | 10–20 mm return lip on the underside of the panel frame |
| Recommended Premium or Pushfit clip quantity | 2 clips per metre of array perimeter |
| Additional mesh allowance | 1–2 m beyond the measured perimeter for joints and corners |
| Mesh overlap at joints | 3 mesh apertures |
| Joint reinforcement | Stainless steel ties recommended to join mesh lengths |
| Corner treatment | Fit mesh to internal and external corners without leaving gaps |
| Mesh width adjustment | Mesh can be folded or cut to suit the installation |
| Premium clip operation described in the manual | Washer and nut fixing; tension adjustable by hand; removable and reinstallable for maintenance |
| Pushfit clip operation described in the manual | Push-on washer fixing; removal requires cutting |
Documents available for download
- EnviroGuard Solar Panel Bird Exclusion System Specification Sheet
- EnviroGuard Solar Mesh Installation Instructions
