EnviroGuard PVC Coated Solar Mesh Bird Deterrent Kit 30m
- Creates a physical barrier to help prevent pigeons and other birds roosting and nesting beneath rooftop solar panels.

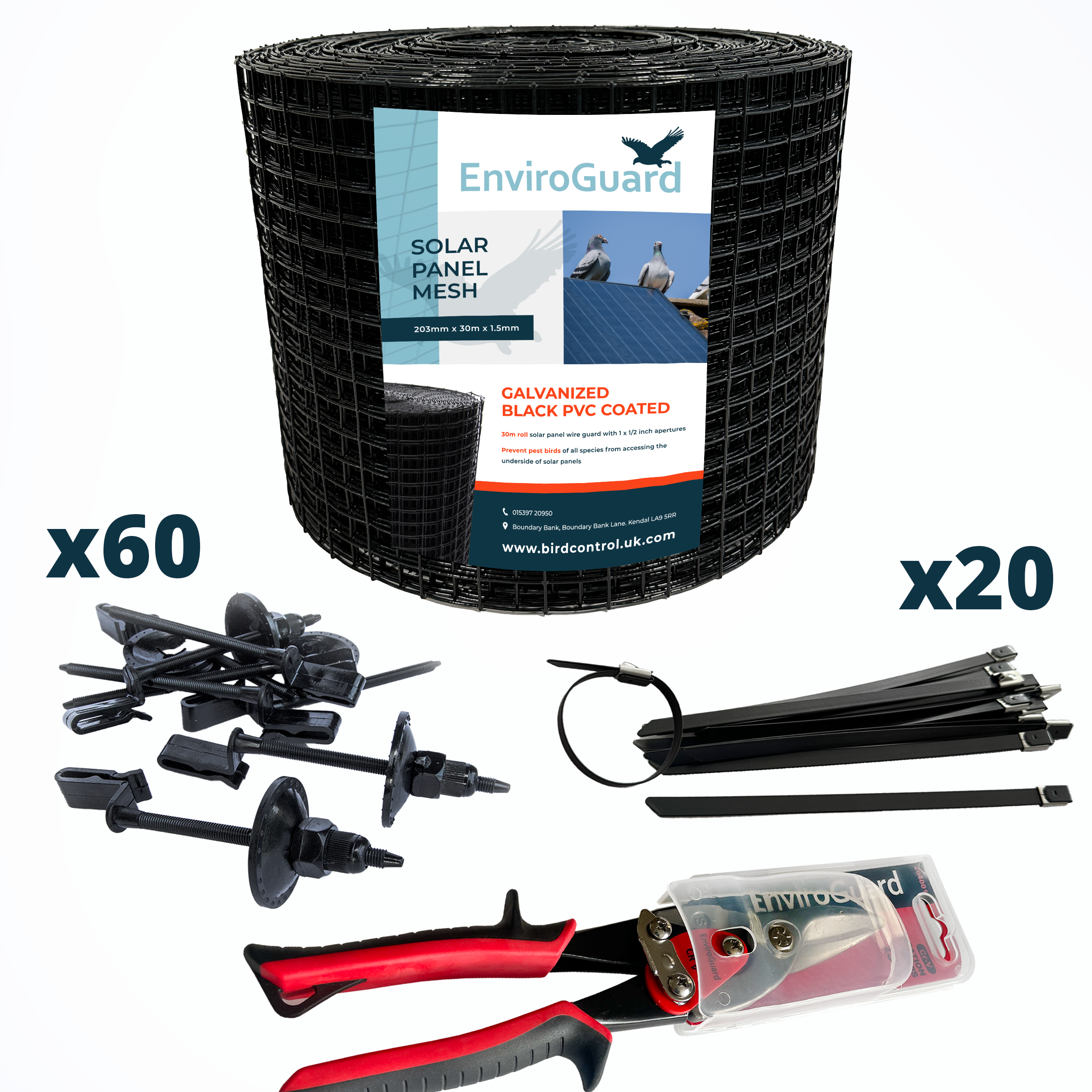

- Includes a 30 m black mesh roll, 60 adjustable retaining clips, 20 stainless steel corner ties and a wire cutter.
- Fits compatible panel frames without drilling through the solar panels or roof covering, with removable clips for servicing.
PVC-coated solar mesh bird deterrent kit for rooftop arrays
The EnviroGuard PVC Coated Solar Mesh Bird Deterrent Kit 30m screens the gap beneath rooftop solar panels to restrict bird access. Its black PVC-coated galvanised steel mesh can be cut and shaped around the array perimeter, helping reduce nesting-related fouling and maintenance around domestic and commercial solar installations.
Key features
- Physical bird exclusion: screens access beneath the array rather than relying on visual or noise deterrents.
- Black PVC-coated mesh: hot-dipped galvanised welded steel mesh with an additional PVC coating and a discreet black finish.
- Adjustable, removable clips: locking washers and hand-tightened retaining nuts secure the mesh and allow removal for maintenance.
- Practical installation kit: supplied with 60 clips, 20 stainless steel corner ties and a standard wire cutter.
- Non-penetrating installation: attaches to a compatible frame return lip without drilling through the panel or roof covering.
Where to use
Use around suitable solar PV arrays on pitched residential and commercial roofs, including homes, offices, workshops and agricultural buildings. Check that the 200 mm mesh width suits the panel-to-roof gap and roof profile.
For the adjustable clip arrangement covered by the specification sheet, the panel frame must have a minimum 20 mm return lip on its underside. Verify the frame profile before ordering; this kit is not the frame-depth Speed Clip version.
Measure the complete array perimeter and allow an additional 1–2 m of mesh for joints and corners. The 30 m roll length is not guaranteed finished perimeter coverage. Check clip quantities against the specified spacing and final layout; additional clips may be required.
Rooftop fitting requires safe access and suitable working-at-height arrangements. Existing nests must be assessed and any clearance carried out in accordance with applicable wildlife legislation. Energian can help with suitability checks and arrange installation through trusted partners where professional fitting is required.
Technical specifications
| Product identification and contents | |
| Manufacturer | EnviroGuard |
| Manufacturer’s kit reference | PVCKIT001 |
| Product type | PVC-coated solar panel bird exclusion mesh kit with premium adjustable clips |
| Mesh supplied | 1 x 30 m roll of black PVC-coated galvanised steel mesh |
| Retaining clips supplied | 60 premium adjustable solar panel mesh clips |
| Corner ties supplied | 20 stainless steel corner ties |
| Cutting tool supplied | 1 standard wire cutter |
| Manufacturer-listed kit weight | 6 kg |
| Mesh and fixing materials | |
| Mesh construction | Hot-dipped galvanised welded steel wire, subsequently PVC coated |
| Mesh finish | Black PVC coating |
| Roll length | 30 m |
| Roll width | 200 mm |
| Mesh aperture dimensions | 25 x 12.5 mm |
| Clip material | UV-stabilised polycarbonate |
| Clip finish | Matt black |
| Clip retention | Locking washer and additional retaining nut |
| Corner/jointing tie material | Stainless steel |
| Compatibility and installation — adjustable clip system | |
| Intended application | Bird exclusion beneath PV solar arrays on pitched domestic and commercial roofs |
| Target birds | Feral pigeons and larger birds, as described in the specification sheet |
| Minimum frame return lip | 20 mm on the underside of the panel frame, as required by the specification sheet |
| Frame attachment | Clip slides fully over the underside frame return lip |
| Penetrating fixings | No drilling through the panel frame or roof covering; no gluing required |
| Clip spacing stated in specification sheet | 450 mm / 18 inches along the outside edge of the PV array |
| Typical panel-edge example in specification sheet | For an approximately 1.6 x 1 m panel: 3 clips on each exposed long edge and 2 on each exposed short edge |
| Additional mesh allowance | Allow 1–2 m beyond the measured perimeter for joints and corners, as recommended in the installation guide |
| Overlap stated in specification sheet | 75 mm / 3 inches between adjoining sections |
| Mesh shaping | Bend the mesh to suit the roof profile before securing it to the frame |
| Mesh tension adjustment | Tighten the retaining nut by hand until the washer sits snugly against the mesh |
| Corner treatment | Close internal and external corners using stainless steel corner ties |
| Trimming | Trim excess mesh above the array edge and cut the clip rod flush with the outside of the retaining nut |
| Servicing access | Threaded retaining nuts can be removed by hand to release the mesh |
| Preparation, inspection and maintenance | |
| Installer requirement stated by manufacturer | Use a suitably skilled installation company familiar with the product and carrying appropriate insurance |
| Pre-installation inspection | Examine the installation area and correct unsuitable conditions before proceeding |
| Surface preparation | Arrange lawful nest clearance where required and appropriate cleaning and disinfection before fitting |
| Final mesh and fixing inspection | Check for loose clips, unsecured mesh and gaps; the specification sheet specifically flags gaps greater than 25 mm |
| Cable inspection | Check that PV cables have not been crushed, strained or otherwise damaged during installation |
| Maintenance interval | Annual visual inspection recommended for damage or deterioration |
| Repairs | Rectify defects promptly and replace damaged components using suitable EnviroGuard spare parts |
| Component references identified in the general specification sheet | |
| Adjustable clip and locking nut | SOLARGUARDCLIP |
| Corner tie | SS Corner Tie |
| Wire side cutter reference | NT101 |
Documents available for download
- EnviroGuard Solar Panel Bird Exclusion System Specification Sheet
- EnviroGuard Solar Mesh Installation Instructions
The documents cover several mesh and clip variants. Use the Premium Adjustable mesh clip instructions for this kit, not the Solar Speed Clip method. The general specification sheet’s wire diameter describes standard galvanised mesh; it is not presented here as a verified finished diameter for this PVC-coated roll.
