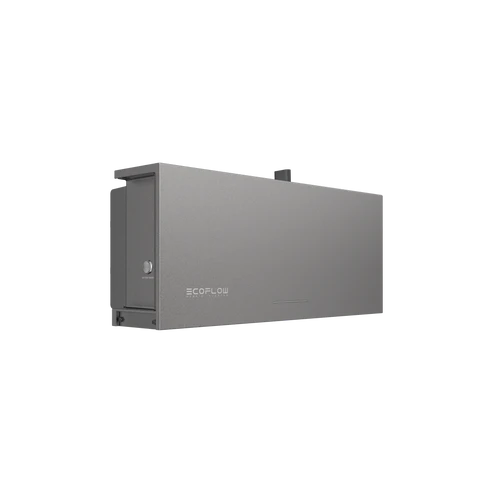

EcoFlow PowerOcean 5kW Plus Single-Phase Hybrid Inverter with Smart Meter
- 5kW single-phase hybrid inverter for new or existing solar PV and battery-storage installations.
- Supports up to 11kW of solar PV input across two MPPT trackers.
- Supplied with a 120A smart meter for monitoring site import, export and energy flows.
A flexible 5kW solar and battery inverter
The EcoFlow PowerOcean 5kW Single-Phase Hybrid Inverter is designed for homes adding solar battery storage to a single-phase supply. It manages energy from solar PV, compatible PowerOcean LFP batteries, household loads and the grid, helping to increase use of on-site solar generation.
With two MPPT trackers and up to 11kW of maximum PV input, the inverter can suit solar arrays across two roof aspects or two separately configured strings. The supplied smart meter provides the system with the grid measurement required for energy monitoring and control.
Key features
- 5,000W rated AC output and 5,000VA maximum apparent power.
- Up to 11,000W maximum solar PV input with two MPPT trackers.
- 18A maximum input current per MPPT with a single PV input, or 16A per MPPT with dual PV inputs.
- Compatible with EcoFlow PowerOcean LFP battery systems up to 15.3kWh.
- IP65 enclosure for indoor or outdoor installation in a suitable location.
Where to use the EcoFlow PowerOcean 5kW inverter
The EcoFlow PowerOcean 5kW hybrid inverter is suitable for compatible single-phase homes with solar PV, battery storage or both. It can be specified for self-consumption systems, solar-and-battery retrofits and installations that require supported backup-load operation.
It can be a practical choice for properties with solar generation split across two roof orientations, such as east/west or south/east arrays. Backup operation requires an appropriate system design, including compatible battery storage and correctly specified backup circuits.
This inverter must be installed and commissioned by a competent installer. Grid connection arrangements, G98/G99 requirements, solar string design, battery compatibility, metering and protective devices must be confirmed for the individual installation. UK expert support is available, and Energian can help arrange installation through trusted partners.
Technical specifications
| Model | EF HD-P1-5K-S1 |
| Inverter type | Single-phase hybrid inverter |
| Maximum PV power | 11,000W |
| Maximum PV input voltage | 600V |
| MPPT voltage range | 90–520V |
| Maximum input current per MPPT | 18A, single PV input; 16A, dual PV input |
| Maximum short-circuit current per MPPT | 20A |
| Backfeed current to PV array | 0A |
| Number of MPPT trackers | 2 |
| PV overvoltage category | II |
| Battery rated voltage | 790V |
| Battery maximum voltage | 800V |
| Battery rated current | 7.6A |
| Battery maximum current | 7.6A |
| Maximum battery capacity | 15.3kWh |
| Grid connection | L + N + PE |
| Rated AC input power | 5,000W |
| Maximum AC input apparent power | 5,000VA |
| Rated AC input voltage | 220 / 230 / 240V, L + N + PE |
| Maximum AC input current | 26.7A |
| Nominal frequency | 50 / 60Hz |
| AC input overvoltage category | III |
| Rated on-grid output power | 5,000W |
| Maximum on-grid apparent power | 5,000VA |
| Rated on-grid output voltage | 220 / 230 / 240V, L + N + PE |
| Rated on-grid output current | 21.7A |
| Maximum on-grid output current | 25A |
| On-grid total harmonic distortion at rated power | ≤3% |
| Power factor | -0.8 to 1 to +0.8 |
| Maximum backup output power | 5,000VA |
| Backup output voltage | 220 / 230 / 240V, L + N + PE |
| Backup nominal frequency | 50 / 60Hz |
| Backup rated output current | 21.7A |
| Backup maximum output current | 26.7A |
| Maximum efficiency | >96.5% |
| European weighted efficiency | >96% |
| GFCI | Supported |
| Insulation resistance detection | Supported |
| Anti-islanding protection | Supported |
| PV reverse-polarity protection | Supported |
| AC overcurrent protection | Supported |
| AC short-circuit protection | Supported |
| AC overvoltage protection | Supported |
| Certificates | CE / CB / DEKRA MARK |
| Safety standards | IEC/EN 62109-1, IEC/EN 62109-2 |
| Grid-tied standards | G98, G99, G100, VDE-AR-N 4105, CEI 0-21, UTE C15-712-1, VDE 0126-1-1, EN 50549-1, C10/11, NTS631, UNE 217001, UNE 217002, PPDS, PTPiREE, PSE, NC RfG, Ordinance No.140, NRS 097-2-1 |
| EMC standards | EN/IEC 61000-6-1/2/3/4, IEC 61000-4-16/18/29, IEC 61000-2-2, EN 300328, EN 301489-1, EN 301489-17, EN IEC 62311 |
| Topology | Non-isolated |
| Ingress protection rating | IP65 |
| Protective class | Class I |
| Operating temperature range | -20°C to +50°C; derating above +40°C or below 0°C |
| Storage temperature range | -30°C to +60°C |
| Operating humidity | 0–100%, condensing |
| Maximum operating altitude | 3,000m; derating above 2,000m |
| Dimensions (W×D×H) | 679.6 × 182.7 × 280mm |
| Weight | 21.5kg |
| Noise emission | 40dB |
| Night-time self-consumption | <30W |
| Cooling method | Natural convection |
| Communication methods | RS485, CAN, Wi-Fi, Bluetooth, WAN and 4G |
| Wi-Fi frequency range / maximum output power | 2,400–2,483.5MHz / 17dBm |
| Bluetooth frequency range / maximum output power | 2,400–2,483.5MHz / 8dBm |
| Pollution degree | PD3 |
| Environmental category | Outdoor / indoor |
Documents available for download
- EcoFlow PowerOcean 5kW Hybrid Single-Phase Inverter datasheet
- EcoFlow PowerOcean 5kW Hybrid Single-Phase Inverter user manual
- EcoFlow PowerOcean 5kW Hybrid Single-Phase Inverter installation guide
Shipping and UK expert support
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, contact us on +44 2080 640335 or info@energian.co.uk for a quote.
UK expert support is available for product questions, inverter selection and system-design support. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation.
