EcoFlow OCEAN 2 Plus Battery Base
- Required floor-standing base for compatible EcoFlow OCEAN 2 Plus battery stacks.
- Supports a neat, stable battery installation when building modular OCEAN 2 Plus storage systems.
- Use with EcoFlow OCEAN 2 LFP Battery modules in installations of up to six batteries per floor-standing stack.
EcoFlow OCEAN 2 Plus Battery Base for floor-standing battery stacks

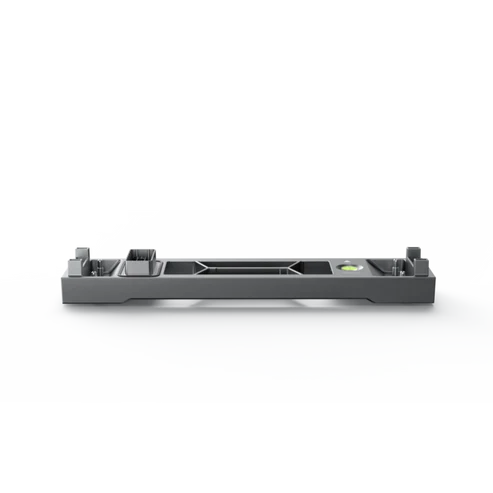

The EcoFlow OCEAN 2 Plus Battery Base is the floor-standing mounting base for a compatible EcoFlow OCEAN 2 Plus LFP battery stack. It forms the foundation of the modular battery assembly, supporting correct positioning of the first battery module and the further modules installed above it.
Use this component when the battery system is specified for floor-standing installation. EcoFlow states that up to six OCEAN 2 battery packs can be installed in one floor-standing battery stack, allowing nominal battery capacity to expand from 5.02kWh to 30.12kWh, subject to compatible inverter and system design.
Key features
- Purpose-designed accessory for EcoFlow OCEAN 2 Plus floor-standing battery installations.
- Used as the bottom mounting component for a stack of compatible OCEAN 2 LFP battery modules.
- Supports floor-standing stacks of up to six EcoFlow OCEAN 2 battery packs.
- Suitable for use in systems that expand from 5.02kWh to 30.12kWh nominal battery capacity.
- For use only as part of a complete, compatible EcoFlow OCEAN 2 Plus battery system.
Where to use the EcoFlow OCEAN 2 Plus Battery Base
The EcoFlow OCEAN 2 Plus Battery Base is for floor-mounted home battery installations using EcoFlow OCEAN 2 Plus LFP battery modules. It is suitable for indoor or outdoor system locations where the complete battery system, inverter and mounting arrangement have been selected and approved for the site.
It is normally required where the battery cannot or should not be wall mounted, such as when installing larger battery stacks, where wall structure is unsuitable, or where a floor-standing layout is preferred. The base is an accessory only; it does not contain battery cells, a battery-management system or power-conversion equipment.
A competent installer must confirm the floor surface, fixing method, access clearances, equipment weight, battery-stack configuration and local installation requirements. UK expert support is available, and Energian can help arrange installation through trusted partners.
Technical specifications
| Product | EcoFlow OCEAN 2 Plus Battery Base |
| Product type | Floor-standing battery mounting base |
| Compatible battery range | EcoFlow OCEAN 2 LFP Battery |
| Installation method | Floor stand |
| Maximum battery packs per floor-standing stack | 6 |
| Supported nominal battery capacity range | 5.02kWh to 30.12kWh, depending on the number of battery modules installed |
