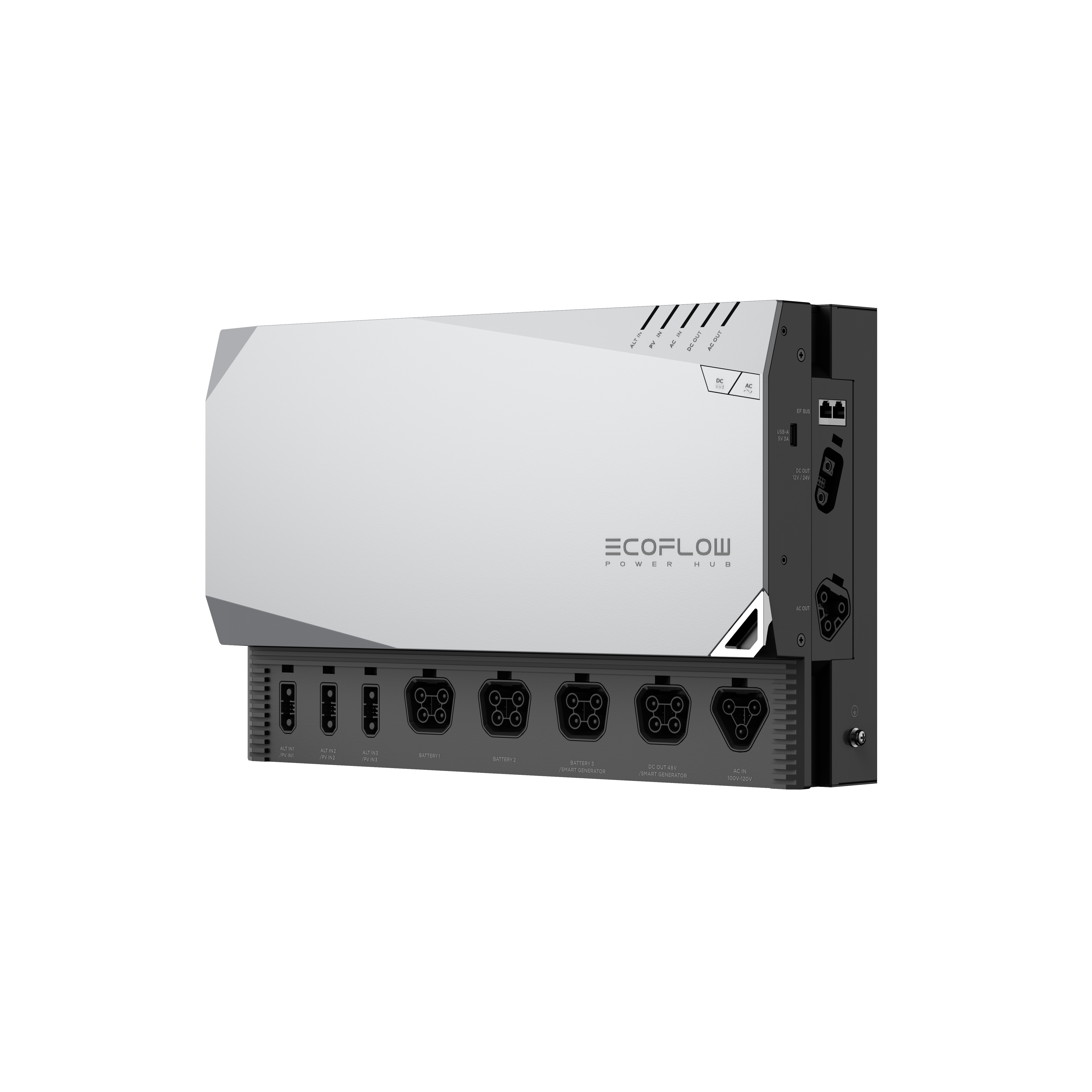

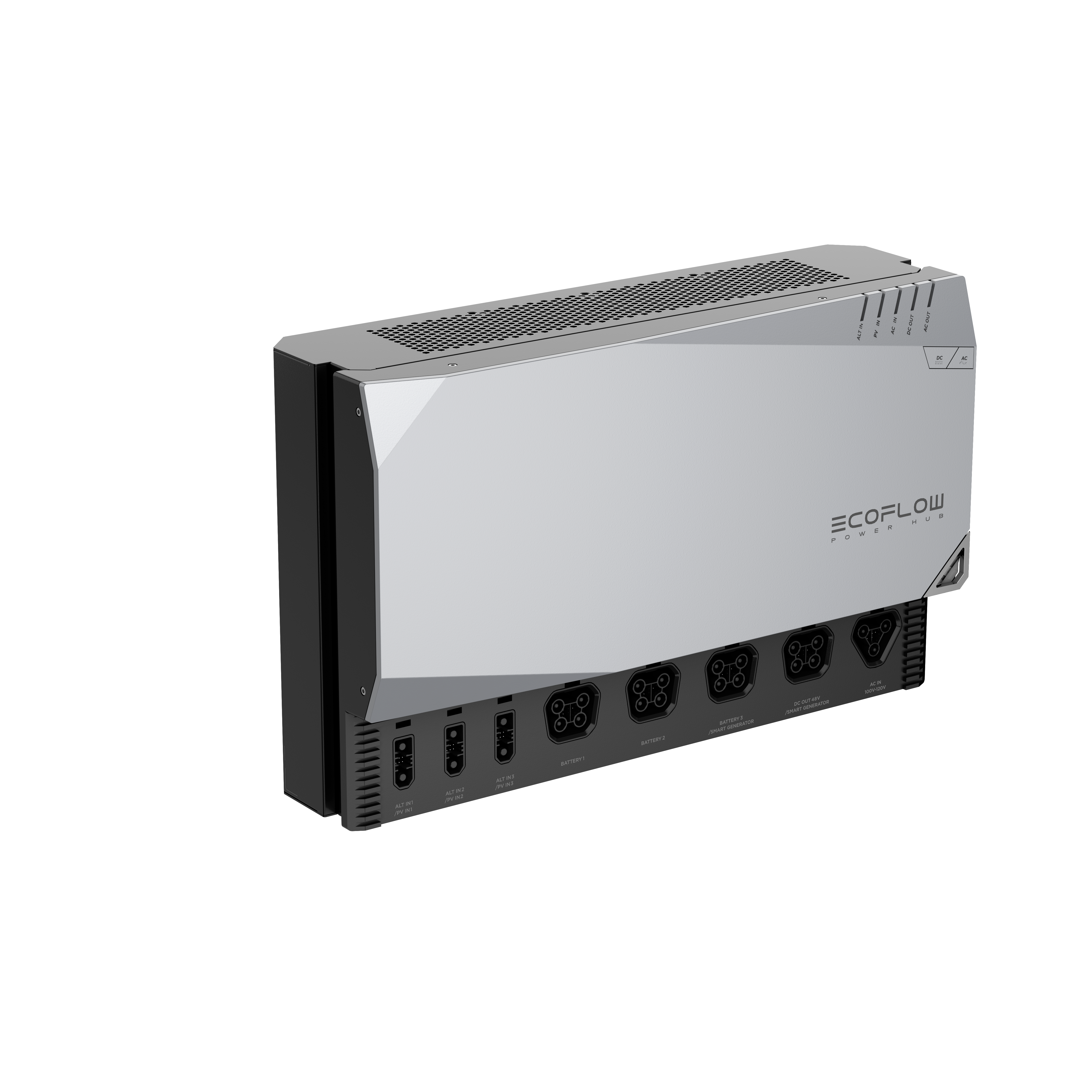

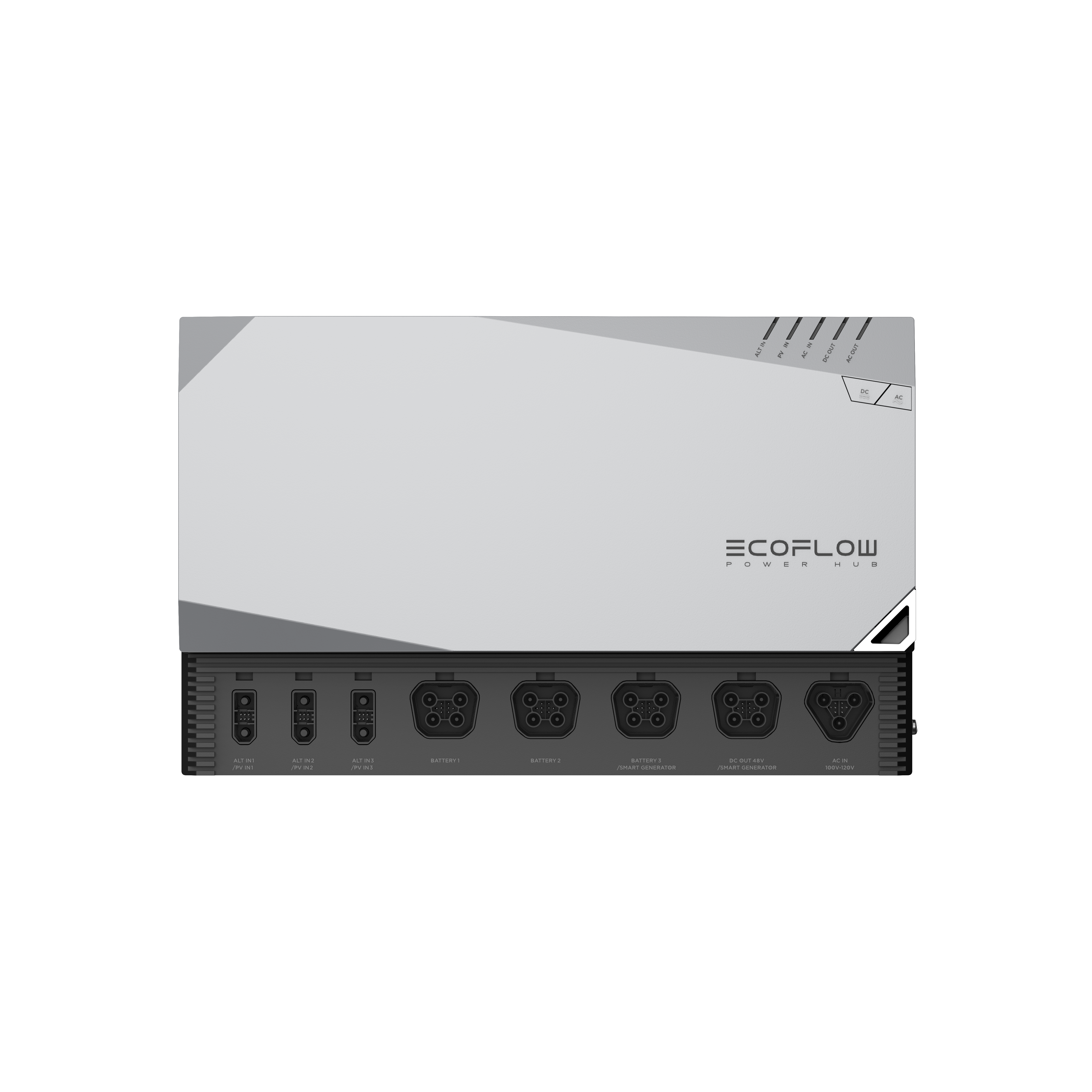

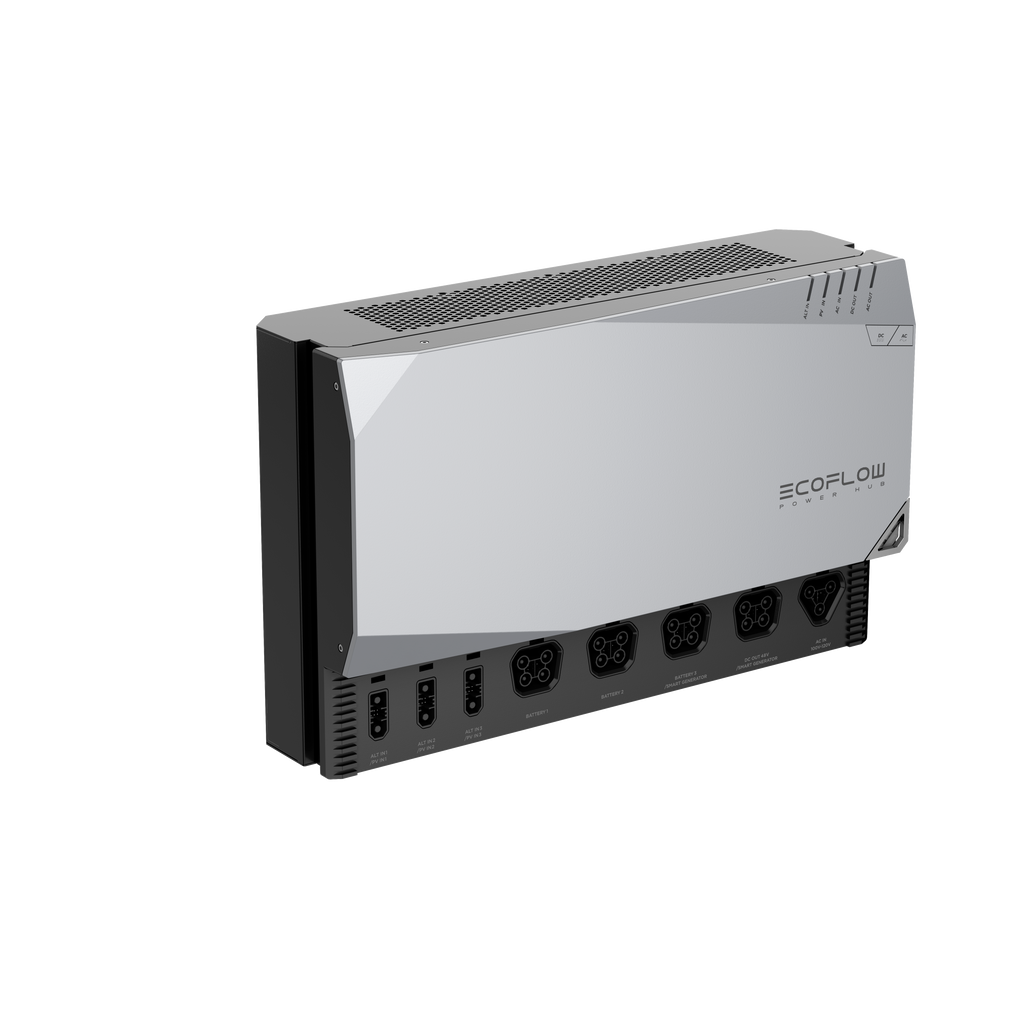

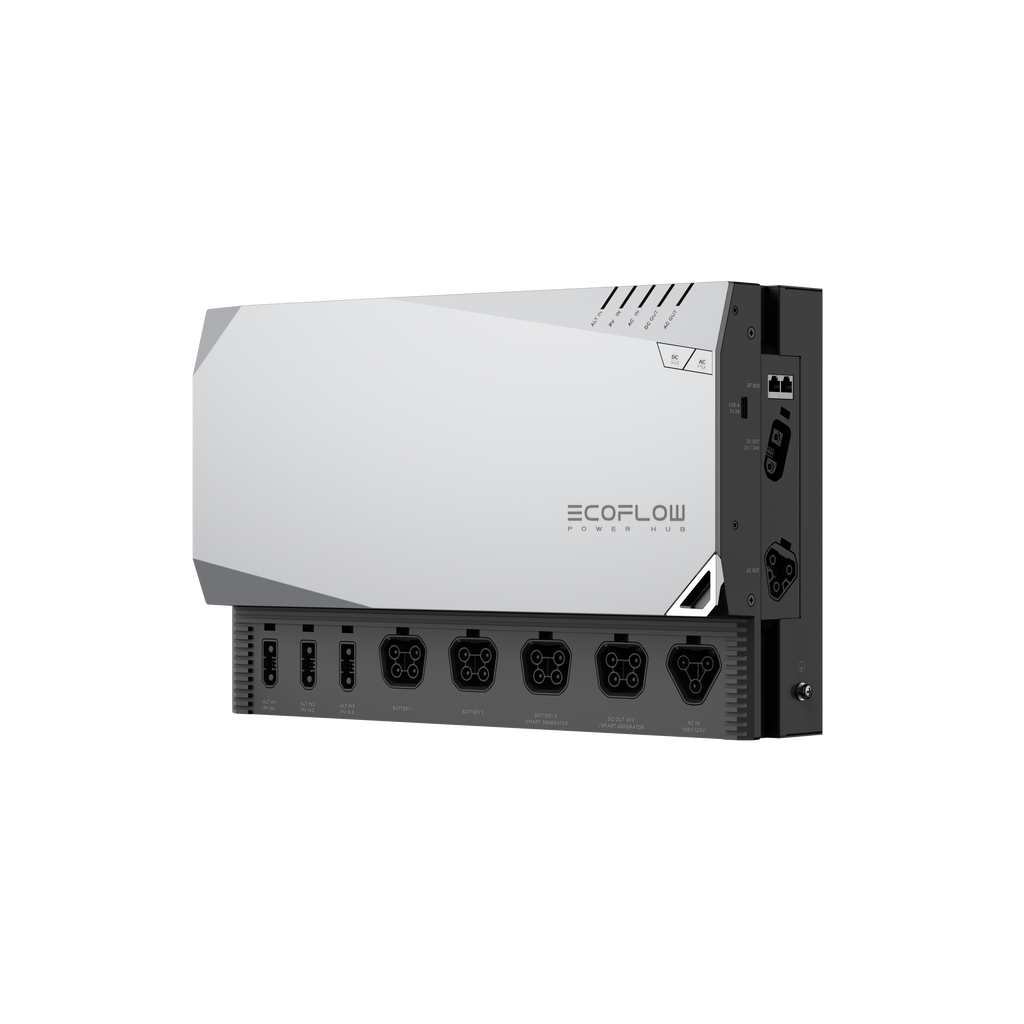

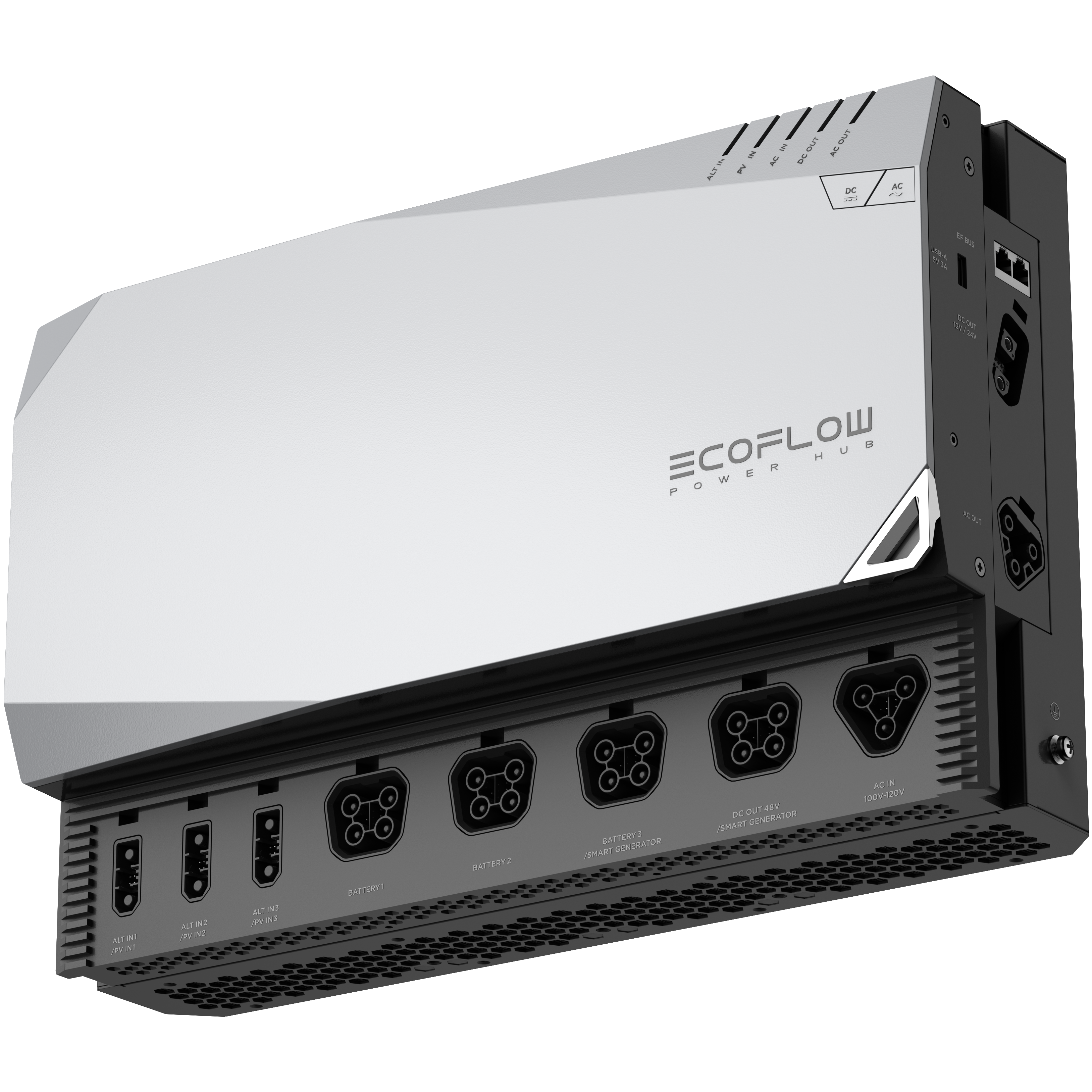

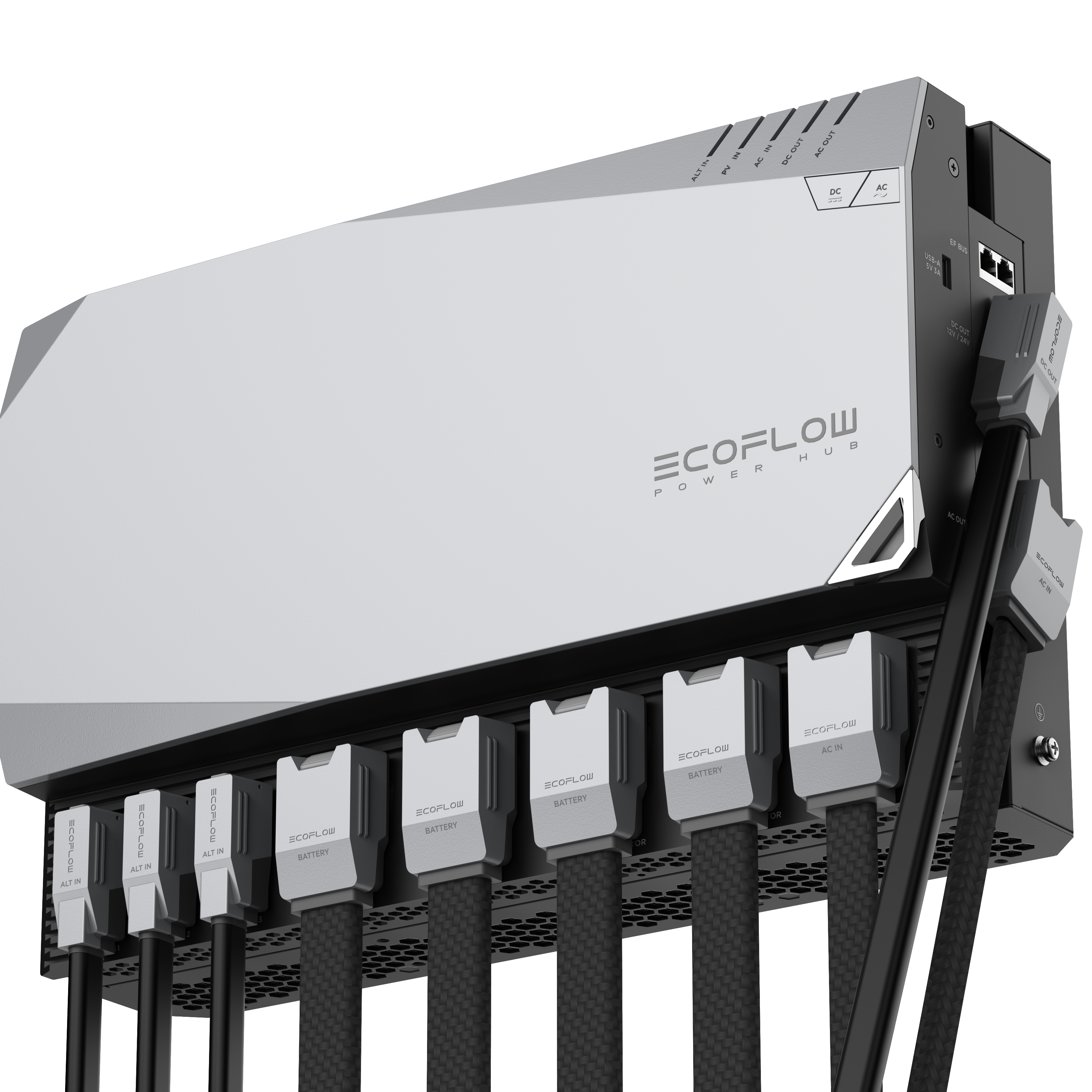

EcoFlow 5kVA Power Hub


By EcoFlow

Delivery available

EcoFlow Power Kits 5kVA 48V Power System

The world’s first plug-and-play 5kVA power system for campervans and off-grid living just got an upgrade. Modular, compact, and ultra-quiet—designed to power your life anywhere.

EcoFlow Power Kits

Perfect for Every RV & Van Setup

  • PowerLuxe: For Class A/C motorhomes needing full-home comfort and maximum energy storage
  • PowerSwift: For agile, space-saving van conversions with high-performance needs
  • PowerTrail: For RV upgrades or modular off-grid installs that scale with you
EcoFlow Kit Image

Why Choose EcoFlow Power Kits?

  • Up to 45kWh of expandable LFP battery storage—enough for 7 days off-grid
  • 5kVA output to run high-power devices and 2x motorhome air conditioners simultaneously
  • Ultra-quiet operation: only 48 dB at 60% load
  • Charges in 1 hour using combined solar, alternator, generator and shore input

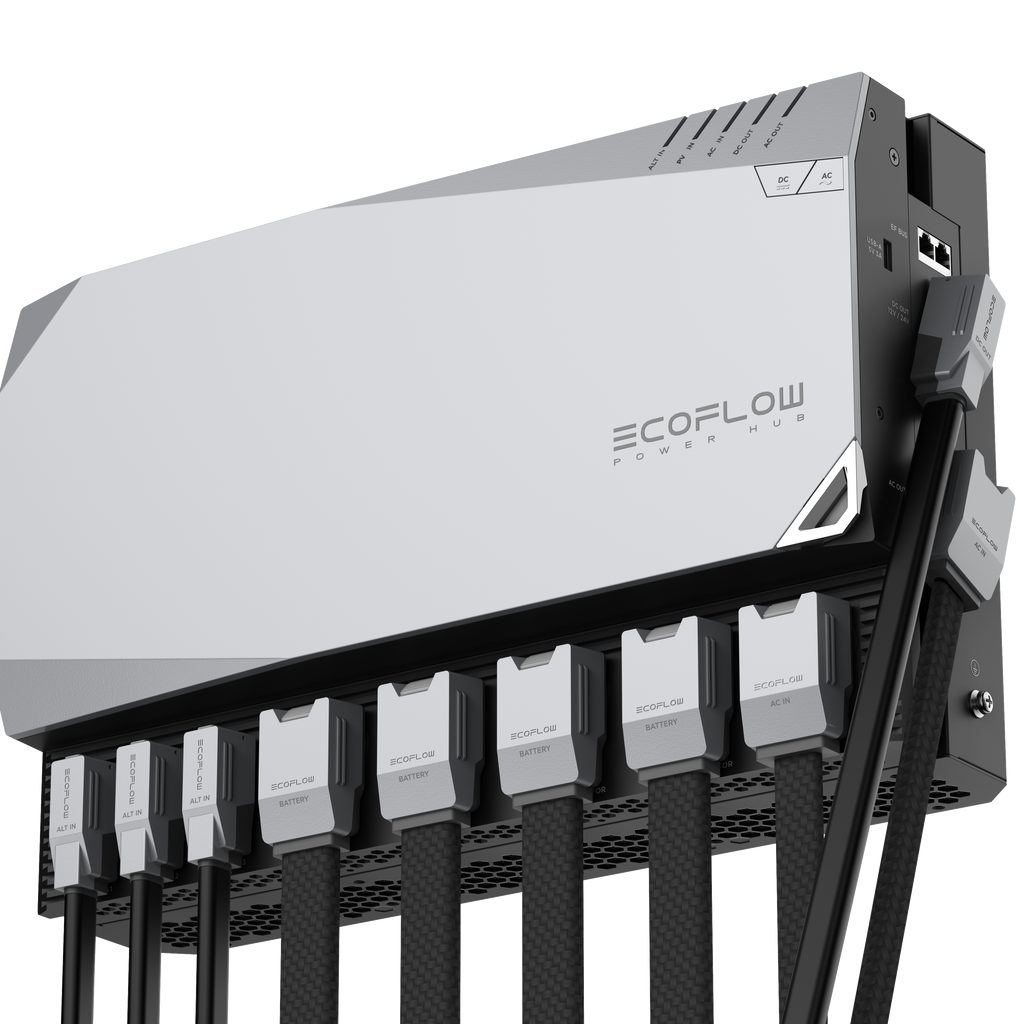

  • Plug-and-play architecture saves time, wiring, and install cost
  • Smart controls via PowerInsight display & EcoFlow app

Power for Every Appliance

Run air conditioners, coffee machines, heaters, cookers, and tools from a single integrated system. Built-in surge power handles demanding loads with ease.

  • AC: 2x 13,500 BTU units
  • Electric grill / pan / kettle: 36–54 hours runtime
  • Microwave: 30+ hours
  • Induction cooker: 45+ hours
EcoFlow Kit Image

Charge Anytime, Anywhere

  • Solar: Up to 4800W input, charges 5kWh in ~1 hour
  • Alternator: Up to 6000W input for fast on-the-road charging
  • Shore Power: 4000W input, 5kWh in 1.25 hours
  • Smart Generator: Dual-fuel ready, 3200W input

Safe, Certified & Reliable

  • UL1973 battery certification for safe motorhome use
  • UL458 inverter and UL67 AC/DC panel certified
  • X-Guard BMS with 6-layer safety: over-temp, overcharge, overcurrent & more
  • CTC-integrated chassis for drop and impact resistance
EcoFlow Kit Image

Reduce your carbon footprint by up to 12,500 lb/year using clean solar energy and eliminating generator fuel and maintenance costs.

Technical Specifications

General
Net Weight 15.7 kg / 34.6 lbs
Dimensions 300 × 480 × 151 mm / 11.8 × 18.9 × 5.9 in
Communication Wi-Fi (2.4G / 5G), Bluetooth
GPS Supported
IP Rating IP20
Output
DC Output (12V/24V) 13.6V⎓100A Max (1360W), 26.4V⎓60A Max (1584W)
48V DC Output / Smart Generator 51.2V⎓55A Max
EF BUS Output (x2) 12V⎓ Total 1.2A Max
Total Output 8752W Max

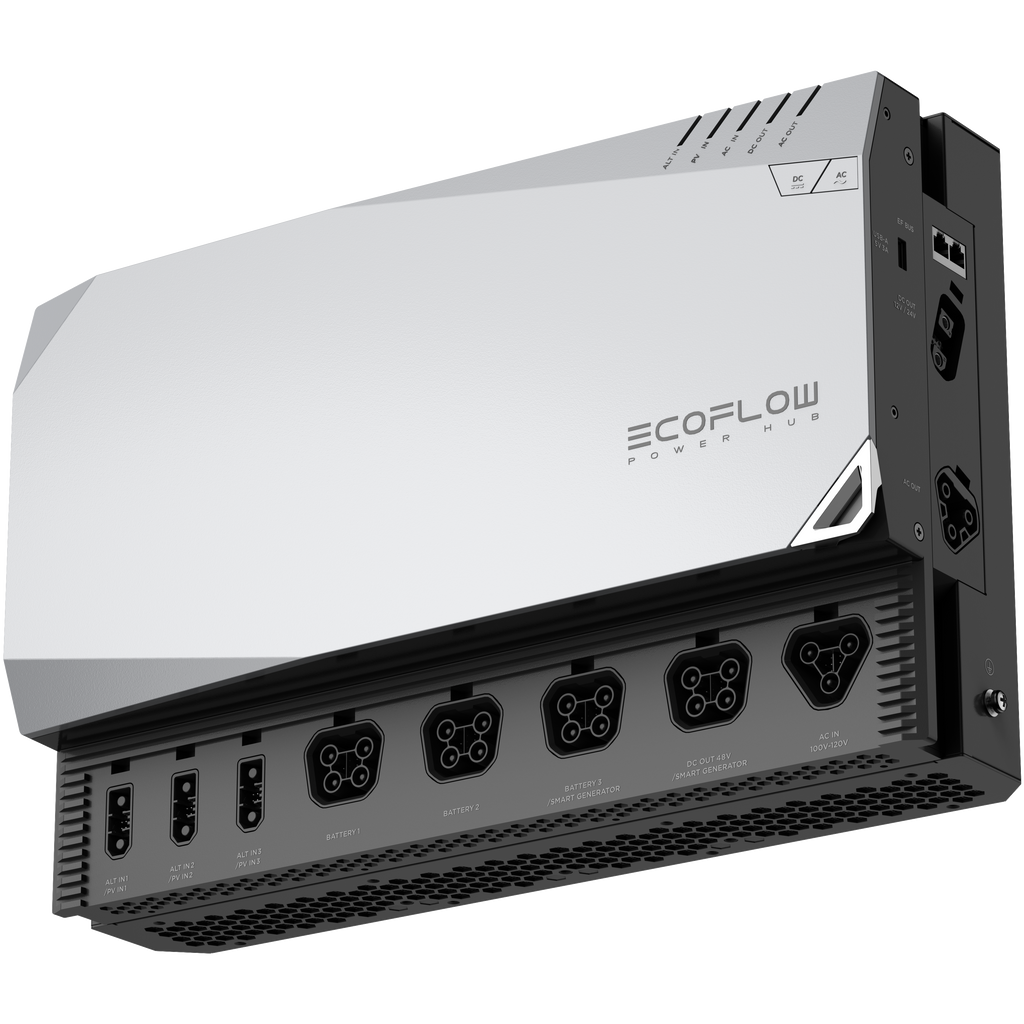

Input
Alt/PV Input 1 13–60V⎓100A Max (4000W)
Alt/PV Input 2/3 13–60V⎓30A Max (1600W)
Battery 3 / Smart Generator 40–57.6V⎓100A Max
48V DC Output / Smart Generator 40–57.6V⎓70A Max
Battery Port
Charge 40–57.6V⎓100A Max per port, total 270A Max
Discharge 40–57.6V⎓100A Max per port, total 181A Max
Operating Environment
Operating Temp -25°C to 60°C (derated at >40°C)
Discharge Temp -25°C to 60°C (derated at >40°C)
Storage Temp -25°C to 70°C
Humidity 0%–95% RH (non-condensing)
Altitude < 2,000 m (6,562 ft)
Warranty
Standard Coverage 5 Years
Compatible Accessories
30A AC/DC Smart Distribution Panel
50A AC/DC Distribution Panel -
Power Dock / Power Link
5kWh / 2kWh LFP Battery
PowerInsight Display (7\" / 10\")
