EcoFlow Bracket - Semi-enclosed Balcony

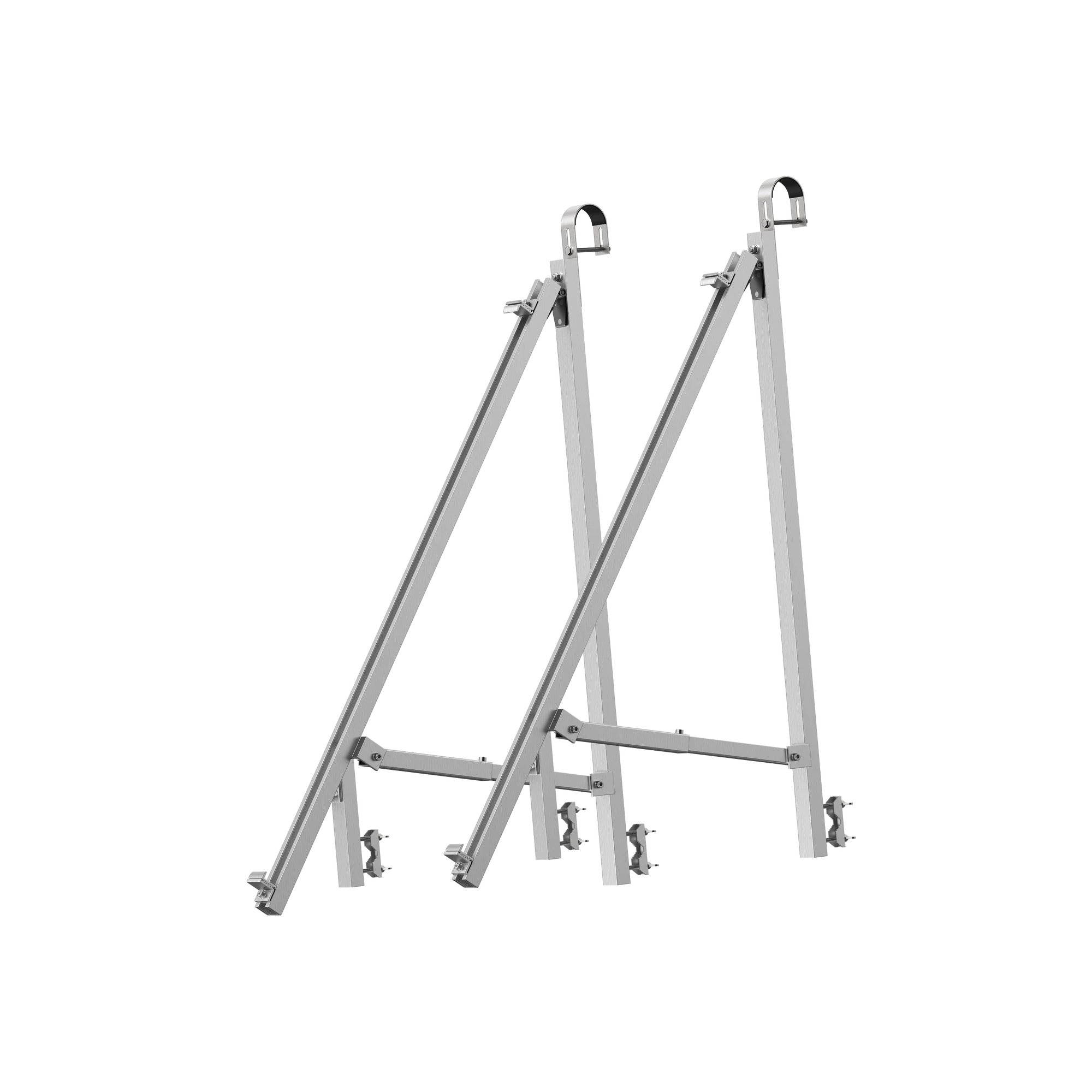

The EcoFlow Semi-enclosed Balcony Bracket is a sturdy balcony solar panel mounting bracket designed for fitting rigid solar panels to suitable balcony railings, including lattice, wooden and glass-panelled balconies.
It is suitable for most rigid solar panels rated up to 520W, subject to panel size, mounting hole position, weight and railing suitability. The bracket allows the panel to be installed at an appropriate tilt angle to help improve solar generation from a balcony installation.
EcoFlow specifies a maximum load capacity of 63kg. Before installation, always check that the balcony railing can safely support the combined weight of the bracket and solar panel. Installation should be carried out by at least two people, using the supplied mounting components and following the official EcoFlow installation guide.
Key Features
- Balcony mounting bracket for rigid solar panels
- Suitable for most rigid solar panels rated up to 520W
- Compatible with suitable lattice, wooden and glass-panelled balcony railings
- Adjustable installation angle for improved solar exposure
- Maximum load capacity: 63kg
- Net weight: approximately 4.6kg
- Package dimensions: 1340 × 225 × 65mm
If you are unsure whether this bracket is suitable for your solar panel, please contact Energian before ordering via live chat, email info@energian.co.uk or by phone on 020 8064 0335. We can help check compatibility based on your panel size, weight and fixing points.
Installation Instructions
Download EcoFlow Bracket - Semi-enclosed Balcony Installation Guide
