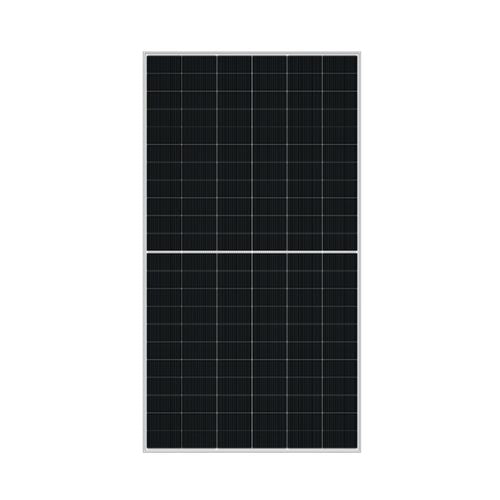

DMEGC 645W N-Type Bifacial Double Glass Solar Panel
The DMEGC DM645G12RT-B66HSW is a high-output 645W N-type bifacial solar panel designed for commercial, agricultural, ground-mounted and other large-scale PV installations. Its high 23.9% module efficiency helps maximise installed capacity where strong output per panel is required.
The module combines N-type mono-crystalline cells with a bifacial double glass design. It can generate electricity from light reaching both the front and rear of the panel, while the two layers of 2mm heat-strengthened glass provide robust protection for demanding outdoor environments.
Features
High 645W rated output
With a rated maximum power of 645W, this large-format module is well suited to projects where reducing the number of panels and associated balance-of-system components can improve installation efficiency.
23.9% module efficiency
Advanced N-type mono-crystalline cell technology delivers 23.9% efficiency at standard test conditions, supporting high energy yield from the available installation area.
Bifacial energy generation
The module can use reflected light reaching its rear surface to provide additional generation. Actual bifacial gain depends on the mounting height, surface reflectivity, row spacing and other site conditions.
Durable double glass construction
The front and rear covers use 2mm heat-strengthened glass, with an anti-reflective coating on the front. The module is rated for a maximum test load of 5400 Pa on the front and 2400 Pa on the rear.
Long-term warranty protection
DMEGC provides a 15-year product warranty and a 30-year linear power warranty. The datasheet specifies no more than 1% first-year degradation and no more than 0.35% annual degradation over 30 years. Warranty terms and installation requirements apply.
Technical Specifications
| Brand | DMEGC Solar |
| Manufacturer model | DM645G12RT-B66HSW |
| Energian SKU | SPD06450 |
| Rated power | 645W |
| Module efficiency | 23.9% |
| Cell type | N-type mono-crystalline, 132 cells (6 x 22) |
| Construction | Bifacial double glass |
| Frame colour | Silver |
| Dimensions | 2382 x 1134 x 30mm |
| Weight | 32.3kg |
| Maximum power voltage (Vmp) | 41.42V |
| Maximum power current (Imp) | 15.58A |
| Open-circuit voltage (Voc) | 49.60V |
| Short-circuit current (Isc) | 16.49A |
| Maximum system voltage | 1500V DC |
| Maximum overcurrent protection | 30A |
| Connector type | PV-ZH202B or MC4-EVO 2A, 1500V |
| Junction box | IP68, 3 bypass diodes |
| Operating temperature | -40°C to +85°C |
| Protection class | Class II |
| Fire class | Class C (IEC) |
| MCS number | MR 50674997 0002/3256 |
| Product warranty | 15 years |
| Linear power warranty | 30 years |
Important: This is a large and heavy commercial-format module. Confirm access, handling arrangements, mounting-system compatibility and inverter or charge-controller voltage and current limits before ordering or installation. Electrical installation must be carried out by a suitably qualified person.
