DMEGC 630W Mono N-Type Bifacial Double Glass Solar Panels
- 630 W N-type bifacial solar panel for commercial, industrial and ground-mounted solar PV projects.
- 23.3% module efficiency with double 2 mm heat-strengthened glass and 1,500 V DC system compatibility.
- 15-year product warranty and 30-year linear power warranty for long-term project planning.

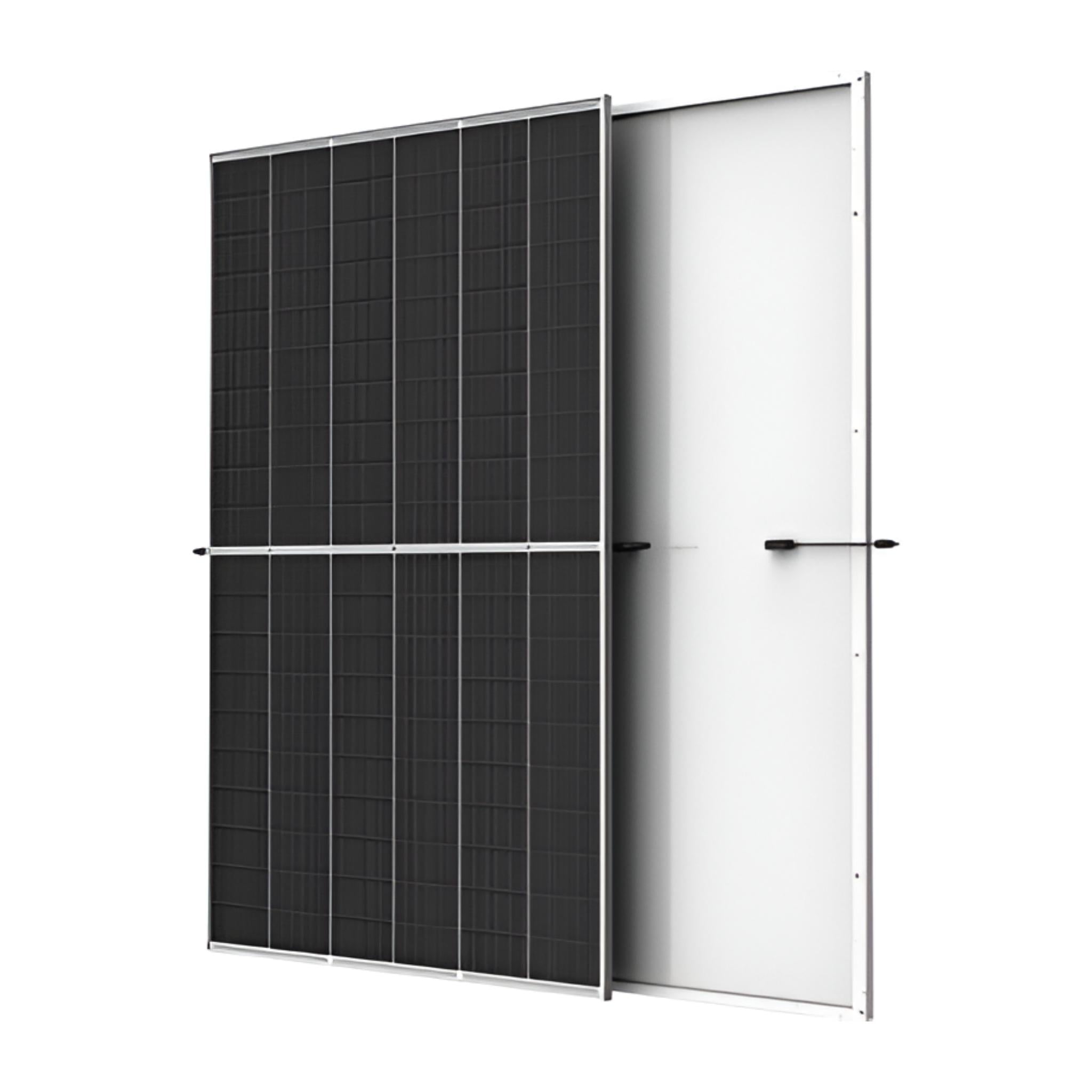

DMEGC 630W N-type bifacial double glass solar panel
The DMEGC DM630G12RT-B66HSW is a 630 W N-type monocrystalline bifacial solar panel with a double-glass construction. It is designed for larger rooftop and ground-mounted arrays where high module output can help reduce the number of panels, mounting components and DC connections needed for a given installed capacity.
The transparent double-glass module can generate from both sides when installed in suitable conditions. Rear-side yield depends on site-specific factors such as mounting height, spacing, shading, ground reflectivity and the system layout, so this should be assessed during project design.
Key features
- 630 W rated output: Suitable for high-capacity solar arrays on commercial roofs, agricultural buildings, logistics facilities and ground-mounted installations.
- N-type bifacial technology: N-type monocrystalline cell construction with 132 cells in a 6 × 22 arrangement.
- Double-glass module: 2 mm heat-strengthened glass on both the front and rear of the panel.
- High-load capability: Rated for 5,400 Pa front-side and 2,400 Pa rear-side maximum test loads.
- Long-term warranty: 15-year product warranty and 30-year linear power warranty, with stated first-year degradation of no more than 1% and annual degradation of no more than 0.4% thereafter.
Where to use
The DMEGC 630W N-type bifacial solar panel is suitable for commercial and industrial rooftops, warehouses, logistics sites, factories, agricultural buildings, solar carports and ground-mounted solar PV projects. It is particularly suited to systems designed around larger-format, high-power modules.
At 2,382 mm long and 32.3 kg per panel, this module requires a mounting system designed for its dimensions, weight, frame profile and approved clamping zones. A structural assessment and installation by a competent solar installer are recommended.
Energian can help specify compatible inverters, mounting systems, DC protection, cabling and balance-of-system equipment. For complete solar installations, we can support project delivery through trusted installation partners.
Technical specifications
| Manufacturer | DMEGC |
| Module model | DM630G12RT-B66HSW |
| Module type | N-type bifacial monocrystalline module with double glass |
| Cell type and layout | N-type monocrystalline, 132 cells (6 × 22) |
| Rated maximum power (Pmax) | 630 W |
| Module efficiency at STC | 23.3% |
| Power output tolerance | 0 to +3% |
| Maximum power voltage (Vmp) | 41.25 V |
| Maximum power current (Imp) | 15.30 A |
| Open-circuit voltage (Voc) | 49.49 V |
| Short-circuit current (Isc) | 16.23 A |
| STC test conditions | Irradiance 1,000 W/m², module temperature 25°C, AM 1.5 |
| Electrical measurement standard | IEC 60904-3 |
| Pmax test uncertainty | ±3% |
| Isc measurement tolerance | ±4% |
| Voc measurement tolerance | ±3% |
| Bifaciality | 80 ± 5% |
| Module dimensions | 2,382 × 1,134 × 30 mm |
| Weight | 32.3 kg |
| Front cover | 2 mm heat-strengthened glass |
| Rear cover | 2 mm heat-strengthened glass |
| Junction box | Three diodes, IP68 according to IEC 62790 |
| Output cables | 4 mm²; portrait: 350 mm positive / 250 mm negative; landscape: 1,300 mm positive / 1,300 mm negative; cable length can be customised |
| Connector type | PV-ZH202B or MC4-EVO 2A, 1,500 V |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 30 A |
| Protection class | Class II |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum test load, push/pull | Front 5,400 Pa / rear 2,400 Pa |
| Maximum design load, push/pull | Front 3,600 Pa / rear 1,600 Pa |
| First-year degradation | ≤1% |
| Annual degradation over 30 years | ≤0.4% |
| Product warranty | 15 years |
| Linear power warranty | 30 years |
| Product certifications | IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342 and IEC 60068 |
