DMEGC 595W Infinity Mono N-Type Bifacial Dual Glass Silver Frame Solar Panel
- 595 W N-type bifacial solar panel for high-output commercial and ground-mount PV systems.
- Dual-glass construction and a silver aluminium frame for robust installation in demanding locations.
- 23.0% module efficiency, 1,500 V DC system rating and 30-year linear power warranty.

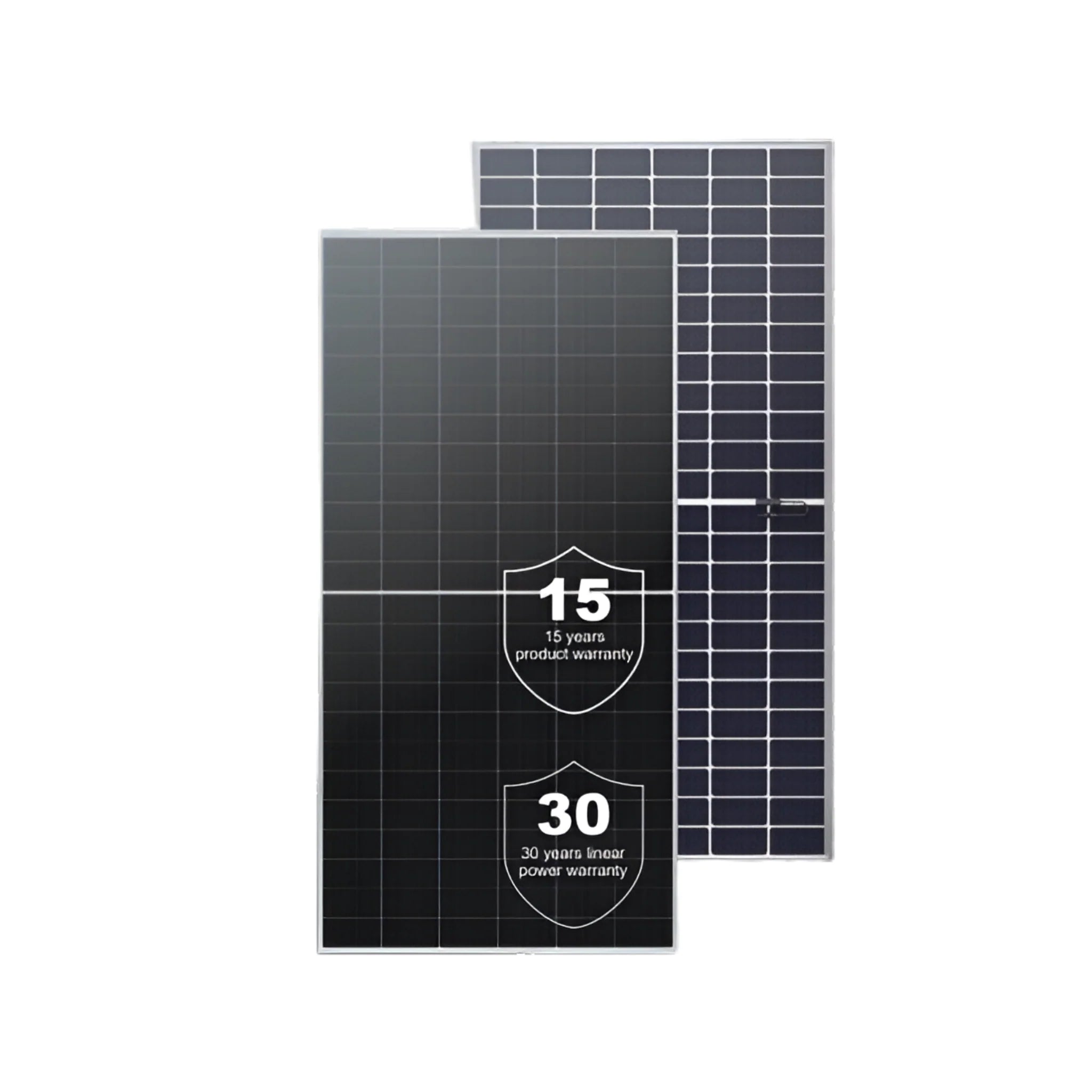

DMEGC 595W Infinity N-type bifacial solar panel
The DMEGC DM595M10T-B72HSW is a 595 W N-type monocrystalline bifacial solar panel with double-glass construction. It is designed for larger commercial, industrial and ground-mounted solar PV systems where high module output can reduce the number of panels, mounting components and connections required.
The bifacial module design can generate from both sides of the panel when installed in suitable conditions. Actual rear-side yield depends on factors including mounting height, row spacing, shading, ground surface and reflected light, so system design should be assessed for each site.
Key features
- 595 W rated output: A high-power panel for commercial roofs, agricultural buildings and ground-mounted arrays.
- N-type monocrystalline cells: 144 cells in a 6 × 24 configuration with 23.0% module efficiency at STC.
- Bifacial dual-glass design: 2 mm heat-strengthened front and rear glass, with an anti-reflective front coating.
- High-voltage system compatibility: Rated for systems up to 1,500 V DC, subject to correct string design and inverter limits.
- Long-term warranty: 15-year product warranty and 30-year linear power warranty, with stated first-year degradation of no more than 1% and annual degradation of no more than 0.4% thereafter.
Where to use
This DMEGC 595W bifacial solar panel is suited to warehouses, logistics sites, factories, agricultural buildings, commercial rooftops, solar carports and ground-mounted solar farms. It is particularly suitable for projects using larger-format modules and professionally designed high-voltage strings.
At 2,278 mm long and 31.8 kg per panel, this module requires a mounting system approved for its dimensions, loading and clamping zones. A structural assessment and installation by a competent solar installer are recommended.
Energian can help specify compatible inverters, mounting equipment, DC protection and balance-of-system components. For complete systems, we can support installation through trusted partners.
Technical specifications
| Manufacturer | DMEGC |
| Model | DM595M10T-B72HSW |
| Module type | N-type monocrystalline bifacial module with double glass |
| Cell type and layout | N-type monocrystalline, 144 cells (6 × 24) |
| Rated maximum power (Pmax) | 595 W |
| Module efficiency at STC | 23.0% |
| Power sorting | 0 to +3% |
| Maximum power current (Imp) | 13.42 A |
| Maximum power voltage (Vmp) | 44.42 V |
| Short-circuit current (Isc) | 14.17 A |
| Open-circuit voltage (Voc) | 53.10 V |
| STC conditions | 1,000 W/m² irradiation, module temperature 25°C, AM 1.5 |
| Bifaciality | 80 ± 5% |
| BNPI maximum power (Pmax) | 658 W |
| BNPI maximum power current (Imp) | 14.81 A |
| BNPI maximum power voltage (Vmp) | 44.47 V |
| BNPI short-circuit current (Isc) | 15.59 A |
| BNPI open-circuit voltage (Voc) | 53.11 V |
| BNPI conditions | Front irradiation 1,000 W/m², rear irradiation 135 W/m², module temperature 25°C, AM 1.5 |
| Dimensions | 2,278 × 1,134 × 30 mm |
| Weight | 31.8 kg |
| Front cover | 2 mm heat-strengthened glass with anti-reflective coating |
| Rear cover | 2 mm heat-strengthened glass |
| Junction box | 3 diodes, IP68 according to IEC 62790 |
| Output cables | 4 mm²; portrait: 300 mm (+) / 200 mm (-); landscape: 1,350 mm (+) / 1,350 mm (-); cable length can be customised |
| Connector type | PV-ZH202B or MC4-EVO 2A, 1,500 V |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 30 A |
| Protection class | Class II |
| Nominal module operating temperature (NMOT) | 42 ± 2°C |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum test load, push/pull | Front 5,400 Pa / back 2,400 Pa |
| Maximum design load, push/pull | Front 3,600 Pa / back 1,600 Pa |
| First-year degradation | ≤1% |
| Annual degradation over 30 years | ≤0.4% |
| Product warranty | 15 years |
| Linear power warranty | 30 years |
| Product certification | IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342 and IEC 60068 |
