DMEGC 510W Infinity Mono N-Type Bifacial Dual Glass Black Frame Solar Panels
- 510 W N-type bifacial solar panel for high-output residential, commercial and industrial solar PV systems.
- 22.7% module efficiency with dual 2 mm heat-strengthened glass and a 1,500 V DC system rating.
- 1,977 × 1,134 mm module format with a 30-year linear power warranty.

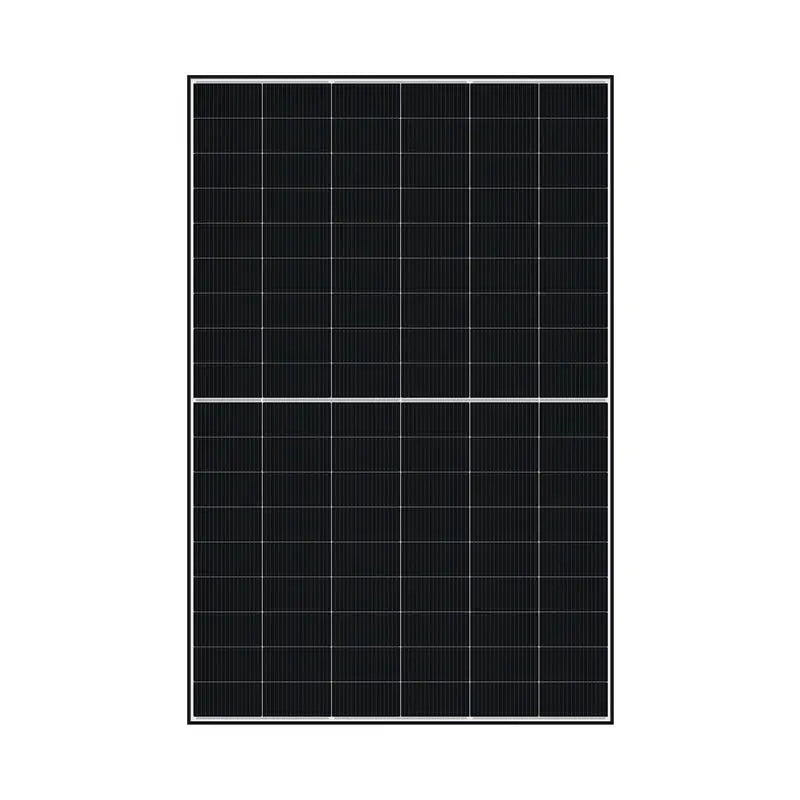

DMEGC 510W Infinity N-type bifacial dual glass solar panel
The DMEGC DM510G12RT-B54HBW is a 510 W N-type monocrystalline bifacial solar panel with double-glass construction. It is suitable for high-output residential, commercial and industrial solar PV installations where available roof area needs to be used efficiently.
The bifacial module construction can generate electricity from both sides where reflected light reaches the rear glass. Actual rear-side yield depends on mounting height, row spacing, shading, roof surface or ground reflectivity and the final array layout.
Key features
- 510 W rated output: Helps achieve higher installed capacity with fewer panels, roof fixings and DC connections than lower-wattage alternatives.
- N-type monocrystalline technology: 108 cells in a 6 × 18 layout with 22.7% module efficiency at STC.
- Bifacial double-glass construction: 2 mm heat-strengthened glass on both sides, with an anti-reflective front coating.
- High mechanical-load capability: Maximum test load of 5,400 Pa on the front and 2,400 Pa on the rear.
- Long-term output cover: 30-year linear power warranty, with stated first-year degradation of no more than 1% and annual degradation of no more than 0.4% thereafter.
Where to use
The DMEGC 510W Infinity bifacial solar panel is suitable for homes, commercial premises, warehouses, agricultural buildings, logistics facilities, solar carports and ground-mounted arrays. It can be particularly useful where an elevated array layout or reflective surface can support rear-side energy generation.
At 1,977 × 1,134 mm and 27.1 kg per panel, use a mounting system approved for the module dimensions, frame profile, loading and clamping zones. Confirm roof structure, wind and snow loads, inverter input limits and string voltage before installation.
Energian can help with module quantities, bifacial-layout planning, inverter selection, mounting compatibility, DC protection and complete solar PV system design. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | DMEGC |
| Module model | DM510G12RT-B54HBW |
| Module type | N-type monocrystalline bifacial module with double glass |
| Cell type and layout | N-type monocrystalline, 108 cells (6 × 18) |
| Rated maximum power (Pmax) | 510 W |
| Module efficiency at STC | 22.7% |
| Power sorting | 0 to +3% |
| Maximum power current (Imp) | 14.84 A |
| Maximum power voltage (Vmp) | 34.37 V |
| Short-circuit current (Isc) | 15.78 A |
| Open-circuit voltage (Voc) | 40.62 V |
| STC test conditions | Irradiance 1,000 W/m², module temperature 25°C, AM 1.5 |
| Electrical measurement standard | IEC 60904-3 |
| Pmax measurement tolerance | ±3% |
| Isc measurement tolerance | ±4% |
| Voc measurement tolerance | ±3% |
| Bifaciality | 80 ± 5% |
| Module dimensions | 1,977 × 1,134 × 30 mm |
| Weight | 27.1 kg |
| Frame colour | Black frame requested for this product; confirm the exact frame finish against delivered-stock documentation before publication |
| Front cover | 2 mm heat-strengthened glass with anti-reflective coating |
| Rear cover | 2 mm heat-strengthened glass |
| Junction box | Three diodes, IP68 according to IEC 62790 |
| Output cables | 4 mm²; portrait: 300 mm positive / 200 mm negative; landscape: 1,200 mm positive / 1,200 mm negative; cable length can be customised |
| Connector type | PV-ZH202B or MC4-EVO 2A, 1,500 V |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 30 A |
| Protection class | Class II |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum test load, push/pull | Front 5,400 Pa / rear 2,400 Pa |
| Maximum design load, push/pull | Front 3,600 Pa / rear 1,600 Pa |
| First-year degradation | ≤1% |
| Annual degradation over 30 years | ≤0.4% |
| Linear power warranty | 30 years |
| Product certifications | IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342 and IEC 60068 |
| Modules per box | 36 modules |
| Modules per 40HQ container | 864 modules |
