DMEGC 460W Infinity Mono RT Dual Glass N-Type Full Black Solar Panels
- 460 W full-black N-type monocrystalline solar panel for residential and commercial rooftop PV systems.
- 23.0% module efficiency with a double-glass construction and black-framed finish.
- Compact 1,762 × 1,134 mm module format with 30-year linear power warranty.

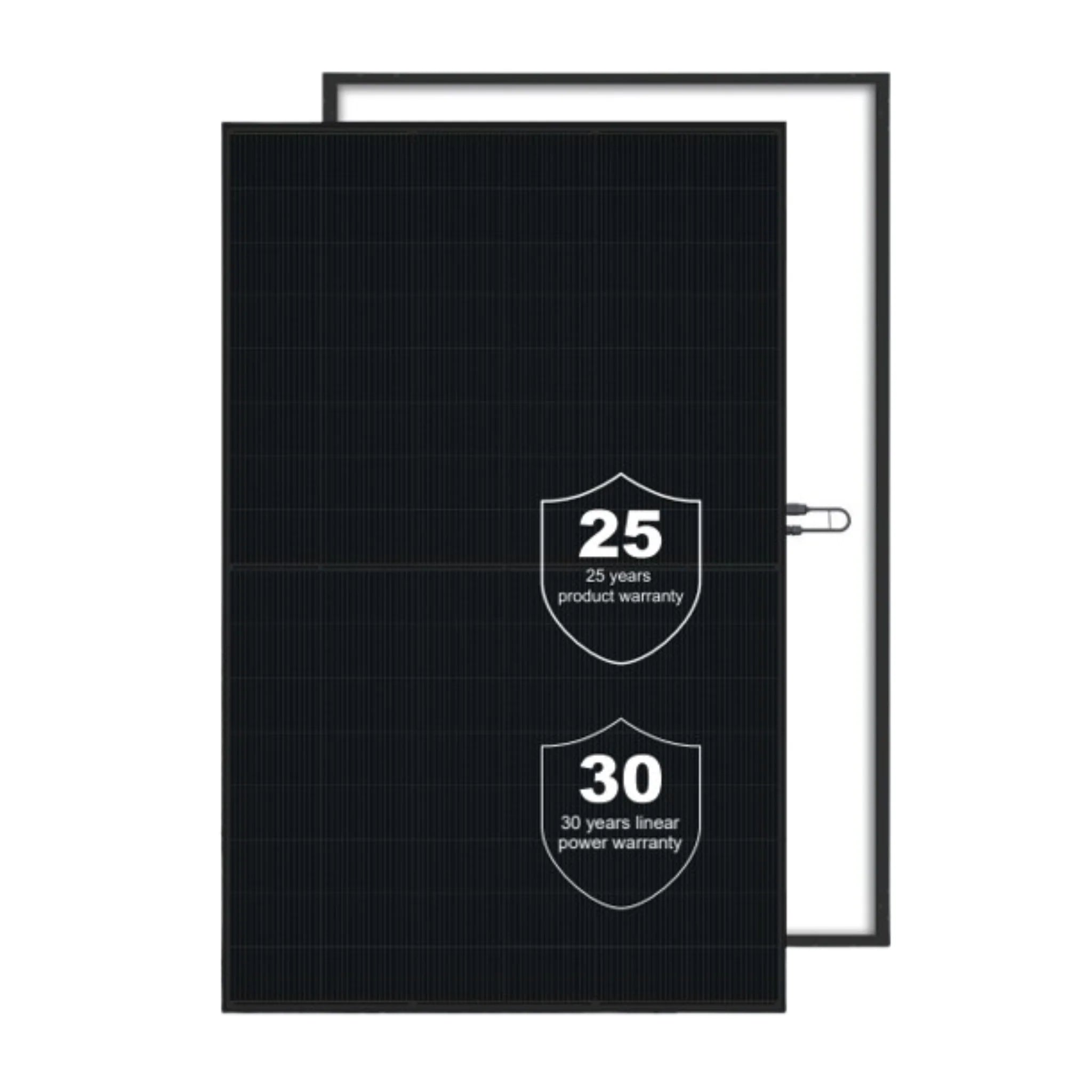

DMEGC 460W Infinity full black N-type solar panel
The DMEGC DM460G12RT-G48HBB is a 460 W N-type monocrystalline, monofacial solar panel with a dual-glass construction and full-black appearance. It is designed for roof-mounted solar systems where a neat finish, high module efficiency and a practical panel size are important.
At 23.0% module efficiency, this DMEGC 460W solar panel helps maximise installed capacity on homes, commercial roofs and visible building elevations. Its black frame and DMEGC Advanced Black Technology are suited to projects where the visual appearance of the array matters.
Key features
- 460 W rated output: Provides high power in a roof-friendly module format for residential and commercial solar arrays.
- 23.0% module efficiency: N-type monocrystalline cell technology with 96 cells in a 6 × 16 layout.
- Full-black double-glass design: 2 mm heat-strengthened front and rear glass with a black-finish module appearance.
- High mechanical loading: Maximum test load of 5,400 Pa on the front and 2,400 Pa on the rear.
- Long-term output cover: 30-year linear power warranty, with stated first-year degradation of no more than 1% and annual degradation of no more than 0.4% thereafter.
Where to use
The DMEGC 460W Infinity full black solar panel is suitable for homes, offices, retail premises, workshops, commercial buildings and other roof-mounted solar PV systems. Its 1,762 × 1,134 mm dimensions are compatible with many mainstream roof-mounting solutions, subject to the approved clamping zones and system design.
This panel weighs 27.1 kg and must be installed using a mounting system designed for its frame, dimensions and expected local wind and snow loads. Confirm roof structure, inverter input limits, string voltage and DC protection requirements before installation.
Energian can assist with panel quantities, inverter and optimiser compatibility, mounting equipment and complete PV system planning. Where a system cannot be used out of the box, we can help arrange installation through trusted partners.
Technical specifications
| Manufacturer | DMEGC |
| Module model | DM460G12RT-G48HBB |
| Module type | N-type monocrystalline monofacial module with double glass |
| Module appearance | Full black; manufactured using DMEGC Advanced Black Technology |
| Cell type and layout | N-type monocrystalline, 96 cells (6 × 16) |
| Rated maximum power (Pmax) | 460 W |
| Module efficiency at STC | 23.0% |
| Power output tolerance | 0 to +3% |
| Maximum power voltage (Vmp) | 30.95 V |
| Maximum power current (Imp) | 14.87 A |
| Open-circuit voltage (Voc) | 36.32 V |
| Short-circuit current (Isc) | 15.83 A |
| STC test conditions | Irradiance 1,000 W/m², module temperature 25°C, AM 1.5 |
| Electrical measurement standard | IEC 60904-3 |
| Pmax test uncertainty | ±3% |
| Isc measurement tolerance | ±4% |
| Voc measurement tolerance | ±3% |
| Module dimensions | 1,762 × 1,134 × 30 mm |
| Weight | 27.1 kg |
| Front cover | 2 mm heat-strengthened glass with anti-reflective coating |
| Rear cover | 2 mm heat-strengthened glass |
| Junction box | Three diodes, IP68 according to IEC 62790 |
| Output cables | 4 mm²; portrait: 300 mm positive / 200 mm negative; landscape: 1,100 mm positive / 1,100 mm negative; cable length can be customised |
| Connector type | PV-ZH202B or MC4-EVO 2A, 1,500 V |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 25 A |
| Protection class | Class II |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum test load, push/pull | Front 5,400 Pa / rear 2,400 Pa |
| Maximum design load, push/pull | Front 3,600 Pa / rear 1,600 Pa |
| First-year degradation | ≤1% |
| Annual degradation over 30 years | ≤0.4% |
| Linear power warranty | 30 years |
| Product certifications | IEC 61215, IEC 61730, IEC 62716, IEC 61701, IEC TS 63342 and IEC 60068 |
Documents available for download
