EcoFlow 15kWh Battery Power Kit

£11,896.00
By Ecoflow

Model

Delivery available

We offer free installation for a limited period of time. Please contact us at info@energian.co.uk or 020 8064 0335.

15kWh Battery Power Kit Features

  • Integrated solution EcoFlow Power Kits are the world’s first integrated plug and play power solution especially designed for camper vans, motorhomes, caravans, and off grid homes. Each Power Kit can be tailored to your own needs and specifications from the range of modular options.
  • Expandable system 15kWh Battery Power Kits provide power for carefree off-grid living and RV/campervan trips. They are powerful, compact and easy to assemble. Expanded to 15kWh by adding 2 more 5kWh battery.
  • 4 Recharge Options You can recharge your batteries fast and by 4 different methods. Using the EcoFlow ridged solar panels you can use up to 4800W* of solar input across three 1600W ports. Connect your camper vans alternator to the Power Kit and you can charge at 1000W. If you are at a site with an electrical hook-up, then you can utilise this with up to 3000W of charging input power. Lastly, if you’re wild camping you can use the Ecoflow Smart Generator (see this options in EcoFlow Battery & Smart Generator Power Kits. This will keep all your batteries topped up with 1800W of input power.
  • Easy to Set Up The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution in the market.
  • Compact - Saves Space EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.
  • Simple control Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console. Use the EcoFlow app to monitor power usage, stored energy, and circuit status. Customise basic power settings and adjust your AC and alternator input charging currents. Check the app to quickly get an overview of system health, view and resolve errors as well as update firmware from wherever you are.

15kWh Battery Power Kit Specifications

Colour: Black

Material: Aluminium alloy +Plastic

Power Hub:

AC Charge Input Power (X 1): X-STREAM Charge 230V 13A 3000W max
AC Charge Input Voltage: International version 220-240V
Solar Charge Input (X 3): 10-150V 30A 1600W max each
Campervan Alternator Charge Input (X 1): 13-60V 60A 1000W max
AC Main Output/Frequency Pure Sine Wave (X1): 3600W (Surge 7200W), 230V, 50Hz
DC Main Output (X 1): 13.6V/70A 1000W Max: 26.4V/60A. 1600W Max

Dimension (cm): 30 x 48 x 14cm
Net weight (kg): 14kg

Battery:

No of batteries: 3

Capacity:  5120Wh (51.2V 100Ah)
Cell chemistry: LiFePO4 (LFP)
Cycle Life: 3000 Cycles up to 80% Capacity
Dimension (cm): 30 x 50 x 26cm
Net weight (kg): 41kg

Power Kit Console:

Touch screen (cm): 15 x 8.6cm
Power Supply: 12VDC
Dimension (cm): 11.3 x 20.5 x 22.4cm
Net weight (kg): 0.45kg

AC/DC Smart Distribution Panel:

AC Main Input: 230V 16A 3600W max

DC Main Input: 70A max
AC Output: (6*) 10A max each
DC Output 12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
Dimension (cm): 21 x 35.3 x 10cm
Net weight (kg): 2.6kg

Operating Temperature: -25℃ ... +60℃

Tests and Certifications UL Standard, FCC,ICES

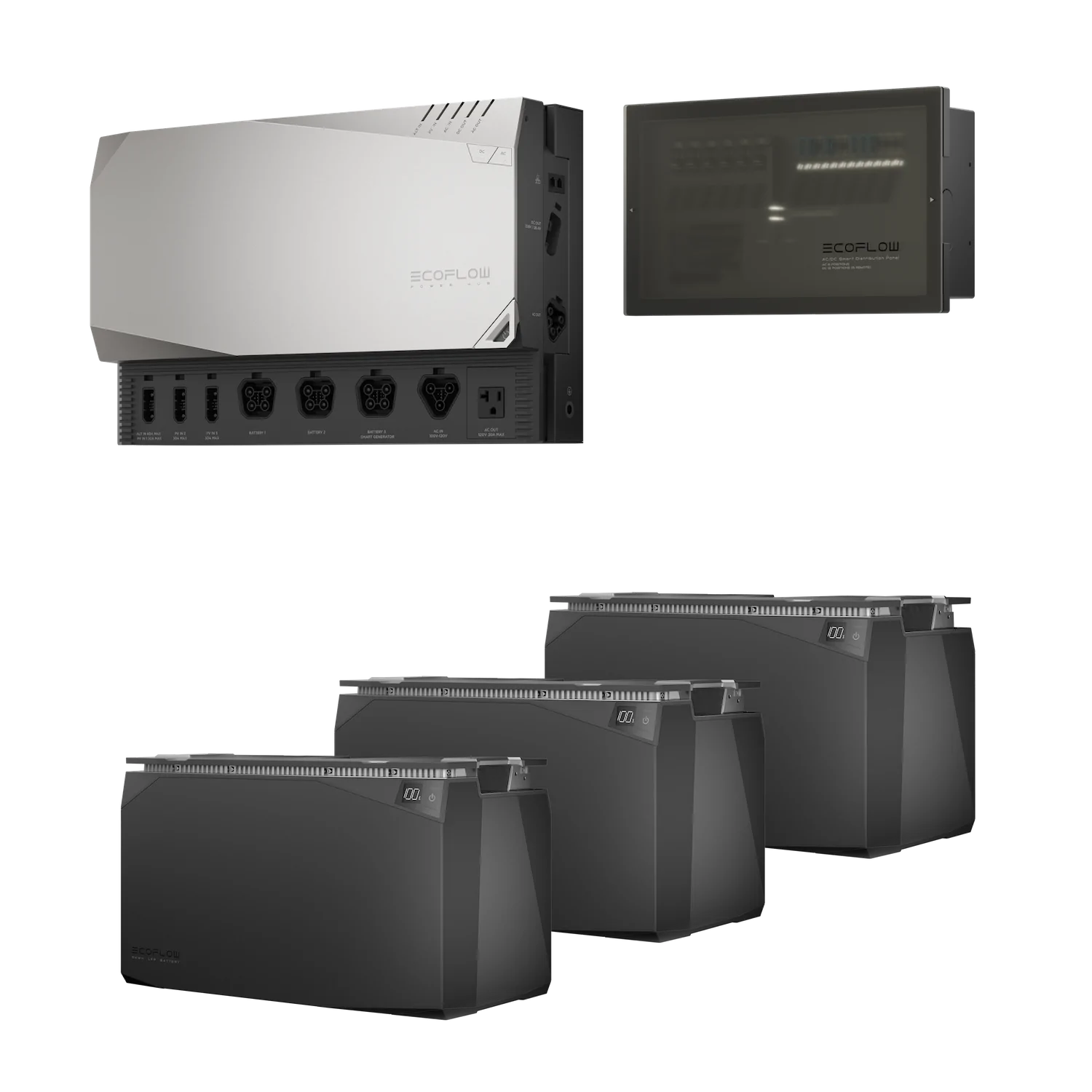

What's included in 15kWh Battery Power Kit

Solar panels are sold separately; Delta Pro is sold separately. Depending on the set you choose, the Power Kit will contain:

Get Set Power Kit:
  • 1x Power Hub
  • 3x 5kWh LFP Batteries
  • 1x Cable Pack

Prepared Power Kit:

  • 1x Power Hub
  • 3x 5kWh LFP Batteries
  • 1x Cable Pack
  • 1x AC / DC Smart Distribution Panel
  • 1x Battery Mounting Strap

Independence Power Kit:

  • 1x Power Hub
  • 3x 5kWh LFP Batteries
  • 1x Cable Pack
  • 1x AC / DC Smart Distribution Panel
  • 1x Power Kit Console
  • 1x Battery Mounting Strap
