10kWh Battery Power Kit Features
- Integrated solution EcoFlow Power Kits are the world’s first integrated plug and play power solution especially designed for camper vans, motorhomes, caravans, and off grid homes. Each Power Kit can be tailored to your own needs and specifications from the range of modular options.
- Expandable system 10kWh Battery Power Kits provide power for carefree off-grid living and RV/campervan trips. They are powerful, compact and easy to assemble. Expand this kit to 15kWh by adding 1 more 5kWh battery.
- Extraordinary solar charge capability There is a single input that connects to either a 60 amp alternator, or the port can instead be used as a 30 amp solar charging input. There are two dedicated solar charging inputs that give you a maximum of 3 X 30 amps at 10-150V of solar charging in sum. Use 1x or 6x EcoFlow 2 x 400W Rigid Solar Panel Combo or 1x - 16x Canadian Solar 405W Mono PERC Solar Panel for off-grid applications, and 1x - 3x EcoFlow 400W Portable Solar Panel or 1x - 18x ALLPOWERS 200W Portable Solar Panel for portable applications.
- 4 Recharge Options You can recharge your batteries fast and by 4 different methods. Using the EcoFlow ridged solar panels you can use up to 4800W* of solar input across three 1600W ports. Connect your camper vans alternator to the Power Kit and you can charge at 1000W. If you are at a site with an electrical hook-up, then you can utilise this with up to 3000W of charging input power. Lastly, if you’re wild camping you can use the Ecoflow Smart Generator (see this options in EcoFlow Battery & Smart Generator Power Kits. This will keep all your batteries topped up with 1800W of input power.
- Easy to Set Up The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution in the market.
- Compact - Saves Space EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.
- Simple control Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console. Use the EcoFlow app to monitor power usage, stored energy, and circuit status. Customise basic power settings and adjust your AC and alternator input charging currents. Check the app to quickly get an overview of system health, view and resolve errors as well as update firmware from wherever you are.
10kWh Battery Power KitSpecifications
|
Colour: Black |
|
Material: Aluminium alloy +Plastic |
|
Power Hub: AC Charge Input Power (X 1): X-STREAM Charge 230V 13A 3000W maxAC Charge Input Voltage: International version 220-240V Solar Charge Input (X 3): 10-150V 30A 1600W max each Campervan Alternator Charge Input (X 1): 13-60V 60A 1000W max AC Main Output/Frequency Pure Sine Wave (X1): 3600W (Surge 7200W), 230V, 50Hz DC Main Output (X 1): 13.6V/70A 1000W Max: 26.4V/60A. 1600W Max Dimension (cm): 30 x 48 x 14cm |
|
Battery: Capacity: 5120Wh (51.2V 100Ah) |
|
Power Kit Console: Touch screen (cm): 15 x 8.6cm |
|
AC/DC Smart Distribution Panel: DC Main Input: 70A max |
|
Operating Temperature: -25℃ ... +60℃ |
|
Tests and Certifications UL Standard, FCC,ICES |
Training videos:
Follow this link to view Power Kits training videos.
What's included in 10kWh Battery Power Kit
Solar panels are sold separately; extra batteries are sold in bigger kits (15kWh); Delta Pro is sold separately. Depending on the set you choose, the Power Kit will contain:
Get Set Power Kit:- 1x Power Hub
- 2x 5kWh LFP Batteries
- 1x Cable Pack
Prepared Power Kit:
- 1x Power Hub
- 2x 5kWh LFP Batteries
- 1x Cable Pack
- 1x AC / DC Smart Distribution Panel
- 1x Battery Mounting Strap

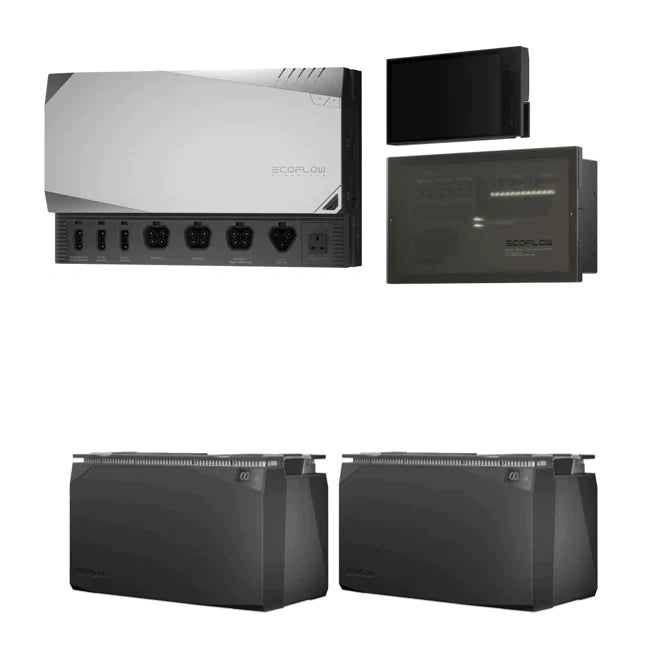

Independence Power Kit:
- 1x Power Hub
- 2x 5kWh LFP Batteries
- 1x Cable Pack
- 1x AC / DC Smart Distribution Panel
- 1x Power Kit Console
- 1x Battery Mounting Strap
