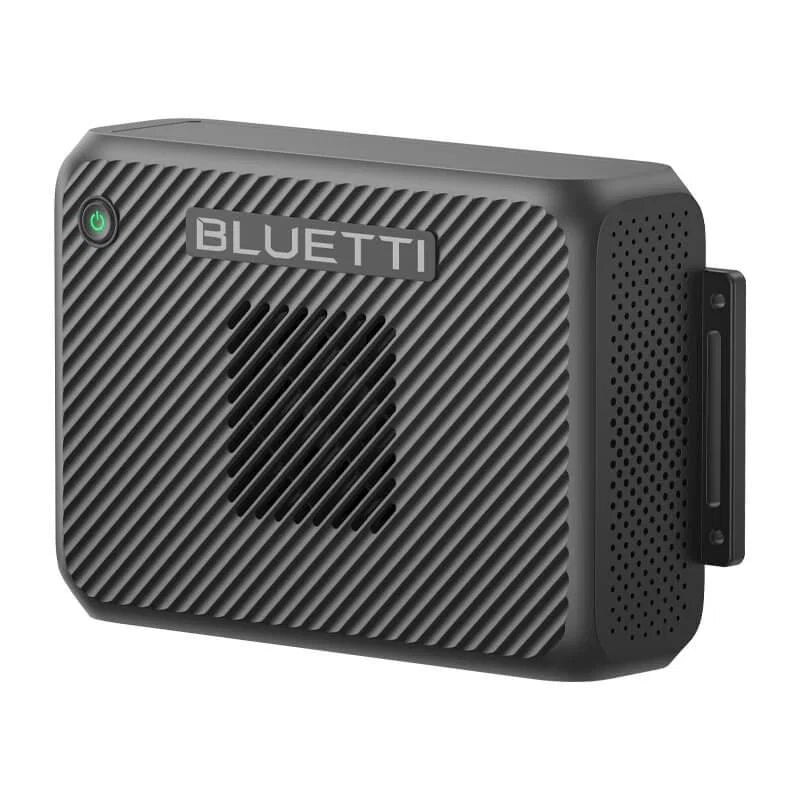

BLUETTI Charger 2 | 1200W Alternator & Solar Dual DC Charger
- Charge compatible BLUETTI power stations from a vehicle alternator, solar panels, or both, with up to 1,200W charging output.
- Designed for 12V and 24V vehicle electrical systems, including vans, motorhomes, RVs, trucks and suitable smart-alternator vehicles.
- Use app-based monitoring and reverse charging to help maintain or recover a compatible vehicle starter battery.
BLUETTI Charger 2 alternator and solar DC charging
The BLUETTI Charger 2 is a 1,200W DC-DC charger that combines available vehicle alternator power with solar input to charge compatible BLUETTI portable power stations while travelling or parked. It offers a more substantial charging route than a standard 12V accessory socket for suitably specified vehicle systems.

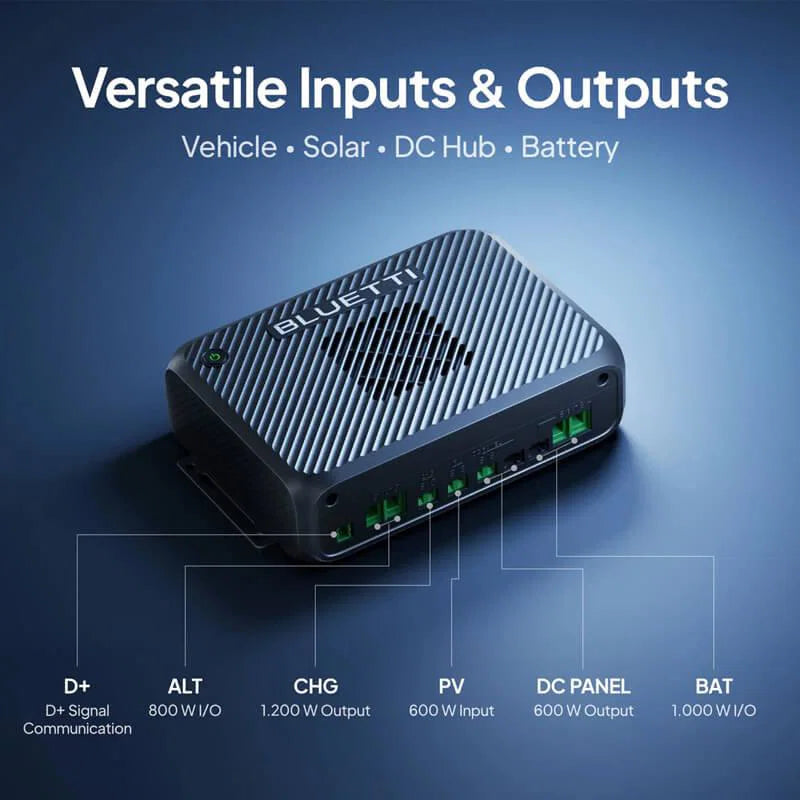

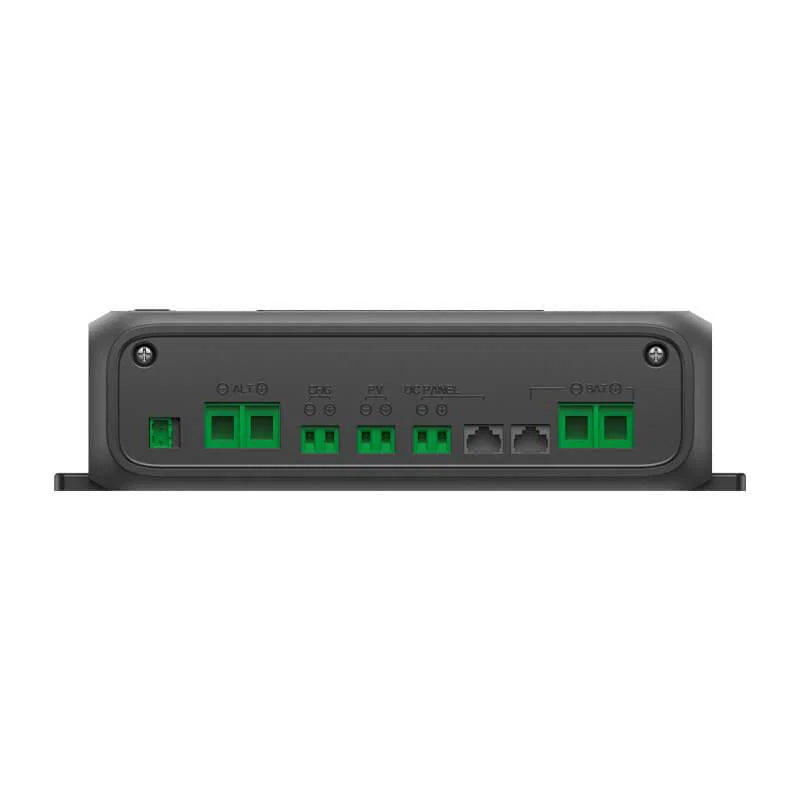

It connects to a 12V or 24V starter battery through its ALT port, accepts a solar input through its PV port, and charges a compatible power station through its CHG output. The unit can also connect to selected BLUETTI battery products through the BAT port and can be used with the optional DC Hub for fixed 12V or 24V loads.
Key features
- Up to 1,200W power-station charging output, with solar and alternator charging inputs.
- Up to 800W alternator input from a 12V or 24V vehicle starter-battery system.
- Up to 600W solar input; solar-panel open-circuit voltage must remain within 13V to 50V.
- Bluetooth and Wi-Fi app connectivity for charging-power, battery-status and energy-use monitoring.
- Reverse Charging, Trickle Charge and Pulse Maintenance functions for a connected vehicle starter battery, using solar panels or compatible BLUETTI products.
Where to use
The BLUETTI Charger 2 is suited to campervans, motorhomes, RVs, vans, trucks and mobile-work vehicles where a compatible power station needs charging while driving or from solar while parked. It can support portable power for equipment such as communications devices, laptops, lighting, refrigeration and other suitable loads.
When used with the optional BLUETTI DC Hub, the Charger 2 can supply compatible 12V or 24V DC appliances, such as a fridge, lighting, pump, fan, radio or Starlink equipment. Fixed vehicle wiring, starter-battery connections, fusing and smart-alternator D+ signal installation should be completed by a qualified automotive electrician or trusted installation partner.
Technical specifications
| Model | CHARGER 2 |
| Car battery input/output (ALT) | 800W; 12.8V, 62.5A; 25.6V, 31.3A |
| Bidirectional power port (BAT) | 1,000W; 19.2V, 52A; 25.6V, 39A; 51.2V, 19.5A |
| Solar input (PV) | 600W; 13V–50V; 20A |
| Power-station output (CHG) | 1,200W; 12V–56V; 24A |
| 48V DC Panel / DC Hub port | 600W; 40V–58.5V; 12.5A |
| Maximum combined charging power | 1,200W; solar input takes priority up to 600W, with remaining power from starter battery up to 800W or a compatible BLUETTI product connected to BAT |
| Compatible vehicle battery | Standard 12V or 24V vehicle battery, or two 12V batteries connected in series |
| Connectivity | Bluetooth and Wi-Fi |
| Operating temperature | -20°C to 60°C / power decreases above 40°C |
| Storage temperature | -20°C to 60°C |
| Operating humidity | 10% to 90% |
| Noise level | 50dB maximum |
| Operating altitude | < 2,000m |
| Protection rating | IP20 |
| Dimensions (L × W × H) | 265 × 169 × 69.7mm |
| Weight | 1.59kg |
| Warranty | 24 months |
In the box
- 1 × BLUETTI CHARGER 2 DC-DC Charger
- 1 × car battery cable set, 5m / 16.4ft, 6 AWG
- 1 × bidirectional power cable, 0.65m / 2.13ft
- 1 × solar charging cable, MC4 to XT60, 0.5m / 19.685in
- 1 × MC4 input cable to PV port, 200mm / 7.87in
- 1 × MC4 output cable to CHG port, 200mm / 7.87in
- 1 × 75A fuse
- 6 × self-tapping screws
- Documentation
Documents available for download
Shipping
Available for shipping to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, contact us on +44 2080 640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for Charger 2, vehicle electrical-system, BLUETTI power-station and solar-panel compatibility questions. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation. For vehicle wiring, starter-battery connections and smart-alternator integration, use a qualified automotive electrician or trusted installation partner.
