BLUETTI AC300 Inverter Module – Works with B300K Expansion Batteries
- Modular 3,000W pure sine wave inverter module for creating a scalable portable or home-backup power system.
- Requires at least one compatible BLUETTI B300 or B300K expansion battery; the AC300 has no internal battery.
- Use up to four compatible battery modules, providing 2,764.8Wh to 12,288Wh depending on the selected battery configuration.

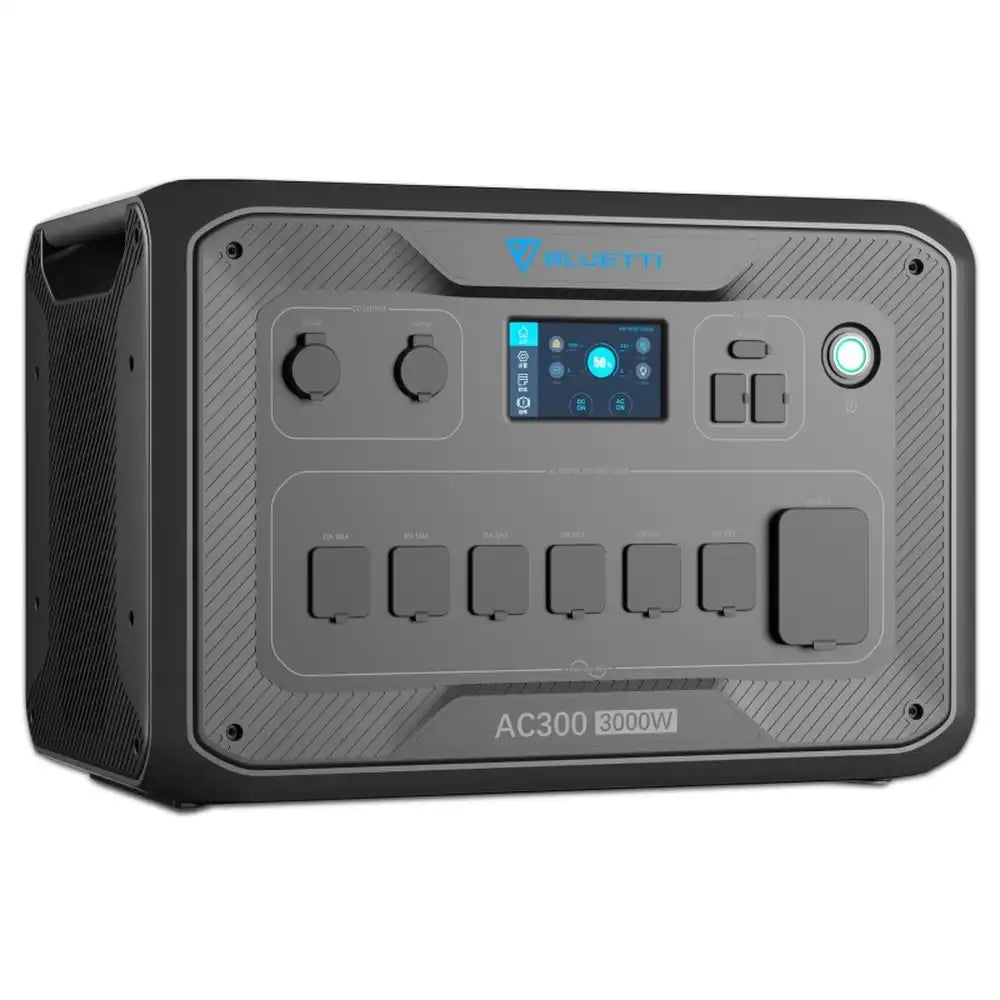

BLUETTI AC300
The BLUETTI AC300 is a modular inverter and power-management unit designed to work with B300 or B300K LiFePO₄ expansion batteries. Add at least one battery to create a usable energy-storage system, then expand to up to four compatible battery modules as energy requirements grow.
The AC300 provides 230V AC, 12V DC, USB and wireless-charging outputs, with mains, solar, vehicle, generator and lead-acid battery charging options. It is suited to backup power, campervans, mobile work, camping and portable energy storage where a modular battery arrangement is preferred.
Key features
- 3,000W continuous 230V AC output with 6,000W surge capability.
- Compatible with B300 3,072Wh and B300K 2,764.8Wh expansion batteries.
- Connect up to four B300 or B300K batteries using P090A battery cables.
- Dual MPPT solar input, accepting up to 2 × 1,200W solar charging input.
- Six AC outlets, 100W USB-C PD, USB-A, 12V/30A DC output and two 15W wireless charging pads.
Where to use
- Modular home backup for selected circuits and essential appliances.
- Campervans, caravans, mobile workspaces and temporary accommodation.
- Solar-powered energy storage for remote work, events and outdoor operations.
- Portable power for communications, IT equipment, lighting, refrigeration and compatible appliances.

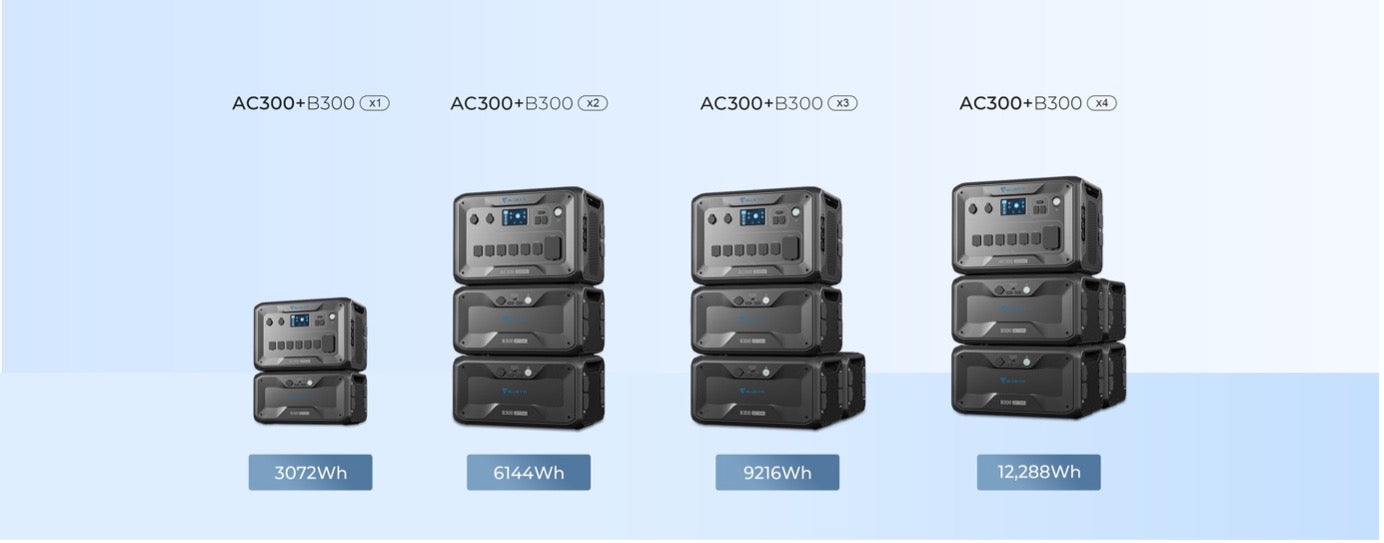

For example, an AC300 paired with one B300K provides a 2,764.8Wh system, while four B300K batteries provide up to 11,059.2Wh. Do not use the AC300 without a connected compatible battery. For fixed building circuits, whole-property backup, generator integration or solar-array design, contact Energian for UK expert support and trusted installation-partner options.
Technical specifications
| Internal battery | None; external compatible B300 or B300K battery required |
| Battery compatibility | B300K only |
| Battery expansion | 1–4 B300K battery modules |

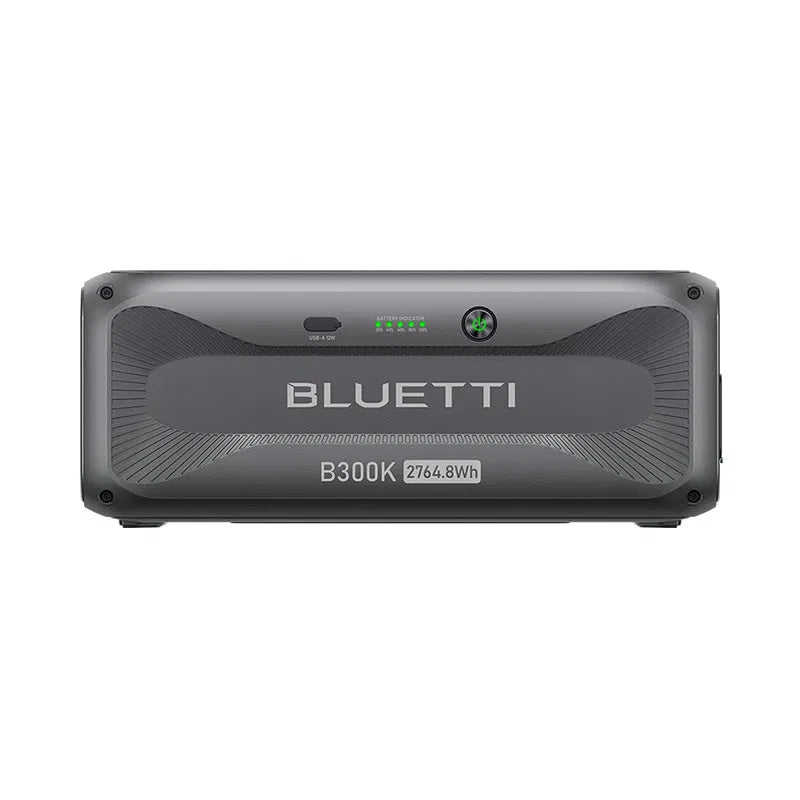

| B300K capacity | 2,764.8Wh per battery; 51.2V, 54Ah |
| System capacity with B300K | 2,764.8Wh to 11,059.2Wh with 1–4 batteries |
| AC output | 6 × 220–240V AC outlets; 3,000W total; 13A; 50Hz / 60Hz; pure sine wave |
| AC surge power | 6,000W |
| USB-A outputs | 2 × 5V / 3A; 2 × 18W |
| USB-C output | 1 × 100W USB-C PD |
| Wireless charging | 2 × 15W pads |
| 12V DC output | 1 × 12V / 30A output |
| 24V DC output | 1 × 24V / 10A output |
| Solar input | 2 × 1,200W maximum; 12–150V DC; 2 × 12A maximum; dual MPPT |
| AC charging input | 2,400W maximum, via 230V AC input |
| Other charging sources | Solar panels, car, generator and lead-acid battery |
| UPS function | Integrated UPS function |
| Connectivity | Wi-Fi |
| Dimensions (L×W× H) | 520 × 320 × 358mm |
| Net weight | 21.6kg |
| Charge temperature | 0°C to 40°C |
| Discharge temperature | -20°C to 40°C |
| Storage temperature | -20°C to 40°C |
| Working humidity | 10–90% |
| Certifications | PSE, FCC, CE, UN38.3, MSDS, UL, SAA and RoHS |
| In the box | AC300 inverter module; AC charging cable; solar charging cable; car charging cable; warranty card; user manual |
Use only compatible B300K battery modules and the specified P090A connection cables. Solar strings must remain within the 12–150V DC input range and each MPPT input must not exceed 12A.
Documents available for download
Shipping
Available for delivery to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for battery compatibility, system sizing and solar-panel matching. Contact Energian by telephone, email or live chat, or visit our office for an in-person consultation. For permanent building wiring, fixed PV arrays, generator integration or whole-building backup arrangements, we can help you engage a trusted installation partner.
