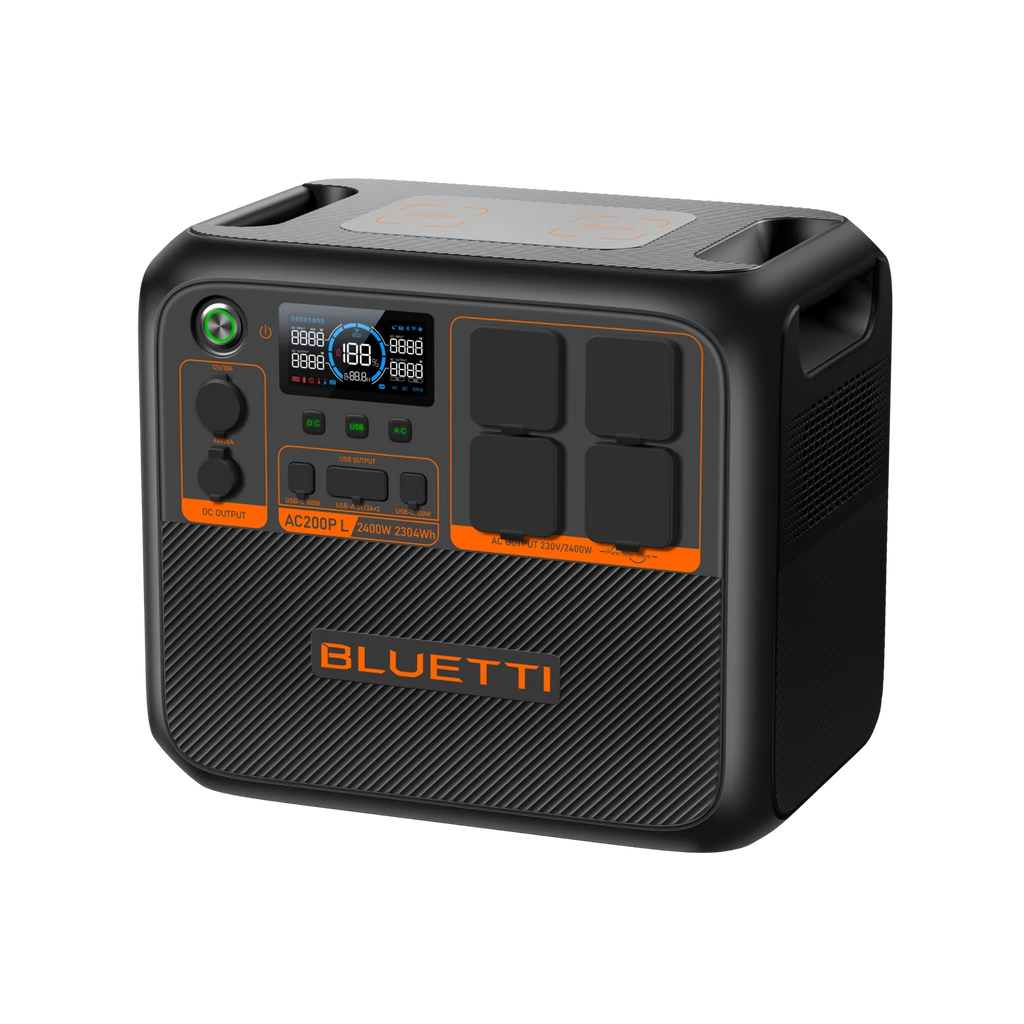

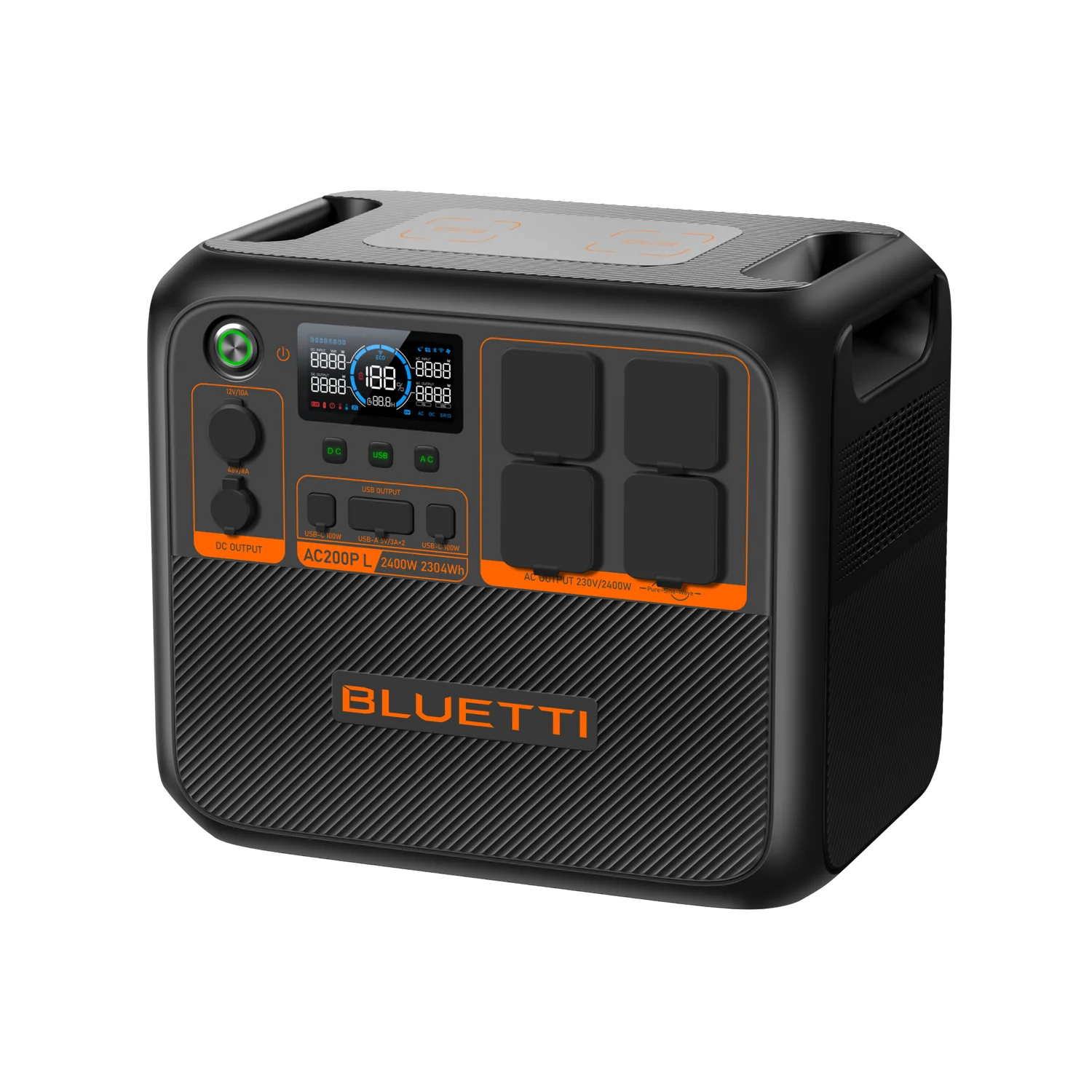

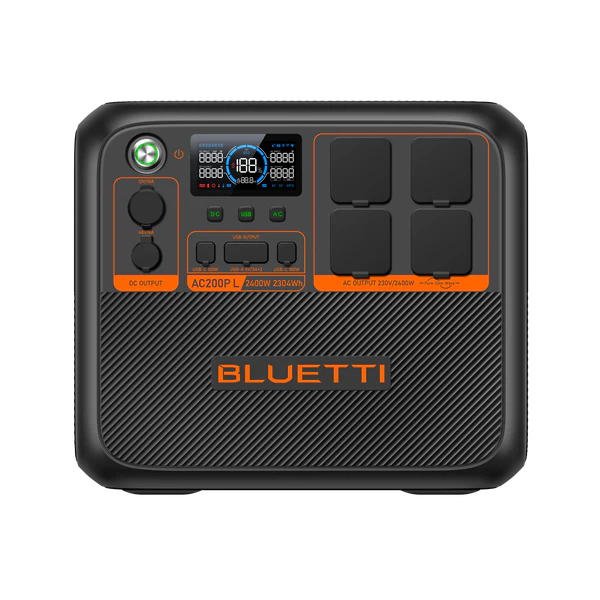

Bluetti AC200P L Portable Power Station
The Bluetti AC200P L Portable Power Station is a fast-charging, user-friendly solution designed to revolutionise your outdoor experience. Whether you’re embarking on outdoor adventures, exploring remote areas, traveling in an RV, or preparing for emergency power outages, Bluetti stands as a market-leading brand in supplying independent energy. With a commitment to innovation and technology, Bluetti redefines the landscape of portable power solutions.
Benefits:
- Achieve Super-Fast Charging to 80% in Just 1 Hour.
- Expandable up to 8kWh.
- Perfectly Compatible with B210P, B230, and B300 Expansion Batteries.
- Delivers 2,400W Rated Power, Meeting the Needs of Various Loads in Your RV or Home.
Ready for 99% of Devices
The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Your Plug-and-play RV Power Solution
With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200P L, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source.
*Sold separately.
Charge Your RV Anytime, Anywhere
Worry about running out of juice on your way to the next destination? Get your AC180P charged via expansion batteries - B80 (806Wh), B230 (2048Wh), and B300 (3072Wh) - to ensure a continuous power source of up to 4,224Wh, which is sufficient to last your outdoor fun even longer.
Up to 8kWh Expandable Capacity
AC200P L is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8,448Wh. Making the full potential of limitless power has never been easier.
Charge Your Way, Power Your Way
Experience the BLUETTI AC200P L, your portable powerhouse for unlimited on-the-go energy.
In the Box
For Connection to the from the Expansion battery to AC200P L you need the additional P090D To Aviation cable.
Specifications
BATTERY INFO
| Capacity: | 2304Wh (45Ah) |
| Cell Chemistry: | LiFePO4 |
| Lifecycle: | 3000+ |
| Shelf-life: | Recharge to 80% Every 3-6 Months |
| Management System: |
MPPT Controller, BMS, etc.
|
OUTPUTS
| AC Output: | 4 x 230V/7.8A Outlets, 2,400W In Total |
| USB-A Output: | 2 x 18W (Each Port) |
| 12V DC Output: | 12V/10A (Car outlet, regulated) |
| 48V DC Output: | 1 ×48V/8A (RV Outlet) |
| USB-C Output: | 2 x 100W Max. |
| Wireless Charging Pad: | 2 x 15W |
INPUTS
| AC Power Input (Turbo Mode): | 2,400W Max. |
| Solar Input: | 1,200W Max, 12V-145VDC, 15A |
| Car Input: | 12/24V from Cigarette Lighter Port |
| Maximum Input: | 2,400W |
RECHARGE TIMES
| AC Charging Cable (950W Turbo Charging): | ≈1.5 Hours |
| Solar Panel (s) (1200W): | ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| 12V/24V Car Outlet (100W/200W): | ≈12-12.5 Hours / 6.3-6.8 Hours |
GENERAL
| Pass-through Charging: | Yes |
| Weight: | About 28.8kg / 63.5lbs |
| Dimensions (L ×W ×D): | 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in |
| Charging Temperature: | 32℉-104℉ / 0℃-40℃ |
| Discharging Temperature: | -4°F-104°F / -20°C-40°C |
| Storage Temperature: | -4-104℉ / -20-40℃ |
| Certification: | UKCA, PSE, TELEC, RCM, CE, CA65, UL Standard |
| Warranty: | 5 years |
A: 1. Output power: 2,400W for AC200P L, while 2,200W for AC200MAX.
2. Max. Input: 2,400W (AC + DC / Solar) for AC200P L, while 1,400W (AC + PV) for AC200MAX.
3. AC200P L has lower noise level ≤50dB.
4. AC200P L requires no external charging adapter for AC charging.
5. App Control: AC200P L supports Bluetooth and WiFi, while AC200MAX only supports Bluetooth.
A: AC200P L+ 2*B210P = 6,348Wh;
AC200P L+ 1* B230 = 4,096Wh;
AC200P L+ 2* B300 = 8,192Wh.
A: Running time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + AC200P L Self-consumption)
DoD refers to Depth of Discharge and η is local inverter efficiency. For AC200P L, DoD and η are 95% and 93%. The self-consumption of AC200P L is approximately 12W. If you run a 1,000W microwave oven with it, the running time will be:
2,304Wh × 95% × 93% ÷ （1,000W +12W）≈ 2hrs
Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
A: Open Circuit Voltage: 12-145V
Input Power: 1,200W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈3.5hrs.
4x BLUETTI PV200: ≈3hrs.
2x BLUETTI PV350: ≈3.5hrs.
* For reference ONLY.
A: No.
Q10: Can I use or charge AC200P L in sub-zero temperatures?A: You can charge the AC200P L to power your devices in cold weather, but avoid recharging it below freezing. The temperature ranges for AC200P L are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
A: No. If the battery pack is faulty or even dead, please contact BLUETTI Support for further assistance.
Q12: Is it possible to replace the built-in battery?A: No. If the internal battery pack malfunctions or is dead, please contact BLUETTI Customer Service.
Q13: What appliances can AC200P L work well with?A: Add up the total wattage of your devices and ensure it doesn't exceed AC200P L’s rated 2,400W.
Q14: Can I hot-swap expansion batteries to AC200P L?
