All in One SolaX X1-IES Hybrid Energy Storage System 5.0W Inverter, 5.1-20.4kWh Battery, and (optionally) 5.5kW Solar Panels
Reduce your electricity costs with All in One SolaX X1-IES 5.0kW & 5.1-20.4kWh Hybrid Energy Storage System
Reduce your electricity costs sustainably! SolaX state-of-the-art Hybrid Energy Storage System with 5.1-20.4 kWh storage capacity (HYBRID ESS) optimizes your own consumption and reduces your electricity bill.
Your advantages with the SolaX Power X1-IES HYBRID ESS:
- High storage capacity: 20.4 kWh for a reliable energy supply even with high consumption.
- Intelligent control: Optimises your own consumption and reduces dependence on the power grid (if solar panels are installed).
- Long-lasting Lithium Iron Phosphate battery: Safe and powerful.
- Easy installation: Quick and uncomplicated commissioning.
Invest in your Energy independence!
Unlock the potential of home energy storage systems, enabling you to use generated electricity precisely when needed. Charge the battery pack with renewable energy from 12x JA Solar 460W Mono MBB Percium Half-Cell Silver Frame MC4 solar photovoltaic (PV) panels. The renewable energy generated during the day can be stored, ensuring a sustainable power source for evening activities like boiling the kettle or powering electronic devices.
Tailor the Hybrid ESS to your unique needs, considering current energy usage, the size of existing generation technologies, and plans such as acquiring an electric vehicle (EV) or implementing a heat pump for home heating. Empower your energy future with the Hybrid ESS.
Pay zero VAT, save money and time, when you order an installation via one of our trusted partners! Click here to enquire today.
Are you an installer? This product is designed for quick installation. Delight your customers and grow your business - call 020 8064 0335 to become an authorised partner today.
-

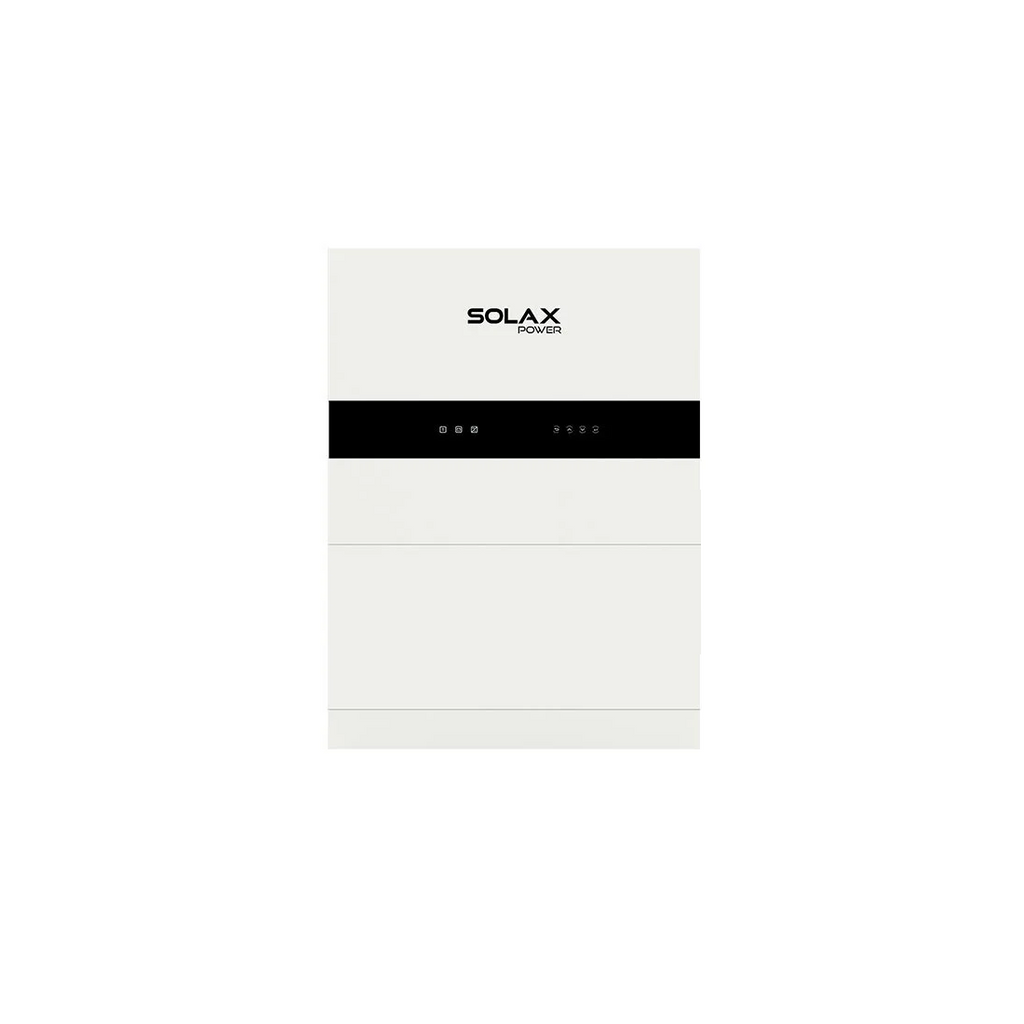

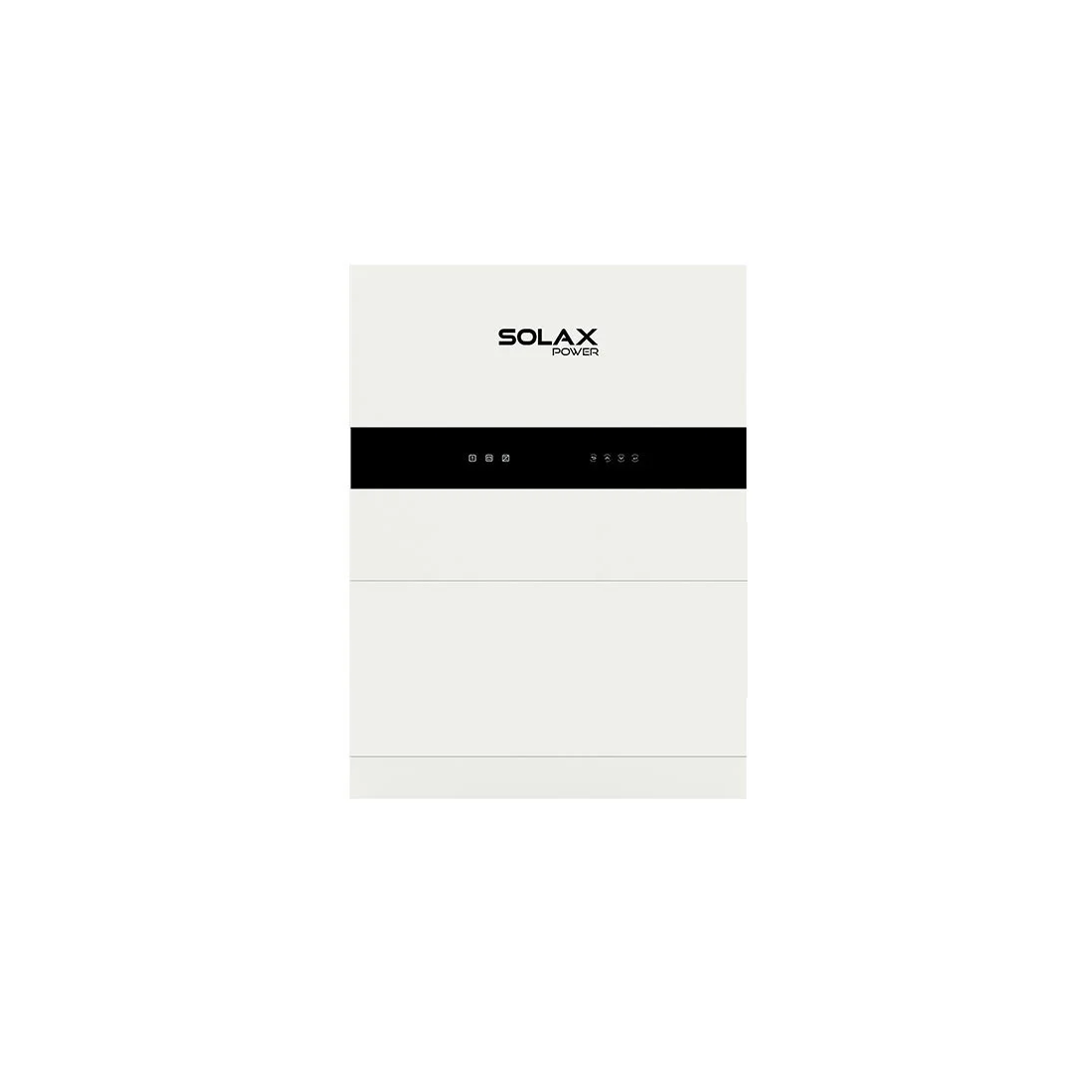

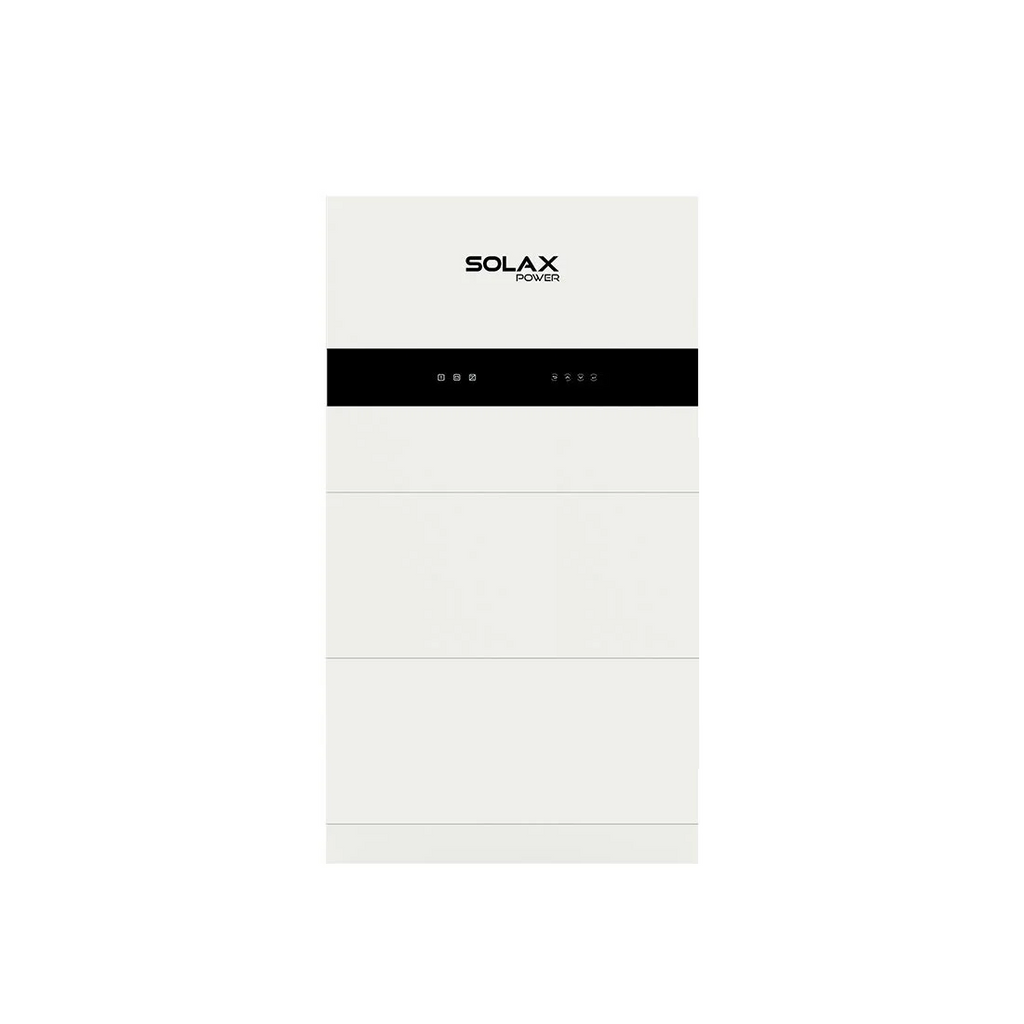

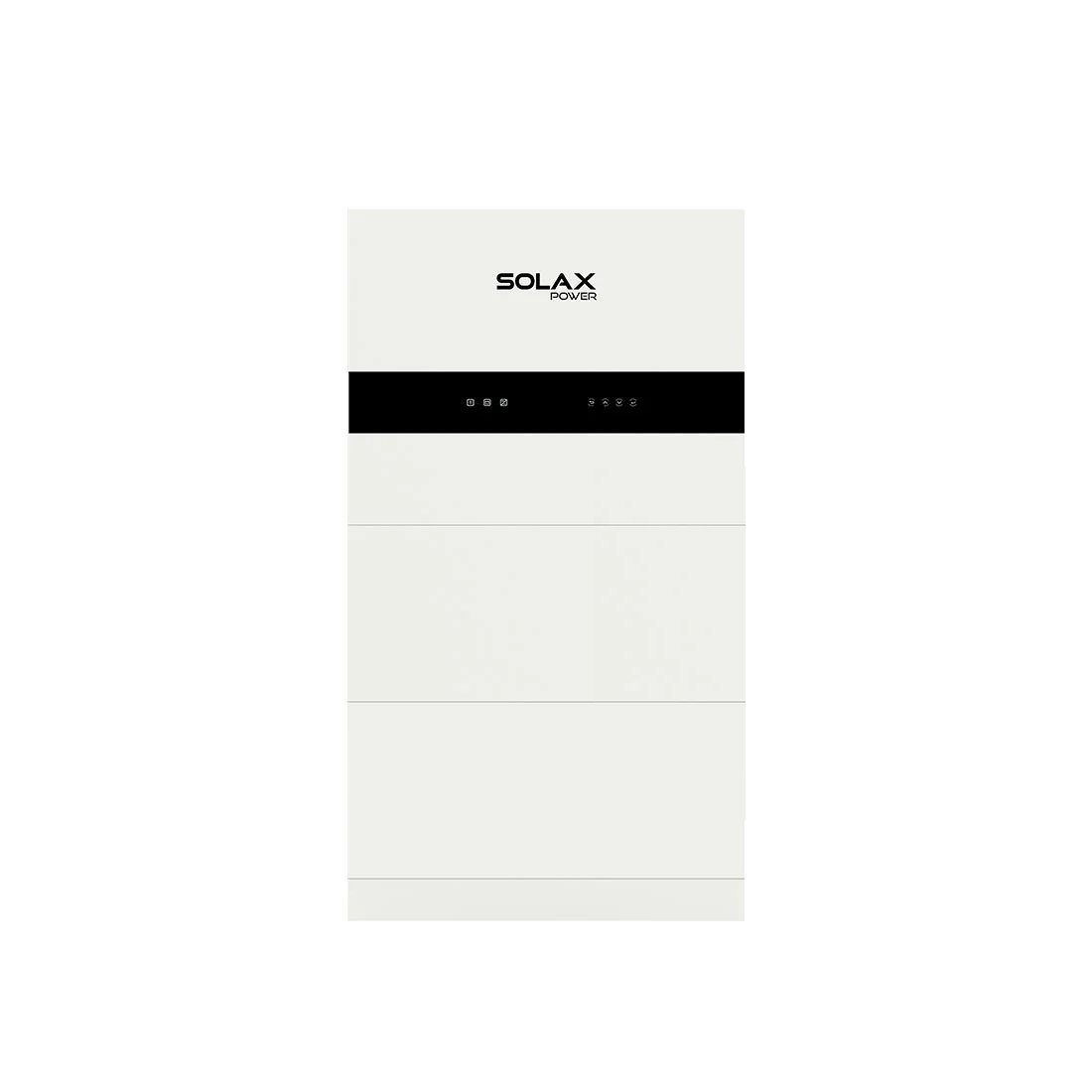

SOLAX X1-IES-5K 5.0kW 1PH HYBRID INVERTER is designed to be used as part of the SolaX IES Energy Storage System alongside the HS50E battery and battery management unit to ensure you have everything you need to make the most of the power captured by your solar installation.
- SOLAX X1-IES-5K 5.0kW HYBRID INVERTER provides 5.0kW in on-grid and back-up modes to support essentials, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.
-
SOLAX X1-IES-5K 5.0kW HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Back-up functionality with switchover time under 10ms (UPS level), up to 200% EPS output for 10s.
-
SOLAX X1-IES-5K 5.0kW HYBRID INVERTER WORKING MODES The SolaX X1-IES inverter features several configurable working modes to optimize energy management. These modes include:
- Self-Use Mode: Prioritizes using solar energy generated for self-consumption before drawing from the grid.
- Feed-In Priority Mode: Focuses on feeding excess solar energy back into the grid while minimizing self-consumption.
- Peak Shaving Mode: Helps level out peaks in electricity use by discharging battery power during high consumption periods.
- Manual Backup Mode: Allows users to manually select which loads to power during outages, providing flexibility in backup power management.
- Time-of-Use (TOU) Mode: Enables different working modes for various time periods, allowing for tailored energy management based on actual needs and conditions.

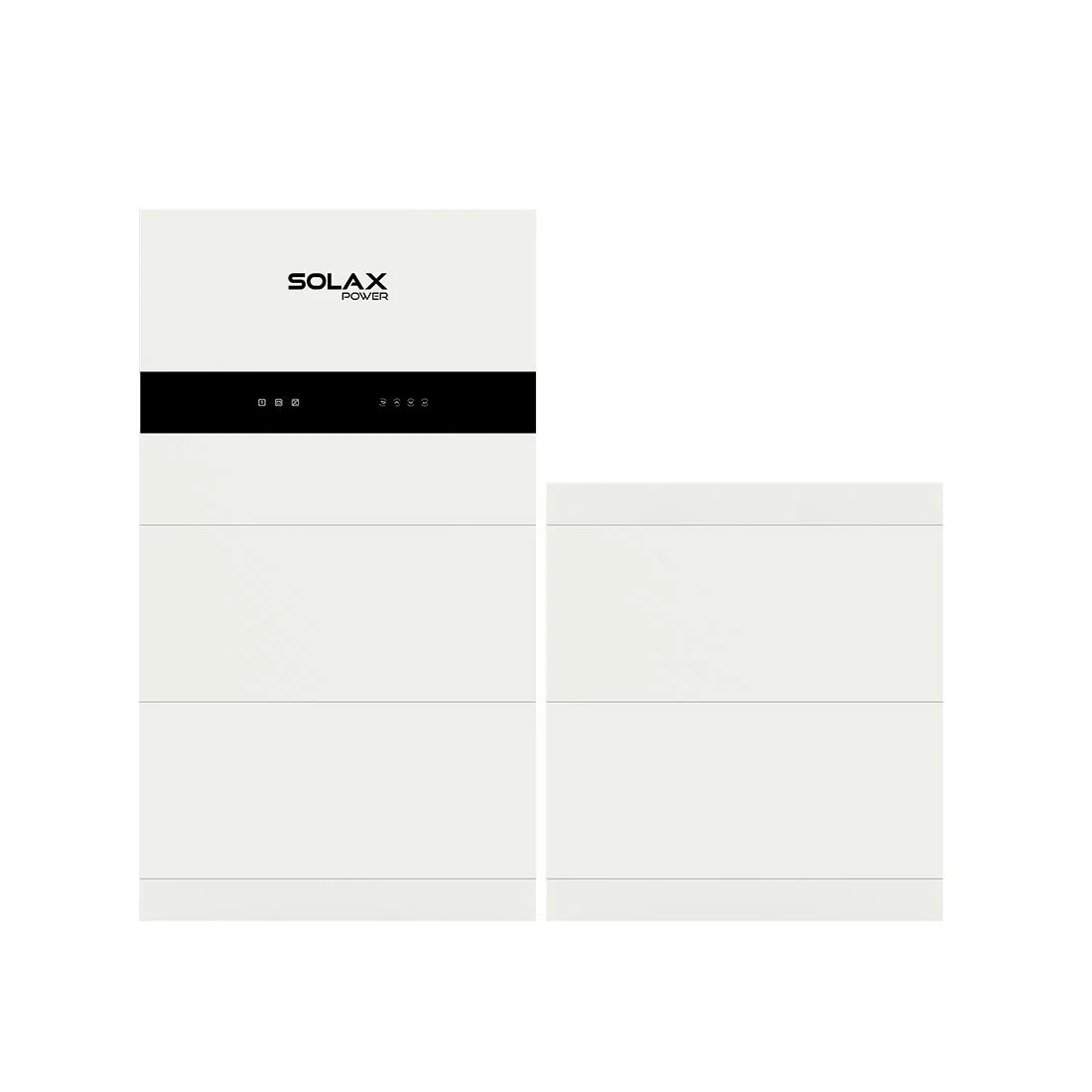

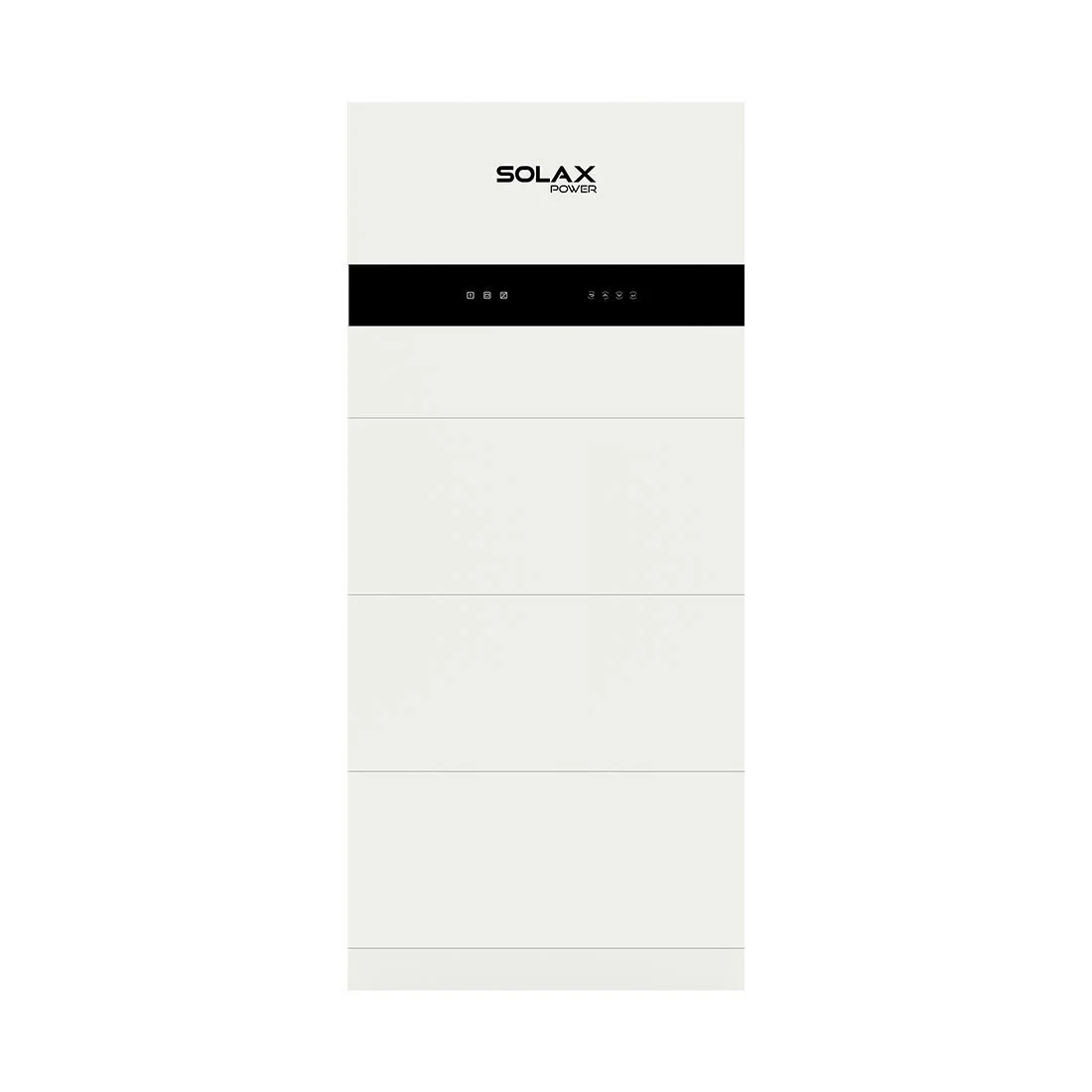

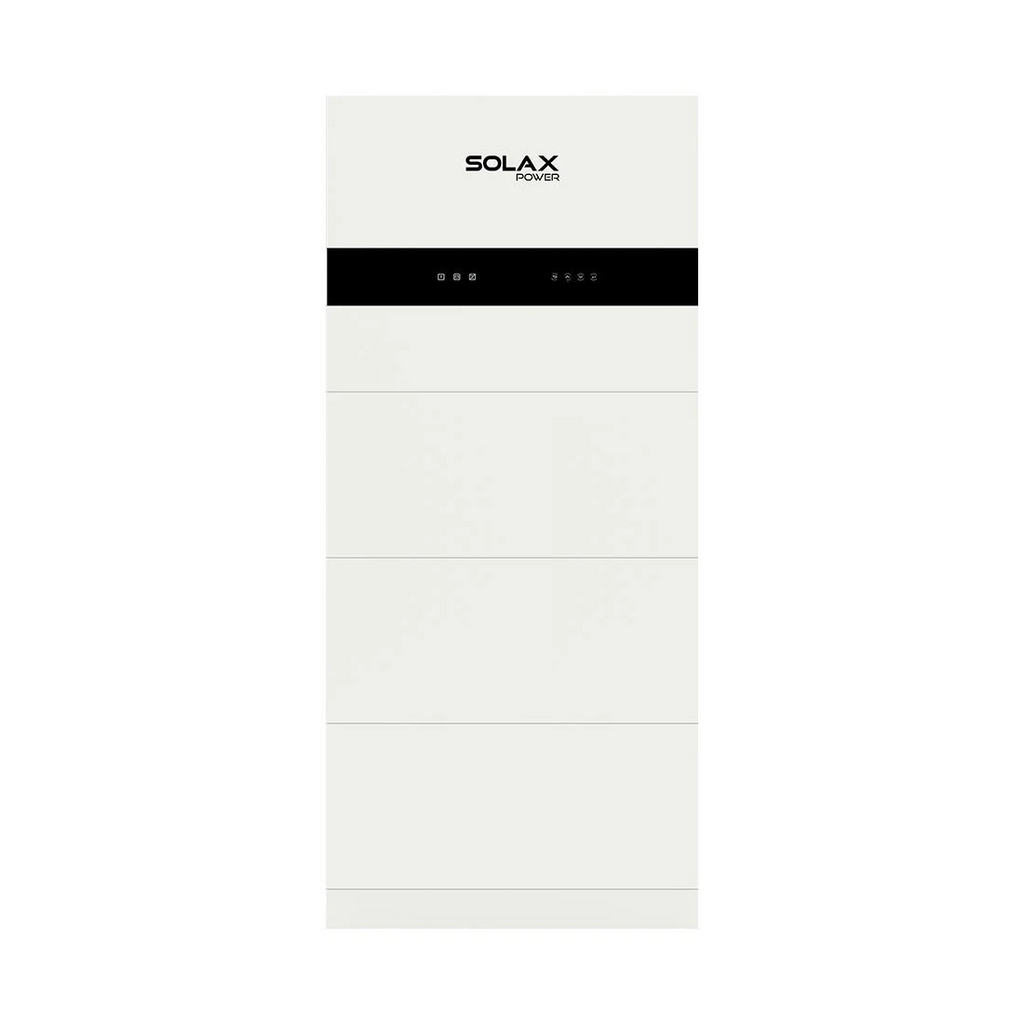

- SOLAX TP-HS50E 5.1kWH LONG LIFE LIFEPO4 HIGH-EFFICIENCY STORAGE BATTERY has a 10 years product warranty (100% Depth of Discharge); Storage capacity is expandable to 15.3kWh (3 modules in one stack) or 20.4kWh (2 modules in one stack and 2 modules in another stack with Series Kit Box); Easy plug & play installation.
-
(Optional) JA SOLAR 460W MONO MBB PERCIUM HALF-CELL SILVER FRAME MC4 (JAM72S-20-460-MR-MC4-SM) is a solar power source which captures up to 5.5kW DC electricity (3x4 panels strings) to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. The panel features JA Solar's innovative design with the high panel efficiency and power output of monocrystalline cells, enabling you to get more out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.
- 4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
SOLAR INPUT |
Max. Solar Power (Wp): 10kW |
Max. Input Voltage: 600V |
Operating Voltage: 360V |
Start-up Voltage: 50V |
MPPT Voltage Range: 40-560V |
MPPT Number of MPPT Trackers: 3 |
Number of PV Strings per MPPT Tracker: 1 |
Max. Input Current per MPPT: 20A |
Max. Short Circuit Current per MPPT: 30A |
AC INPUT |
Nominal AC power: 9200VA |
Max. AC current: 40A |
Rated grid frequency: 50/60Hz |
Power factor: ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
AC OUTPUT (ON-GRID) |
Nominal Output Power: 5000W (4600W for VDE4105 German Standard, 4999W for AS4777 Australian Standard) |
Max. Output Apparent Power: 5000VA (4600VA for VDE4105, 4999VA for AS4777, 5000VA for C10/11) |
Operation Phase: Single phase |
Nominal Output Voltage: 220-240VAC |
Nominal Frequency: 50/60Hz |
Rated Output Current (@230V 50Hz): 21.8A |
Max. Output Current: 21.8A |
Power Factor: ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
Total Harmonic Distortion (THDv, Linear Load): <3% |
EPS OUTPUT (WITH BATTERY) |
EPS Peak Power: 1.1Pn continuous operation; 1.1Pn-2Pn 10s; >2Pn report error immediately |
EPS Rated Power: 5000VA |
EPS Rated Voltage; Frequency: Single phase, 220 - 240V; 50/60Hz |
EPS Rated Current: 21.8A |
Switchover Time: <10ms |
Total Harmonic Distortion (THDv, Linear Load): <3% |
BATTERY |
Battery Voltage Range: 80 - 480V |
Communication Interfaces: CAN/RS485 |
BMS Module: TBMS-MCS0800E |
Battery Module: TP-HS50E |
Composition: TBMS-MCS0800E + TP-HS50E * n + Base Dimensions + Series Box (Required for two columns); n = 1 - 4 |
Battery Type: LiFePO4 (LFP) |
Nominal Capacity / Nominal Capacity: 5.1kWh / 50Ah |
Usable Energy: 4.6kWh |
Standard Power: 3kW |
Max. Power: 5.1kW |
Max. Charge / Discharge Current: 50A |
Cycle Life [Cycles]: >6000 |
Warranty: 10 years |
Certification: CE, RCM, TUV (IEC62619), RoHS, REACH |
TBMS-MCS0800E Dimensions (W × H × D) / Weight: 730 × 165 × 150mm / 9.3kg |
TP-HS50E Dimensions (W × H × D) / Weight: 730 × 318 × 150mm / 47kg |
Base Dimensions (W × H × D) / Weight: 730 × 75 × 150mm / 3.9kg |
Series Box Dimensions (W × H × D) / Weight: 167 × 91.5 × 121mm / 1.3kg |
Max. Efficiency / EU Efficiency: 97.6% / 97.0% |
Rated Battery Charge / Discharge Efficiency: 98.5% / 97% |
GENERAL DATA (INVERTER) |
Dimensions (W/H/D): 717*350*210mm |
Weight: 26.2kg |
Operating Temperature Range: -35 ~ +60°C (derating at +45°C) |
Ingress Protection: IP65 |
Cooling: Natural Convection |
Communication: RS485 (Meter), Pocket-X, USB, RS485 (Modbus, EV Charger, Datahub), Parallel (CAN+RS485), DO (SG ready), DI |
- 1 x SolaX X1-IES-5K hybrid inverter,
- 1x - 4x SolaX TP-HS50E battery,
- 1 x SolaX TBMS-MCS0800E battery management system for TP-HS50E,
- 1 x Solax DTSU666 smart power meter,
- 1 x Solax Series Box (for 4 batteries only), and
- (Optional) Up to 12x JA Solar 460W Mone MBB Percium Half-Cell Silver Frame MC4 Solar Panels, Efficiency = 20.7%.
