AIKO 545W Neostar 3S+60 N-Type Double-Glass All Black MC4-EVO2A Gen 3 Solar Panels
- Generate 545W per panel at standard test conditions, with 24.6% module efficiency for space-conscious commercial and industrial PV projects.
- All-black appearance with N-type ABC cells, double-glass construction and a black anodised aluminium frame.
- 25-year product and 30-year linear performance warranties, with original MC4-EVO2A connectors.

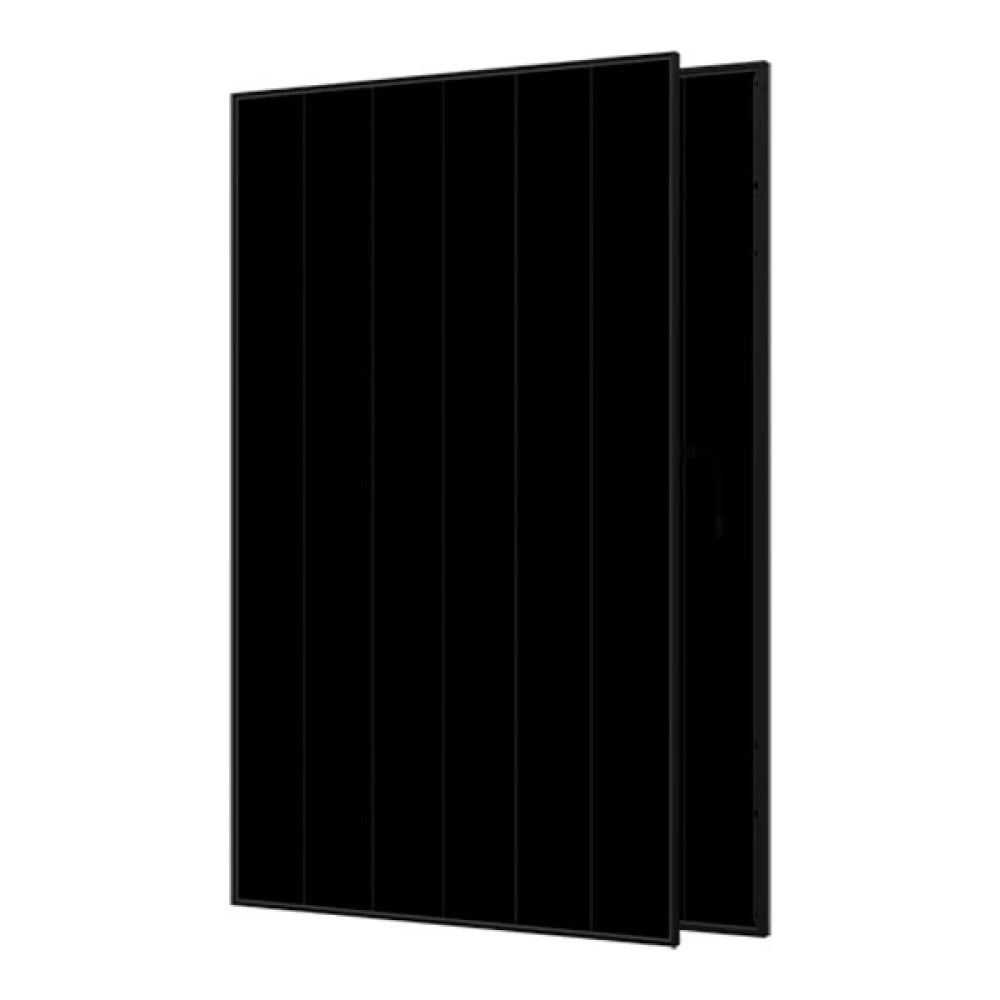

AIKO 545W Neostar 3S+60 double-glass solar panel
The AIKO 545W Neostar 3S+60 Gen 3 solar panel combines high output per module with an all-black finish for commercial, industrial and larger residential solar installations. The AIKO-A545-MCE60Db uses N-type ABC cells and 2.0mm front and rear glass, delivering 24.6% module efficiency in a 1,954 × 1,134 × 30mm format.
Key features
- Space-efficient generation: 545W rated output and 24.6% efficiency help maximise installed capacity within the available array area.
- N-type ABC technology: all-back-contact cells with AIKO’s listed partial-shading optimisation, high-temperature restriction and micro-crack resistance features. Shading must still be assessed during design.
- Double-glass construction: 2.0mm coated semi-tempered front glass and 2.0mm semi-tempered rear glass, with a black anodised aluminium frame.
- Temperature performance: a maximum-power temperature coefficient of −0.26%/°C supports assessment of output changes as cell temperature rises.
- Long-term warranty cover: 25-year product and 30-year linear performance warranties, with at least 88.85% of original rated output at year 30, subject to manufacturer terms.
Where to use
Consider the AIKO 545W Neostar 3S+60 for warehouse and logistics-site rooftops, commercial premises, agricultural buildings, solar carports and professionally designed ground-mounted arrays. Its all-black finish also suits visible installations where array appearance matters.
Use a mounting system approved for the exact module dimensions, 30mm frame and AIKO fixing positions. Confirm roof loading, wind and snow loads, inverter string voltage, input current and DC protection before installation. Do not assume that the module’s maximum mechanical test loads apply to every mounting arrangement.
Energian can help with module quantities, mounting compatibility, inverter selection and complete solar PV system planning. The panel requires professional system integration; installation can be arranged through trusted partners.
Technical specifications
Electrical figures below apply to AIKO-A545-MCE60Db at standard test conditions. Product data follows the supplied Neostar 3S+60 515–545W datasheet, revision 202608_V1.1_EN. NOCT and BNPI characteristics are omitted.
| Specification | Value |
|---|---|
| Product identification | |
| Manufacturer | AIKO |
| Product range | Neostar 3S+60 |
| Generation | Gen 3 |
| Datasheet series | AIKO-A-MCE60Db |
| Exact module model | AIKO-A545-MCE60Db |
| Datasheet power range | 515–545W |
| Datasheet revision | 202608_V1.1_EN |
| Cell technology | N-type ABC, all-back-contact |
| Module construction | Double glass |
| Appearance | All black, with black anodised aluminium frame |
| Electrical characteristics at STC | |
| Maximum power output, Pmax | 545W |
| Module efficiency | 24.6% |
| Maximum power voltage, Vmp | 38.50V |
| Maximum power current, Imp | 14.16A |
| Open-circuit voltage, Voc | 45.70V |
| Short-circuit current, Isc | 14.88A |
| Power tolerance | 0 to +3% |
| Standard test conditions | AM1.5; irradiance 1,000W/m²; cell temperature 25°C |
| Mechanical construction | |
| Number of cells | 120, arranged 6 × 20 |
| Front cover | 2.0mm coated semi-tempered glass |
| Rear cover | 2.0mm semi-tempered glass |
| Frame | Black anodised aluminium |
| Dimensions, L × W × H | 1,954 × 1,134 × 30mm |
| Length tolerance | ±2mm |
| Width tolerance | ±2mm |
| Frame-depth tolerance shown in drawing | ±1mm |
| Module weight | 27.1kg ±3% |
| Junction box | IP68, with 3 bypass diodes |
| Connector designation | Original MC4-EVO2A |
| Module cable cross-section | 4mm² (IEC); 12AWG (UL) |
| Module cable length designation | ±1,200mm, as stated in the datasheet |
| Mounting-hole set 1 | 4 × 9 × 14mm |
| Mounting-hole set 2 | 4 × 7 × 10mm |
| Longitudinal mounting-hole spacing | 1,100mm and 1,400mm, each ±1mm, as shown in the drawing |
| Transverse mounting-hole spacing shown in drawing | 1,095mm ±1mm |
| Grounding holes | 4 × Ø4.3mm |
| Drain holes | 8 × 3.5 × 8mm |
| Temperature characteristics | |
| Temperature coefficient of maximum power, Pmax | −0.26%/°C |
| Temperature coefficient of open-circuit voltage, Voc | −0.22%/°C |
| Temperature coefficient of short-circuit current, Isc | +0.05%/°C |
| Operating temperature | −40°C to +70°C |
| Electrical limits and mechanical testing | |
| Maximum system voltage | 1,500V DC |
| Maximum series fuse rating | 30A |
| Protection class | Class II |
| Maximum front static test loading | 5,400Pa |
| Maximum rear static test loading | 2,400Pa |
| Mechanical-load qualification | Permitted loads depend on mounting method and fixing positions. Apply the installation manual’s safety factors and project-specific structural assessment. |
| Hail test | 35mm-diameter hail at 23m/s |
| Fire rating | IEC Class A; this does not establish the fire classification of the complete roof assembly |
| Standards and statements listed on the datasheet | |
| PV module qualification and safety standards | IEC 61215; IEC 61730 |
| Salt-mist corrosion testing standard | IEC 61701 |
| Ammonia corrosion testing standard | IEC 62716 |
| Conformity marking shown | CE |
| Quality management system | ISO 9001 |
| Environmental management system | ISO 14001 |
| Greenhouse gas verification statement | ISO 14064 |
| Occupational health and safety management system | ISO 45001 |
| Standards qualification | Management-system and greenhouse gas statements are distinct from module electrical and mechanical test ratings. |
| Warranty and degradation | |
| Product warranty | 25 years, subject to manufacturer terms |
| Linear performance warranty | 30 years, subject to manufacturer terms |
| First-year degradation | ≤1% |
| Annual degradation from years 2–30 | ≤0.35% |
| Guaranteed performance after year 1 | 99.0% of original rated output |
| Guaranteed performance at year 25 | 90.6% of original rated output |
| Guaranteed performance at year 30 | 88.85% of original rated output |
| Optional coverage | The datasheet states that optional Ariel Green coverage is available upon request; inclusion is not assumed. |
| Installation and ordering information | |
| Installation personnel | Qualified personnel familiar with PV mechanical and electrical installation requirements |
| Approved fixing arrangements | Follow the AIKO installation-manual table for AIKO-Axxx-MCE60Db modules measuring 1,954 × 1,134 × 30mm. |
| Minimum gap between adjacent modules | 10mm, according to the linked installation manual |
| Recommended minimum tilt | 10°, according to the linked installation manual |
| Rooftop ventilation clearance | Follow the linked manual’s minimum 100mm frame-to-roof clearance and any stricter project requirements. |
| String design | Allow for cold-weather open-circuit voltage and site-specific maximum current when checking inverter and system limits. |
| Connector matching | Use approved mating connectors for the supplied original MC4-EVO2A connections. |
| Manufacturer packing quantities | 37 modules per pallet; 185 modules per 20ft GP container; 888 modules per 40ft HC container. Packing quantities do not define the minimum order. |
