330W semi-flexible solar charging kit with Austrian textured fibreglass solar panel

£879.99 £899.99

Delivery available

330W 12V solar charging kit which includes a 330W textured flexible solar panel, 30A MPPT solar charge controller with inbuilt LCD display, 5m solar cables with MC4 connectors and 3m of 10mm2 battery cable with a 40A fuse.

The solar kit includes:

  • 330W semi-flexible, textured solar panel made of plastic reinforced with glass fibre (IEC certified)
  • 30A high efficiency MPPT solar charge controller with inbuilt LCD display
  • Pair of 5m 4.0mm2 single core extension cables with MC4 connectors
  • 3m of 10mm2 battery cable with a 40A fuse, fuse holder, and 8mm ring terminals

Solar panel specifications:

  • Peak power: 330W
  • Maximum power voltage: 37.8V
  • Maximum power current: 9A
  • Open circuit voltage: 45.5V
  • Short circuit current: 9.4A
  • Dimensions: 1917 x 1020 x 2 mm
  • Weight: 6.31 kg

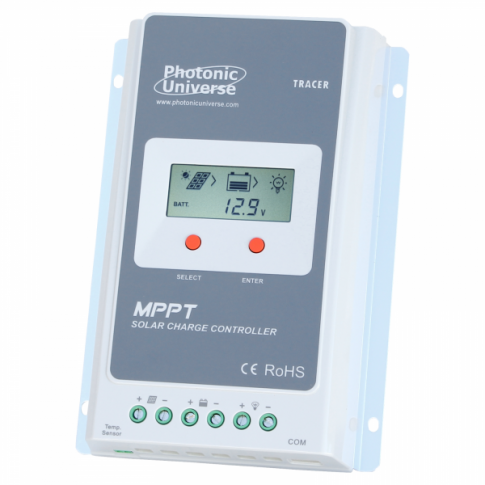

Controller specifications:

  • The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
  • Fully automated operation
  • 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm2
  • Maximum solar panel voltage: 100V
  • Maximum solar panel power: 390W (12V) / 780W (24V)
  • Temperature sensor for automatic compensation (-3mV/°C/2V)
  • Comprehensive electronic protection features
  • Communication port: RS485/RJ45 interface
  • Current limiting function (30A)
  • Self-consumption: 12mA
  • Working temperature: -25°C to +50°C
  • Size:  22.8 x 16.4 x 5.5 cm
  • Mounting dimension: 17 x 16.4 cm
  • Weight: 1.26kg
  • Multiple mounting holes (5mm diameter) for ease of installation
