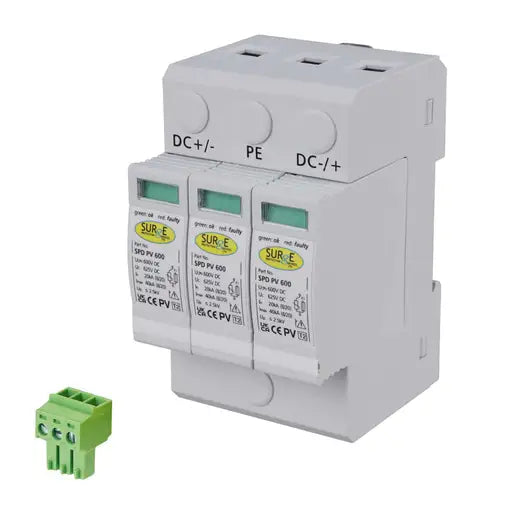

2‑Module 600 V DC Type 2 PV Surge Protector – SPD PV600
Shield your solar inverter and DC cabling with the SPD PV600 — a compact, all‑purpose Type 2 surge protection device tailored for photovoltaic systems operating at up to 600 V DC. Engineered for reliability and ease of maintenance, this DIN‑rail mounted unit delivers fast, modular protection before your inverter.
Key benefits at a glance
-
Specifically for PV systems – protects the DC side ahead of the inverter at a maximum continuous voltage of 600 V DC, suitable for lower-voltage solar arrays, string boxes, and combiner units.
-
Compact 2‑module form factor – DIN‑rail mounted with pluggable, replaceable modules, making servicing quick and cost‑effective .
-
Clear visual status & optional remote signalling – onboard LED indication (green = OK, red = fault) with optional remote contact signal ensures system health monitoring.
-
Robust surge-handling – rated for 20 kA nominal discharge current, up to 40 kA maximum (8/20 µs), with fast response time under 25 ns for high-energy transient suppression .
-
Certified & durable – compliant with IEC 61643‑1 and EN 61643‑11, features UKCA & CE marking, flame-retardant housing rated UL94 V‑0, and protection class IP20.
Technical specifications
Note: Check that your installation includes adequate DC fusing before connecting to ensure full compliance and protection per installation requirements assets.cef.co.uk.
Why choose SPD PV600?
With the SPD PV600 installed upstream of your inverter on the DC side, you’re investing in fast, modular surge protection that meets international standards, minimises downtime through easy module swaps, and supports proactive panel system health through its alarm signalling. Perfect for lower-voltage PV arrays where space, maintenance, and reliability are paramount.
| Specification | Details |
|---|---|
| Modules | 2‑module |
| Max continuous voltage (U<sub>cpv</sub>) | 600 V DC |
| Nominal discharge current (I<sub>n</sub>) | 20 kA (8/20 µs) |
| Max discharge current (I<sub>max</sub>) | 40 kA |
| Voltage protection level (U<sub>p</sub>) | Approx. 2.2 kV |
| Response time | < 25 ns |
| Type | 2 |
| Recommended cable size | 6 mm² to 25 mm² |
| Mounting system | 35 mm DIN rail |
| Dimensions (H×W×D) | ~90 × 54 × 66 mm |
| Weight | ~0.397 kg |
| Guarantee | 10 years |
| Standards | IEC 61643‑1 / EN 61643‑11; UKCA, CE |
| IP rating / Enclosure | IP20, thermoplastic UL94 V‑0 |
