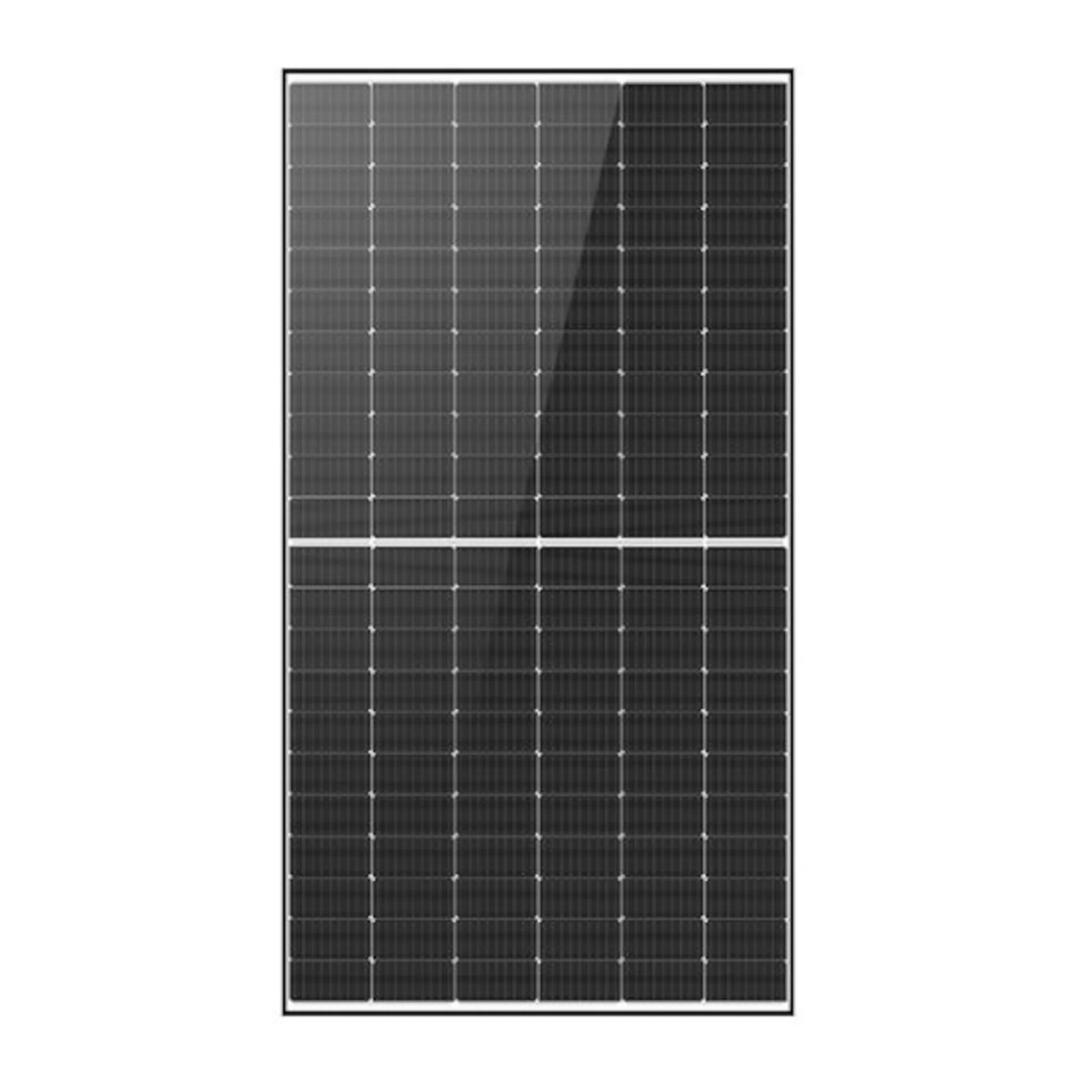

Trina 625W Vertex N Dual Glass Bi-facial N-type i-TOPCon Silver Frame Solar Panel
- High-power 625W bifacial module for more energy per string and reduced BOS costs on larger systems.
- N-type i-TOPCon dual-glass design for strong long-term performance and extended 30-year power warranty.
- Silver frame, 132-cell large-format module ideal for commercial rooftops, ground-mount and utility-scale projects.
The Trina 625W Vertex N Dual Glass Bi-facial N-type i-TOPCon Silver Frame Solar Panel is a high-output, large-format module designed for commercial roofs, ground-mounted arrays and utility-scale systems where every kilowatt of capacity and yield counts. With bifacial dual-glass construction and N-type i-TOPCon cells, it is built for demanding environments and long service life when installed as part of a well-designed PV system.[3][1][2]
Key features
- 625W front-side rated power with around 23.1% module efficiency, helping to maximise energy density and reduce required module count on large sites.
- Bifacial dual-glass construction for additional rear-side generation when installed over reflective surfaces, increasing energy yield versus monofacial modules.
- N-type i-TOPCon cell technology with low degradation and 30-year performance warranty for reliable long-term output.
- Robust 2.0 mm / 2.0 mm glass-glass build, IP68 junction box and up to 5400 Pa snow / 2400 Pa wind load ratings for harsh conditions.
- Silver anodised aluminium frame, 1500 V system rating and MC4 Evo 2 connectors for compatibility with modern commercial and utility-scale inverter platforms.
Typical applications
- Commercial and industrial rooftops where high power per module reduces array size and racking complexity.
- Ground-mounted and utility-scale solar farms using trackers or fixed-tilt structures to take advantage of bifacial gains.
- Large off-grid or hybrid systems when paired with suitable inverters, protection and storage, installed by qualified EPCs or specialist installers.
Technical specifications – Trina Vertex N 625W dual glass bifacial
| Model | Vertex N TSM-625NEG19RC.20 (bifacial dual glass) |
| Cell type / technology | N-type monocrystalline i-TOPCon, 132 half-cut cells |
| Front-side rated power (Pmax) | 625 W (STC) |
| Module efficiency (front) | 23.1% |
| Open circuit voltage (Voc) | 49.9 V |
| Voltage at Pmax (Vmp) | 41.7 V |
| Current at Pmax (Imp) | 15.0 A |
| Short circuit current (Isc) | 15.9 A |
| Power tolerance | 0 ~ +5 W |
| Maximum system voltage | 1500 V DC |
| Module structure | Glass-glass, bifacial dual glass |
| Glass thickness | 2.0 mm front / 2.0 mm rear |
| Frame | Framed, silver anodised aluminium alloy |
| Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
| Weight | 33.7 kg |
| Connector / cable | MC4 Evo 2, 1.1 m cable length (plus and minus) |
| Junction box | IP68, 3 diodes |
| Mechanical load rating | 5400 Pa (snow) / 2400 Pa (wind) test loads |
| Ingress protection | Protection class II, IP68 junction box |
| Fire / safety certifications | IEC 61215, IEC 61730 / TÜV-certified; 1500 V system rating |
| Warranty | 30-year performance warranty, 12-year product warranty (typical – see current Trina warranty terms) |
Installation and support
This Trina 625W Vertex N Dual Glass Bi-facial panel is intended for engineered PV systems rather than stand-alone use. A compliant design should consider string voltages, current levels, inverter compatibility, bifacial layout and mounting structures rated for the module size and loadings.
Energian recommends installation by qualified solar professionals from our trusted partner network to meet UK electrical and building regulations. UK-based expert support is available – contact us by phone, email or live chat, or visit our office if you prefer an in-person consultation.
