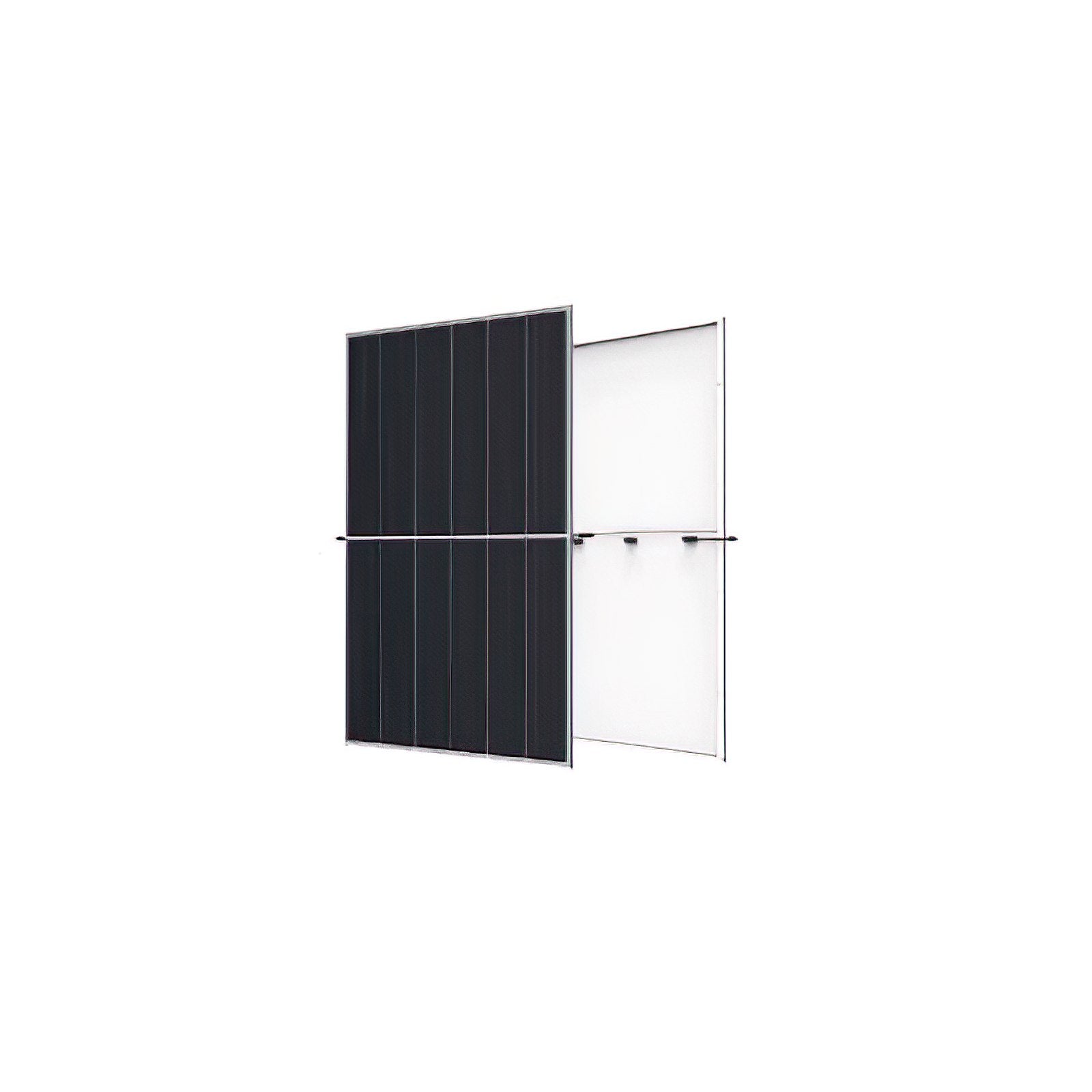

DMEGC 710W Infinity Mono 132 Cut Bi-Facial N-type Dual Glass Silver Frame Solar Panels
DMEGC 710W Infinity Mono 132 Cut Bi-Facial N-type Dual Glass Silver Frame Solar Panel
- 710 W output and 22.9% efficiency for top yields in commercial, ground-mount and flat roof systems.
- Bifacial rear gain delivers up to 80% extra harvest—ideal for tracker and high albedo sites.
- Engineered for real-world UK weather: full IEC and MCS compliance, salt, snow, sand, and ammonia certified.
The DMEGC 710W Infinity Mono Bi-Facial N-type Dual Glass Module maximises output and ensures long-term performance for demanding site or project installs. Its dual 2 mm glass and silver anodised frame provide extended durability, while the 132 N-type half-cut cells and advanced i-TOPCon technology minimise degradation over time. With snow tolerance to 5400 Pa, wind tolerance to 2400 Pa, and a 30-year linear warranty, this panel is designed for reliable ground-mount, industrial or high-yield rooftop deployment.
Key Features
- 132 half-cut premium N-type mono cells, i-TOPCon for minimal LID/LIDT losses.
- 2 mm tempered glass (front/rear), silver frame, IP68 junction box—tuned for harsh UK climates.
- Lowest temperature coefficient on the market: –0.29%/°C; 42 ± 2 °C NMOT protects summer yield.
- 0–3% positive tolerance—guaranteed shipped wattage for every module.
- MCS, IEC 61215/61730/63209/61701/62716/60068, TÜV Rheinland. 15-year product warranty. 30-year performance guarantee at 87.4% output.
- 2384 × 1303 × 33 mm size fits commercial arrays and standard mounting rails.
Ideal for
Ground-mount solar parks, commercial rooftops, logistics and education buildings, and other high-yield installations. Always use an MCS-qualified installer and consult for optimal string design and inverter matching.
Technical specifications
| Module construction | |
|---|---|
| Cell type | N-type Mono-crystalline, 132 (half-cut), G12 i-TOPCon |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.7 kg |
| Front/rear glass | 2 mm heat strengthened, anti-reflective front |
| Frame | Silver anodised aluminium |
| Junction box | IP68, 3 diodes, MC4-EVO 2A or PV-ZH202B |
| Connector | PV-ZH202B/MC4 EVO 2A, 1500V rating, 4 mm² cables |
| Performance (STC) | |
| Max power (Pmax) | 710 W |
| Voltage @ Pmax (Vmp) | 40.76 V |
| Current @ Pmax (Imp) | 17.45 A |
| Open circuit voltage (Voc) | 48.82 V |
| Short circuit current (Isc) | 18.52 A |
| Module efficiency | 22.9 % |
| Bifacial gain | 80 ± 5 % |
| NMOT | 42 ± 2 °C |
| Temp. coefficient (Pmax) | –0.29 %/°C |
| Temp. coefficient (Voc) | −0.25 %/°C |
| Temp. coefficient (Isc) | +0.048 %/°C |
| Operating temp. range | –40 °C to +85 °C |
| Max system voltage | 1500 V DC |
| Overcurrent rating | 35 A |
| Certifications & warranties | |
| Certifications | IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342, IEC 60068, MCS, TÜV Rheinland, WEEE, SolarPower Europe, ISO/SA8000/9001/14001/45001/50001/27001 |
| Product warranty | 15 years |
| Linear power warranty | 30 years (≤1% 1st yr; ≤0.4%/yr; 87.4% after 30 yrs) |
