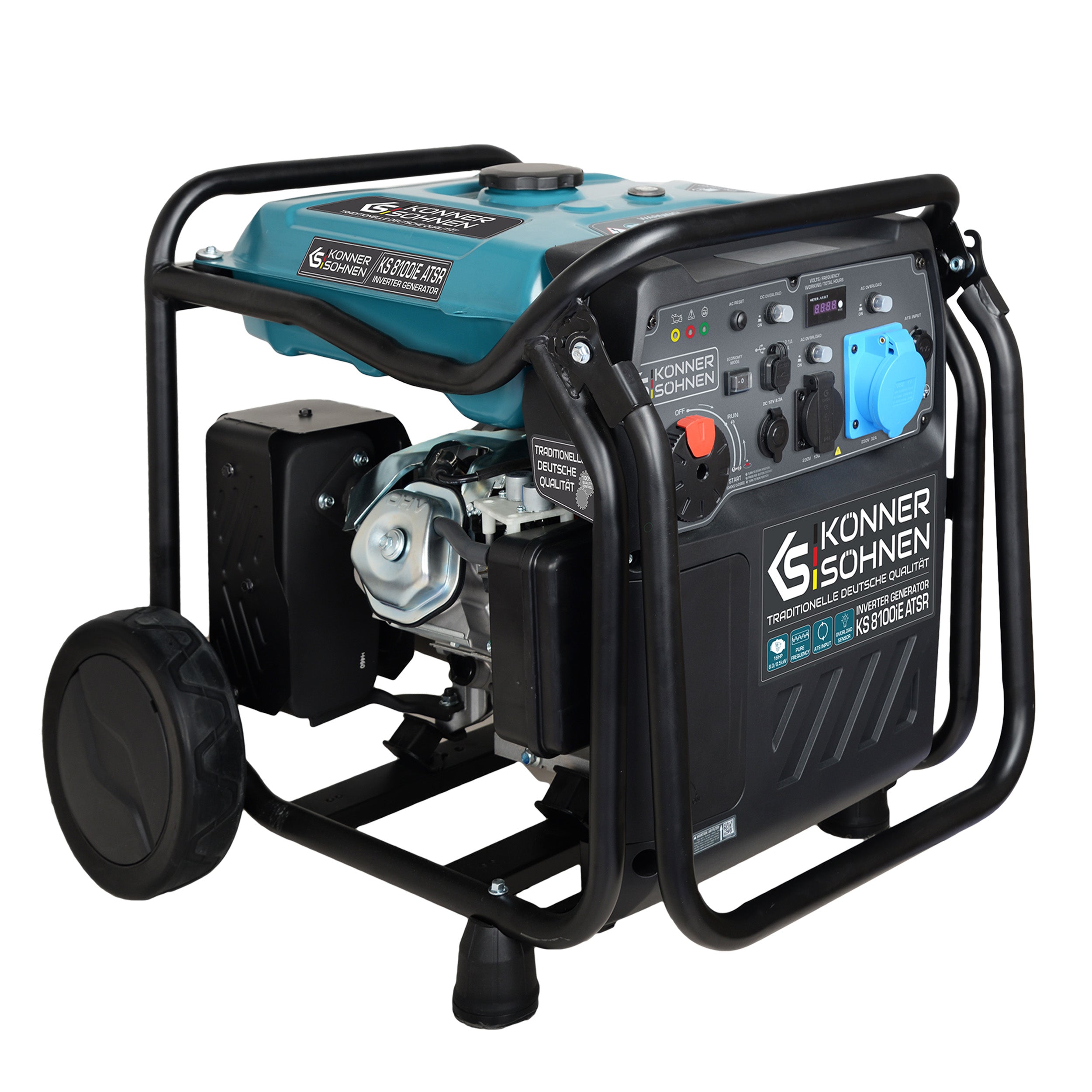

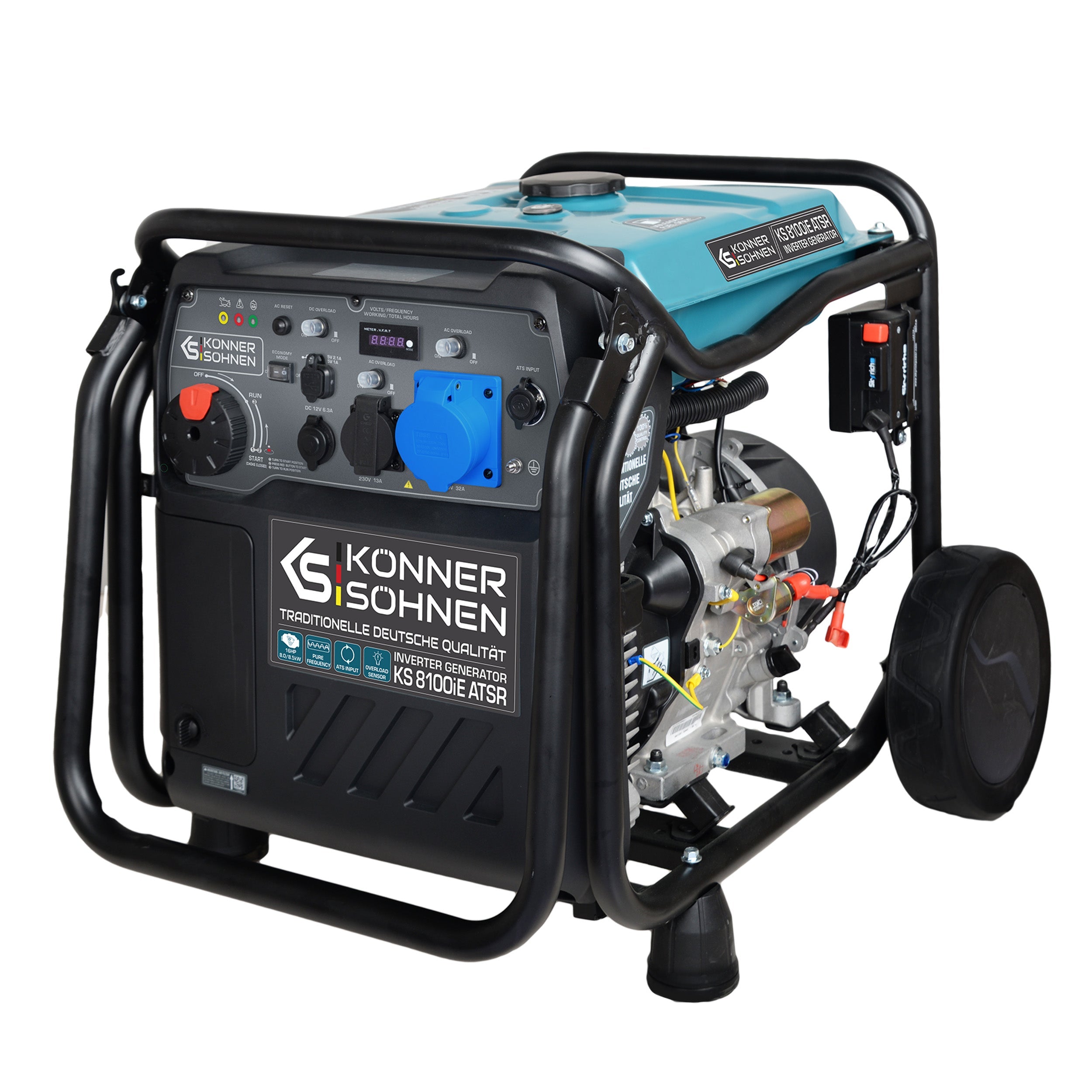

Könner & Söhnen Petrol Inverter Generator KS 8100iE ATSR
The KS 8100iE ATSR inverter generator delivers up to 8.0 kW of stable power in a compact, quiet and efficient design. With a EURO V compliant engine, copper alternator, ATS compatibility and Economy Mode, it is ideal for backup power, sensitive electronics and demanding equipment.
Features
Pure Sine Wave
Microprocessor-controlled inverter delivers a stable 230 V 50 Hz sine wave output for the reliable operation of sensitive electronics.

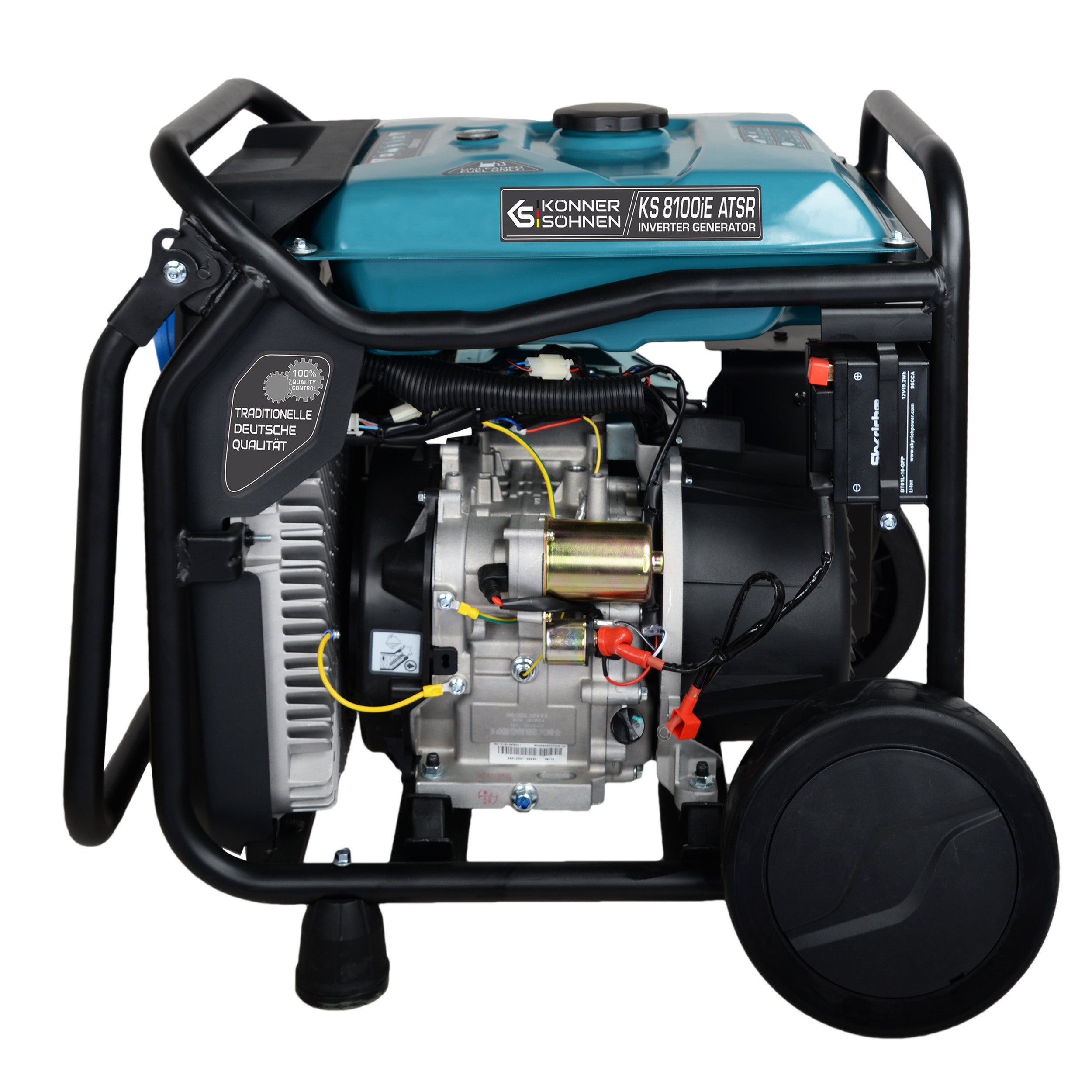

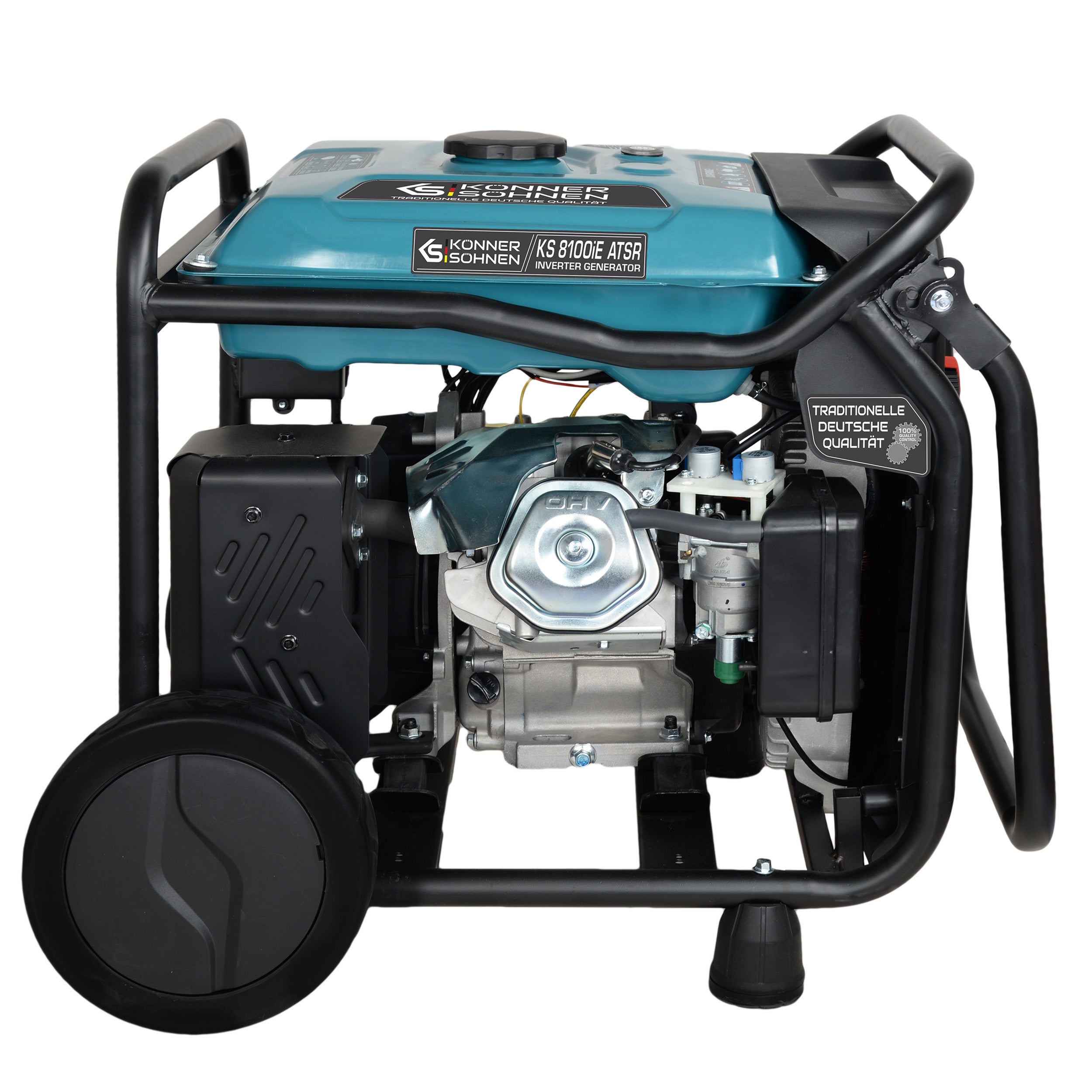

Robust Engine
Кeliable Könner & Söhnen engine is built for long service life, stable operation, and compliance with EURO V standards.
3-in-1 Easy Engine Start
A universal switch combines the fuel valve, choke, and electric start for fast, convenient operation.
Economy Mode
Fuel-saving switch reduces consumption by up to 50% under light loads by lowering engine speed.
Automatic Transfer Switch
ATS compatibility enables automatic generator start/stop and load transfer during mains power failures. Equipped with an 8-pin connector for KS ATS 4/25 Gasoline.

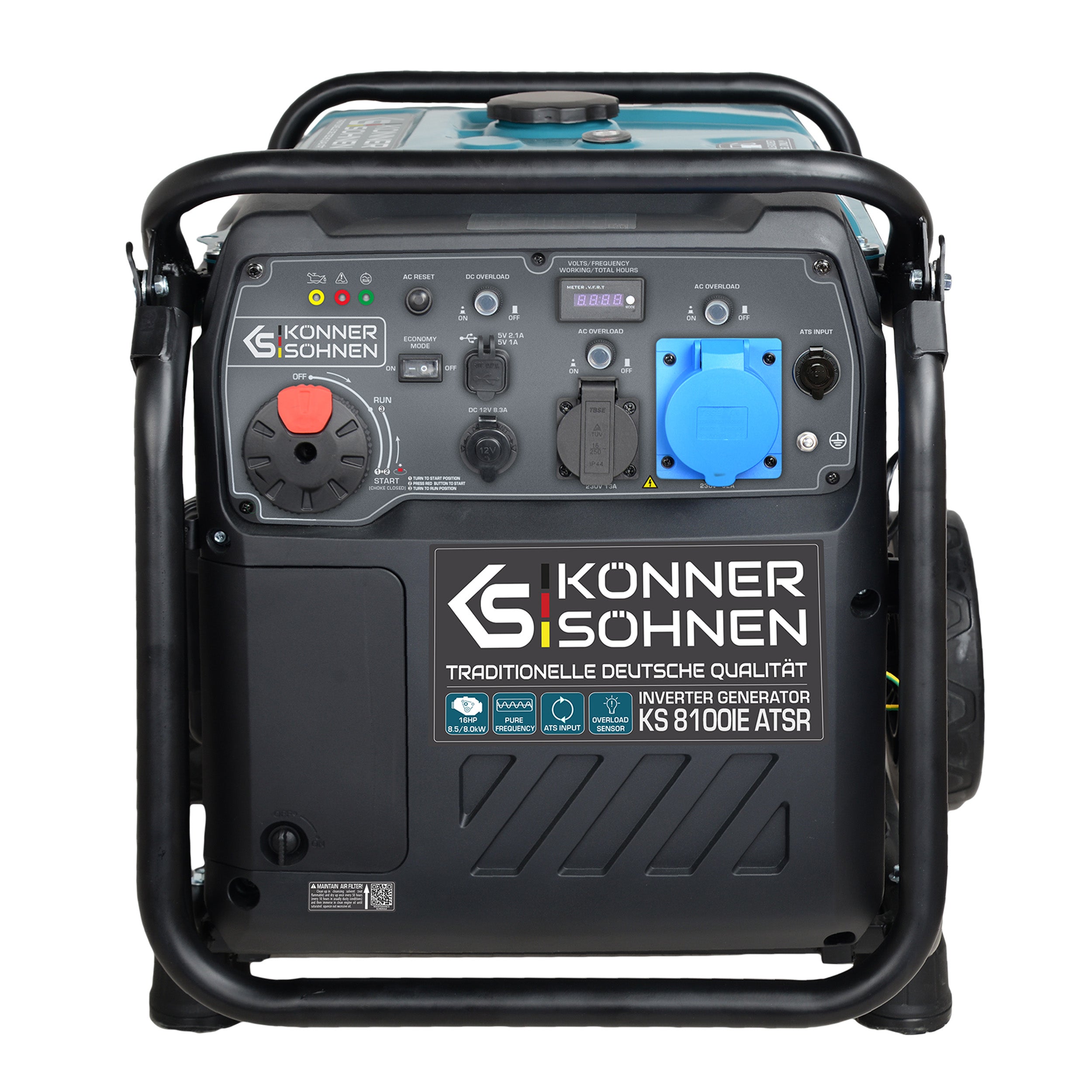

Ergonomic Control Panel
Includes multifunction LED display (hours, frequency, voltage), mode indicator, overload and short circuit protection, low-oil sensor, Reset button, two USB ports (5V/1A, 5V/2.1A), 12 V car socket, 230 V outlets, and earth terminal.
High Quality Alternator
Brushless alternator with 100% copper winding ensures durability and safe long-term operation under high loads.

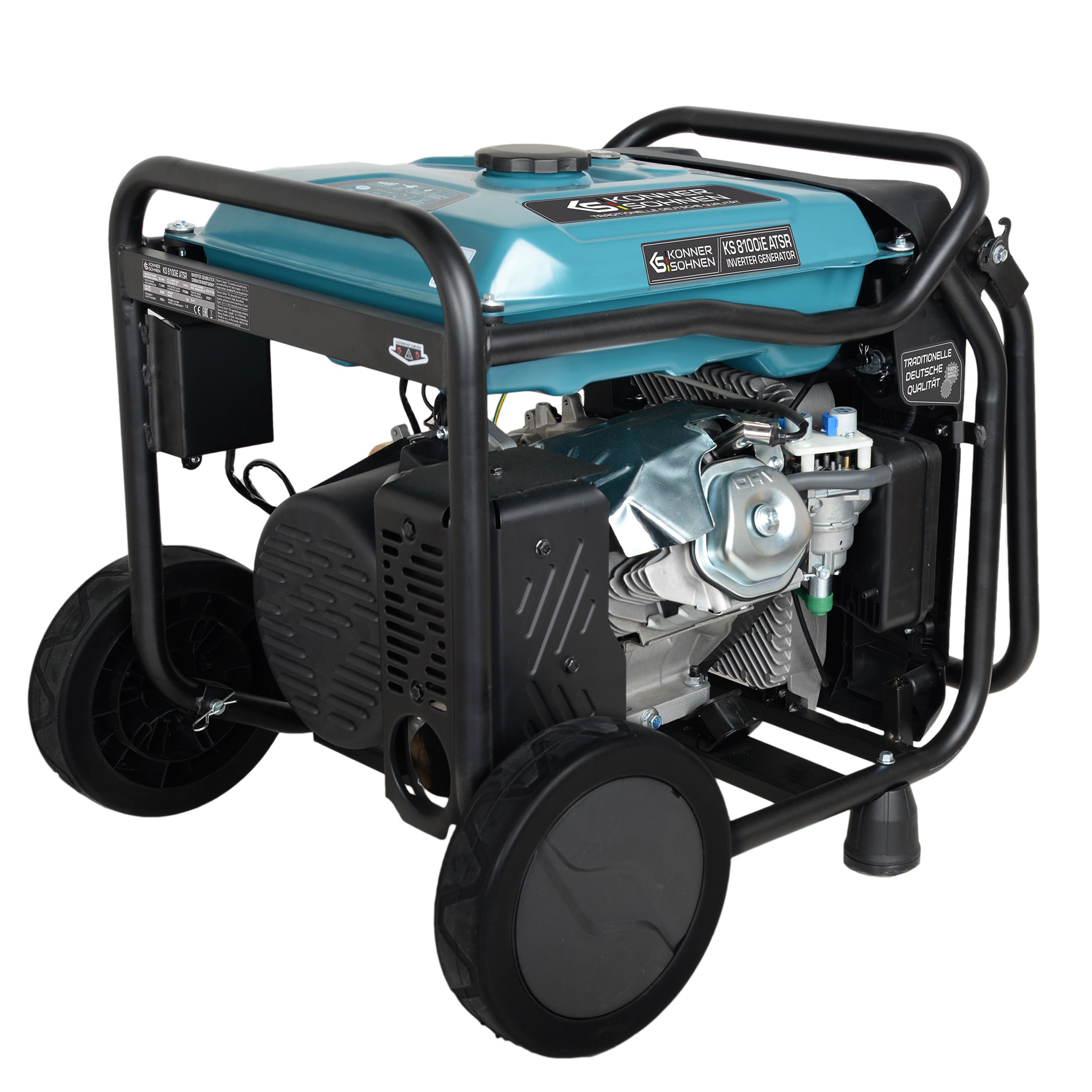

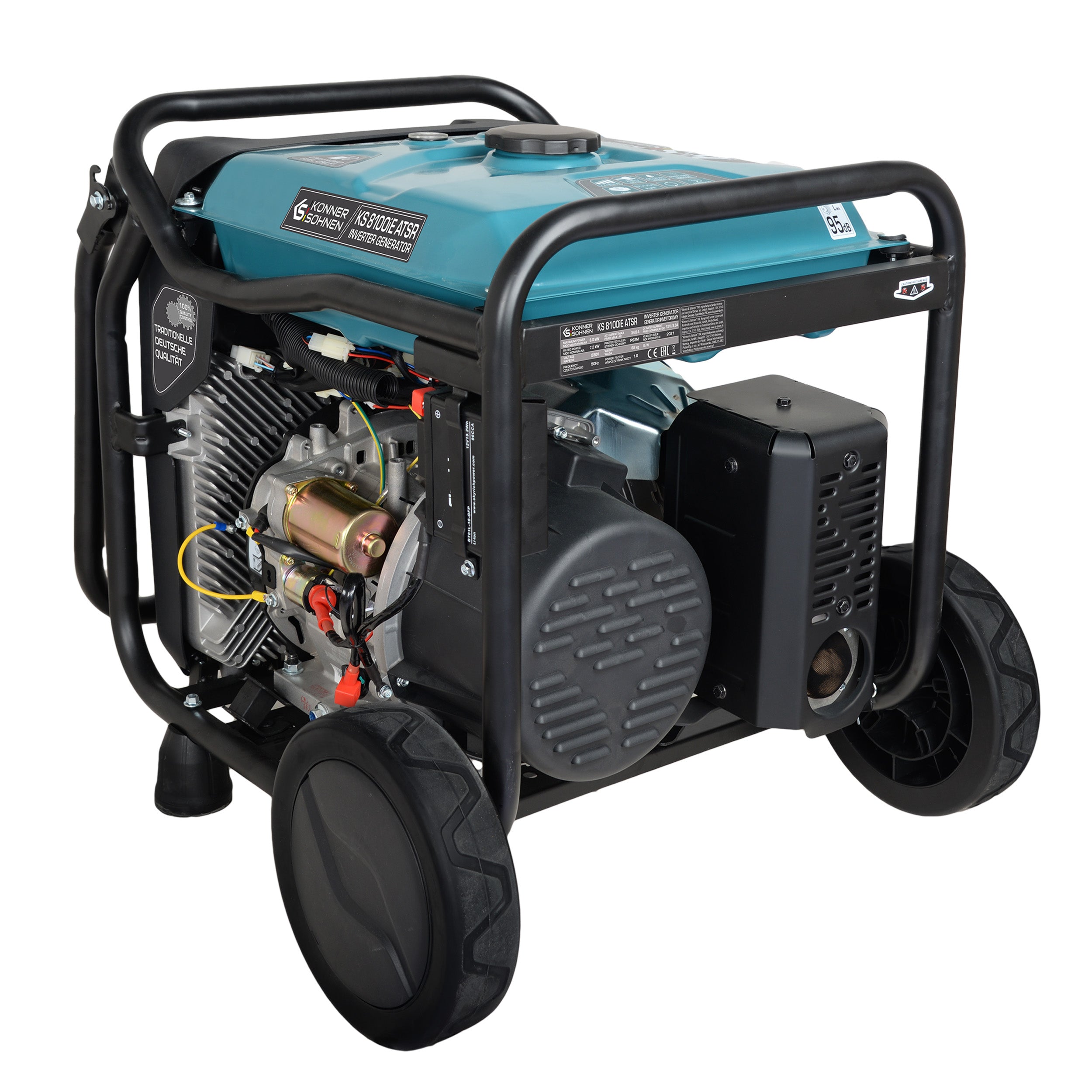

Transportation Kit
Integrated wheels and a fold-out handle provide easy mobility and safe transport.

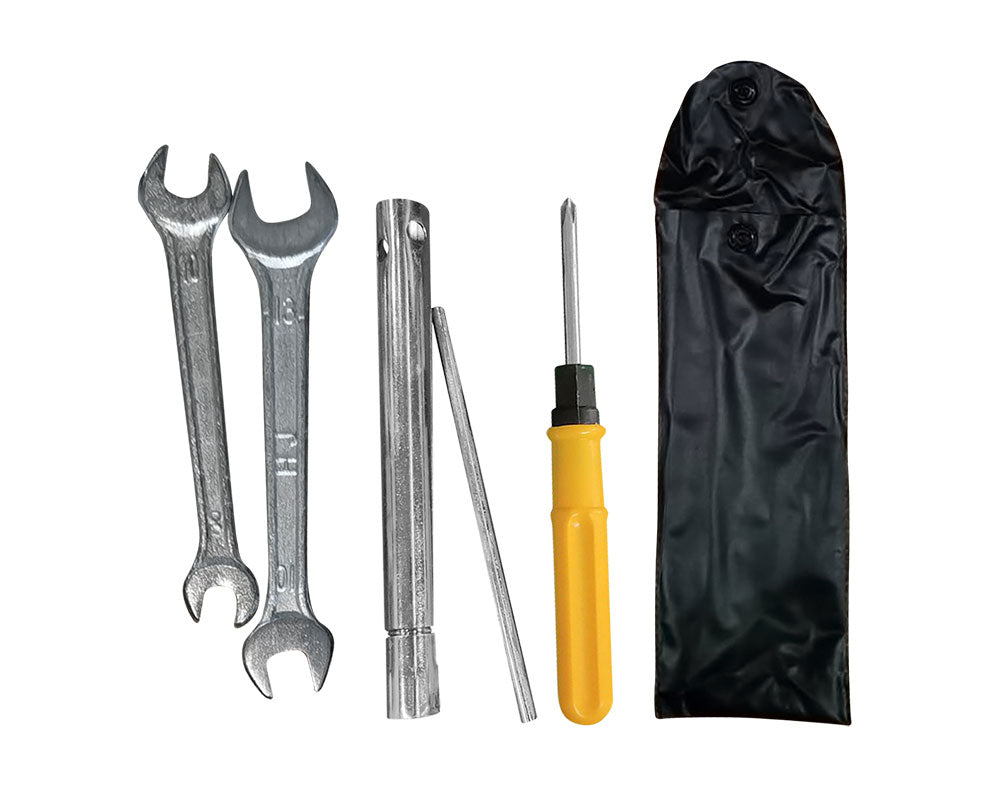

Additional Accessories
Supplied with screwdriver and spark plug wrench.
Technical Specifications
| Voltage, V | 230 |
|---|---|
| Max power, kW | 8.5 |
| Nominal power, kW | 8ю0 |
| Frequency, Hz | 50 |
| Current (max), A | 34.8 |
| Sockets | 1 × 13 A 230 V, 1 × CEE 230 V 32 A |
| Engine start | Electric |
| Fuel tank volume, l | 20 |
| Average runtime (50% load), h*** | 7.1 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| DC output, V/A | 12V/8.3A |
| USB outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 480i |
| Engine displacement, cm³ | 458 |
| Engine type | Petrol, single-cylinder, 4-stroke, air-cooled |
| Engine power, hp | 16 |
| Parallel connection | — |
| ATS output | + |
| Crankcase oil capacity, l | 1.1 |
| Battery capacity, A·h | 1.6 |
| Protection class | IP23M |
| Alternator winding | Copper |
| Net dimensions (L×W×H), mm | 600 × 510 × 560 |
| Gross dimensions (L×W×H), mm | 725 × 505 × 555 |
| Net weight, kg | 68 |
| Gross weight, kg | 71 |
| EAN code | 4260405364725 |
Assembled in PRC.
*** Fuel consumption varies with load, fuel quality, season, altitude and generator condition.
Documents for Download
Video Reviews
Features
Inverter petrol powered generators are a user-friendly portable source of energy. The range of inverter generators features models with a power range from 1.8 to 8.0 kW.
All models are based on robust engines, which meet all European quality standards, including EURO V. Engines of K&S inverter generators have an Economy mode, which allows using the generator at low speeds and reduces fuel consumption by up to 50%.
PURE SINE WAVE
ROBUST ENGINE
3-IN-1 EASY ENGINE START
ECONOMY MODE
AUTOMATIC TRANSFER SWITCH
ERGONOMIC CONTROL PANEL
HIGH QUALITY ALTERNATOR
TRANSPORTATION KIT
ADDITIONAL ACCESSORIES
Generator is equipped with additional accessories: screw-driver, candle key.
