Sunsynk SYNK-16K-SG01LP1 Solar and Dyness Battery System

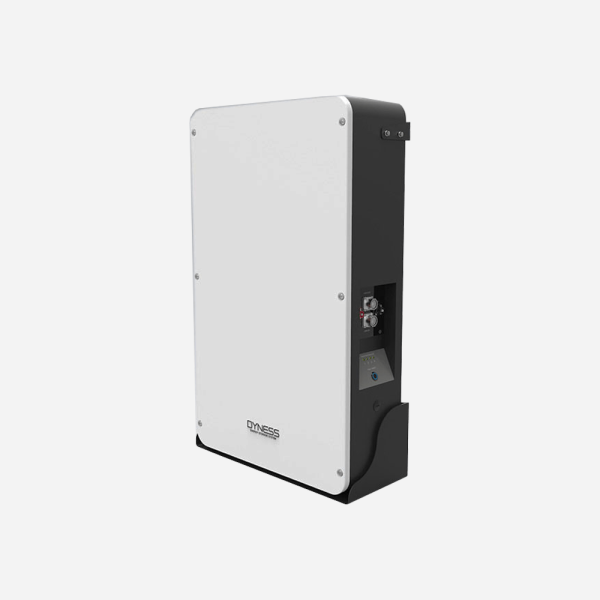

This package combines the SYNK-16K-SG01LP1 inverter with Dyness low voltage LFP battery storage. Select the required battery and solar option from the available configurations. Generator options are listed where available.

Key Features

  • 16kW rated inverter output.
  • Low voltage battery storage with battery management communication.
  • PV input, battery charging and configurable energy management.

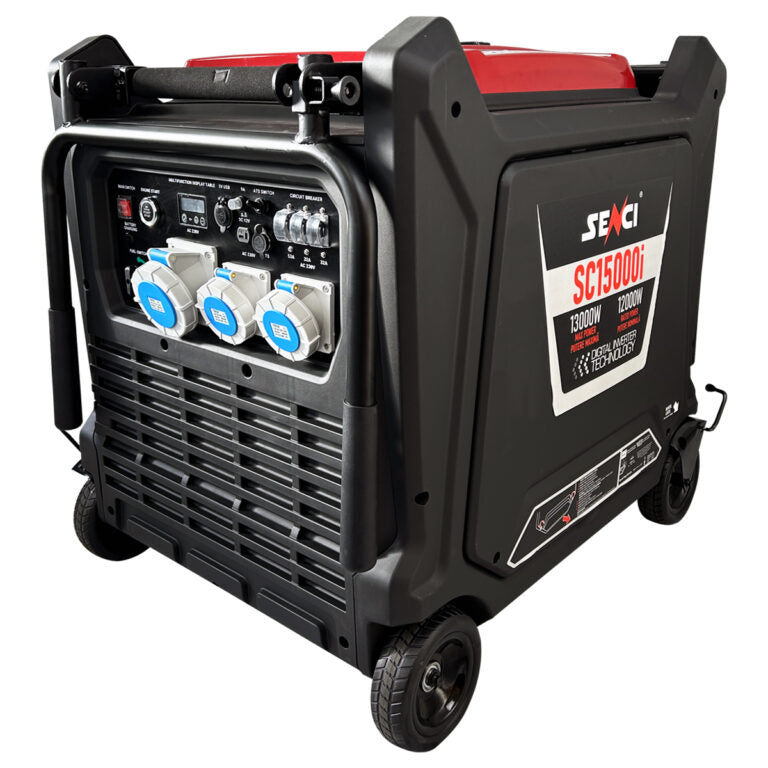

  • Dedicated generator connection for an appropriately specified generator.
  • Grid-connected, backup and off-grid operating arrangements, subject to installation design.

Where to Use

For homes, workshops and small premises requiring solar and battery storage or an off-grid supply. The chosen battery, PV array and generator must be checked against the inverter limits and the site loads.

Technical Specifications

Inverter model family SYNK-16K-SG01LP1
Rated AC output 16 kW
AC connection Single phase, 220 / 230 V, 50 / 60 Hz
Battery voltage range 40–60 V
Maximum PV input voltage 500 V
MPPT voltage range 150–425 V
MPPT trackers 3
Maximum battery charge / discharge current 290 A
Ingress protection IP65
Battery brand Dyness
Nominal battery capacity 30.72 kWh

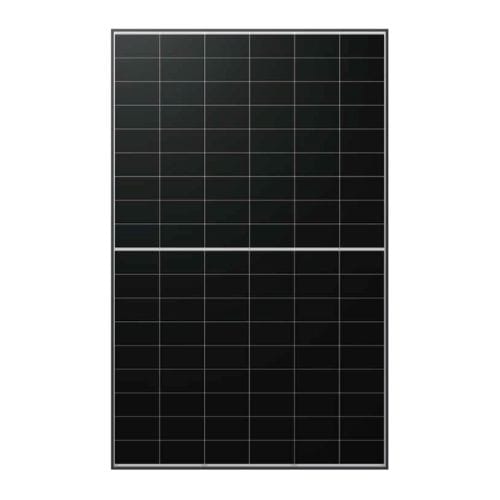

Solar panel option Panel count and PV capacity to be confirmed for the chosen option

Additional Details

  • The manufacturer provides one combined manual covering installation, commissioning and operation.
  • Check the selected battery and generator with Energian before ordering. A larger nominal battery capacity does not increase the inverter output rating.
  • Package contents depend on the selected option. Solar panels and generators are included only where stated in that option.
  • A basic cable set is included as described for the package. Mounting, site cabling, electrical protection and installation must be agreed for the site.
  • PV string design must meet the inverter voltage, current and power limits; the panel nameplate total is not the continuous AC output.
  • Please ask Energian to confirm the battery capacity, panel count and inverter rating for your chosen configuration before ordering.
