Sunsynk SYNK-12K-SG02LP1 Solar and Dyness Battery System
This package combines the SYNK-12K-SG02LP1 inverter with Dyness low voltage LFP battery storage. Select the required battery and solar option from the available configurations. Generator options are listed where available.
Key Features
- 12kW rated inverter output.
- Low voltage battery storage with battery management communication.
- PV input, battery charging and configurable energy management.

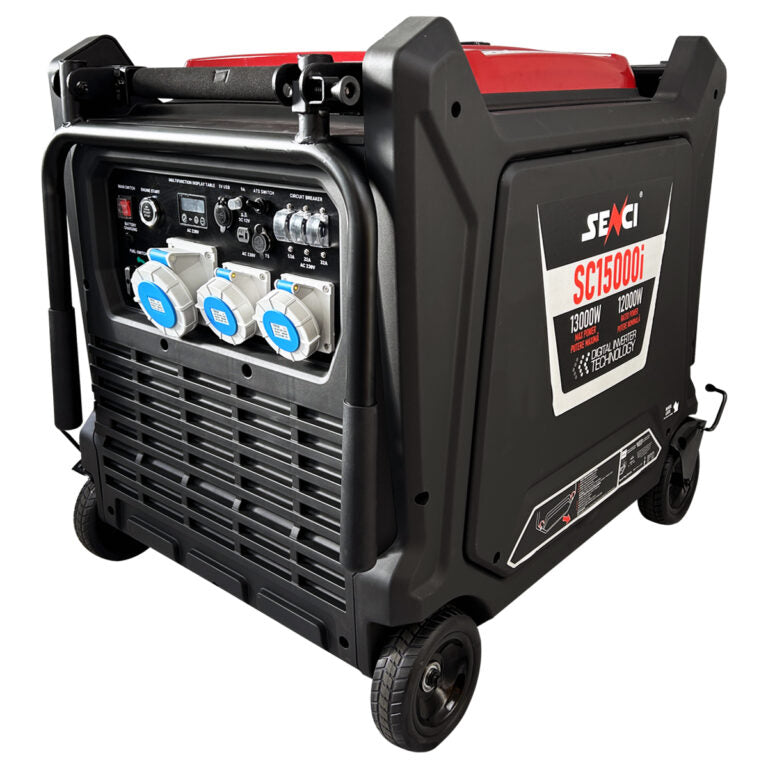

- Dedicated generator connection for an appropriately specified generator.
- Grid-connected, backup and off-grid operating arrangements, subject to installation design.
Where to Use
For homes, workshops and small premises requiring solar and battery storage or an off-grid supply. The chosen battery, PV array and generator must be checked against the inverter limits and the site loads.
Technical Specifications
| Inverter model family | SYNK-12K-SG02LP1 |
| Rated AC output | 12 kW |
| AC connection | Single phase, 220 / 230 V, 50 / 60 Hz |
| Battery voltage range | 40–60 V |
| Maximum PV input voltage | 500 V |
| MPPT voltage range | 150–425 V |
| MPPT trackers | 3 |
| Maximum battery charge / discharge current | 250 A |
| Ingress protection | IP65 |

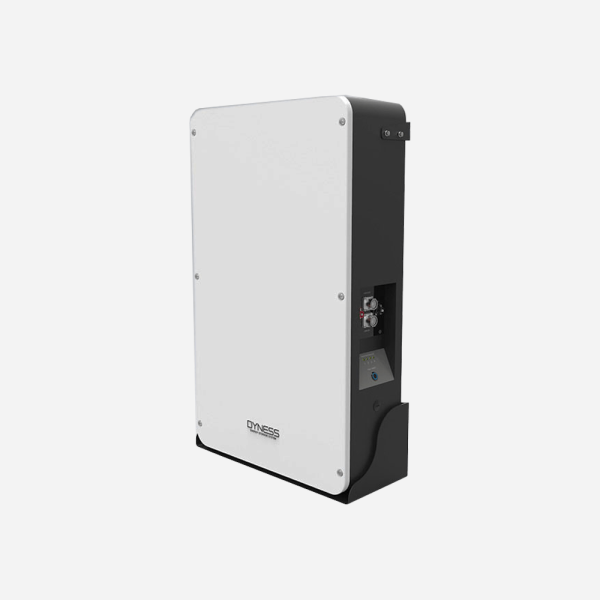

| Battery brand | Dyness |
| Nominal battery capacity | 30.72 kWh |

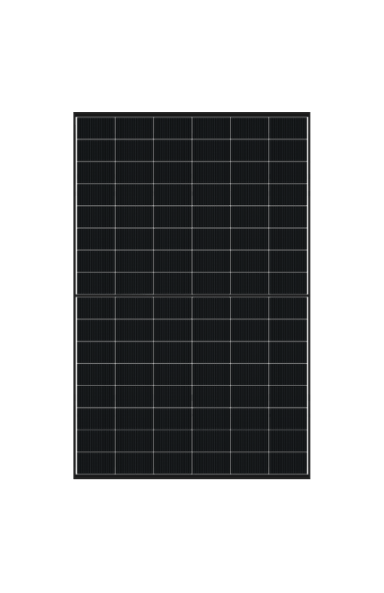

| Solar panel option | 33 × 515W panels (16.995 kWp) and generator option available |
Additional Details
- The manufacturer provides one combined manual covering installation, commissioning and operation.
- Check the selected battery and generator with Energian before ordering. A larger nominal battery capacity does not increase the inverter output rating.
- Package contents depend on the selected option. Solar panels and generators are included only where stated in that option.
- A basic cable set is included as described for the package. Mounting, site cabling, electrical protection and installation must be agreed for the site.
- PV string design must meet the inverter voltage, current and power limits; the panel nameplate total is not the continuous AC output.
UK delivery is normally 4–5 working days, with longer delivery times to the Highlands, islands and Northern Ireland. For product selection or a complete system, call 020 8064 0335 or email info@energian.co.uk.
