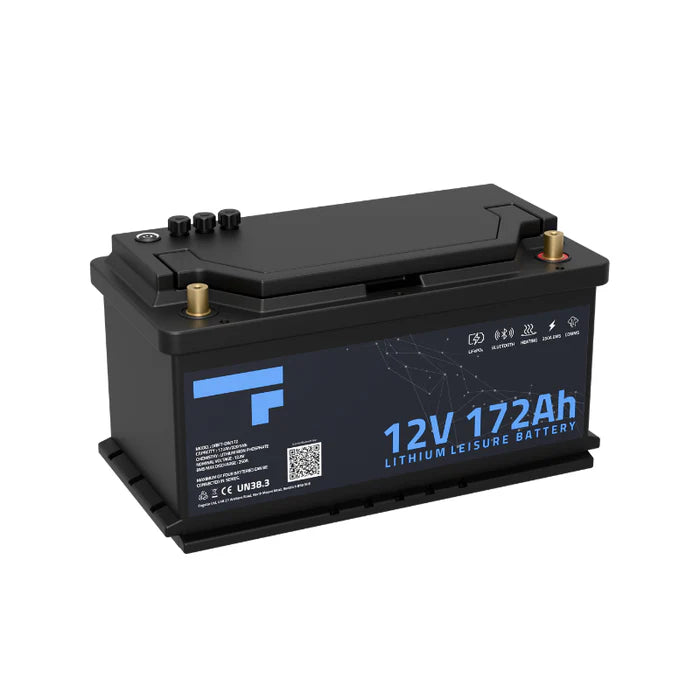

Fogstar Drift 12V 172Ah (H8) DIN Fit Lithium Leisure Battery (LiFePO4)
The Fogstar Drift 12V 172Ah (H8) DIN Fit is built in a standard DIN case format, allowing it to physically replace traditional lead-acid leisure batteries in many installations, provided the charging system is lithium compatible. It delivers modern LiFePO4 performance with integrated protection, active balancing and CAN communication, making it ideal for campervans, motorhomes, boats and off-grid systems.
Key Features
- Designed and supported in the UK by Fogstar
- Long service life rated for 3000 cycles at 80% depth of discharge
- Industry-leading 10-year warranty on Fogstar Drift leisure batteries
- Safe and stable Lithium Iron Phosphate (LiFePO4) cell chemistry
- Supports up to 250A maximum discharge for demanding loads
- Supports up to 172A maximum charge current
- Advanced integrated 250A BMS with temperature, over-current and over-discharge protection
- Bluetooth connectivity with real-time monitoring via the Fogstar Drift App (Android & iOS)
- Built-in battery heater warms cells to 5°C, enabling charging in cold conditions
- Compact and lightweight design for flexible installation
- Expandable system design: up to four batteries in series (48V) and four in parallel
Ideal Applications
Perfect for caravans, campervans, boats, off-grid solar installations and leisure power systems where reliability, compact size and safe lithium technology are essential.
Technical Specifications
| Nominal Capacity | 172Ah |
| Energy | 2202Wh |
| Nominal Voltage | 12.8V |
| Charging Voltage | 14.4V |
| Maximum Discharge Current | 250A |
| Maximum Charge Current | 172A |
| BMS Maximum Discharge | 250A |
| Discharge Cut-Off Voltage | 10V |
| Cycle Life | 3500 cycles @ 80% DoD |
| Dimensions (L × W × H) | 360mm × 168mm × 189mm |
| Weight | 16kg |
What's in the Box
1× Fogstar Drift 172Ah LiFePO4 Battery, M8 terminal bolts and posts, and a quick-start guide.
Warranty & Safety
Fogstar offers a 10-year warranty on this battery for the original purchaser. Built-in safety features include short-circuit, overvoltage, and thermal protection. For optimal use, avoid exposing the battery to extreme environments or disassembling its case.
Documents to download:
Fogstar Drift 12V 172A Datasheet
