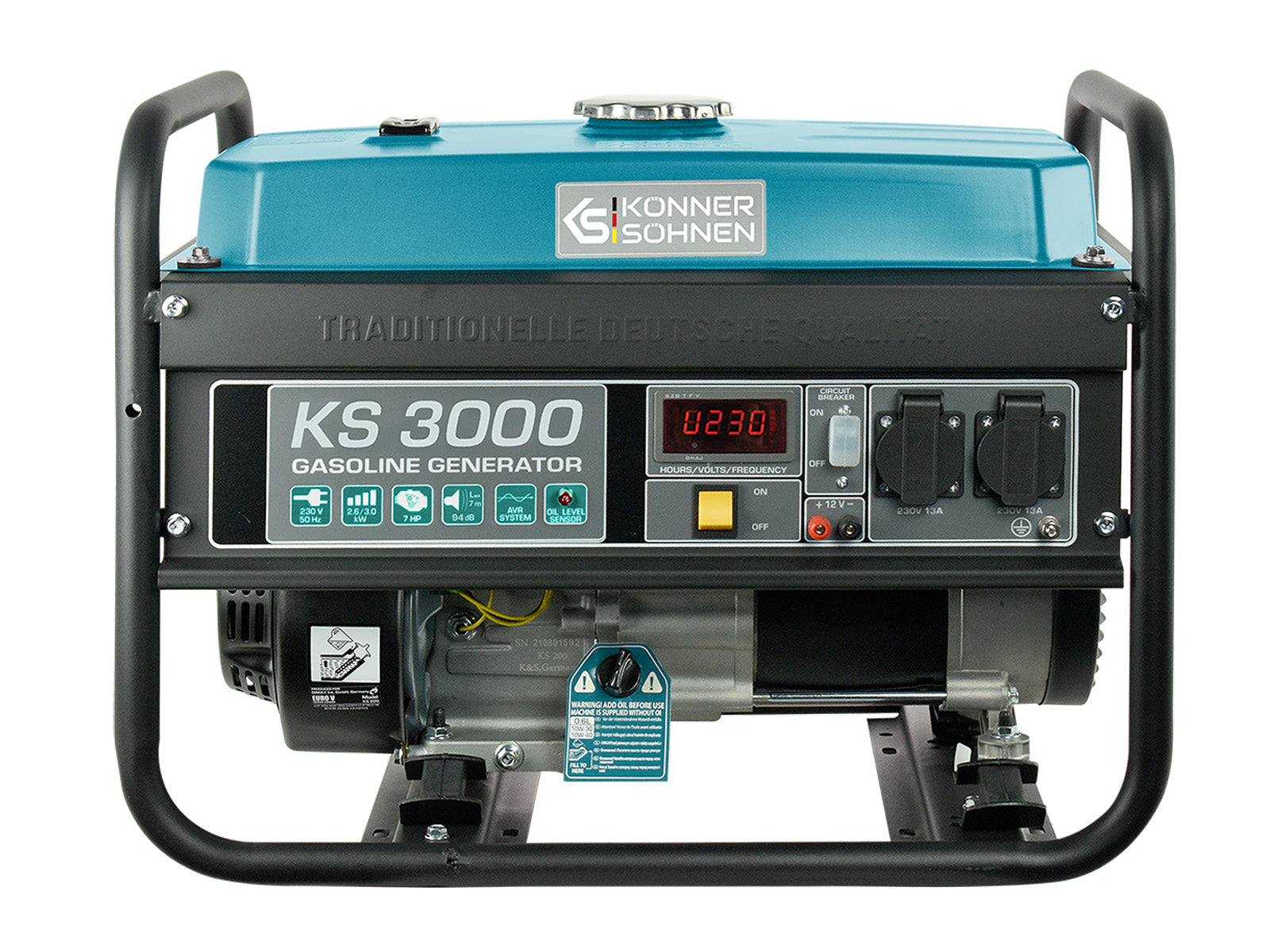

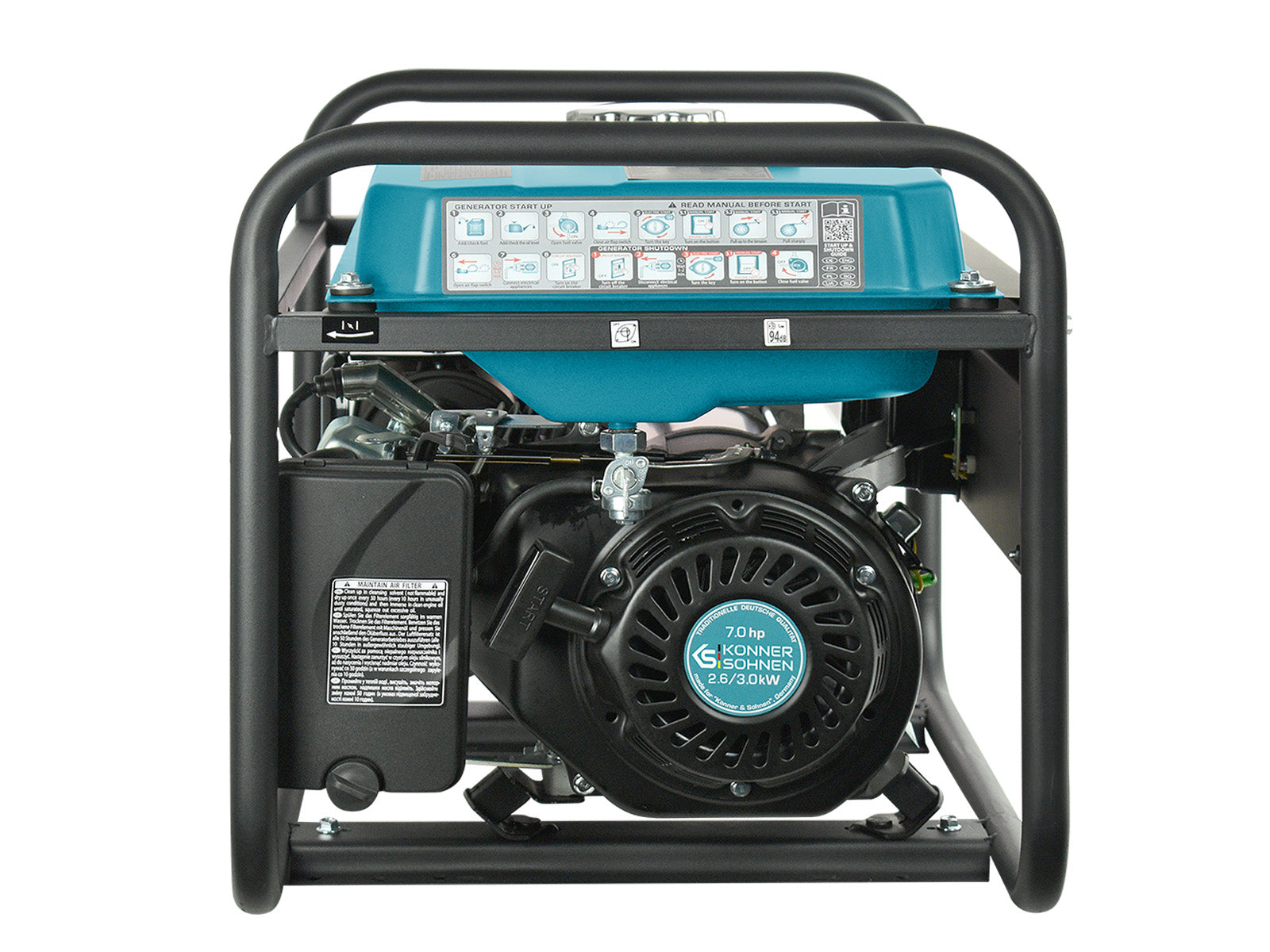

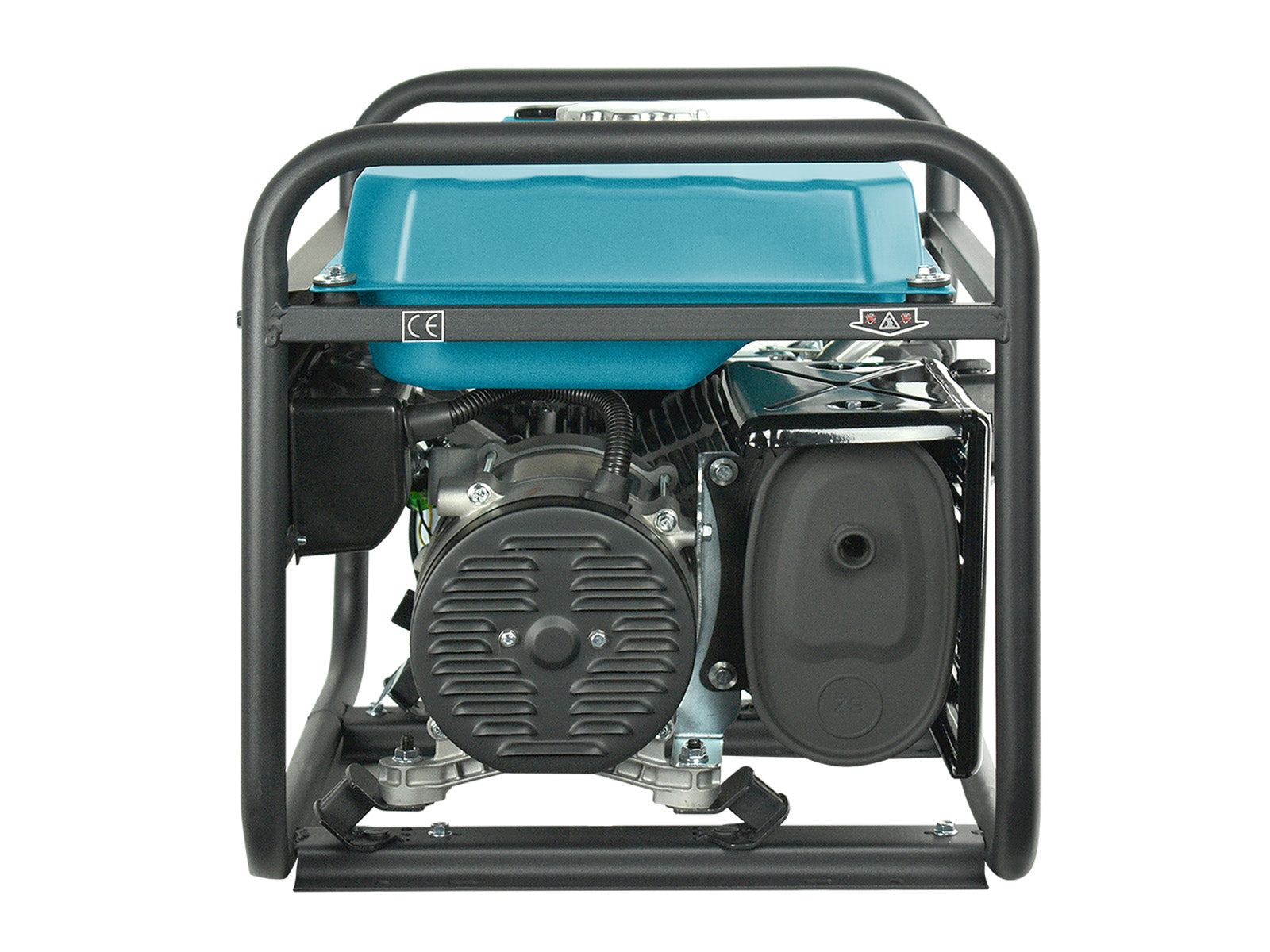

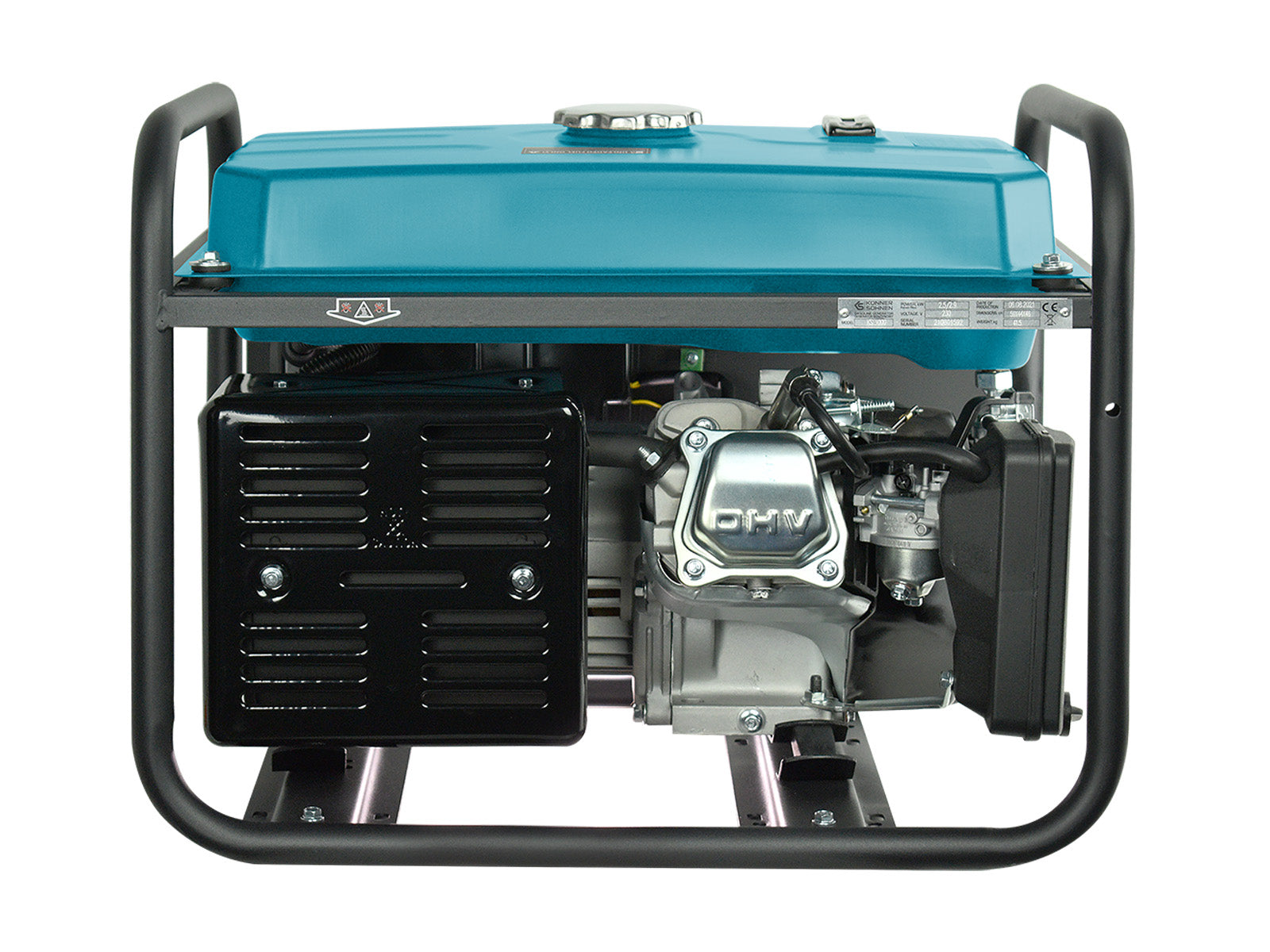

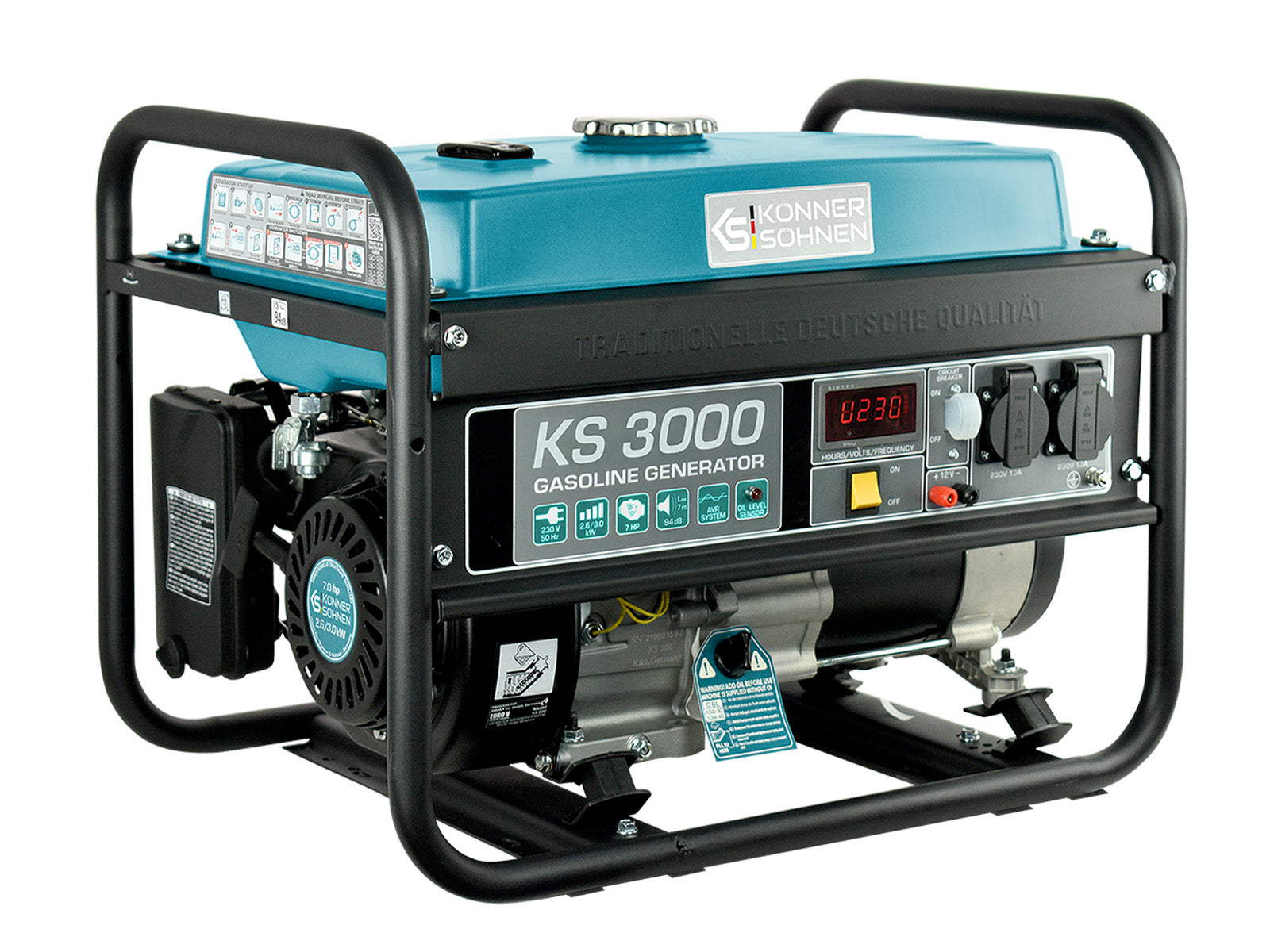

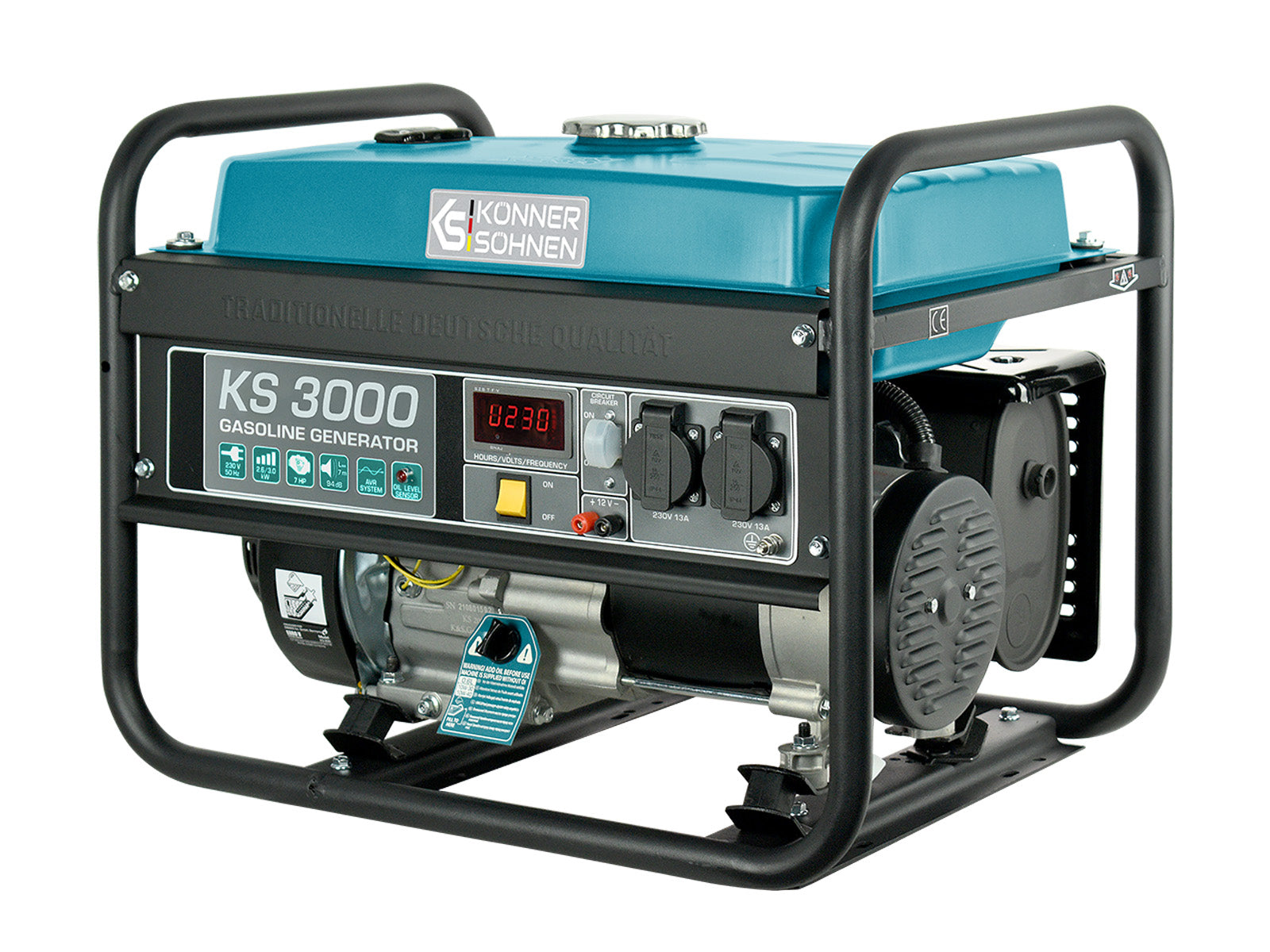

Könner & Söhnen Petrol Generator KS 3000
The Könner & Söhnen KS 3000 is a dependable petrol generator designed for home and small business use. With a maximum output of 3.0 kW and a 15-litre fuel tank providing up to 15 hours of runtime at 50% load, it offers reliable power for essential appliances, small tools, or off-grid locations. A robust K&S engine, automatic voltage regulation (AVR), 100% copper alternator winding, and an easy-to-use control panel ensure safe and stable operation.
Highlights
Könner & Söhnen Engines
Specially developed by German engineers, K&S series engines undergo multi-hour, multi-level testing for high reliability. They comply with the latest EURO V emission standards.
Individual Serial Numbers
Each engine and generator is marked with a unique serial number for full traceability. Engines are certified to meet European and international standards, including EURO V.
Easy Start System
The easy start system allows the engine to be started quickly and with minimal effort. Larger models in the range also feature electric start for added convenience.
100% Copper Alternator
Equipped with a synchronous alternator with 100% copper winding. Copper winding withstands high loads without damage, ensuring long-term durability.
Ergonomic Control Panel
The user-friendly panel includes an LED display showing voltage, frequency, and runtime. It also features a circuit breaker, low oil sensor, sockets, and terminals.
Steel Fuel Tank
Large 15-litre steel tank extends operating time without refuelling. A built-in fuel gauge makes it easy to monitor fuel levels.
Anti-Vibration Dampers
Fitted with rubber feet to reduce vibration, protect floors, and preserve the generator’s frame coating.
Technical Specifications
| Voltage (V) | 230 |
|---|---|
| Max Power (kW) | 3.0 |
| Nominal Power (kW) | 2.6 |
| Frequency (Hz) | 50** |
| Max Current (A) | 13.04 |
| Sockets | 2 × 13A 230V |
| Fuel Tank Volume (L) | 15 |
| Average Runtime @ 50% Load (h)*** | 15 |
| LED Display | Voltage, frequency, working hours |
| Noise Level (Lpa 7m / Lwa) dB | 69 / 94 |
| DC Output (V/A) | 12 / 8.3 |
| Engine Model | KS 210 |
| Engine Type | Petrol, single-cylinder, four-stroke, air-cooled |
| Engine Power (hp / kW) | 7.0 / 5.15 |
| Crankcase Volume (L) | 0.6 |
| Engine Displacement (cm³) | 208 |
| Voltage Regulation | AVR (Automatic Voltage Regulation) |
| Start Type | Manual |
| Alternator Winding | 100% Copper |
| Dimensions (L×W×H, mm) | 580 × 430 × 440 |
| Packed Dimensions (mm) | 610 × 455 × 485 |
| Net Weight (kg) | 41.5 |
| Gross Weight (kg) | 43.6 |
| Protection Class | IP23M |
Note: Assembled in PRC.
** Frequency may vary briefly between 49–54 Hz during normal operation. This is within tolerance.
*** Fuel consumption depends on load, fuel quality, temperature, altitude, and generator condition.
Support Documents
Download: Petrol Generators K&S 2023 Brochure (PDF)
Download: K&S Catalogue 2023 – Generators & Garden Equipment (PDF)
