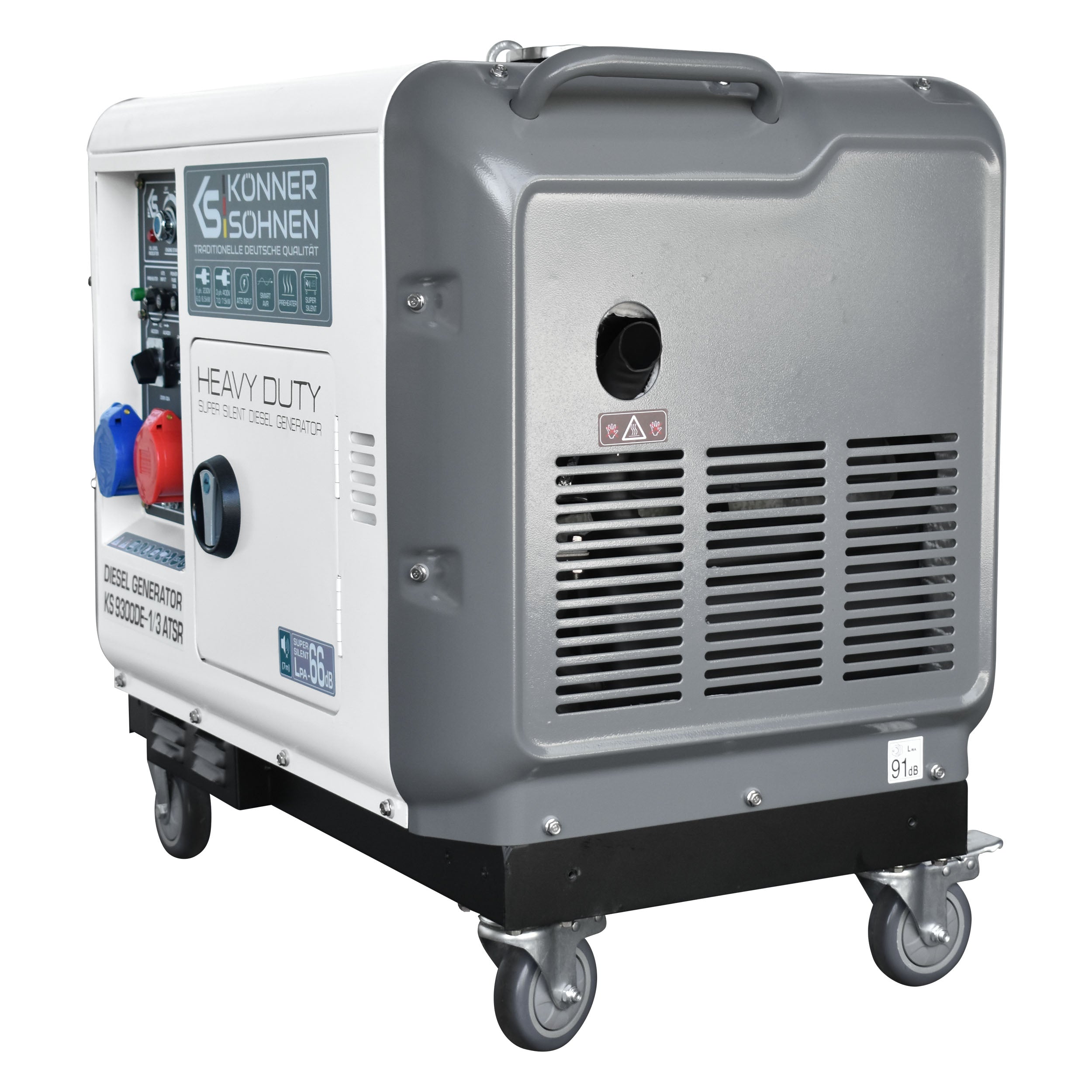

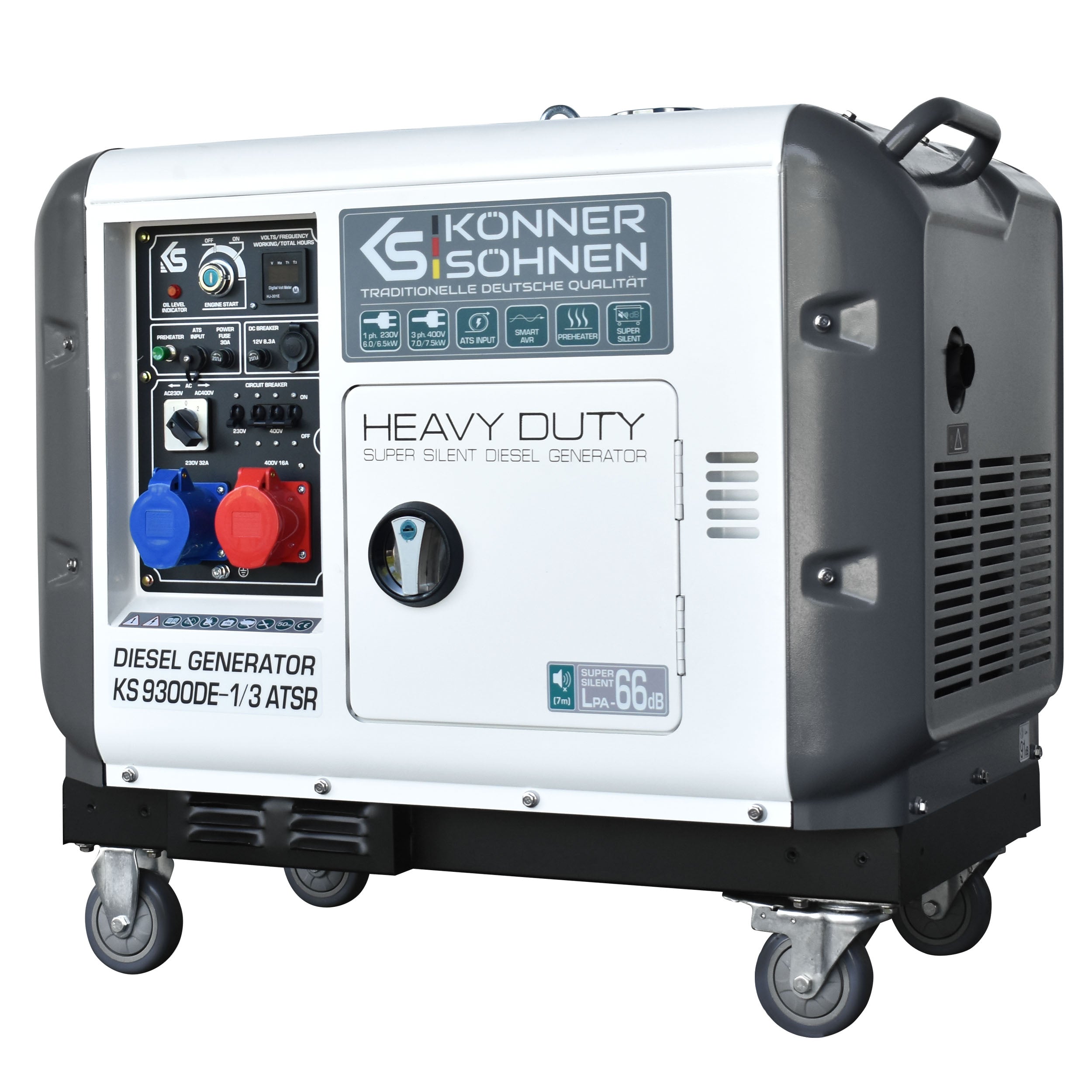

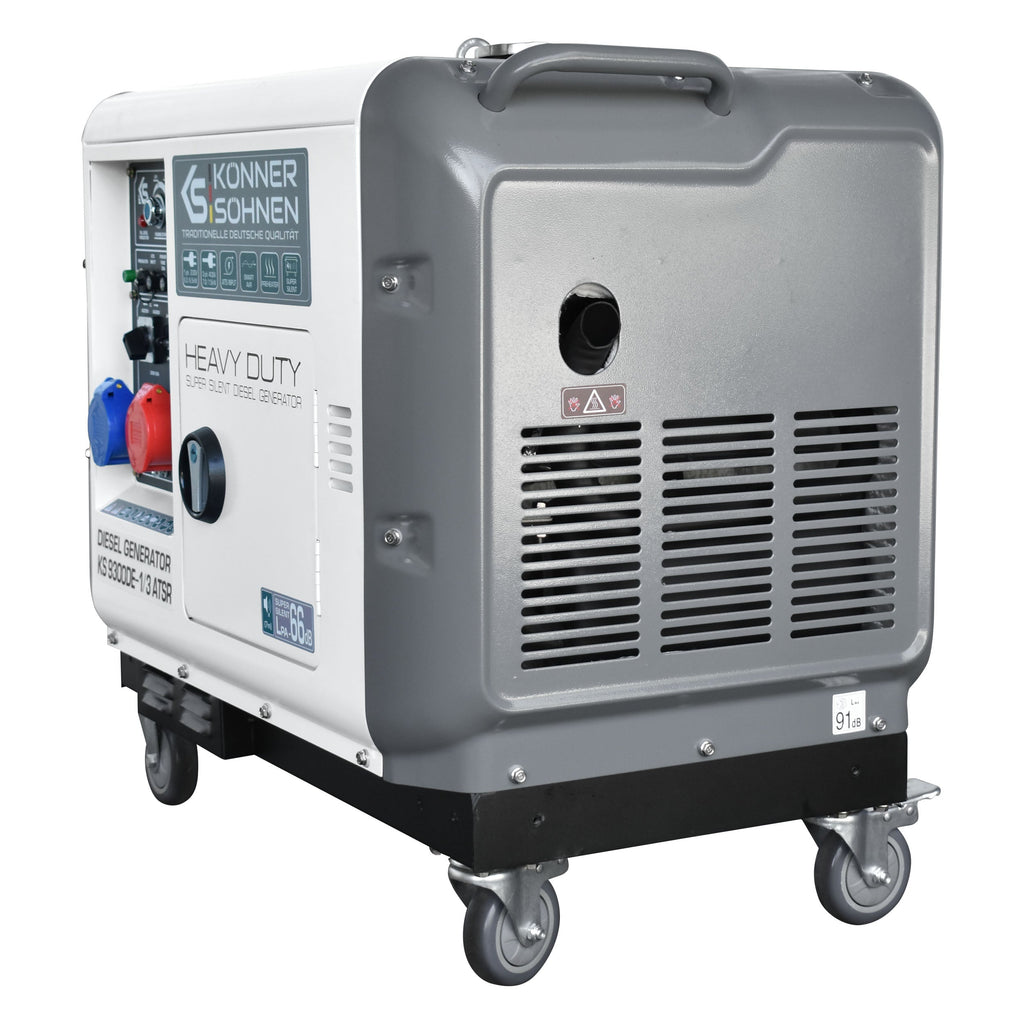

Könner & Söhnen HEAVY DUTY Diesel Generator KS 9300DE-1/3 ATSR
A robust backup power solution with a soundproof, anti-vandal enclosure — ideal for small shops, cafés, restaurants and private homes. The KS 9300DE-1/3 ATSR offers single-phase 230 V or three-phase 400 V operation, ATS connectivity and winter-ready pre-start heating for dependable performance during outages.
Features
HEAVY DUTY series KS 9300DE-1/3 ATSR diesel generator of the German “Könner & Söhnen” brand is an excellent choice as a backup power source. With a protective enclosure, this model is ideal for small stores, cafés, and restaurants and is especially popular among private homeowners, where an emergency power source is a must due to frequent power outages.
Robust, High Quality Engines
Engines for diesel and gasoline generators are manufactured under licence from DIMAX Int. GmbH and carry the K&S logo. In all models, engine headroom relative to the alternator delivers the stated voltage and stability across the load range. Each engine is endurance-tested and inspected. Every engine and generator has an individual serial number for production and service traceability. The engines meet European quality standards, including modern EURO V environmental requirements.
VTS System
The unique VTS phase-switching system lets one generator work in single-phase (230 V) or three-phase (400 V) mode with minimal power loss.
Automatic Transfer Switch
A 6-pin connector allows an external ATS unit to automatically start/stop the generator and maintain the battery charge in standby.
Increased Engine Life
HEAVY DUTY diesel generators are designed for extended service. Engine resource exceeds 3,000 working hours (confirmed by multi-hour, multi-level tests and warranty). Proper maintenance is required to sustain performance.
User-Friendly Ergonomic Control Panel
Convenient layout with modern LED display (voltage, frequency, hour meter), overload and short-circuit protection, low oil level indicator, sockets, grounding bolt and terminals for straightforward operation.
Pre-Start Heating (Preheater)
HEAVY DUTY series models feature pre-start heating for easy winter starting.
Soundproof Anti-Vandal Enclosure
The enclosure improves heat distribution inside the generator and helps extend service life while reducing noise.
Transport Kit
The casing includes a transport kit with four wheels and two handles for easy handling.
Technical Specifications
| Voltage | 230/400 |
|---|---|
| Max/Nominal power (230V), kW | 6.5/6.0 |
| Max/Nominal power (400V), kW | 7.5/7.0 |
| Frequency, Hz | 50 |
| Current (max.) 230/400 V, A | 28.26/13.54 |
| Outlets | 1 × CEE 230 V 32 A, 1 × CEE 400 V 16 A |
| Avg. working time (power 50%), h*** | 8.3 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 66/91 |
| Power output DC, V/A | 12/8.3 |
| Engine model | KS 520HD-V |
| Engine type | Diesel powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 18.0/13.24 |
| Preheater | + |
| Fuel tank volume, L | 15 |
| Crankcase volume, L | 1.65 |
| Engine cylinder volume, cm³ | 498 |
| Power output controller | Intelligent voltage stabilisation system AVR |
| Engine start | Electric |
| Accumulator, A·h | 30 |
| Output for ATS | + |
| Net dimensions (L×W×H), mm | 920×580×860 |
| Gross dimensions (L×W×H), mm | 940×600×880 |
| Net weight, kg | 168 |
| Gross weight, kg | 180 |
| Protection class | IP23M |
| EAN code | 4260405365210 |
Support Documents
